Cisco Outbound Connector Kubernetes Deployment Guide

The purpose of this document is to provide deployment steps for Cisco Outbound connector of Expertflow CX solution.

Run All Commands in cim-solution/kubernetes Directory

Before you begin, verify

Redis Setup

  • After installing Redis, enable and start it:

    CODE
    systemctl enable redis
    systemctl enable redis-server
    systemctl start redis
    systemctl start redis-server
  • Run the following command, but replace PASSWORD with your desired Redis password:

    CODE
    sed -i '/# requirepass/c\requirepass PASSWORD' /etc/redis/redis.conf
  • Run the following commands:

    CODE
    sed -i '/protected-mode/c\protected-mode no' /etc/redis/redis.conf
    sed -i '/bind 127.0.0.1 -::1/c\# bind 127.0.0.1 -::1' /etc/redis/redis.conf
    sed -i '/bind 127.0.0.1 ::1/c\# bind 127.0.0.1 ::1' /etc/redis/redis.conf
  • Restart Redis:

    CODE
    systemctl restart redis
    systemctl restart redis-server

Create Namespace

Create the namespace using the command.

BASH
kubectl create namespace cisco-voice

Image Pull secret

  1. For cisco-voice namespace, use the following command:

BASH
kubectl apply -f pre-deployment/registryCredits/ef-imagePullSecret-cisco-voice.yaml

Update the FQDN

Decide the FQDN to be used in your solution and change the <FQDN> in the below-given command to your actual FQDN

BASH
sed -i 's/devops[0-9]*.ef.com/<FQDN>/g' cisco-voice/Ingresses/nginx/* cisco-voice/ConfigMaps/*

Set ConfigMap fields

  1. Open the Cisco Outbound Connector ConfigMap with

    CODE
    vi cisco-voice/ConfigMaps/ef-cisco-outbound-connector-cm.yml

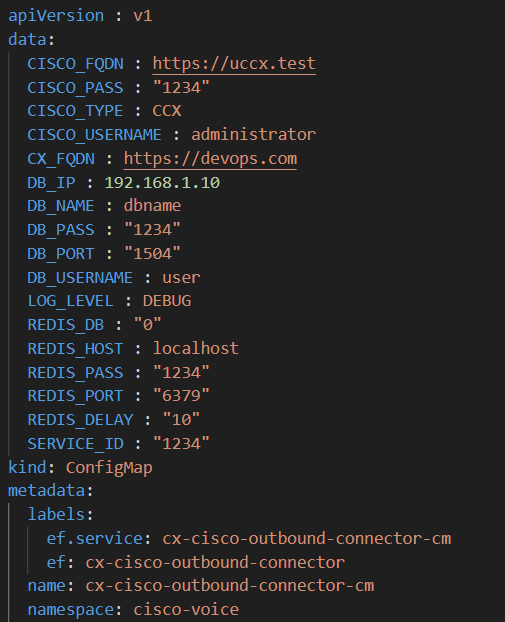

  2. Change the values as follows:

    1. CISCO_FQDN: The address of the Cisco deployment.

    2. CISCO_USERNAME: The admin username of the Cisco deployment.

    3. CISCO_PASS: The admin password of the Cisco deployment.

    4. CISCO_TYPE: CCX or CCE, depending on the Cisco deployment.

    5. CX_FQDN: The address of EF CX. https://FQDN

    6. DB_IP: The server IP address of the Cisco database.

    7. DB_NAME: The name of the Cisco database where the dialinglist(CCX) or Dialer_Detail(CCE) tables are located.

    8. DB_PASS: The password of the Cisco database.

    9. DB_PORT: The port of the Cisco database. For CCX the default is 1504. For CCE the default is 1433.

    10. DB_USERNAME: The username of the Cisco database.

    11. LOG_LEVEL: The amount of detail in the logs. Default is INFO, and for more detailed logs the value should be DEBUG.

    12. REDIS_DB: The index of the Redis cache where call IDs will be stored. Can be a number from 0 through 16.

    13. REDIS_HOST: The server IP address of the Redis cache.

    14. REDIS_PASS: The password of the Redis cache.

    15. REDIS_PORT: The port of the Redis cache. The default is 6379.

    16. REDIS_DELAY: The time in minutes the connector will wait between checking call results for the call IDs stored in the Redis cache.

    17. SERVICE_ID: Service Identifier for the connector set in the EF CX channel settings.

  3. Apply the configurations using

    CODE
    kubectl apply -f cisco-voice/ConfigMaps/ef-cisco-outbound-connector-cm.yml

Start the Cisco Outbound Connector service

Create a service for the Cisco Outbound Connector:

CODE
kubectl apply -f cisco-voice/Services/ef-cisco-outbound-connector-service.yml

Services must be created before Deployments

Create the Cisco Outbound Connector Deployment

Apply the Deployment manifest for the Cisco Outbound Connector:

CODE
kubectl apply -f cisco-voice/Deployments/ef-cisco-outbound-connector-deployment.yaml

Set the Cisco Outbound Connector Ingress

You need to apply the Ingress route for the Cisco Outbound Connector:

BASH
kubectl apply -f cisco-voice/Ingresses/nginx/ef-cisco-outbound-connector-ingress.yml
