SMPP Configuration Guide

Unified Admin Configurations

Channel Manager Configs

Channel Type

• SMPP channel type must be already created as part of bootstrapping of the Channels Connector.

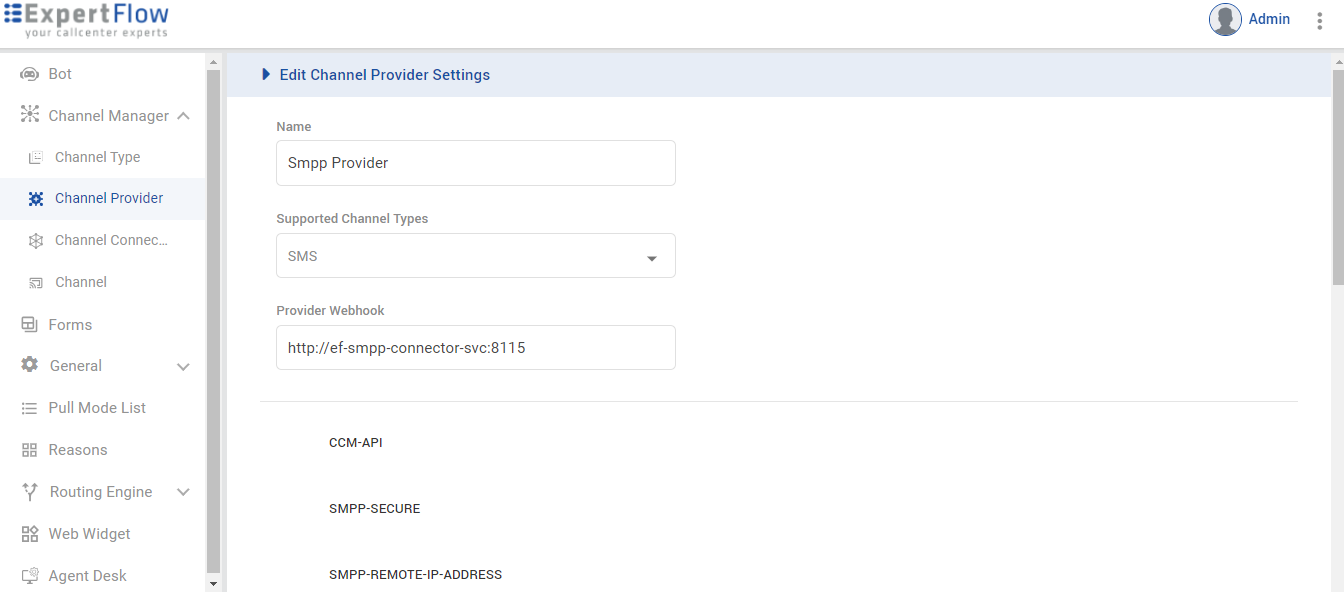

Channel Provider

It's recommended to use the service name of the component in the "Channel Provider -> Provider's Webhook" field. However, FQDN can also be used with some additional custom configurations.

• The name can be any. E.g. SMPP Provider.

• Supported Channel Types will be selected as "SMS" (If you want to setup any one only, then select any one).

• Provide the service name of SMS Connector in the Provider Webhook field as http://{SERVICE-NAME}:{SERVICE-PORT}. Replace the {SERVICE-NAME} and {SERVICE-PORT} in the URL with the component's k3s-based service name and port (It can be fetched using k get svc -n expertflow) and will be written as http://ef-smpp-connector-svc:8115

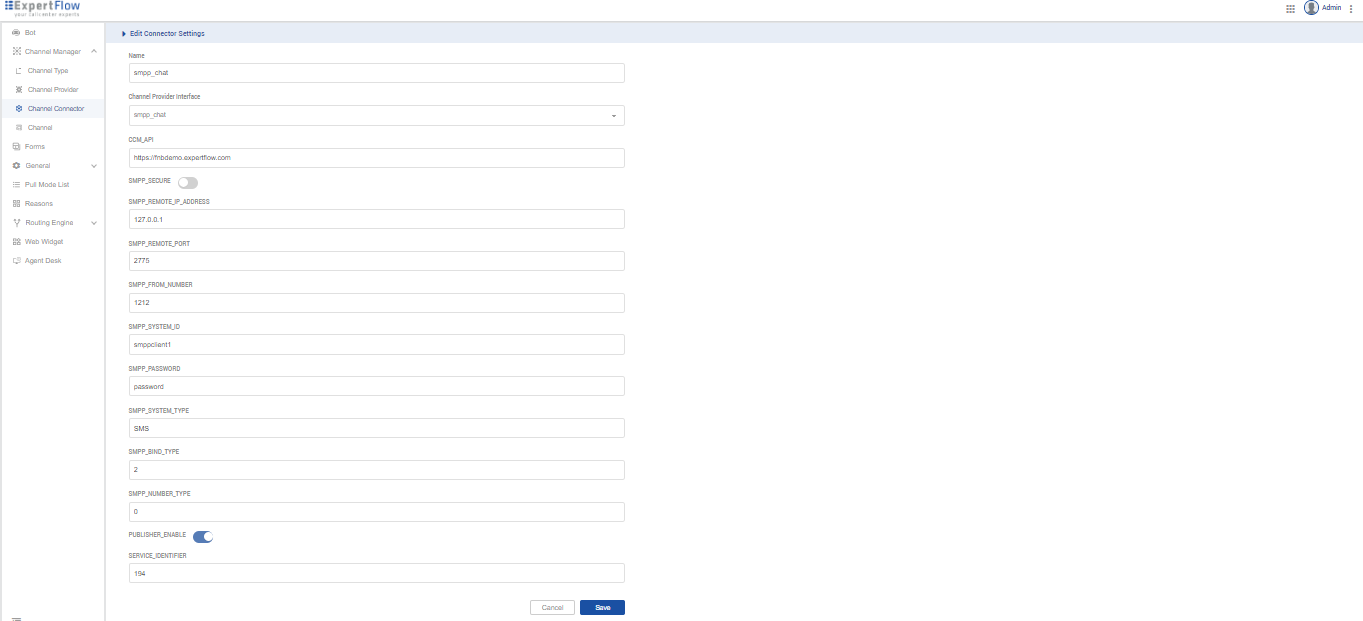

Channel Connector

• The name can be any. E.g: SMPP Connector

• The Channel Provider Interface must be the same as created in the previous step.

• Provide the values




Channel

• Here we will be creating channels. If we want to set up SMS, we will create a channel under the "SMS" channel type.

• The name of the channel can be any. E.g: SMPP  SMS Channel

• Service identifier:


  • For SMS: it will be the active phone number we have bind for cim.

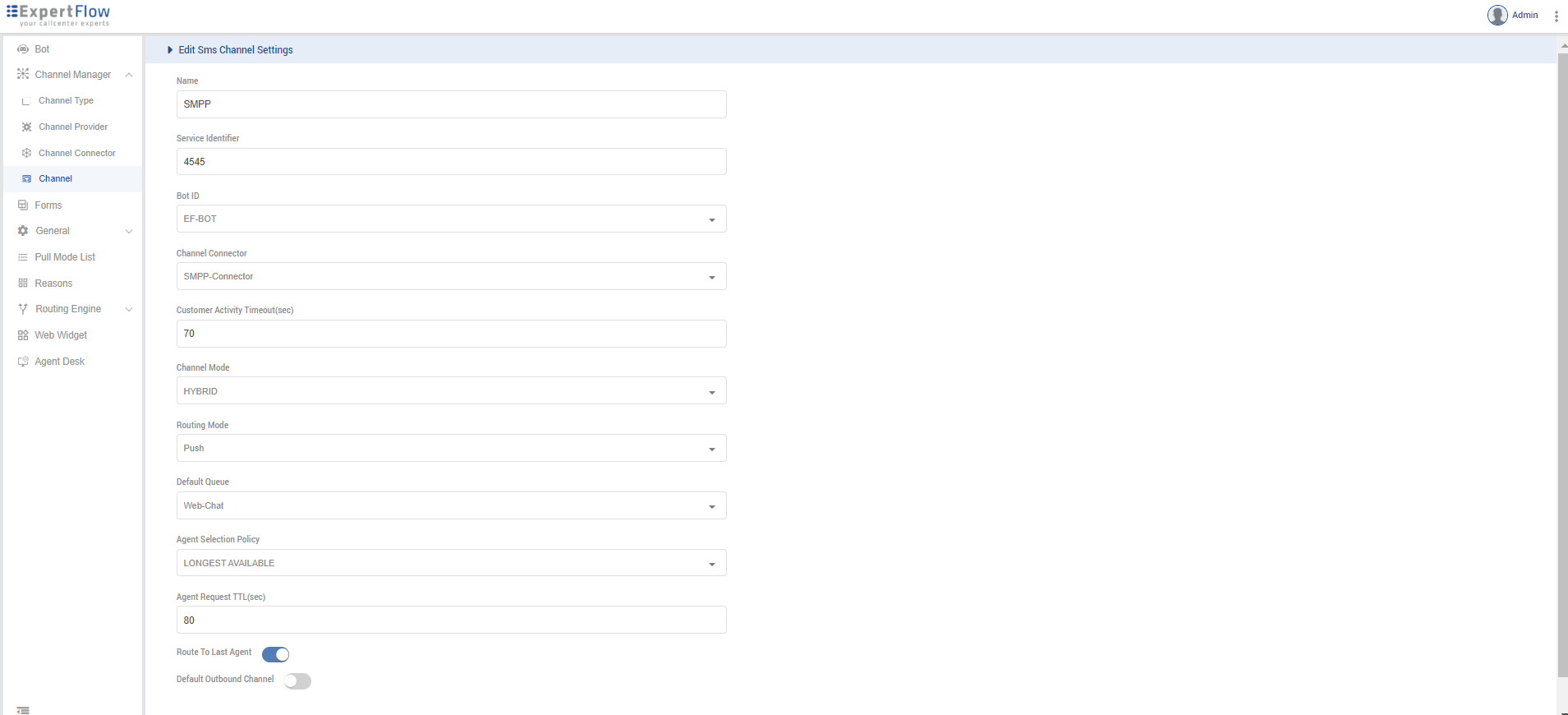

• The rest of the fields are the same as all other connectors. The sample is shown in the image below.

Service Identifier

You need to add a service identifier in the configMap also because on the first call of the API to get Unified Admin configuration we need to add API to get configs

Configuration Variables
