Agent Capabilities

Microsoft Dynamics Web-based CTI Connector enables an agent to perform multiple actions to handle customer queries.

Note: For CIF 2.0 the toolbar appears on the left hand side of the CRM.

Agent State Controls

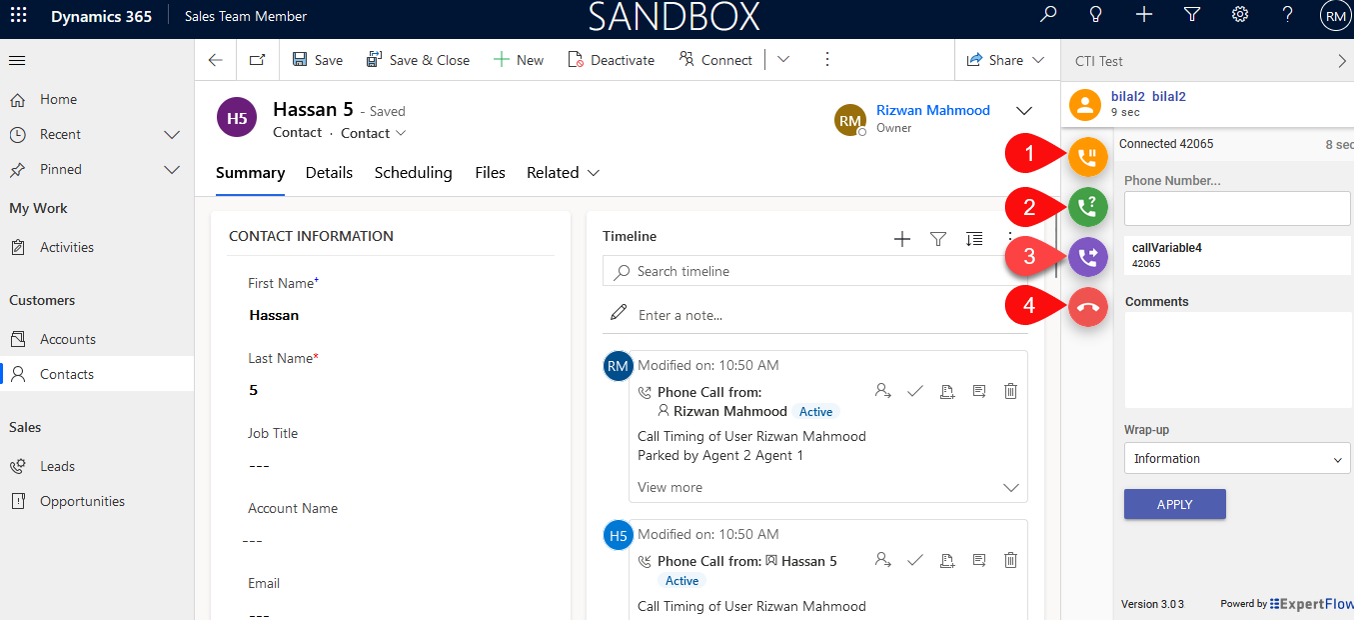

The embedded CTI toolbar within Microsoft Unified Service Desk allows agents to manage their states. The following state controls are supported:

State Controls	Description	Look and Feel

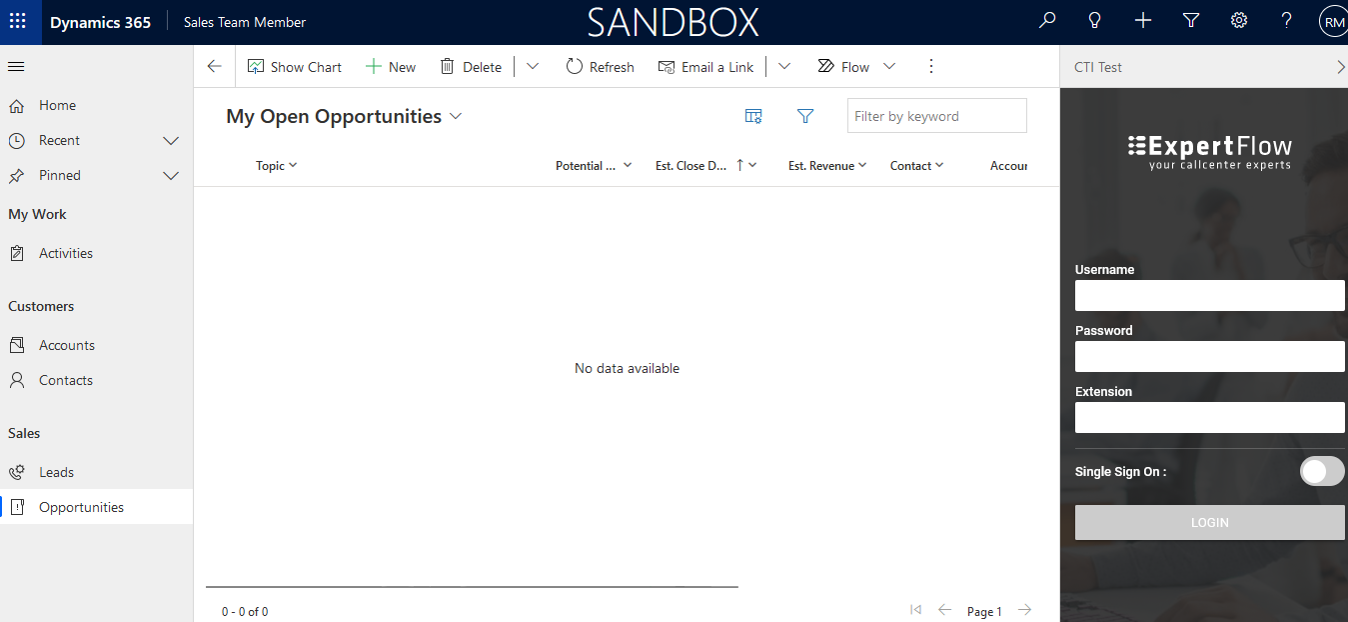

Login	Agent can be configured to auto-login to Cisco Finesse upon log in to MS CRM. The agent can also login manually to Cisco after logging into the MS CRM Web Interface.	Manual Login
Logout	The agent has to explicitly logout from the CTI toolbar by providing the Logout Reason Code.	Logout with Reason Code

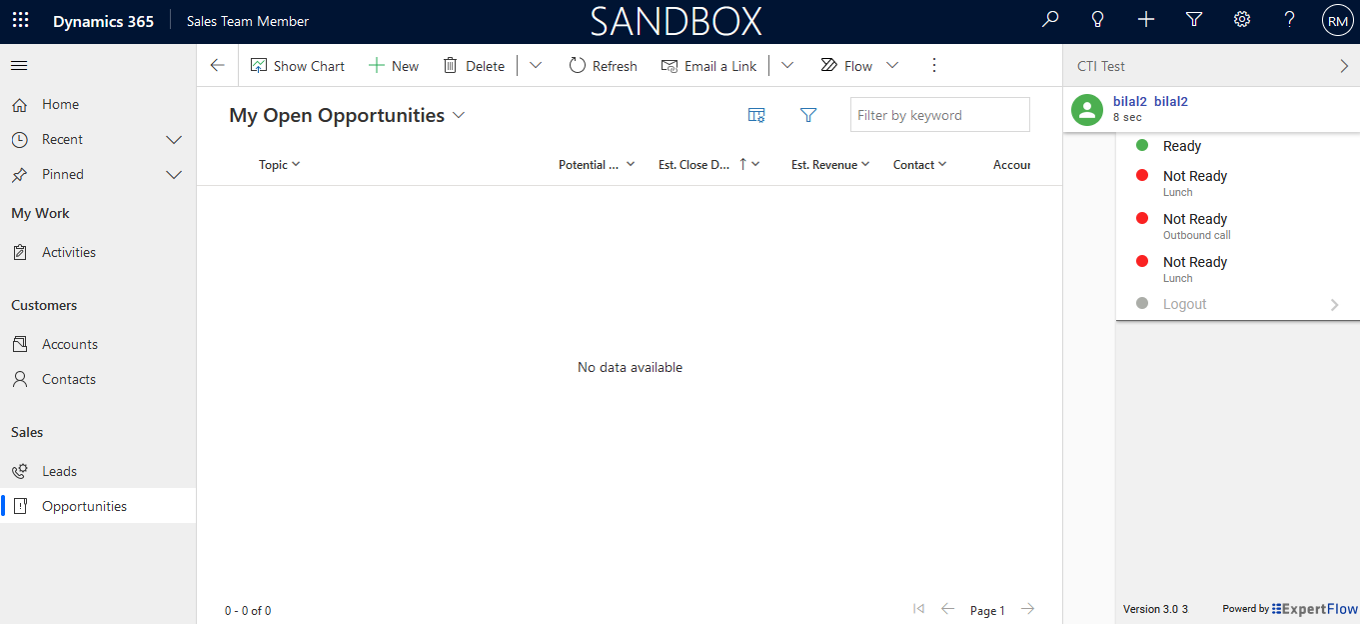

Ready/Not Ready	The agent may change the availability status to “Ready” to receive contact center calls or may change it to any of the “Not Ready” states for a break.	Ready/Not Ready State

It is mandatory to have at least one custom reason code for Not Ready and one custom reasons code for Logout

Pops up Caller Information on Call Arrival

This feature enables the agent to see the caller's information as soon as the call arrives. If multiple contacts match, the MS CRM Web Page connector shows all those contacts for agents to choose from. Search can be made as follows

Search by Multiple fields

The customer’s ANI is searched against multiple Phone fields which can be configured on the CRM side against the respective (Leads, Accounts, Contacts) entity.

Search in Leads, Accounts, and Contacts

An incoming call phone number is searched in Leads, Accounts, and Contacts. First, second, and third priorities can be set. For example, if the priority is Leads -> Accounts -> Contacts, It will first search into the ‘Leads’ entity, and the resulting record will pop up. If the customer record is not found in ‘Leads’ then it will search into the ‘Accounts’ entity and then finally into contacts, in case no record is found in the accounts.

For Online CRM in the Contacts/Lead entity, a search can be made for both the 'Phone' and 'Business Phone fields', and in the Accounts entity, the search can be in the 'Phone field' only. These fields are not configurable.

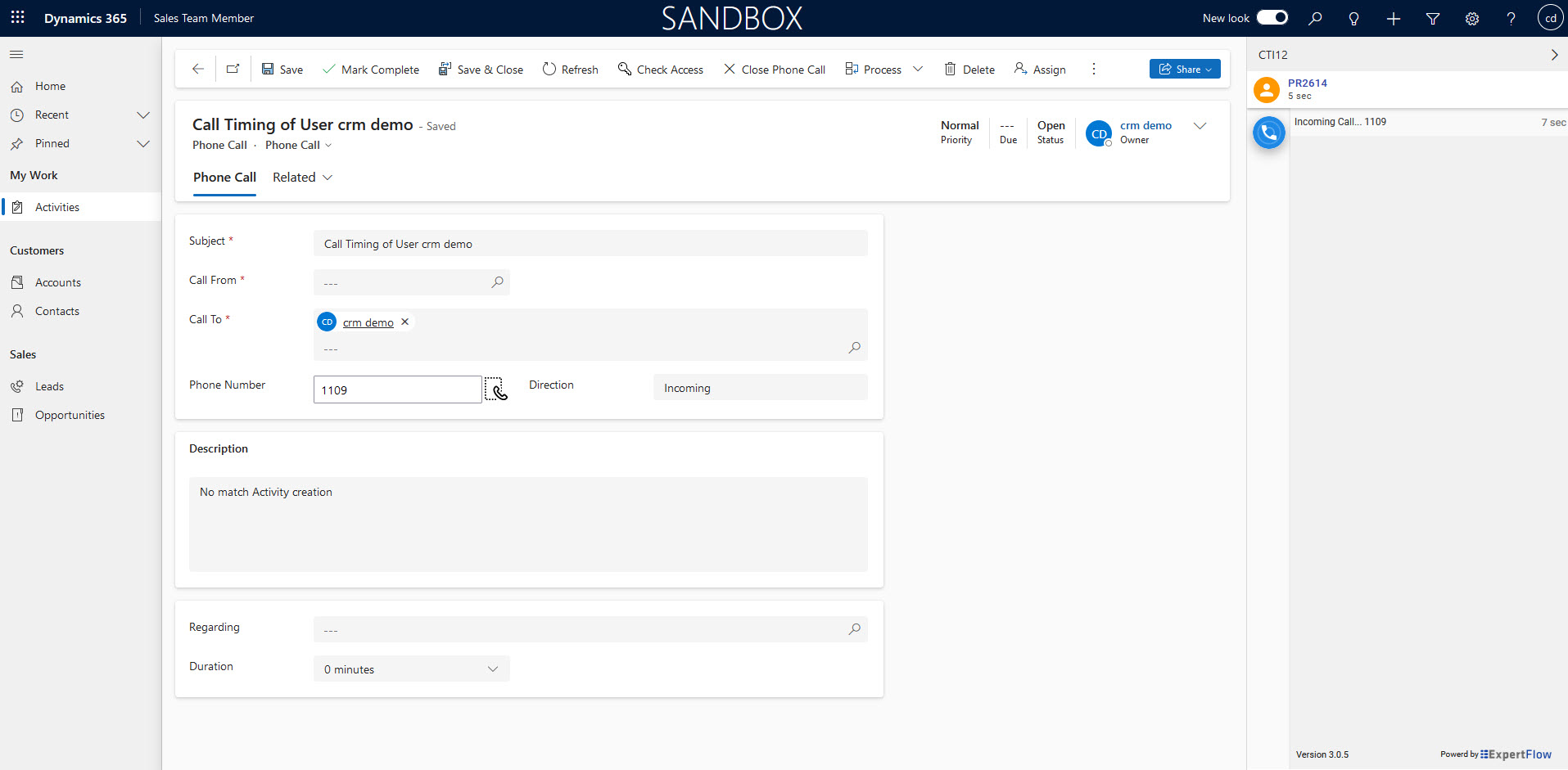

No ANI Match

In the case, the customer record is not available either in the leads, accounts, or contacts table, the "New Leads" page will be popped up in front of an agent (configurable). We can also configure our application to create an activity in the case when the customer number doesn't matches any record in the CRM as well.

Note: If we configure to create a new account/contact or lead then the phone call activity is not logged in this case.

Multiple Matches

In the case of multiple matches, a list of all the matched records of the respective entity will be shown in the drop-down list in alphabetical order. The first record in the list will automatically pop up, however, the agent can also manually select the customer record from the dropdown list and that customer profile will pop up.

In the case of a Consult call with Agent B, the system will do the screen pop based on customer ANI.

Call Attached Data

Call-attached data or call variables are passed on to a Unified Service Desk from Cisco via Expertflow Connector and are displayed to the contact center agent. The agent can customize which call variables to be displayed and what name should be shown for any particular call variable.

Upon refreshing the browser at any time while logging on to CTI Connector, will reconnect and resume the current state of the call.

Outbound Campaigns

Supports all Cisco campaigns
