MS Dynamics CRM Configurations for Cisco Contact Center Agents

MS CRM Dynamics 365/On-Premise

October 10, 2017 (version 1.1)

To allow MS Dynamics CRM user work as a Cisco contact center agent, you need to add/configure the CRM Organization users with CTI login credentials as configured in the Cisco contact center. The configured CRM users will then automatically be able to login to the Cisco contact center when logged in to Unified Service Desk.

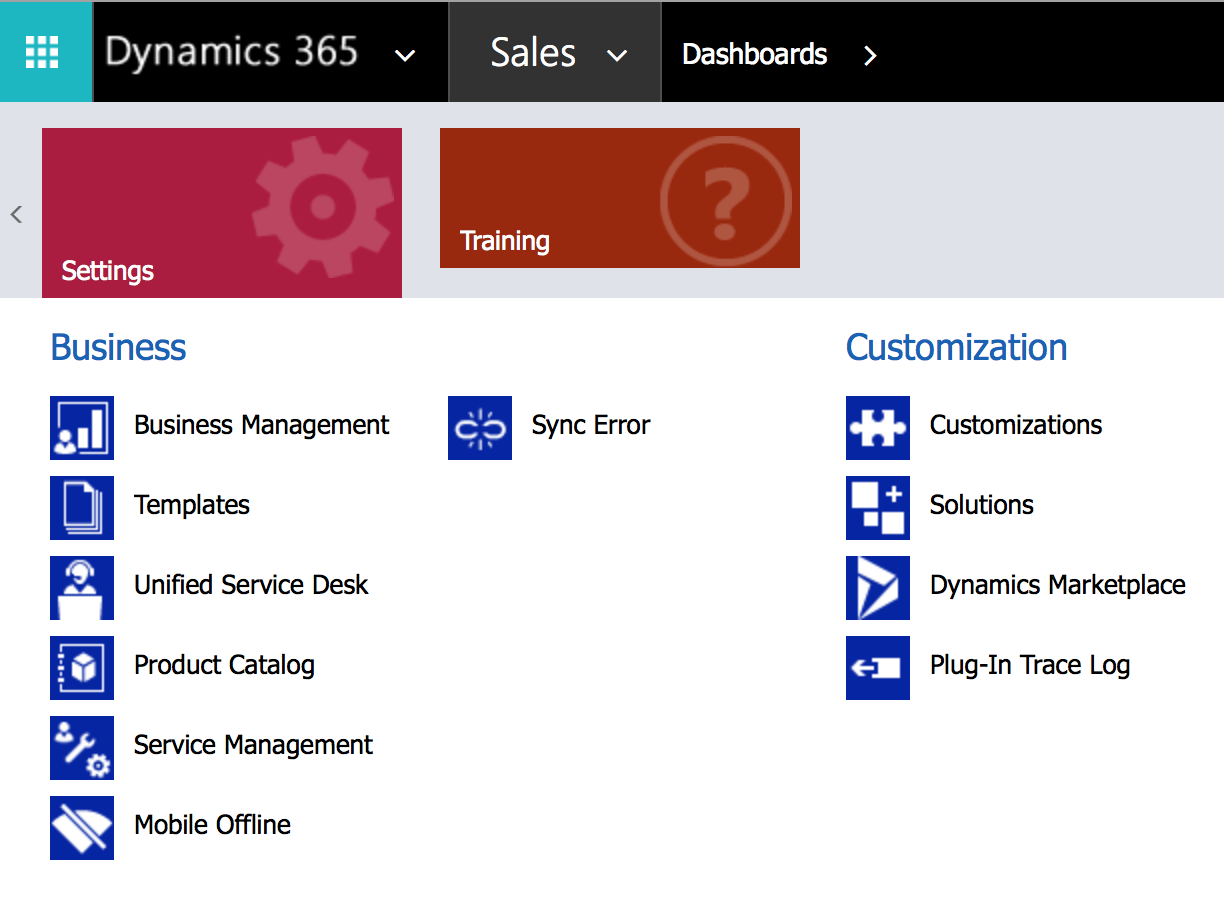

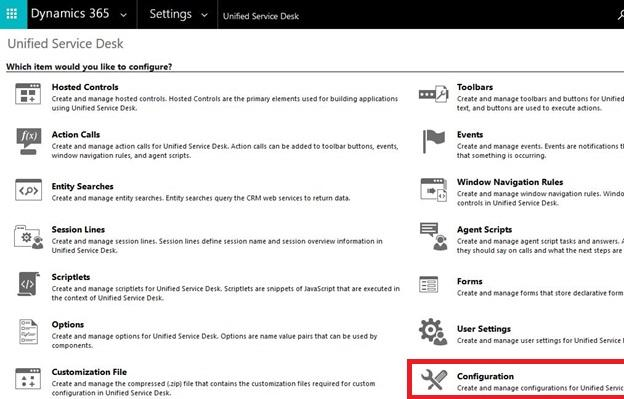

  1. Login to CRM using admin credentials in the CRM Organization. This should be the same organization selected for “Organization CTI Configurations”. Open the organization Settings and select “Unified Service Desk”.




  2. From the list below, click on ‘Configuration’



  3. In the Active configurations, you will see the configuration named as Expertflow CTI Configuration. Expertflow CTI configuration is the Configuration deployed by the “Organization CTI Configurations installer” i-e Package Deployer.

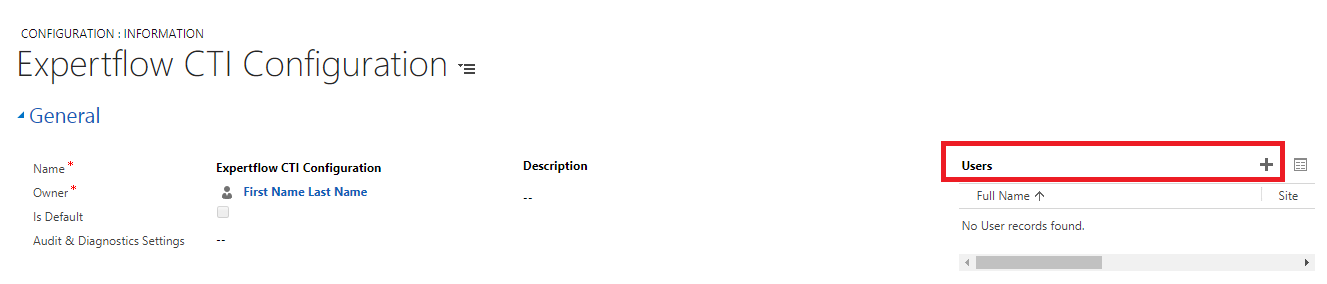

  4. Click Expertflow CTI Configuration >> users.Add the users to the configuration.



Assign Roles to users

Select the following roles for CRM users selected for Expertflow CTI Configuration. These are mandatory USD roles for the CRM user to work as a Cisco CTI agent.

  • UII Administrator

  • UII Agent

  • USD Administrator

  • USD Agent

  • Customer Service Representative

Assign Additional Permissions to Roles

USD Agent

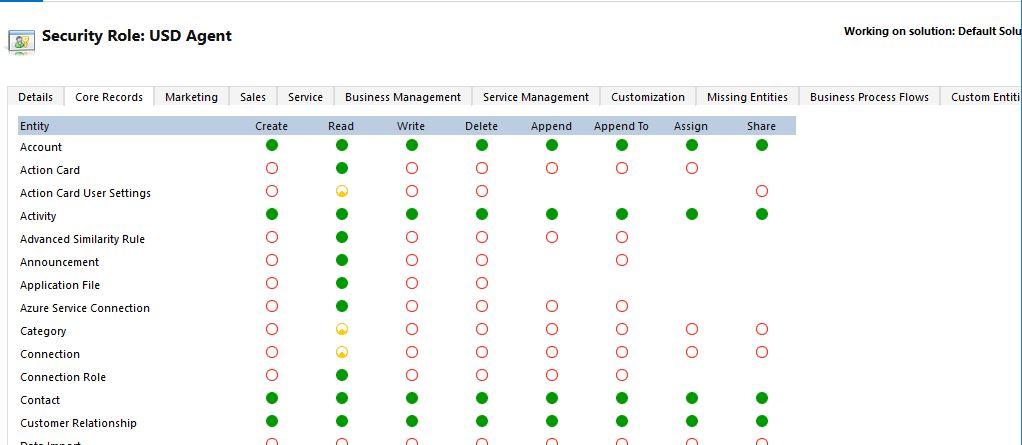

Core Records

Give permissions to the selected role according to the following screenshots.

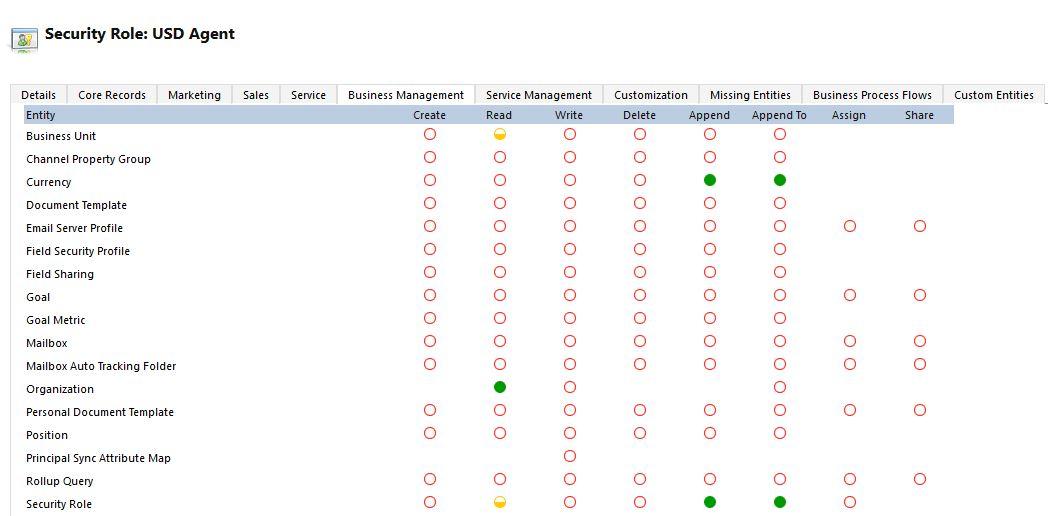

Business Management

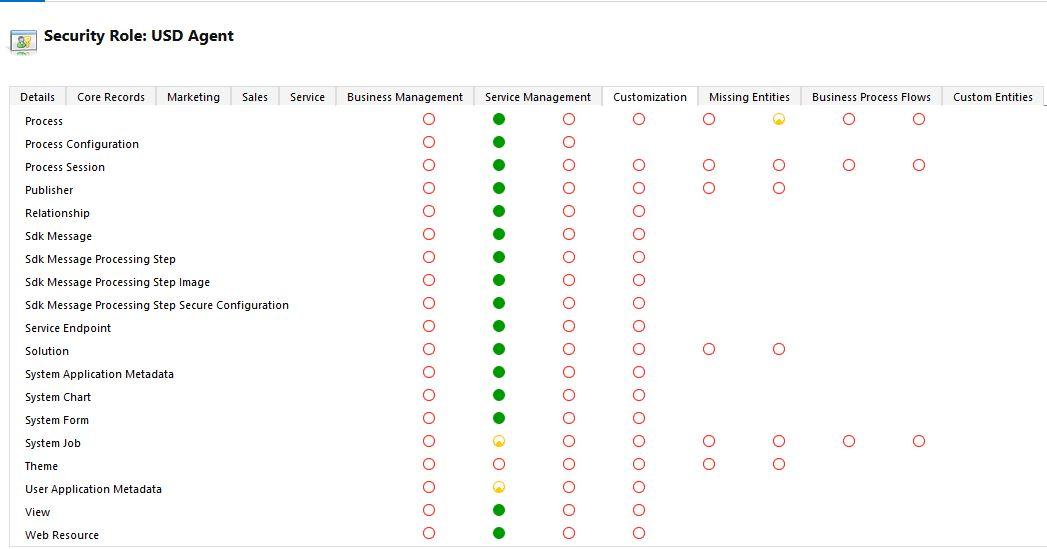

Customization

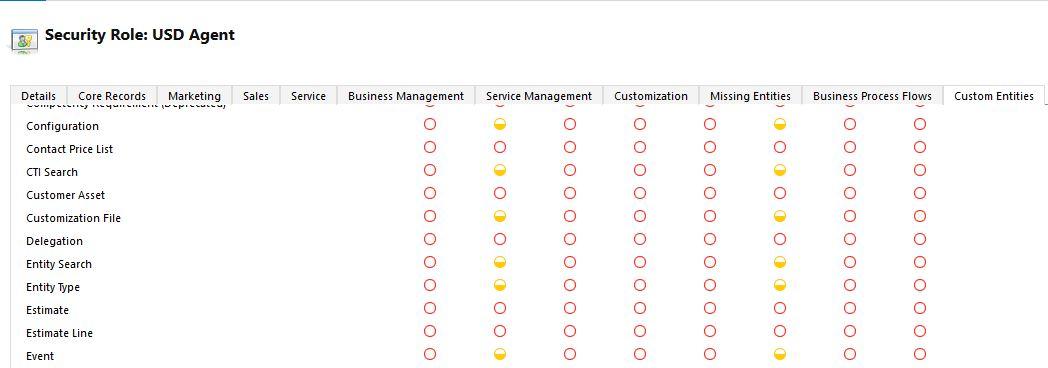

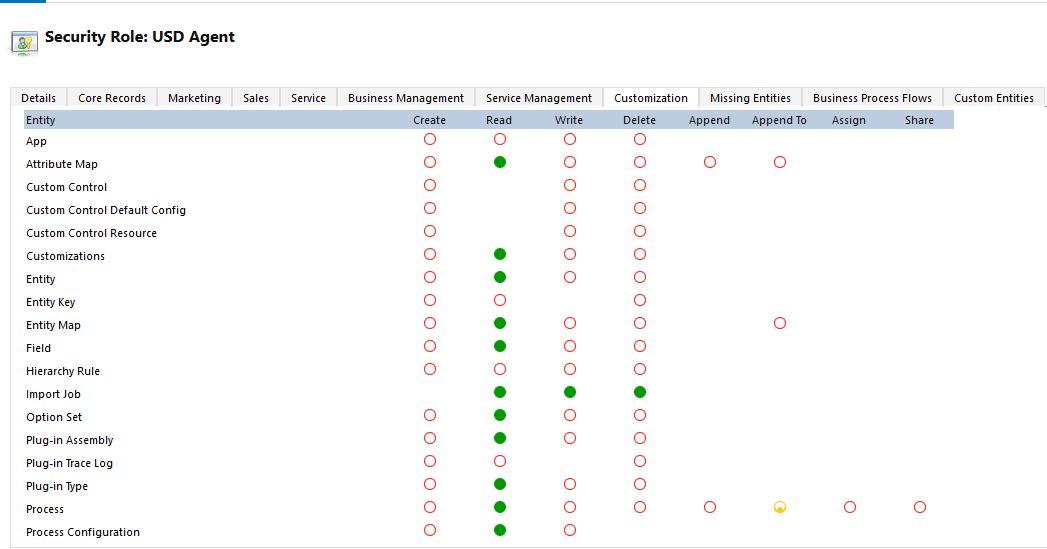

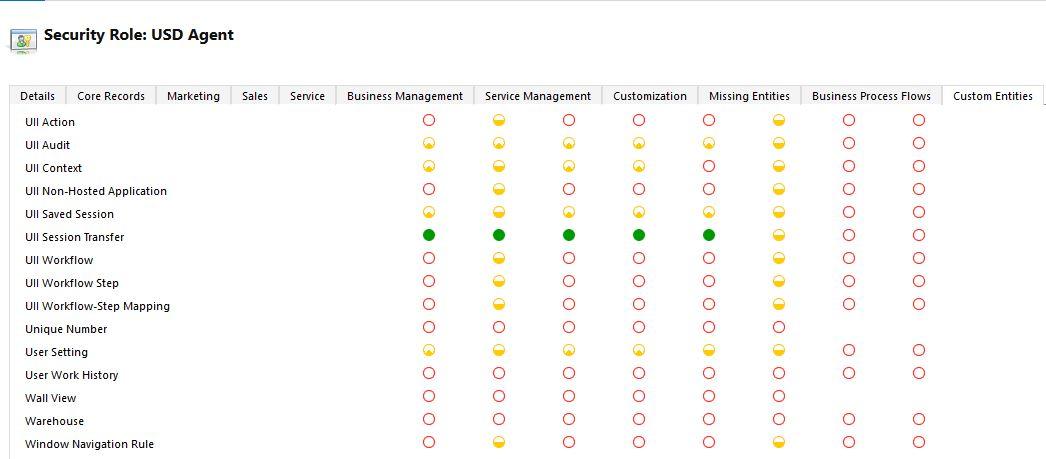

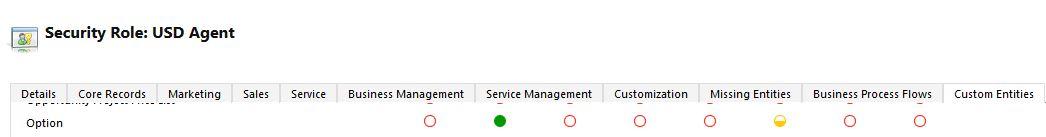

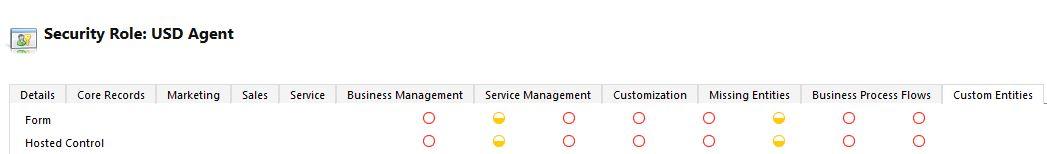

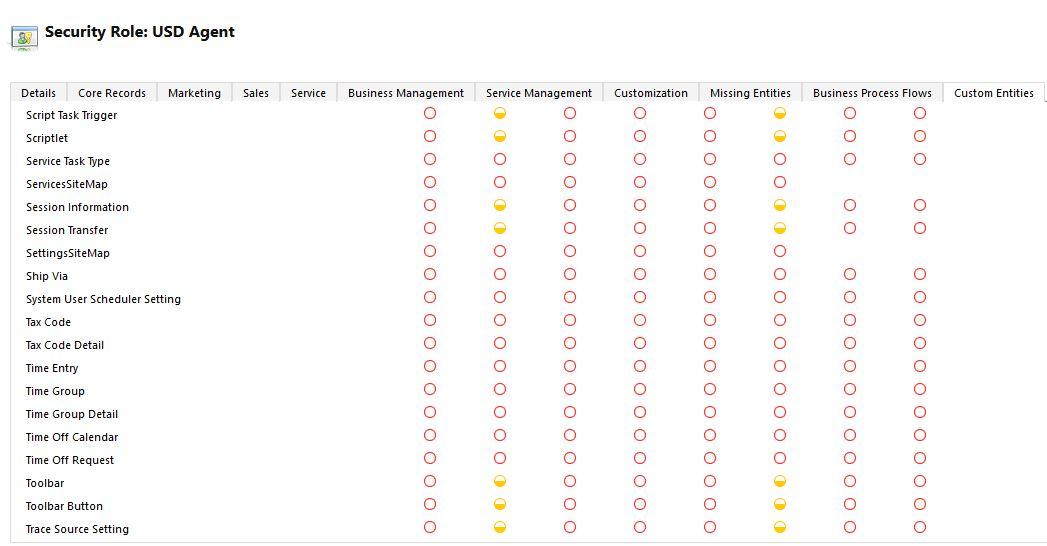

Custom Entities

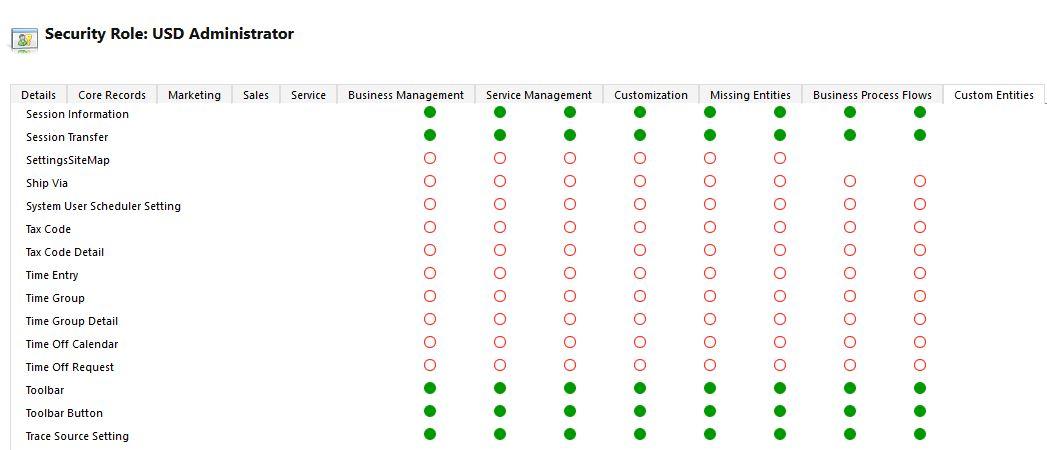

USD Administrator

Give permissions to the selected role according to the following screenshots.

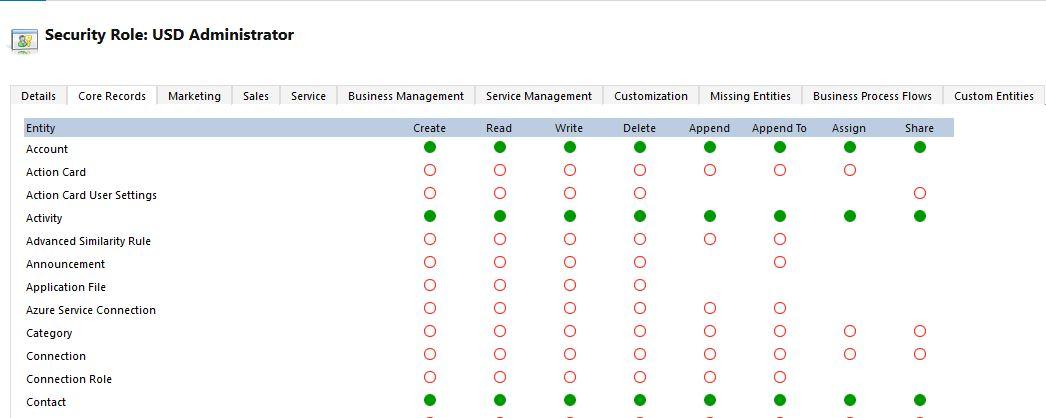

Core Records

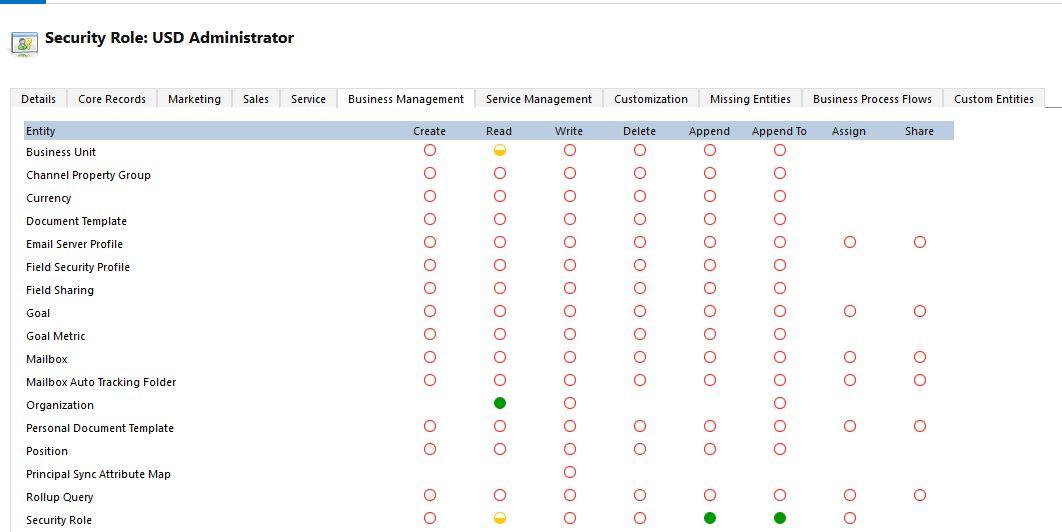

Business Management

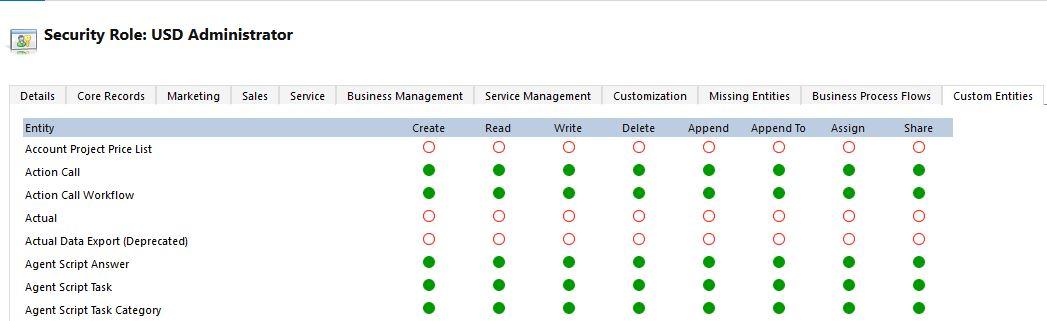

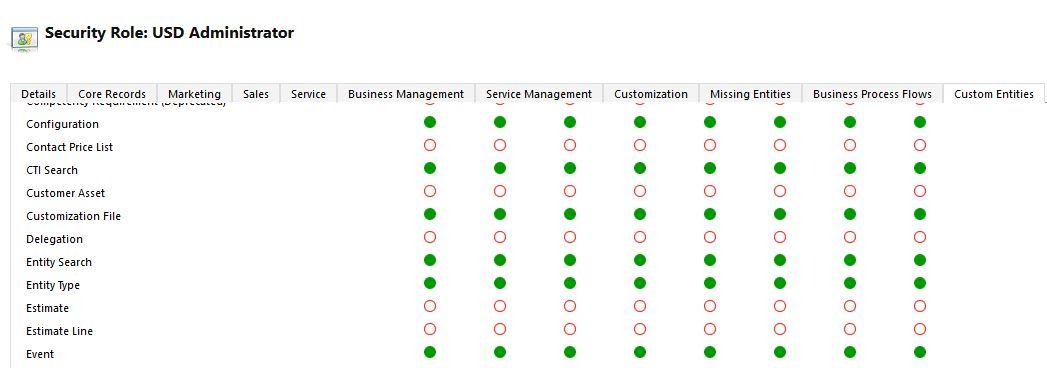

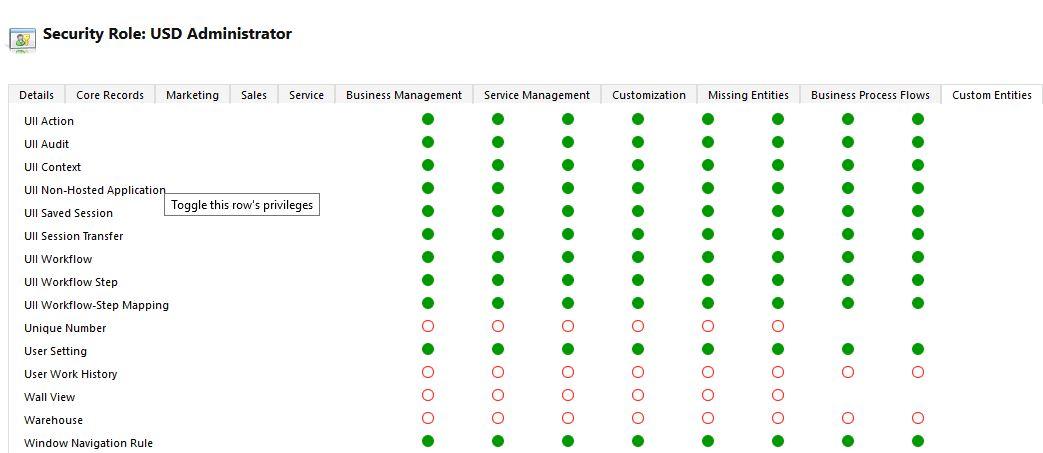

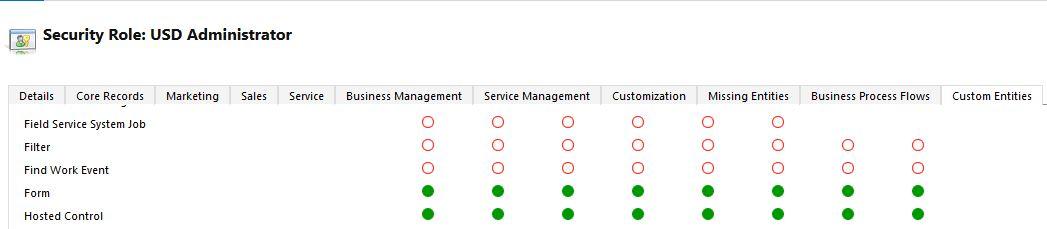

Custom Entities




UII Agent

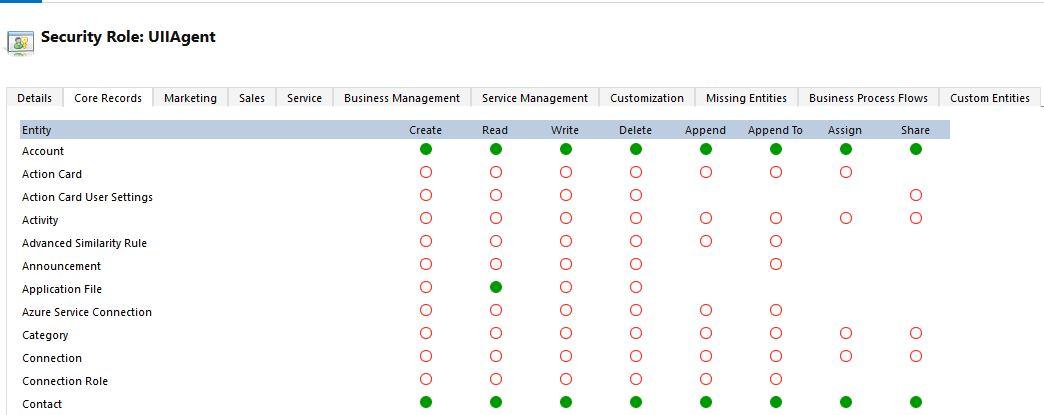

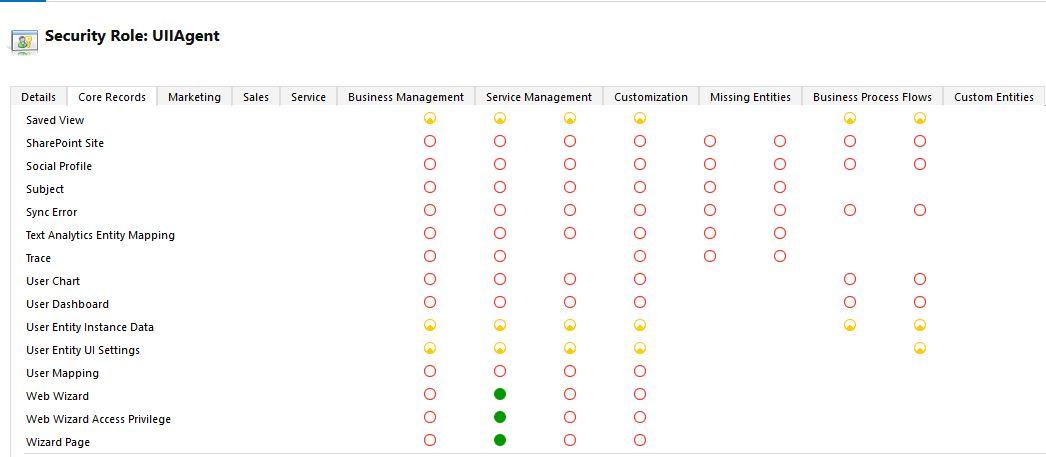

Core Records

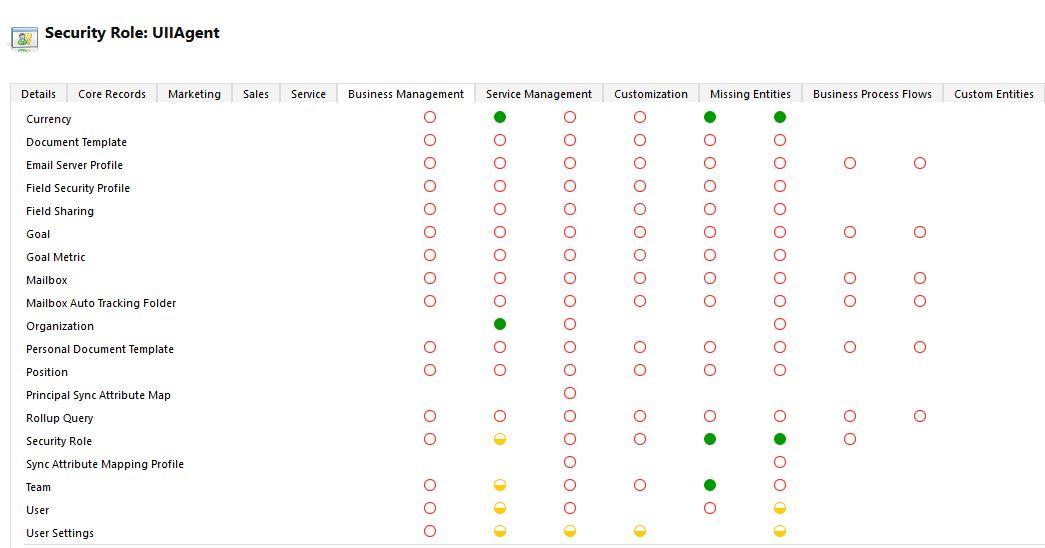

Business Management

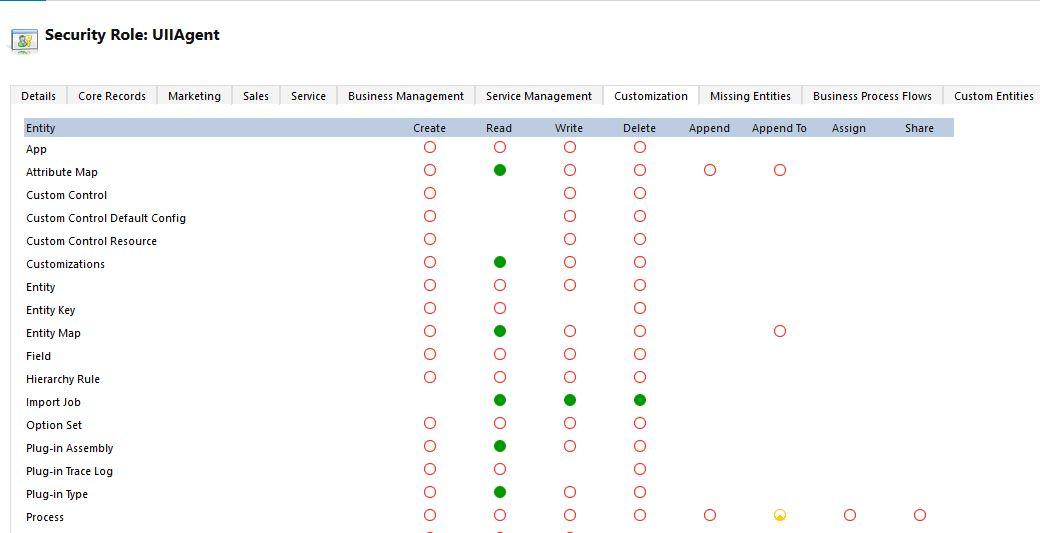

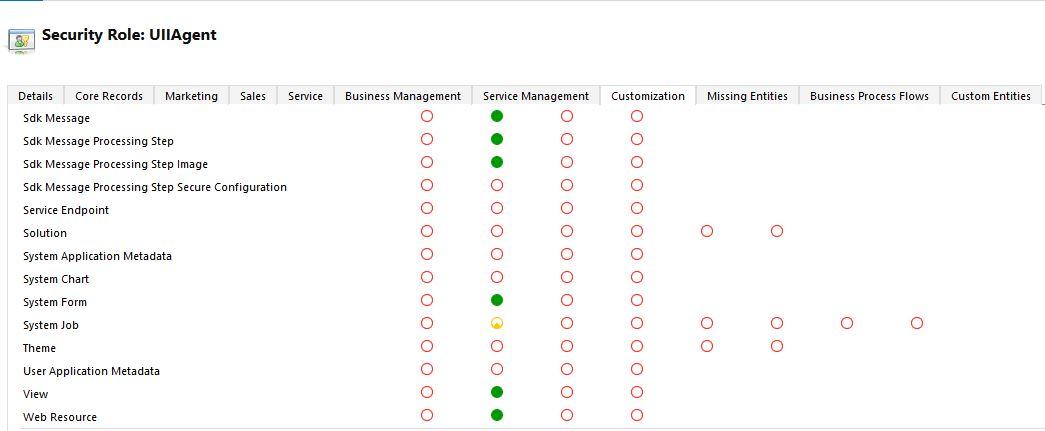

Customization

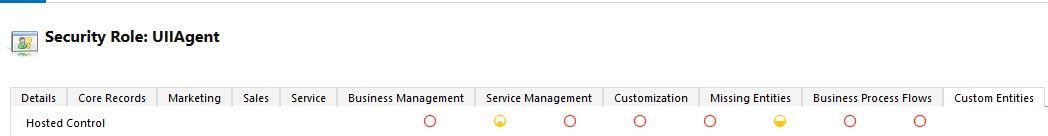

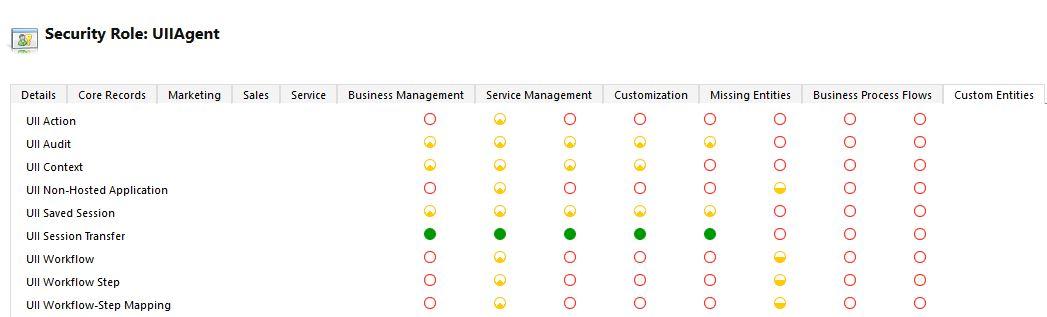

Custom Entities

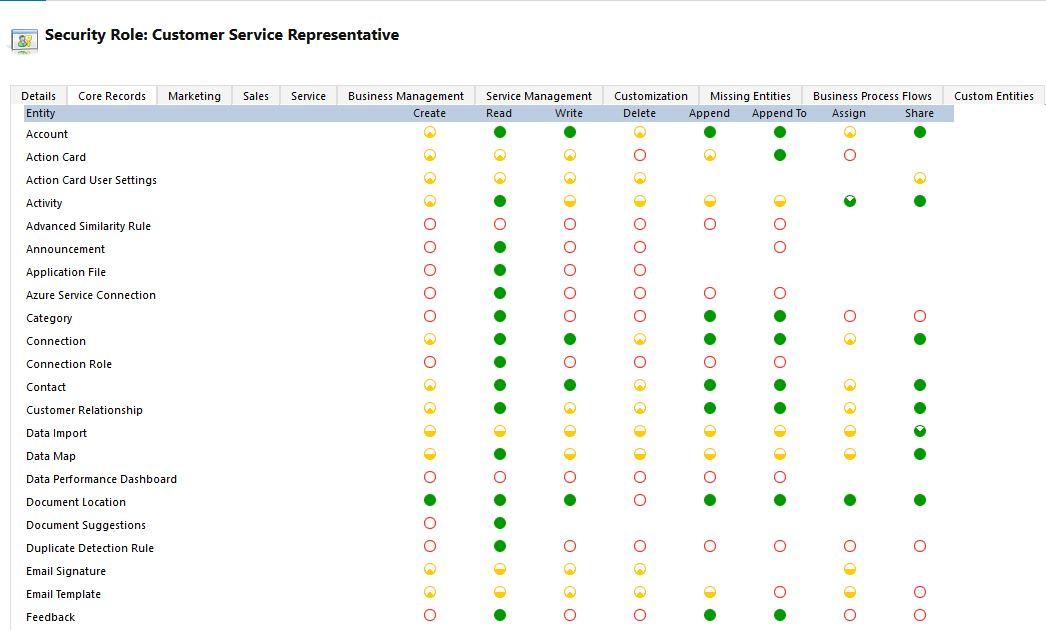

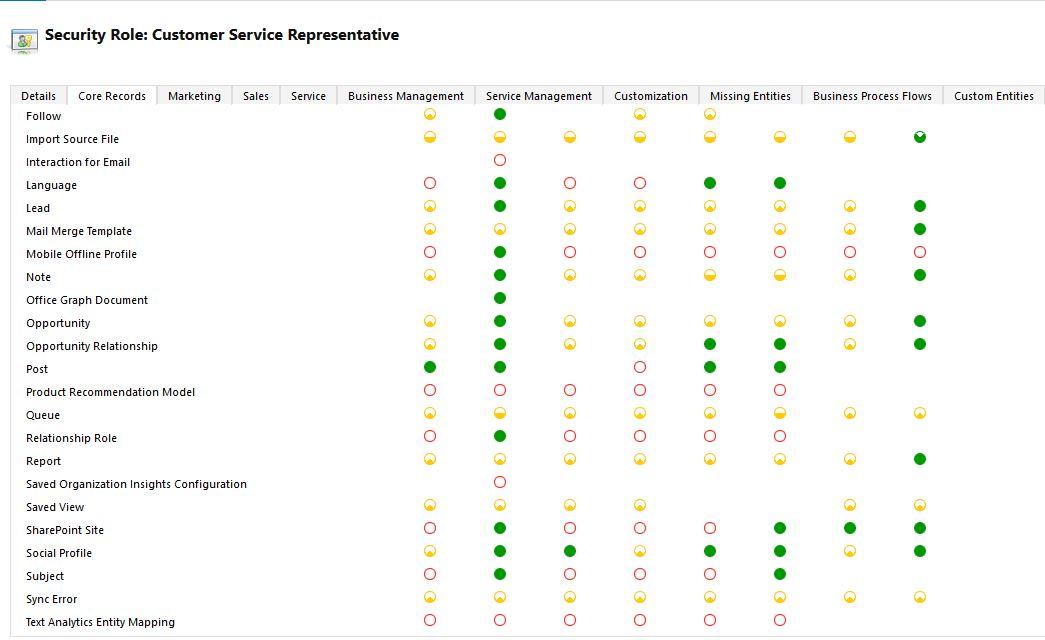

Customer Service Representative

Core Records


Voice Only configurations

Note: Skip this step if only chat solution is being deployed

SSO Configurations For Cisco Contact Center Agents

This Single Sign-on configuration would allow an MS Dynamics CRM user to automatically login to the Cisco contact center when logged into Microsoft Unified Service Desk.

You must be an Organization Administrator to make these changes.

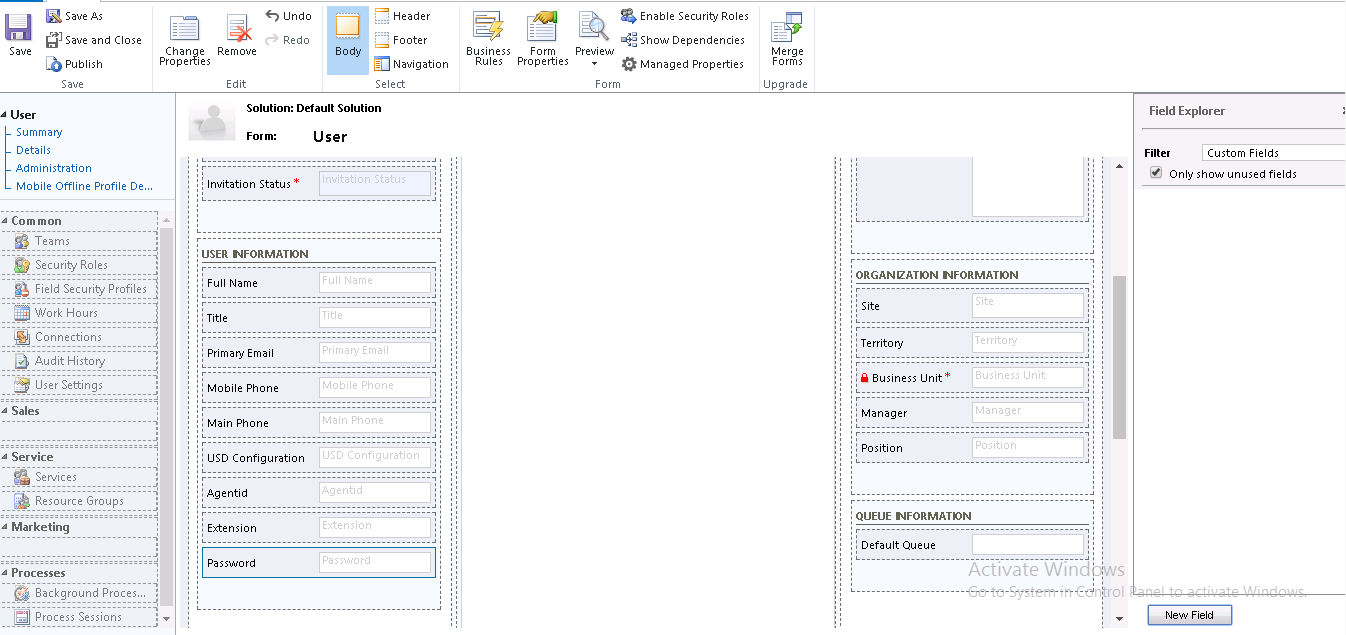

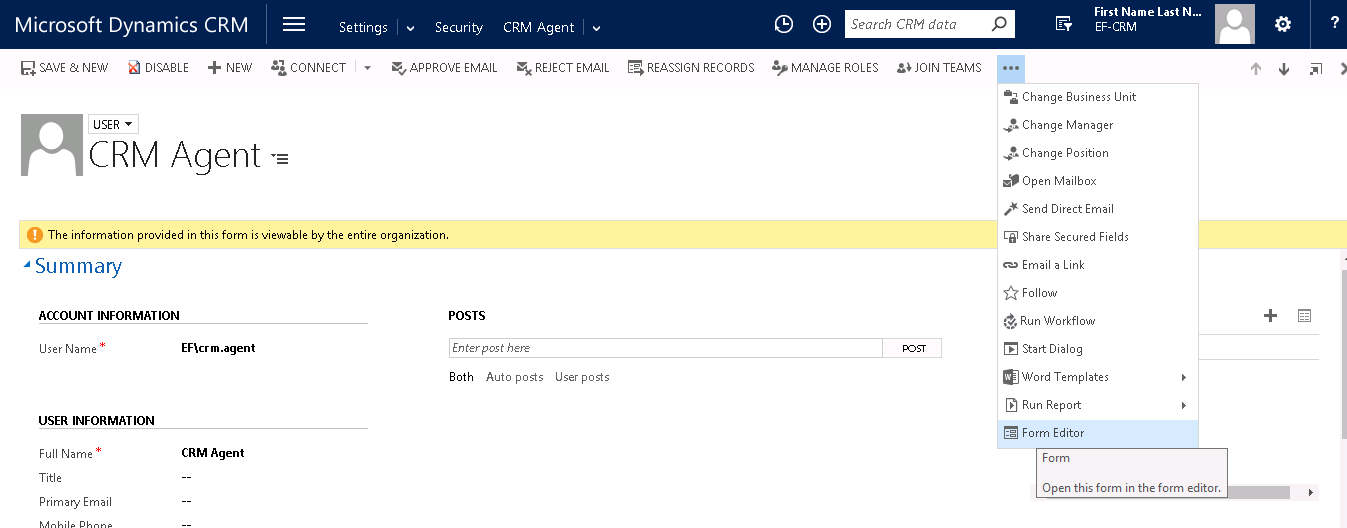

  1. Open a CRM User and select “Form Editor”.



  2. Select the Form Editor option and add three new fields. The three fields should have the following name for the SSO to work.

  1. new_agentid - Cisco contact center Agent ID of the user

  2. new_password - Cisco contact center Agent Password

  3. new_extension - Cisco contact center phone extensions

    Drag the newly created fields at any location on the form.

  • To allow SSO to work, specify values for the 3 fields added above for each CRM user (contact center agent).
