Unexpected Scenarios

Adapter Fails to Load CTI Toolbar

Agent logs into SAP CRM but the CTI Toolbar is not loaded.

Possible Causes

• Adapter can’t establish connection with the AMQs.

• Connection to AMQ is alive but the Connector isn’t alive to process the request

• IP Phone is not running.

• Password or extension is incorrect

• Agent is already login to Finesse and he tries to login into CTI Toolbar

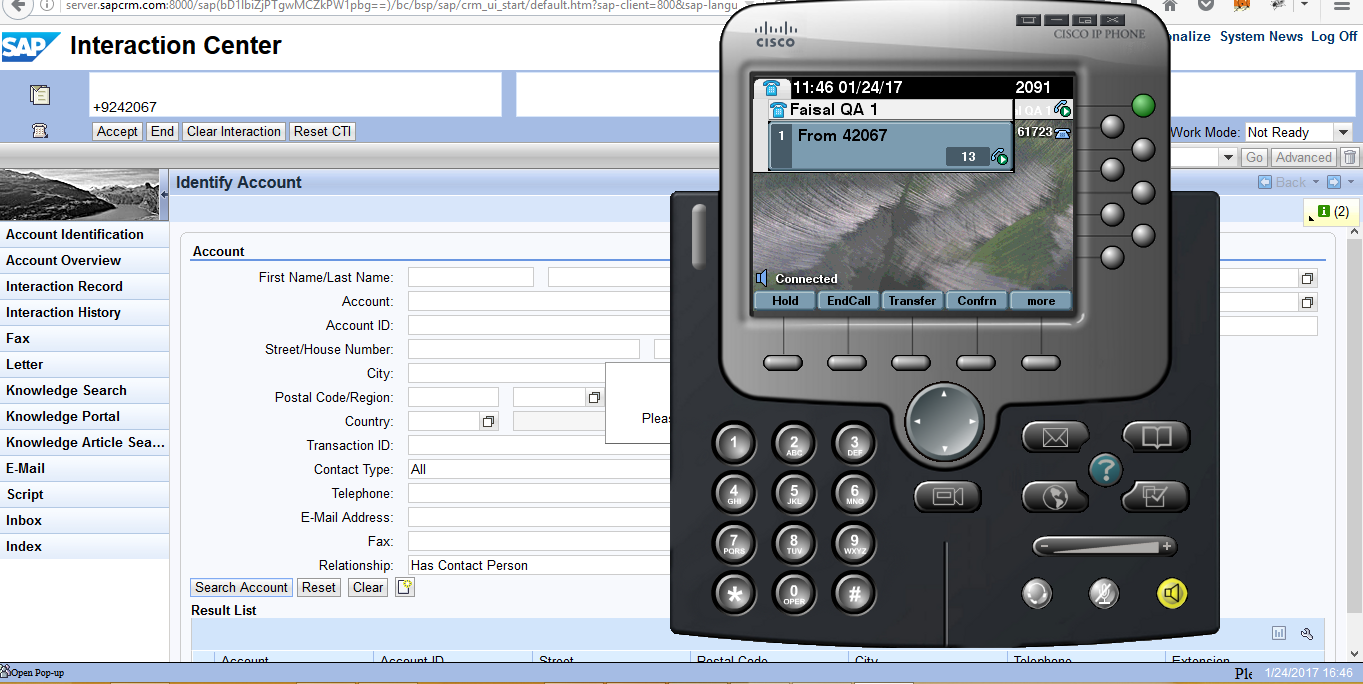

Adapter is in idle state while call is active on IP Communicator

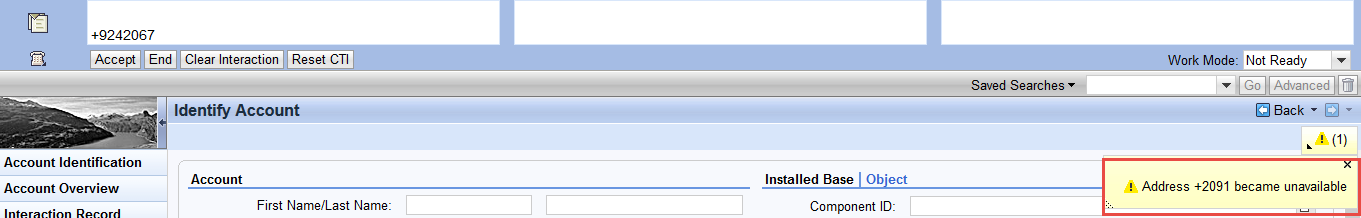

Call is active on IP Communicator but adapter is in idle state and returns an error message “Address xxxx became unavailable”.

Possible Causes

• This happens when agent is already logged in Finesse and then he tries to login into CTI Toolbar

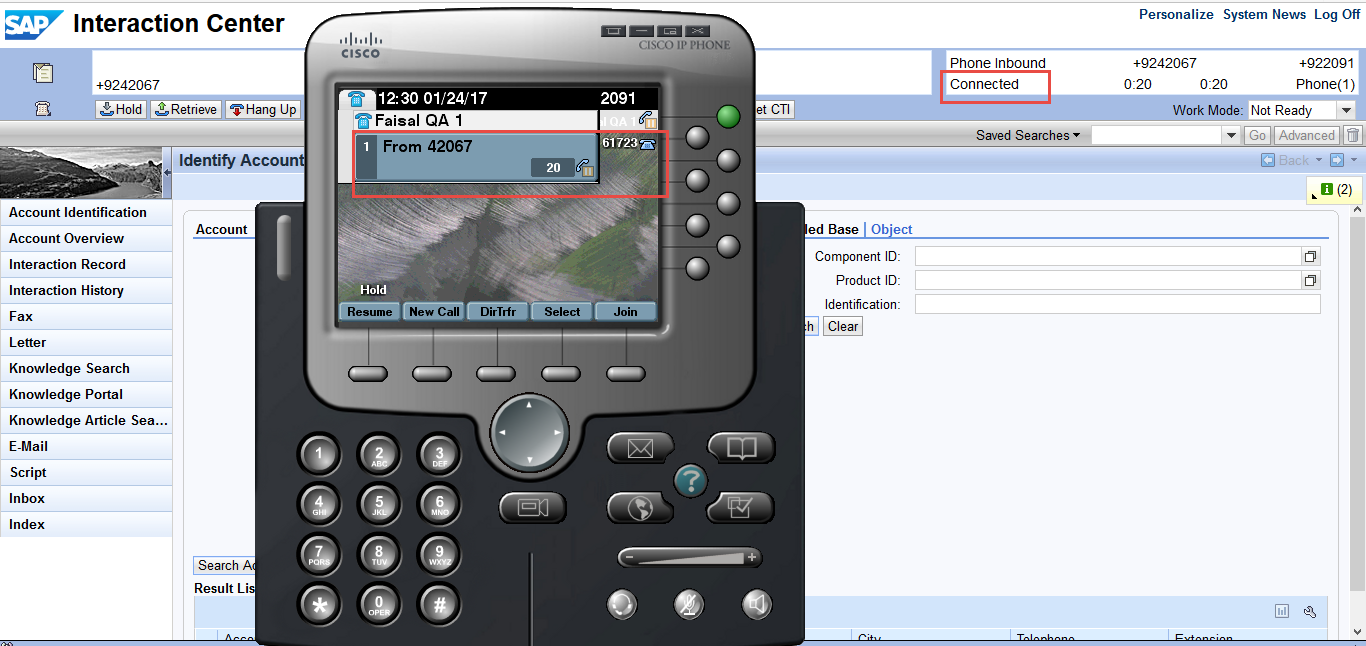

Call State is connected on Adapter while Call is on Held state on IP Communicator

Possible Causes

• This happens when agent puts call on held from Finesse or IP Communicator

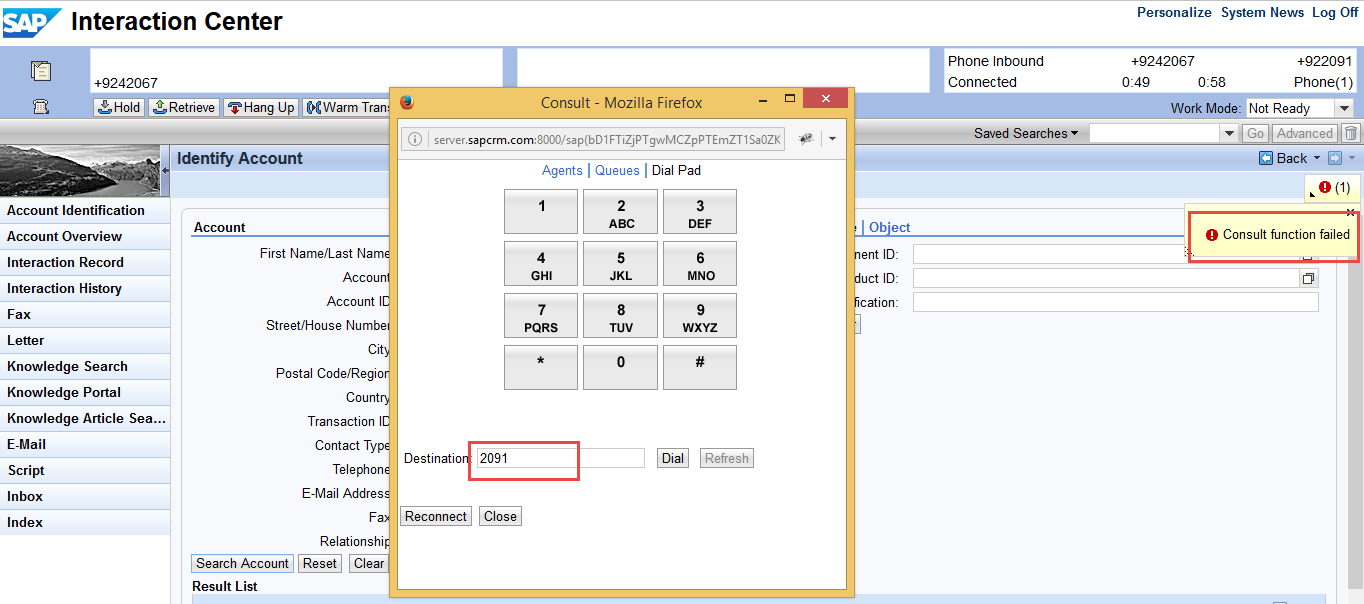

Error Message: Consult function failed

Agent tries to make a call but gets the message “Consult function failed”.

Possible Causes

• When agent tries to make a call on the same extension he is logged in.
