Deployment Models

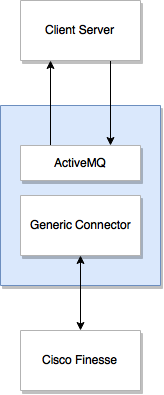

Non-Redundant / Simplex Mode Deployment

In simplex deployment, the application is installed on a single server with no fail-over support of the Connector. However, the same Connector can still communicate with primary and secondary Finesse servers.

Simplex mode is useful for lab tests and commercial deployments at a smaller scale. Figure 1.0 explains the simplex mode of Generic Connector.

Figure 1.0

High Availability (HA) / Duplex Deployment

In Duplex mode, there are two types of supported configurations.

Active-Passive (Primary / Secondary) Setup

A primary/secondary configuration setup where one Connector works as a primary server while the other (secondary) is available as a standby server (from a Disaster Recovery site)

Figure 1.1

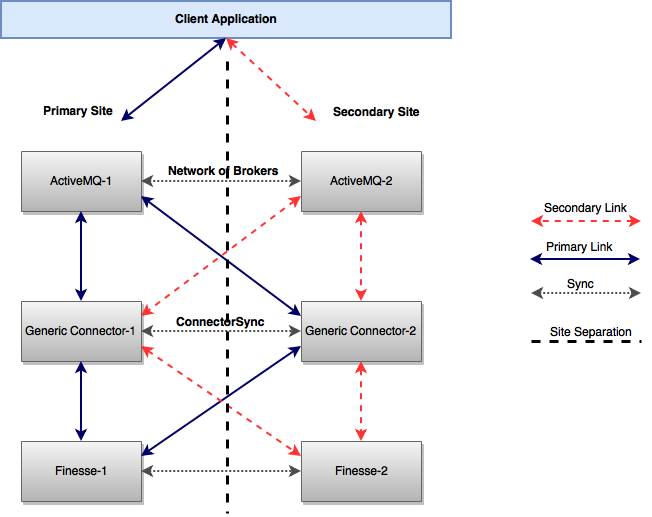

Active-Active Setup

In this mode, both Connector instances are active and serving clients and one instance serves as the backup / secondary for the other.

Figure 1.2
