Deployment Guide
Solution Prerequisites
The following are the solution setup prerequisites.
Hardware requirements
For HA deployment, each machine in the cluster should have the following hardware specifications.
Minimum requirement | |
---|---|
CPU | 2 cores vCPU |
RAM | 4 GB |
Disk | 100 GB mounted on / |
NICs | 1 NIC |
Software Requirements
OS Compatibility
We require the customer/partner to install the following software on the server.
Item | Version | Notes |
Red Hat Enterprise Linux | 8.4 | Administrative privileges (root) are required to follow the deployment steps. |
CentOS Linux | release 7.7.1908 (Core) | Not recommended as it has many vulnerabilities and no longer maintained Administrative privileges (root) are required to follow the deployment steps. |
Database Requirements
Item | Notes |
MS SQL Server 2014, 2016 Express/ Standard/ Enterprise |
Docker Engine Requirements
Item | Notes |
Docker CE 18+ | |
Version 1.23.1 |
Browser Compatibility
Item | Version | Notes |
Chrome | 92.0.x | |
Firefox | Not tested | |
IE | Not tested | An on-demand testing cycle can be planned |
Cisco Unified CCE Compatibility
12.6 (Enhanced & Premium)
Installation Steps
The Internet should be available on the machine where the application is being installed and connections on port 9242 should be allowed in the network firewall to carry out the installation steps. All the commands start with a # indicating that root user privileges are required to execute these commands. Trailing # is not a part of the command.
Allow ports in the firewall
For internal communication of docker swarm, you'll need to allow the communication (both inbound and outbound) on the ports: 8083/tcp,8084/tcp , 8085/tcp, 8086/tcp, 8087/tcp, 8844/tcp, 8834/tcp, 8443/tcp and 443/tcp.
To start the firewall on CentOS (if it isn't started already), execute the following commands. You'll have to execute these commands on all the cluster machines.:
systemctl enable firewalld
systemctl start firewalld
To allow the ports on CentOS firewall, you can execute the following commands. You'll have to execute these commands on all the cluster machines.
firewall-cmd --add-port=8083/tcp --permanent
firewall-cmd --add-port=8084/tcp --permanent
firewall-cmd --add-port=8085/tcp --permanent
firewall-cmd --add-port=8086/tcp --permanent
firewall-cmd --add-port=8087/tcp --permanent
firewall-cmd --add-port=8844/tcp --permanent
firewall-cmd --add-port=8834/tcp --permanent
firewall-cmd --add-port=8443/tcp --permanent
firewall-cmd --add-port=443/tcp --permanent
firewall-cmd --reload
Configure Log Rotation
Add the following lines in /etc/docker/daemon.json
file (create the file if not there already) and restart the docker daemon using systemctl restart docker.
Perform this step on all the machines in the cluster in case of HA deployment.
{
"log-driver": "json-file",
"log-opts": {
"max-size": "50m",
"max-file": "3"
}
}
Creating Databases
Create a database for UMM and Supervisor Tools services in the MSSQL server with suitable names and follow the application installation steps.
Installing Application
Download the deployment script supervisor-tools-deployment.sh. This script will:
delete the supervisor-tools-deployment directory in the present working directory if it exists.
clone the supervisor-tools-deployment repository from GitLab in the present working directory.
To execute the script, give it the execute permissions and execute it.
CODEchmod +x supervisor-tools-deployment.sh ./supervisor-tools-deployment.sh
For UCCE customers only, execute the following command
CODErm /root/supervisor-tools-deployment/docker/config/umm/permissions/tam.json
For UCCX customers only, uncomment the lines 67 - 77 from file
/root/supervisor-tools-deployment/docker/docker-compose.yml
It should looks like
JSONtam: image: gitlab.expertflow.com:9242/supervisor-tools/team-administration:13.2.1 ports: - "8082:8080" env_file: - ${PWD}/docker/environment-variables/environment-variables.env restart: always volumes: - ${PWD}/docker/trustStore:/usr/local/trustStore networks: - st
Update environment variables in the following files inside /
supervisor-tools-deployment/docker/environment_variables
folder.Update UMM environment variables in the
umm-environment-variables.env
file.Update Supervisor Tools Environment variables in the
environment-variables.env
. See also, Caller Lists Environment Variables to specify variables of the Caller Lists microservice.
Get domain/CA signed SSL certificates for SupervisorTools FQDN/CN and place the files in
/root/supervisor-tools-deployment/docker/certificates
folder. The file names should beserver.crt
andserver.key
.Copy the supervisor-tools-deployment directory to the second machine for HA. Execute below command
CODEscp -r supervisor-tools-deployment root@machine-ip:~/
Go to the second machine and update the environment variables where necessary.
Execute the following commands inside /root/supervisor-tools-deployment directory on both machines.
CODEchmod 755 install.sh ./install.sh

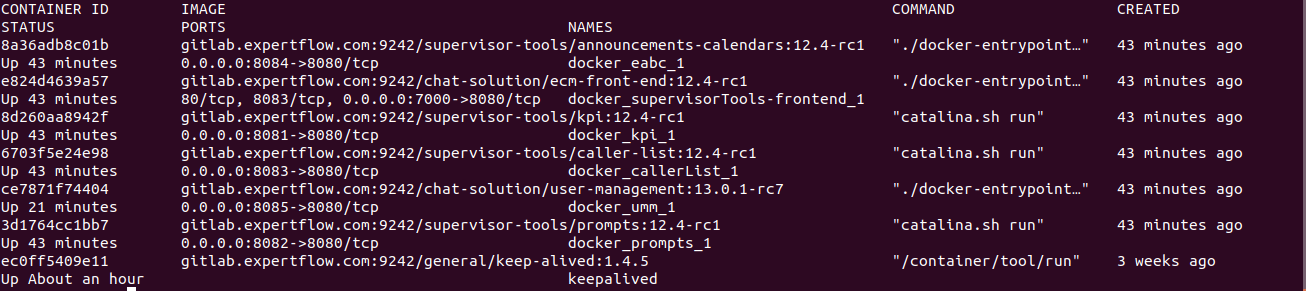

Run the following command to ensure that all the components are up and running. The screenshot below shows a sample response for a standalone non-HA deployment.
CODEdocker ps
Virtual IP configuration
Repeat the following steps for all the machines in the HA cluster.
Download keepalived.sh script and place it in
/root
the directory.Give execute permission and execute the script:
CODEchmod +x keepalived.sh ./keepalived.sh
Configure keep.env file inside
/root/keep-alived
folder
Name | Description |
---|---|
| This script is continuously polled after 2 seconds. Keepalived relinquishes control if this shell script returns a non-zero response. It could be either umm or any backend microservice API.
|
| Virtual IP of the cluster. It should be available in the LAN. For example: 192.168.1.245 |
| Pear machine IP. |
| Do not change this value. |
| Priority of the node. Instance with lower number will have a higher priority. It can take any value from 1-255. |
| Name of the network interface with which your machine is connected to the network. On CentOS, |
| Corresponds to the initial startup time of the application in seconds which is being monitored by keepalived. A nominal value of 60-120 is good enough |
Update the SERVER_URL variable in environment variables to hold Virtual IP for front-end. Go to microservices table in UMM database, replace the name of tam, prompts and eabc microservices under ip_address column with Virtual IP. Change the ports to corresponding ports exposed in docker-compose file.
Give the execute permission and execute the script on both machine.
CODEchmod +x keep-command.sh ./keep-command.sh
Finesse Gadget Deployment
For finesse gadget deployment, please follow the Finesse Gadget Deployment Guide
Adding License
Browse to http://<MACHINE_IP or FQDN>/umm in your browser (FQDN will be the domain name assigned to the IP/VIP).
Click on the red warning icon on right, paste the license in the field and click save.
