Rich Media Messaging

Hybrid Chat supports following structured (or rich text) messages for customer-to-bot conversation. Facebook, Viber, and WhatsApp are the supported customer channels.

Text message

A text message of a maximum of 2000 characters may be sent with UTF-8 encoding. The message body may contain one or more Emoji symbols.

Text Message Auto-formatting

An agent, bot, or customer message is auto-formatted base on:

Format	Instruction
hyperlink	a phrase is considered a hyperlink based on TLDs mentioned in https://github.com/Soapbox/linkifyjs/blob/master/tlds.js
italic	place an underscore on both sides of the text: _text_
bold	To bold your message, place an asterisk on both sides of the text: text
strikethrough	To ~~strikethrough~~ your message, place a tilde on both sides of the text: ~text~

Carousel message

Use this format (YAML) to send a carousel message from Rasa to customer channels such as Viber and Facebook. The following is an example of a template carousel message defined in the Rasa domain.yaml with two carousel elements.

Carousel

YML

carousel:
  maxWidth: 6
  maxHeight: 7
  BgColor: '#808080'
  elements:
    - title: title
      imageButton:
        imageUrl: https://expertflow.com/any-image1.jpg
        actionType: postback
        actionBody: /example_intent
        imageHeight: 3
      descriptionButton:
        text: subtitle
        actionType: web_url
        actionBody: descriptionButton
        textHeight: 2
      defaultAction:
        type: web_url
        url: https://expertflow.com/#video-message
      buttons:
        - title: button 1
          payload: /button1
          type: postback
          BgColor: '#FFA500'
          buttonHeight: 1
        - title:  button 2
          payload: /button2
          type: postback
          BgColor: '#FFA500'
          buttonHeight: 1
    - title: title
      imageButton:
        imageUrl: https://expertflow.com/any-image2.jpg
        actionType: web_url
        actionBody: ImageButton
        imageHeight: 3
      descriptionButton:
        text: subtitle
        actionType: web_url
        actionBody: descriptionButton
        textHeight: 2
      defaultAction:
        type: web_url
        url: https://expertflow.com/#video-message
      buttons:
        - title: button 3
          payload: /button3
          type: postback
          BgColor: '#FFA500'
          buttonHeight: 1
        - title:  button 4
          payload: /button4
          type: postback
          BgColor: '#FFA500'
          buttonHeight: 1

The following table explains the property parameters. Each property name here is shown according to its position in the template carousel hierarchy (shown above), with each parent/child element being separated by a dot, e.g. custom.carousel.elements[*].descriptionButton.text, defines the text of the description button of one of the carousel elements.

Property Name	Description	Possible Values

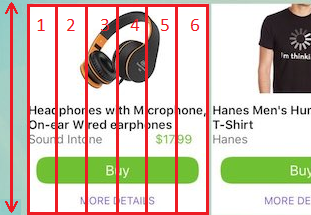

custom.carousel.maxWidth	The number of columns occupied by each carousel element. Applicable for Viber only.	1 - 6 (6 columns recommended)

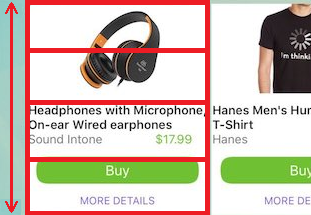

custom.carousel.maxHeight	The number of rows occupied by each carousel element. For any carousel object, this value should be equal to the sum of heights of all other button elements (in the same carousel element) combined, i.e. custom.carousel.elements[].imageButton.imageHeight + custom.carousel.elements[].descriptionButton.textHeight + custom.carousel.elements[].buttons[].buttonHeight Applicable for Viber only.	1 - 7 (7 rows recommended)
custom.carousel.BgColor	BgColor is the HTML color code value that starts with #, it is used to set the carousel background color. If BgColor is not specified in the carousel it is shown on Viber with the white color. Applicable for Viber.
custom.carousel.elements	An array of carousel elements. In the case of Viber, the limit is 6 and in the case of Facebook, this limit is 10. Applicable for both Viber and Facebook.
custom.carousel.elements[*].title	The title needed to be displayed on top of the description. This field is mandatory for both Viber and Facebook. Applicable for both Viber and Facebook.
custom.carousel.elements[*].imageButton	Button containing an image to be displayed in each carousel element. Applicable for both Viber and Facebook.
custom.carousel.elements[*].imageButton.imageUrl	The source HTTP URL for the image which needs to be displayed on the carousel element. Applicable for both Viber and Facebook.
custom.carousel.elements[].imageButton.actionType	The type of action that needs to be performed after the user clicks on the image. It can either be a web_url or postback. In the case of web_url, it will attach a URL to the image as defined in the actionBody property, and if set to postback, it allows you to define a payload/action as defined in the actionBody property that the Rasa bot will receive after the user clicks on the image. Applicable for Viber only.	[web_url \| postback]
custom.carousel.elements[].imageButton.actionBody	Payload or action defined for the image button click. For actionType=`postback`, the value can either be an utterance (e.g. "Interested in product XYZ") sent to the bot or intent, which is identified by the bot when the value has a "/" before it, e.g. "/custom_intent" For actionType=`web_url`, the value of this property should be a URL. Applicable for Viber only.
custom.carousel.elements[].imageButton.imageHeight	The number of rows occupied by the image button in one element. This value should be smaller than custom.carousel.maxHeight. Applicable for Viber only.
custom.carousel.elements[*].descriptionButton	Text description button to be displayed in the carousel element Applicable for both Viber and Facebook.
custom.carousel.elements[*].descriptionButton.text	This is the text description displayed below the title in a specific carousel element In the case of Facebook, the total number of characters should not exceed more than 80 characters. Applicable for both Viber and Facebook.
custom.carousel.elements[].descriptionButton.actionType	Type of action that needs to be performed when a user clicks on the description button. It can either be a web_url or postback. In the case of web_url, it will attach a URL to the description as defined in the actionBody property, and if set to postback, it allows you to define a payload/action as defined in the actionBody property below that the Rasa bot will receive after the user clicks on the image. Applicable for Viber only.	[web_url \| postback]
custom.carousel.elements[].descriptionButton.actionBody	Payload or action defined for the description button click. For actionType=`postback`, the value can either be an utterance (e.g. "Interested in product XYZ") sent to the bot or intent, which is identified by the bot when the value has a "/" before it, e.g. "/custom_intent" For actionType=`web_url`, the value of this property should be a URL. Applicable for Viber only.
custom.carousel.elements[].descriptionButton.textHeight	The number of rows occupied by the description button in one element. This value should be smaller than custom.carousel.maxHeight. Applicable for Viber only.
custom.carousel.elements[*].buttons	An array of buttons to be shown inside one element. Each element should have its own buttons. The maximum size of the array is 3. Applicable for both Viber and Facebook.
custom.carousel.elements[].buttons[].title	The text displayed on each button. In the case of Facebook, this text can have a maximum of 20 characters. Applicable for both Viber and Facebook.
custom.carousel.elements[].buttons[].payload	Payload or action defined for a specific button click. For actionType=`postback`, the value can either be an utterance (e.g. "Interested in product XYZ") sent to the bot or intent, which is identified by the bot when the value has a "/" before it, e.g. "/custom_intent" For actionType=`web_url`, the value of this property should be a URL. Applicable for both Viber and Facebook.
custom.carousel.elements[].buttons[].type	Type of action that needs to be performed when a user clicks on the button. It can either be a web_url or postback. In the case of web_url, it will attach a URL to the button as defined in the payload property, and if set to postback, it allows you to define a payload/action as defined in the payload property that the Rasa bot will receive after the user clicks on the image. Applicable for both Viber and Facebook.	[web_url \| postback]
custom.carousel.elements[].buttons[].BgColor	BgColor is the HTML color code value that starts with #, it is used to set the Viber button background color. If BgColor is not specified in any button it is shown on Viber with a light gray color and BgColor can have a different value for all buttons in a carousel message. Applicable for Viber.
custom.carousel.elements[].buttons[].buttonHeight*	The number of rows occupied by the button in one element. This value should be smaller than custom.carousel.maxHeight. Applicable for both Viber and Facebook.
custom.carousel.elements[*].defaultAction	Only applicable to the Facebook Carousel object. Applicable for Facebook only.
custom.carousel.elements[*].defaultAction.type	Type of action to perform on clicking the Facebook carousel object. Applicable for Facebook only.	web_url
custom.carousel.elements[*].defaultAction.url	The default action is executed when the template is tapped. Applicable for Facebook only.

Buttons message

A Button message is an array of text Buttons passed from the Bot to supported customer channels. The following are the supported customer channels for the Button message.

Channel	Implementation
Facebook	Shown as a Facebook Button message with the post-back set to Bot intent. For Facebook, there should be at least 2 buttons defined or a maximum of 3.
Viber	Shown as a Viber Keyboard Message. For Viber, there is no limit. In case more options (buttons) are set for a given message (text) the first 3 options (buttons) will be delivered to Facebook and displayed accordingly.

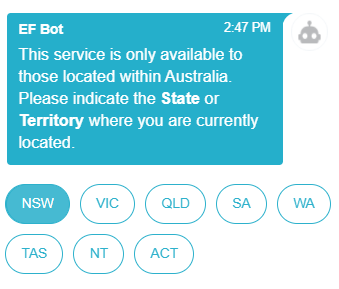

Webchat	On Webchat, the Button message is shown as the following. The text is presented as is and buttons are shown in the order they are passed. For Webchat, there is a maximum limit of 15 buttons and 30 characters in a button title.
WhatsApp	Shown as text menu options with an index. WhatsApp users can then choose from given menu options.
SMS	Shown as text menu options with an index. SMS users can then choose from the given menu options.

The YAML to send a message with button(s).

Buttons

YML

text: This service is only available to those located within Australia. Please indicate the State or Territory where you are currently located.
buttons:
  - title: NSW
    composer_input_disabled: false
    payload: /nsw
    type: postback
    BgColor: '#FF0000'
    index: 1
  - title: VIC
    payload: /vic
    type: postback
    BgColor: '#FF0000'
    index: 2
  - title: QLD
    payload: /qlc
    type: postback
    BgColor: '#FF0000'
    index: 3
  - title: SA
    payload: /sa
    type: postback
    BgColor: '#FF0000'
    index: 4
  - title: WA
    payload: /wa
    type: postback
    BgColor: '#FF0000'
    index: 5
  - title: TAS
    payload: /tas
    type: postback
    BgColor: '#FF0000'
    index: 6
  - title: NT
    payload: /nt
    type: postback
    BgColor: '#FF0000'
    index: 7
  - title: ACT
    payload: www.expertflow.com
    type: web_url
    BgColor: '#FF0000'
    index: 8

Button Message Attributes

The following table explains Button message properties with each parent/child element being separated by a dot, e.g. buttons[*].payload.

Property Name	Description	Possible Values
text	The title text to display. If you don't want to pass any title text, specify an empty string. The buttons will be shown without a text title.
buttons	An array of buttons is to be shown as options.
buttons[*].title	The text message needs to be displayed on each button.	Facebook supports a maximum of 20 characters in the button title.
buttons[*].payload	Payload or action defined for the button. For type=`postback`, this is the value passed to the Bot on the user's selection of this button. For example, RASA can take bot-intent (e.g. `/custom_intent`) or an action (e.g. `utter_greet`) as inputs. For `type`=`web_url`, the value of this property should be a URL.
buttons[*].type	Type of action that needs to be performed when a user clicks on the button. It can either be a web_url or postback. In the case of web_url, it will attach a URL to the button as defined in the payload property, and if set to postback, it allows you to define a payload/action as defined in the payload property that the Rasa bot will receive after the user clicks on the image.	web_url or postback
buttons[*].index	The index is the numeric button identified. It's an alternative to the payload for channels that can't render buttons with payload. Its value can be any positive number. A default Button may be set in the buttons array. It must have the index value "-1". If the user enters an invalid input this default Button is selected. There should be a maximum of one default Button in a Button message. Required for WhatsApp and SMS .	0 positive integer (1-99) -1 (Default button)
buttons[*].BgColor	BgColor is the HTML color code value that starts with #, it is used to set the Viber button background color. If BgColor is not specified in any button it is shown on Viber with default color and BgColor can have a different value for all buttons in a Button message. Applicable for Viber.	HTML color code
buttons[*].composer_input_disabled	`composer_input_disabled` can be set as `true` or `false`. it is used to enable or disable the user to send a text message as the response to the button message. Use `composer_input_disabled` in only the first button and if it's not provided in the first button then the default value is true and the user is unable to send a text message as a response. Applicable for web widget.	true false

Video message

Use this format (YAML) to send a video message from Rasa to customer channels.

Video

YML

video:
  media: https://example.com/downloadFileStream?filename=Zopt4kxya-vvvv.mp4
  thumbnail: https://example.com/downloadFileStream?filename=348s1rYHz-Annotation-2019-08-07-121320.jpg
  size: 10000

The following table explains the property parameters. Each property name here is shown according to its position in the template video message hierarchy (shown above), with each parent/child element being separated by a dot.

Property Name

Description

Possible Values

custom.video.media

HTTP URL containing the downloadable video.

MP4 format video supported only. In the case of both Viber and Facebook, the Video size can be up to 25 MB.

custom.video.thumbnail

HTTP URL containing the thumbnail image for the video.

Only required for Viber.

Max size of the thumbnail image should be 100 KB. The recommended dimensions are 400 x 400 with the only supported format being JPEG.

custom.video.size

Size of the video shown on the video thumbnail.

This value should be the same as the actual size of the video.

Image message

Use this format (YAML) to send an image from Rasa to customer channels such as Viber and Facebook. The following is an example of a template image message.


YML

image:
  media: https://example.com/downloadFileStream?filename=Zopt4kxya-vvvv.jpg
  size: 10000

You can also use the standard Rasa image message format (YAML) to send an image. Following is an example of a template image message in the standard Rasa image format.


YML

text: "Image message text"
image: "https://picsum.photos/200/300"

The following table explains property parameters

Property Name	Description	Possible Values
custom.image.media	HTTP URL containing the downloadable image.
custom.image.size	Size of the image in bytes	Max size 1 MB.

File message

Bot-connector uploads the file into Hybrid Chat before sending it to the respective customer channel. The file object is passed over to the customer channel and depending on the type of channel its shown as a link or an attachment.

File

YML

file:
  media: 'http://www.example.com/file.txt'
  fileName: file.txt
  size: 200

The following table explains property parameters

Property Name	Description	Possible Values
custom.file.media	URL of the file	txt, doc, docx, xlsx, xls, ppt, pdf format files supported only.
custom.file.fileName	Name of the file	The filename should include the extension.
custom.file.size	Size of the file in bytes	Max size 25MB.

No virus scanning is done
No spam or abusive content detection
Attachments are not encrypted on the File server.

URL message

URL

YML

url:
  media: https://www.example.com

The following table explains property parameters

Property Name	Description	Possible Values
custom.url.media	URL

Contact message

Contact

CODE

contact:
  name: John
  phone_number: '+972511123123'

The following table explains property parameters

Property Name	Description	Possible Values
custom.contact.name	Name of the contact	Max 28 characters
custom.contact.phone_number	Phone number of the contact	Max 18 characters

Location message

Location

YML

location:
  lat: '37.7898'
  lon: '-122.3942'

The following table explains property parameters

Property Name	Description	Possible Values
custom.location.lat	latitude within valid ranges	-90° to +90
custom.location.lon	longitude within valid ranges	-180° to +180

Limitations

Following are the limitations of Structured Message.

Keyboard Message with empty 'text' , is only supported for Viber channel to date.
