Channel Stats Graph
Report Summary | Shows the percentage of channel sessions closed due to a particular disposition. |
---|
This report shows the percentage in the form of a doughnut chart with one of the following channel disposition; i.e.
% Customer
% Agent
% Inactivity
% Network
% Force Closed
See Channel Session Detail for more on the channel session dispositions above.
This helps to determine how many sessions were closed due to a particular disposition.

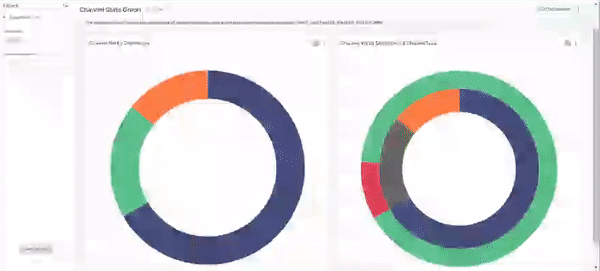

There are two views available for this report:
Channel Vol by Disposition - simple doughnut showing disposition-wise slices regardless of the channel type
Channel Vol by Disposition and Channel type - a double-layer doughnut where the outer layer shows the channel type and the inner slices show channel session dispositions of the selected channel type.
![](../../__attachments/430670909/ezgif.com-video-to-gif.gif?inst-v=693ca20d-b4fd-4fd2-92eb-2e60c7f1901e)
Channel Stats Graph
Report Filters
Disposition: Bot | Customer | Agent | Network. If no disposition is selected, it shows the data of all dispositions. The filter applies to both of the two charts.
Date/Time: The filter applies to both charts.
