CX Voice Upgrade to 4.5.2

Voice Connector

Voice connector upgrade

  1. SSH onto the Debian server on which the Voice connector is installed.

    1. Use command

      CODE
      ssh <username>@<server-ip>

    2. Enter user password and press ENTER.

    3. Use command

      CODE
      su

    4. Enter root password and press ENTER.

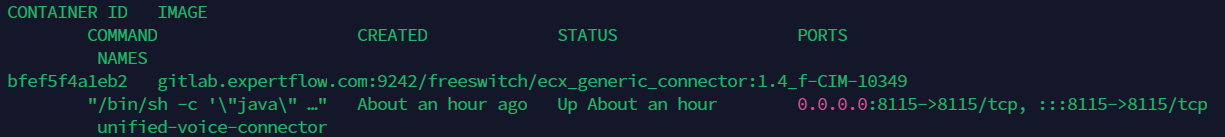

  2. Run the command to see the list of running containers

    CODE
    docker ps

  3. Note the container ID of the current deployed 4.5.1 Voice connector.

  4. Note the port of that container i.e. for 0.0.0.0:8116->8080/tcp, :::8116->8080/tcp, the port of the container is 8116.

  5. Run the command to stop the container

    CODE
    docker stop <container-ID>

  6. Run the command to remove the container

    CODE
    docker rm <container-ID>

  7. Navigate to the folder where the docker-compose.yml and env.txt files are located for the voice connector.

  8. Open the docker-compose.yml file and replace the text inside with text below:

    CODE
    version: "3.8"
services:
  voice-connector:
    image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:4.5.2
    container_name: unified-voice-connector
    ports:
      - PORT:8080
    env_file:
      - ./env.txt
    restart: always

  9. Replace the PORT keyword with the port noted above in step 4.

  10. Open the env.txt file and remove the fields MIDDLEWARE_API, DB_NAME, DB_URL, DB_PORT, DB_USERNAME, DB_PASS, DB_CONN_TIMEOUT and DB_DRIVER.

  11. Run the command

    CODE
    docker compose up -d

  12. Confirm that the docker container is running by using the command

    CODE
    docker ps

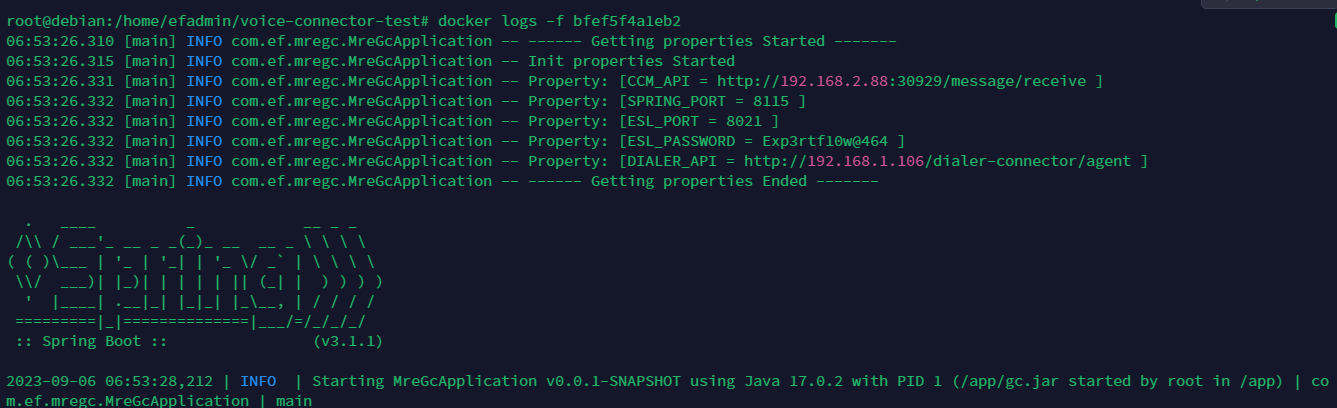

  13. Confirm that the container is running correctly by opening the logs with command

    CODE
    docker logs -f containerID

Media Server configuration

Scripts

  1. SSH onto the Debian server on which the Voice connector is installed.

    1. Use command

      CODE
      ssh <username>@<server-ip>

    2. Enter user password and press ENTER.

    3. Use command

      CODE
      su

    4. Enter root password and press ENTER.

  2. Confirm git is installed, and install it if is not.

  3. Clone the Media Server scripts repository:

    CODE
    git clone -b 4.5.2 https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/rtc/freeswitch-scripts.git

  4. Navigate to the cloned repository to access the files:

    CODE
    cd freeswitch-scripts

  5. Move scripts to the Media Server scripts folder:

    CODE
    mv *.lua /usr/share/freeswitch/scripts

  6. Run the following command:

    CODE
    chmod -R 777 /usr/share/freeswitch/scripts
Silent Monitoring Dialplan

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

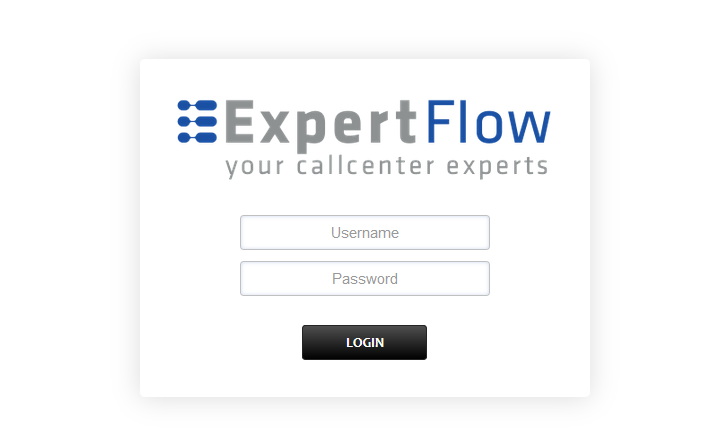

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

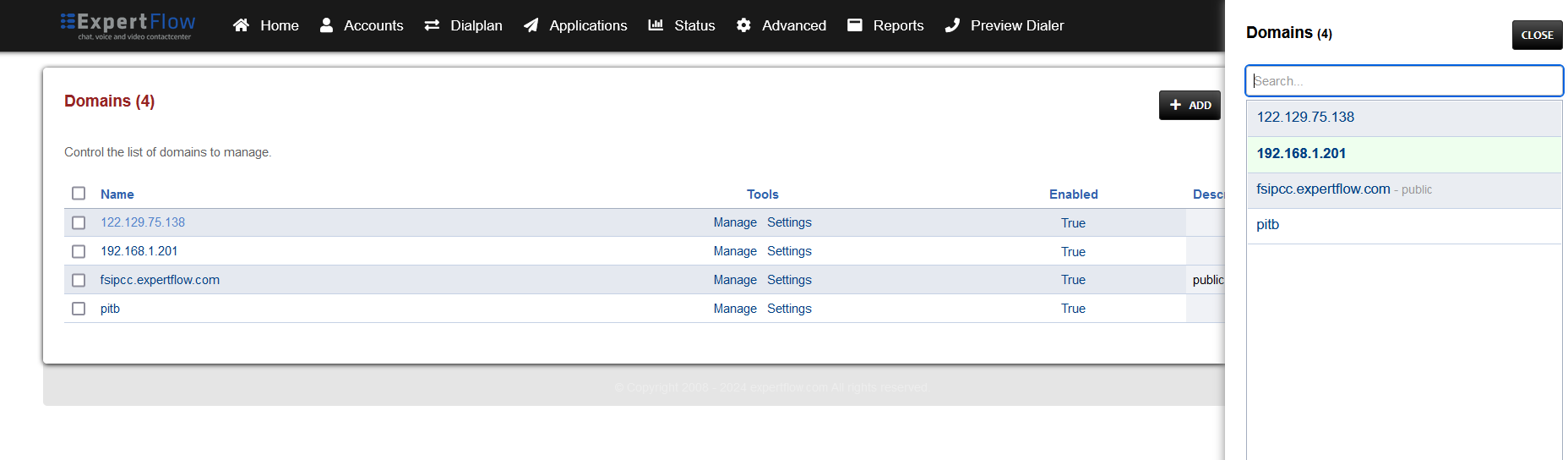

  • Press the IP address in the top right and select the Domain being used::

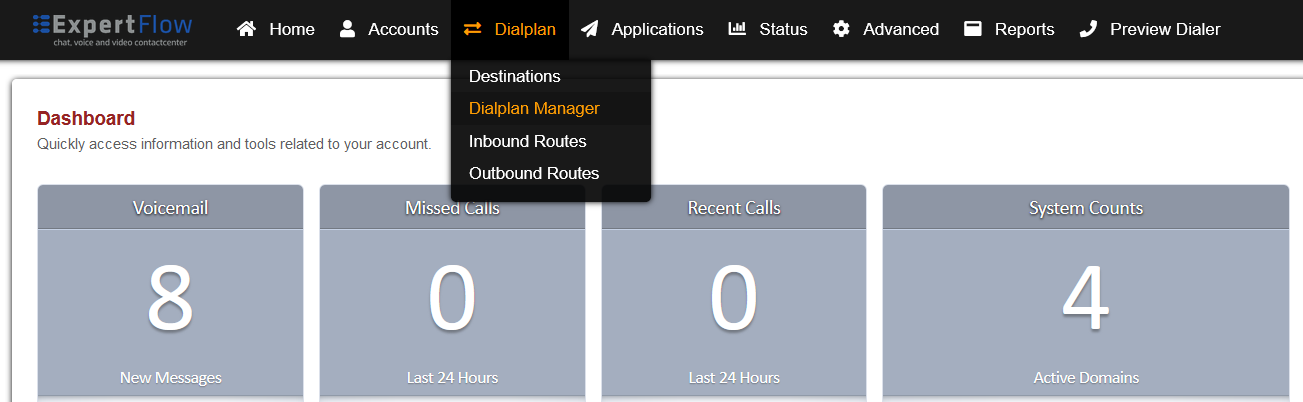

  • Open the Dialplan Manager section under the Dialplan tab.

  •  Add a new Dialplan by pressing the Add Button on the top.

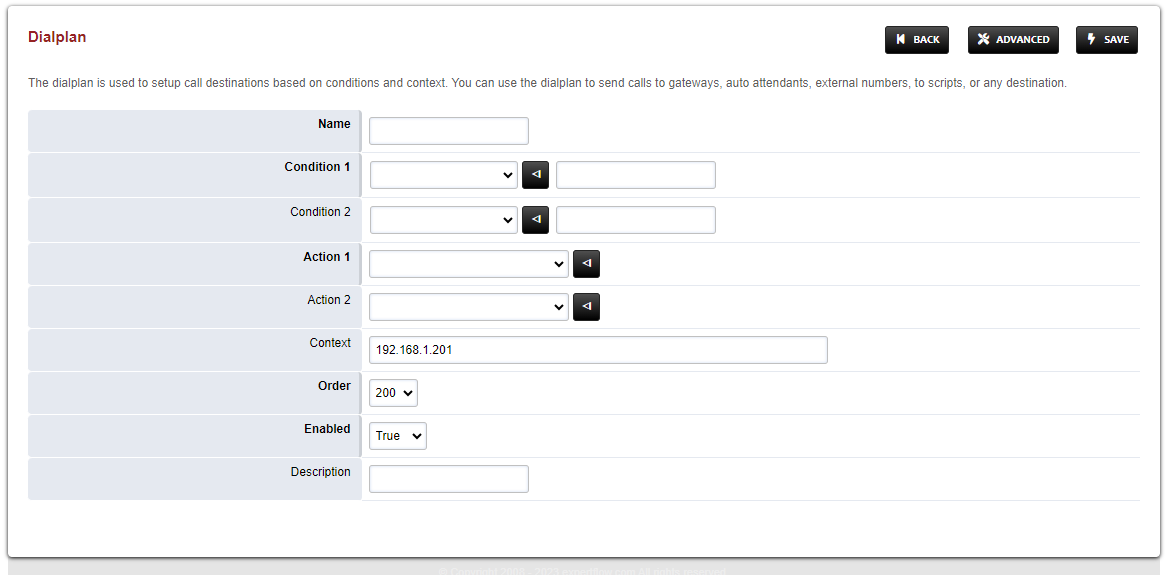

  •  Fill the form with following details :

    • Name = Silent Monitoring

    • Condition 1 =  Select destination_number from list and add ^\*44(\d{2,15})$

    • Action 1  =  Select first item from the list

  • Save the form by pressing save button on top right Corner.

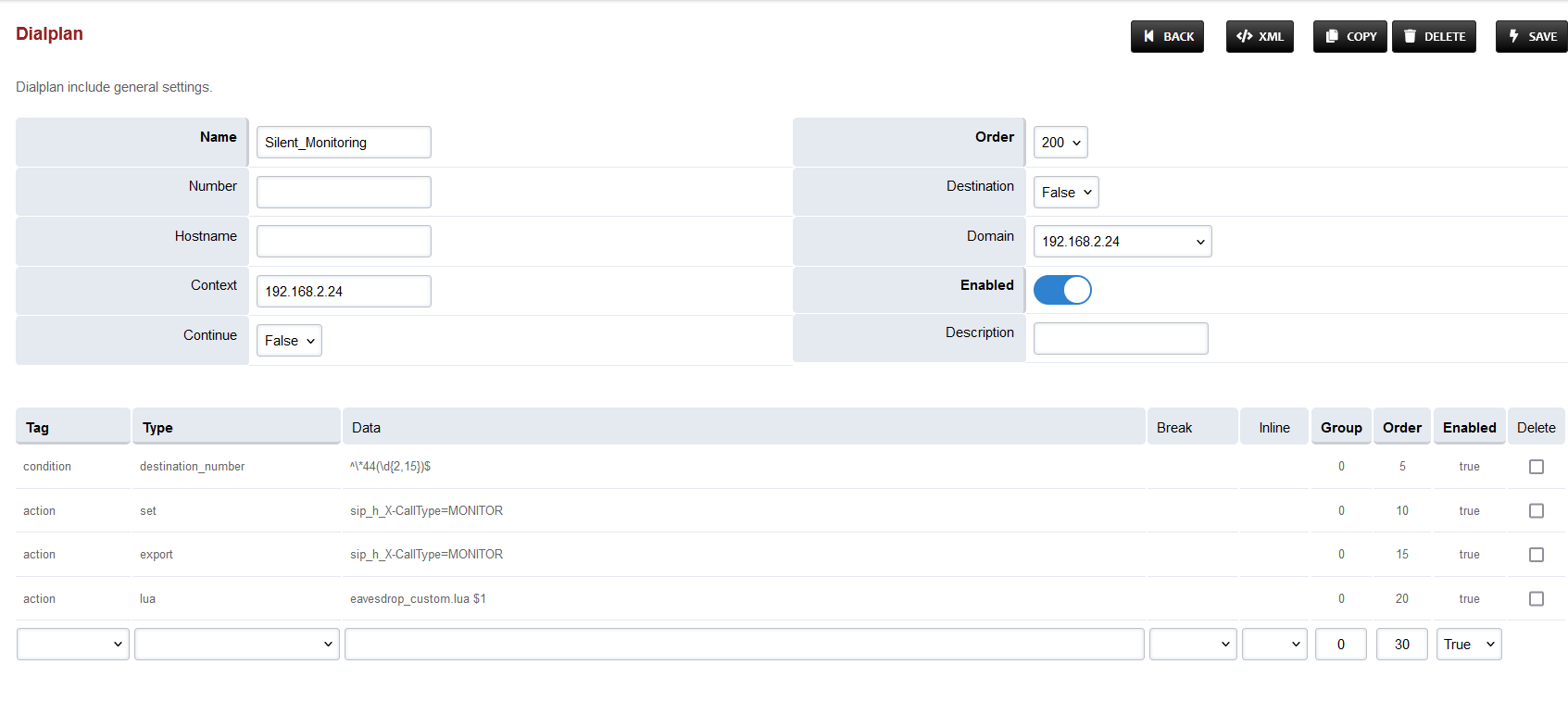

  • Re-open Silent Monitoring dialplan.

  • Delete the line with the Action tag (Click the checkbox in the right and press SAVE in the top right)

  • Add the following information to this dialplan:

Tag

Type

Data

Group

Order

Enabled

action

set

sip_h_X-CallType=MONITOR

0

10

true

action

export

sip_h_X-CallType=MONITOR

0

15

true

action

lua

eavesdrop_custom.lua $1

0

20

true


  • Set the Context field to the value of the Domain being used..

  • Set the Domain field to the value of the Domain being used..

  • Save the changes by pressing SAVE button in top right corner.

Conference Dialplan

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

  • Press the IP address in the top right and select the Domain being used.:

  • Open the Dialplan Manager section under the Dialplan tab.

  •  Add a new Dialplan by pressing the Add Button on the top.

  •  Fill the form with following details :

    • Name = CustomConf

    • Condition 1 =  Select destination_number from list and add ^custom_conf_(.*)$

    • Action 1  =  Select first item from the list

  • Save the form by pressing save button on top right Corner.

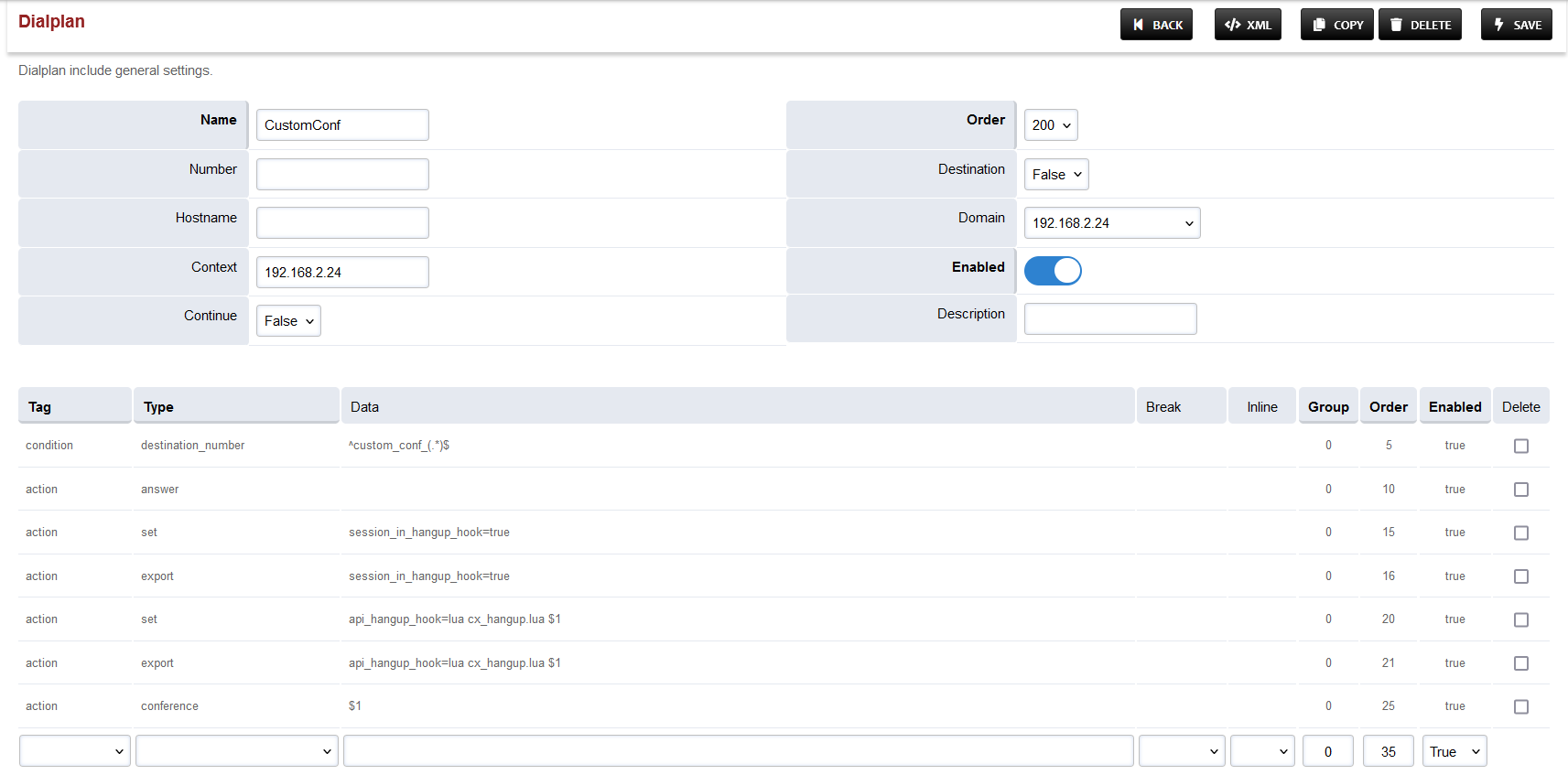

  • Re-open CustomConf dialplan.

  • Delete the line with the Action tag (Click the checkbox in the right and press SAVE in the top right)

  • Add the following information to this dialplan:

Tag

Type

Data

Group

Order

Enabled

action

answer

0

10

true

action

set

session_in_hangup_hook=true

0

15

true

action

export

session_in_hangup_hook=true

0

20

true

action

set

api_hangup_hook=lua cx_hangup.lua $1

0

25

true

action

export

api_hangup_hook=lua cx_hangup.lua $1

0

30

true

action

conference

$1

0

35

true


  • Set the Context field to the value of the Domain being used..

  • Set the Domain field to the value of the Domain being used..

  • Save the changes by pressing SAVE button in top right corner.

Changes in User Exists Dialplan

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

  • Press the IP address in the top right and select the Domain being used.:

  • Open the Dialplan Manager section under the Dialplan tab.

  • Find and open the user_exists dialplan.

  • Add the following information(to add custom values in the Type column, select a random value then click on it to edit):

Tag

Type

Data

Group

Order

Enabled

condition

${sip_h_X-CallType}

^CONSULT$

3

5

true

action

bind_meta_app

A a s1 lua::consult_conf.lua CONSULT_TRANSFER

3

10

true

action

bind_meta_app

C a s1 lua::consult_conf.lua CONSULT_CONFERENCE

3

15

true

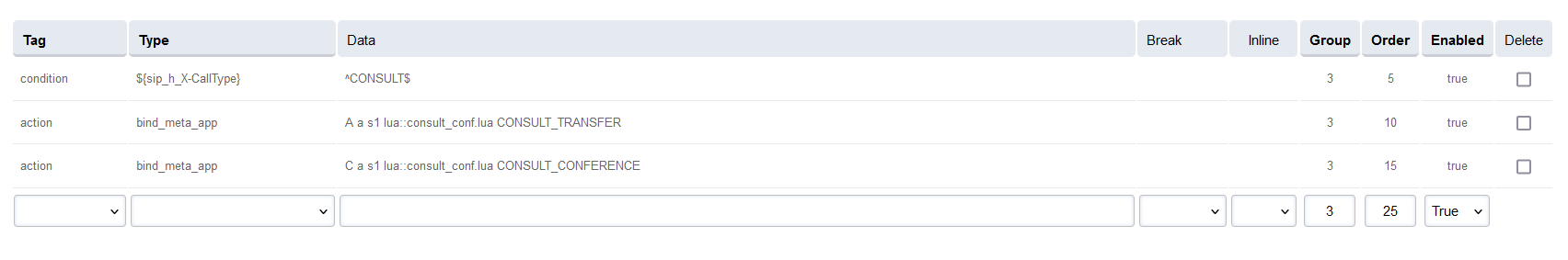

  • The result will look like this:


  • Save the changes by pressing SAVE button in top right corner.

Changes in conference profile

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

  • Press the IP address in the top right and select the Domain being used.:

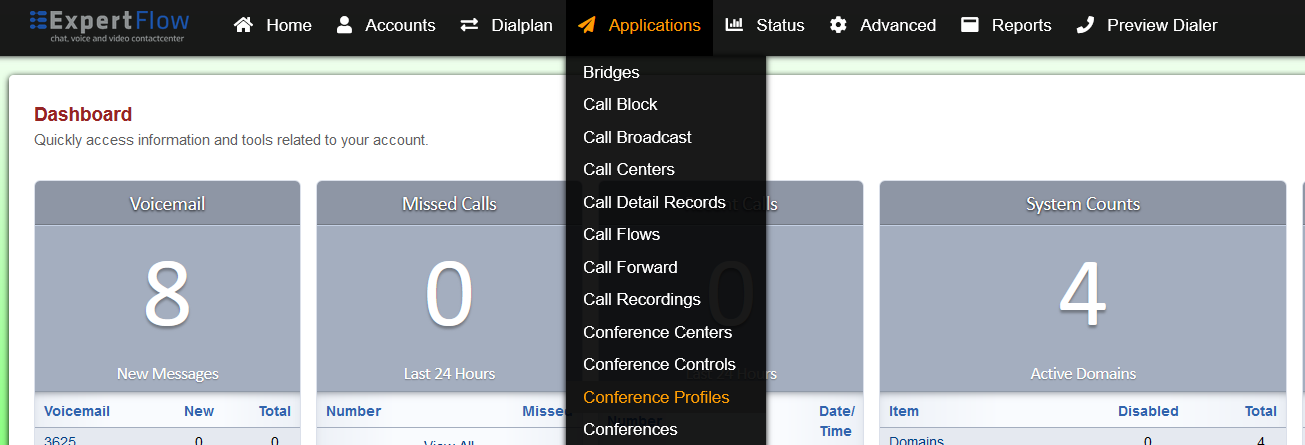

  • Open the Conference Profiles section under the Applications tab:

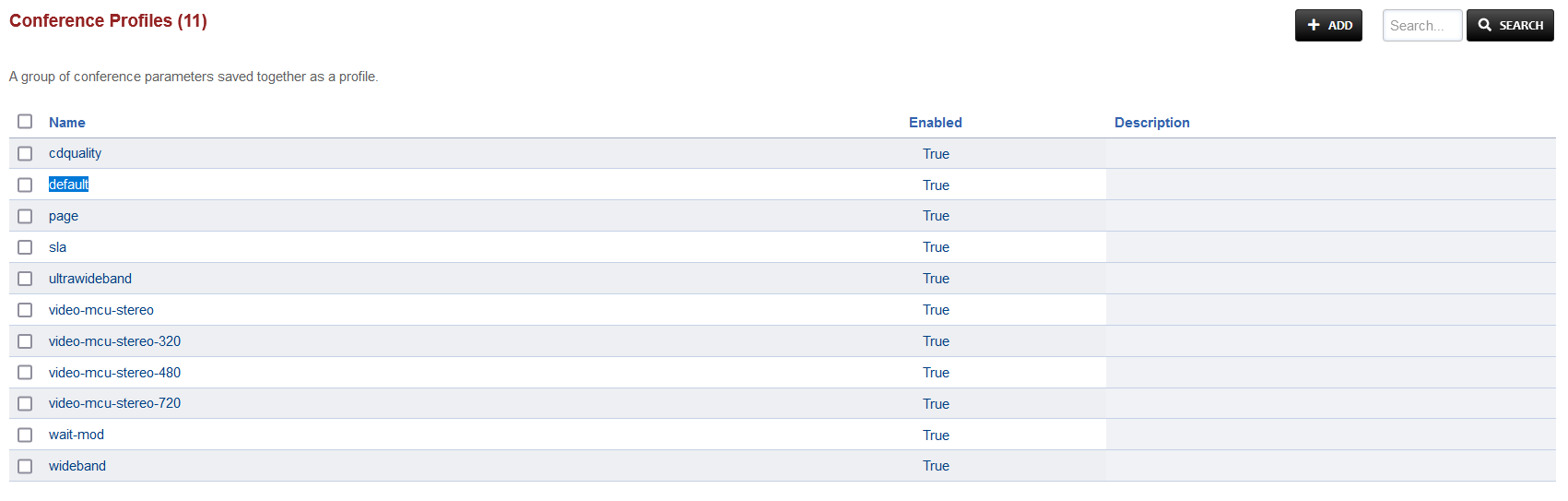

  • Open the profile named default:

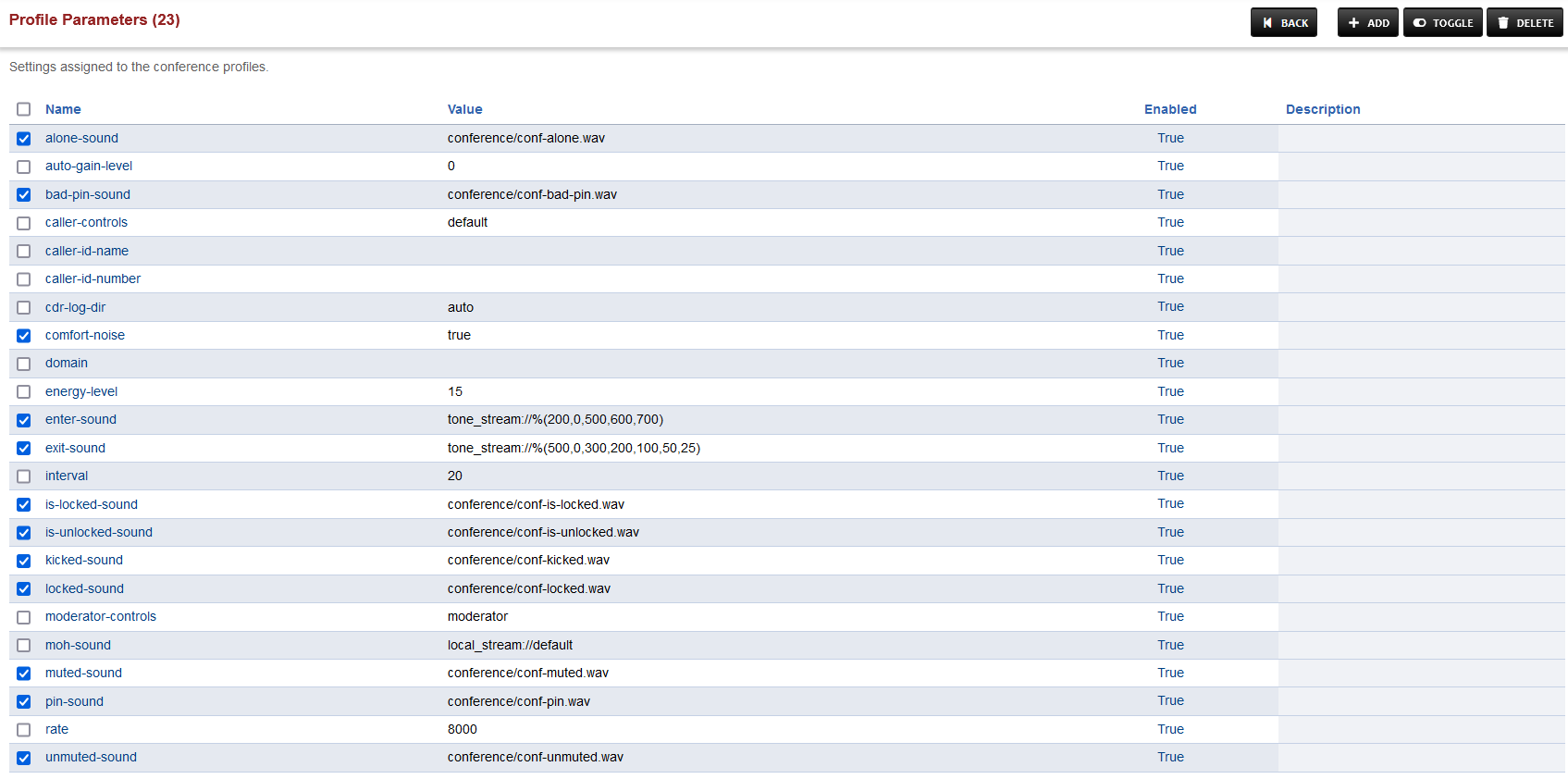

  • Under the Profile Parameters, find the following keywords under the Name column and click the checkbox:


  • Press TOGGLE in the top right and choose CONTINUE in the prompt shown.


  • Save the changes by pressing SAVE button in top right corner.

Changes in SIP Profile

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

  • Press the IP address in the top right and select the Domain being used.:

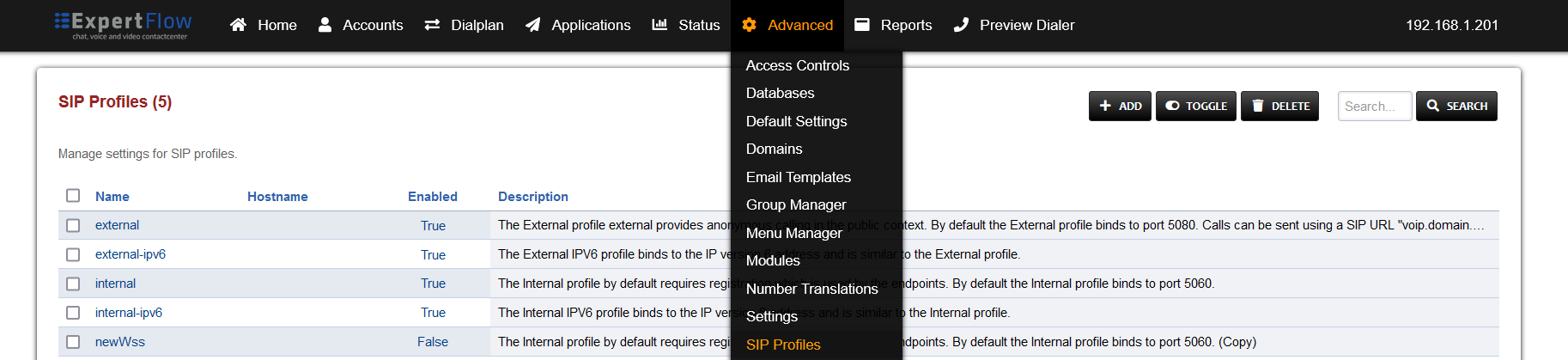

  • Open SIP Profiles under the Advanced tab.


  • Open the internal profile, scroll down to the ws-binding and wss-binding fields, and set their Enabled column values to True.


  • Find the liberal-dtmf fields and its Value and Enabled columns to true.

  • At the bottom add the data:

Name

Value

Enabled

apply-candidate-acl

0.0.0.0/0

True

  • Press the SAVE button on the top right.

  • Open SIP Status under the Status tab.

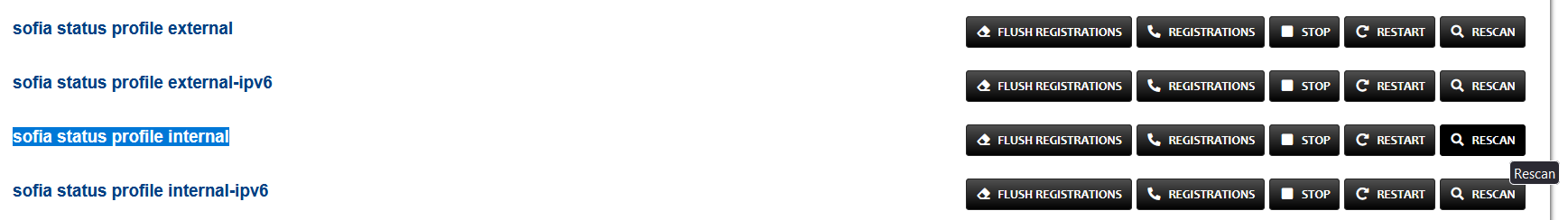

  • Locate the line sofia status profile internal and to its right press the RESCAN button, followed by the RESTART button after the page reloads.
