CX Voice Upgrade to 4.5.3 for PTCL

Voice Connector

Voice connector upgrade
  1. SSH onto the Debian server on which the Voice connector is installed.

    1. Use command

      ssh <username>@<server-ip>

    2. Enter user password and press ENTER.

    3. Use command

      su

    4. Enter root password and press ENTER.

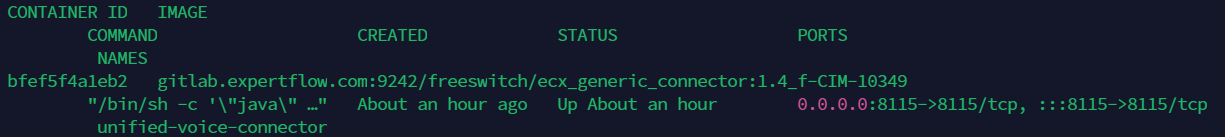

  2. Run the command to see the list of running containers

    docker ps

  3. Note the container ID of the current deployed 4.5.2 Voice connector.

  4. Note the port of that container i.e. for 0.0.0.0:8116->8080/tcp, :::8116->8080/tcp, the port of the container is 8116.

  5. Run the command to stop the container

    docker stop <container-ID>

  6. Run the command to remove the container

    docker rm <container-ID>

  7. Navigate to the folder where the docker-compose.yml and env.txt files are located for the voice connector.

  8. Open the docker-compose.yml file and replace the text inside with text below:

    version: "3.8"
    services:
      voice-connector:
        image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:4.5.3
        container_name: unified-voice-connector
        ports:
          - PORT:8080
        env_file:
          - ./env.txt
        restart: always

  9. Replace the PORT keyword with the port noted above in step 4.

  10. Run the command

    docker compose up -d

  11. Confirm that the docker container is running by using the command

    docker ps

  12. Confirm that the container is running correctly by opening the logs with command

    docker logs -f containerID


Media Server configuration

Scripts
  1. SSH onto the Debian server on which the Voice connector is installed.

    1. Use command

      ssh <username>@<server-ip>

    2. Enter user password and press ENTER.

    3. Use command

      su

    4. Enter root password and press ENTER.

  2. Confirm git is installed, and install it if is not.

  3. Clone the Media Server scripts repository:

    git clone -b 4.5.2-ptcl https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/rtc/freeswitch-scripts.git

  4. Navigate to the cloned repository to access the files:

    cd freeswitch-scripts

  5. Move scripts to the Media Server scripts folder:

    mv *.lua /usr/share/freeswitch/scripts

  6. Run the following command:

    chmod -R 777 /usr/share/freeswitch/scripts
