SMPP Configuration Guide

Unified Admin Configurations

Channel Manager Configs

Channel Type

• SMPP channel type must be already created as part of bootstrapping of the Channels Connector.

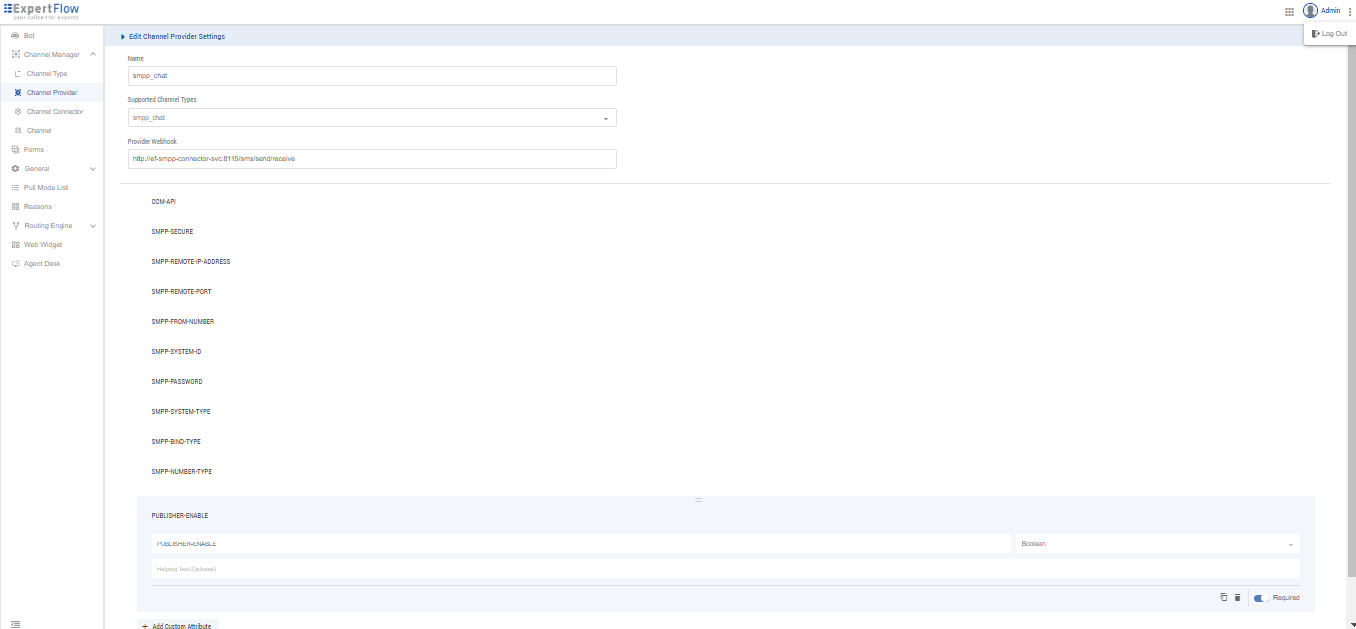

Channel Provider

• The name can be any. E.g. SMPP Provider.

• Supported Channel Types will be selected as "SMS" (If you want to setup any one only, then select any one).

• Provider Webhook will be FQDN/smppconnector. Eg: https://cim-dev.expertflow.com/smppconnector

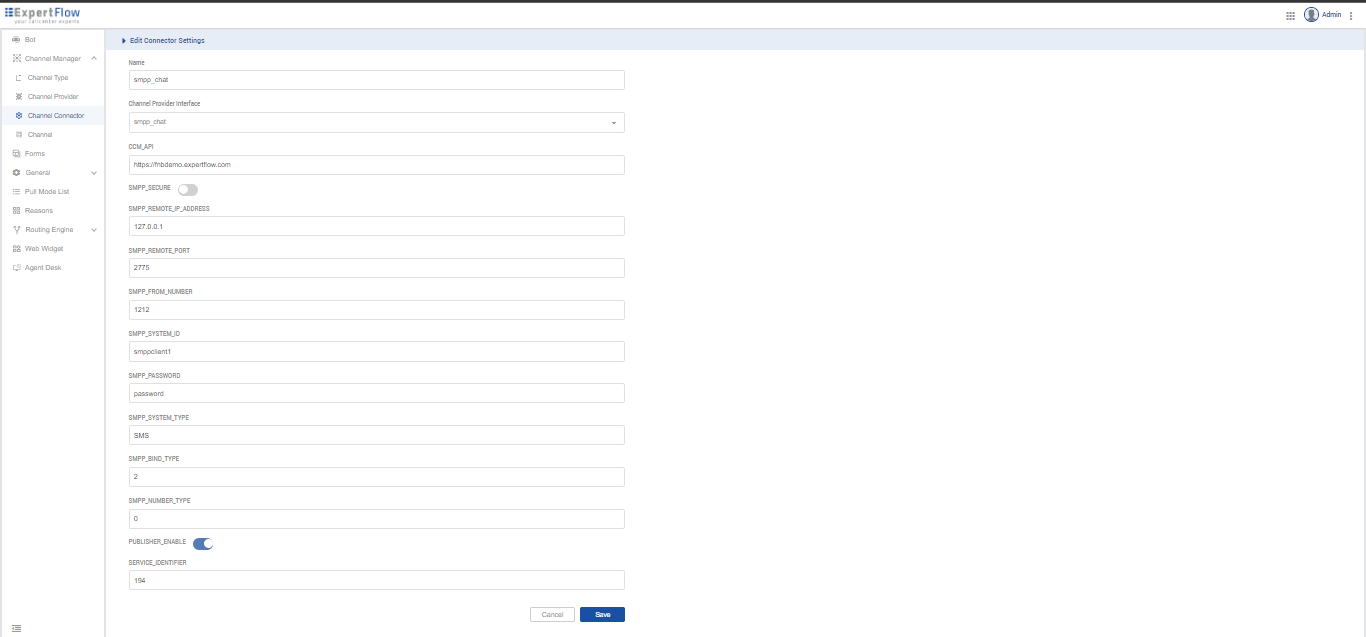

Channel Connector

• The name can be any. E.g: SMPP Connector

• Channel Provider Interface must be the same as created in the previous step.

• Provide the values

Channel

• Here we will be creating channels. If we want to set up SMS, we will create a channel under the "SMS" channel type.

• The name of the channel can be any. E.g: SMPP  SMS Channel

• Service identifier:


  • For SMS: it will be the active phone number we have bind for cim.

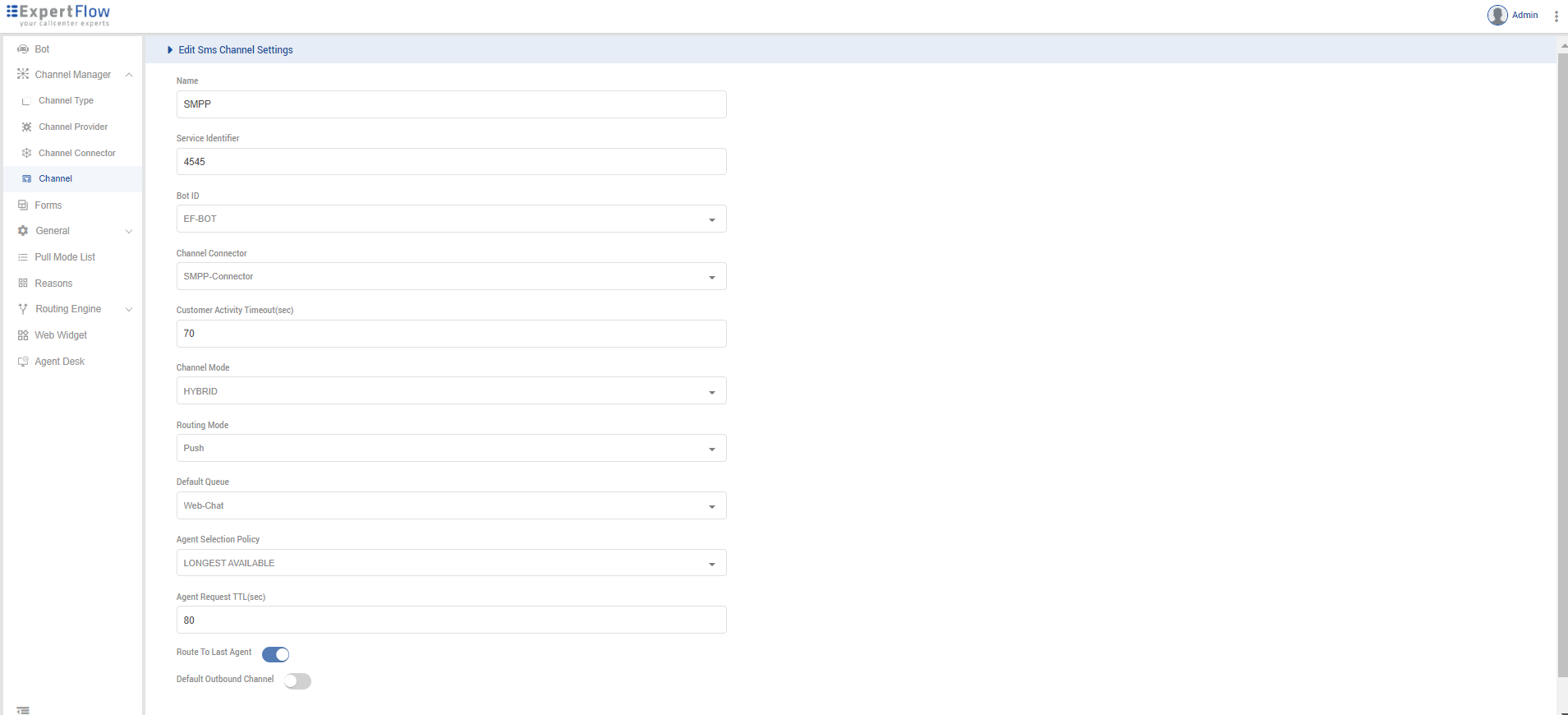

• The rest of the fields are the same as all other connectors. The sample is shown in the image below.

Service Identifier

You need to add a service identifier in the configMap also because on the first call of the API to get Unified Admin configuration we need to add in the API to get configs.

Configuration Variables
