QM Connector Deployment Guide

Pre-Requisite

VRS https://expertflow-docs.atlassian.net/wiki/x/BgDC?atlOrigin=eyJpIjoiMTU0YjFlM2I4M2NhNDllOGJhNWFlMzkxMmE5NDYzMzciLCJwIjoiYyJ9

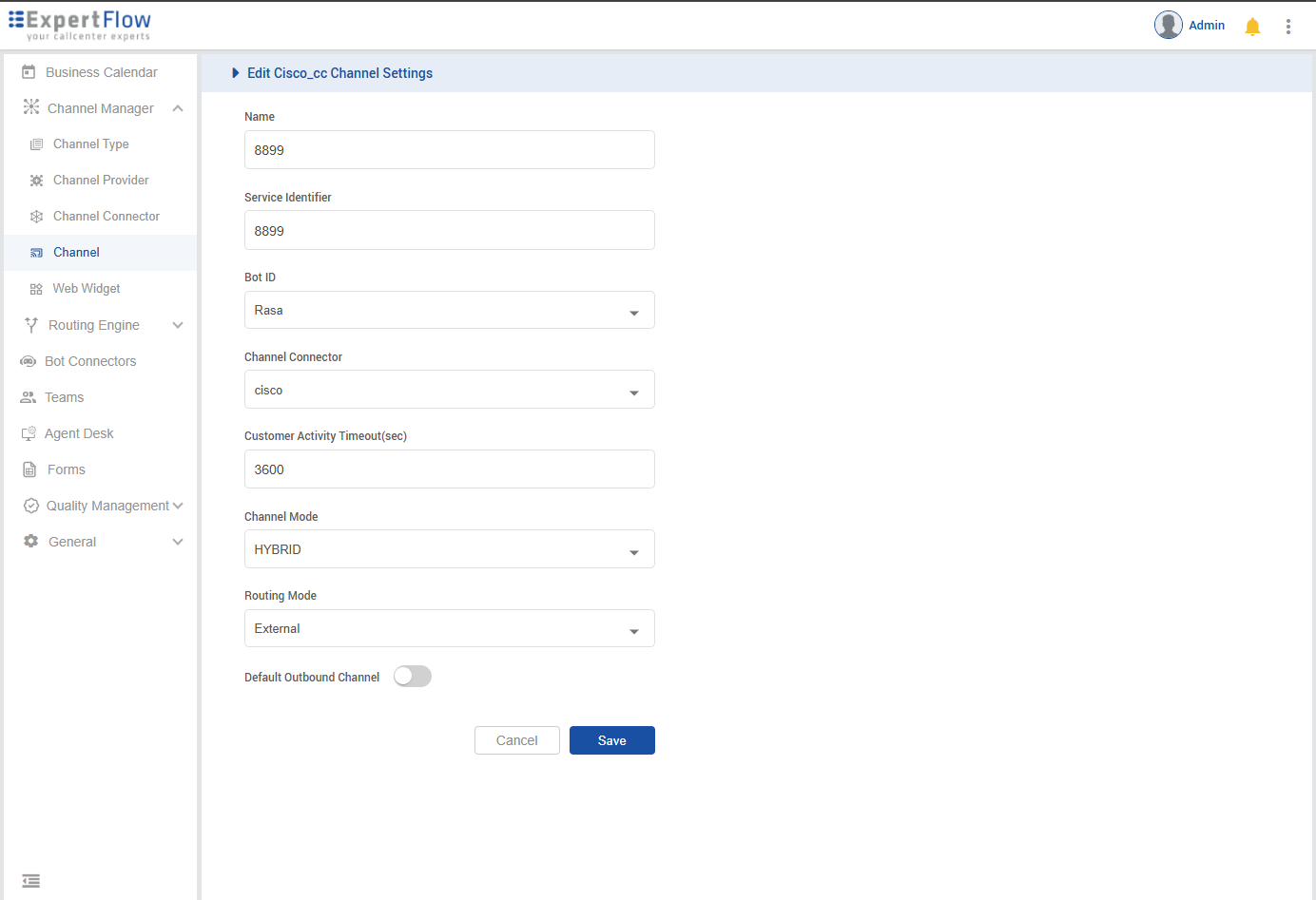

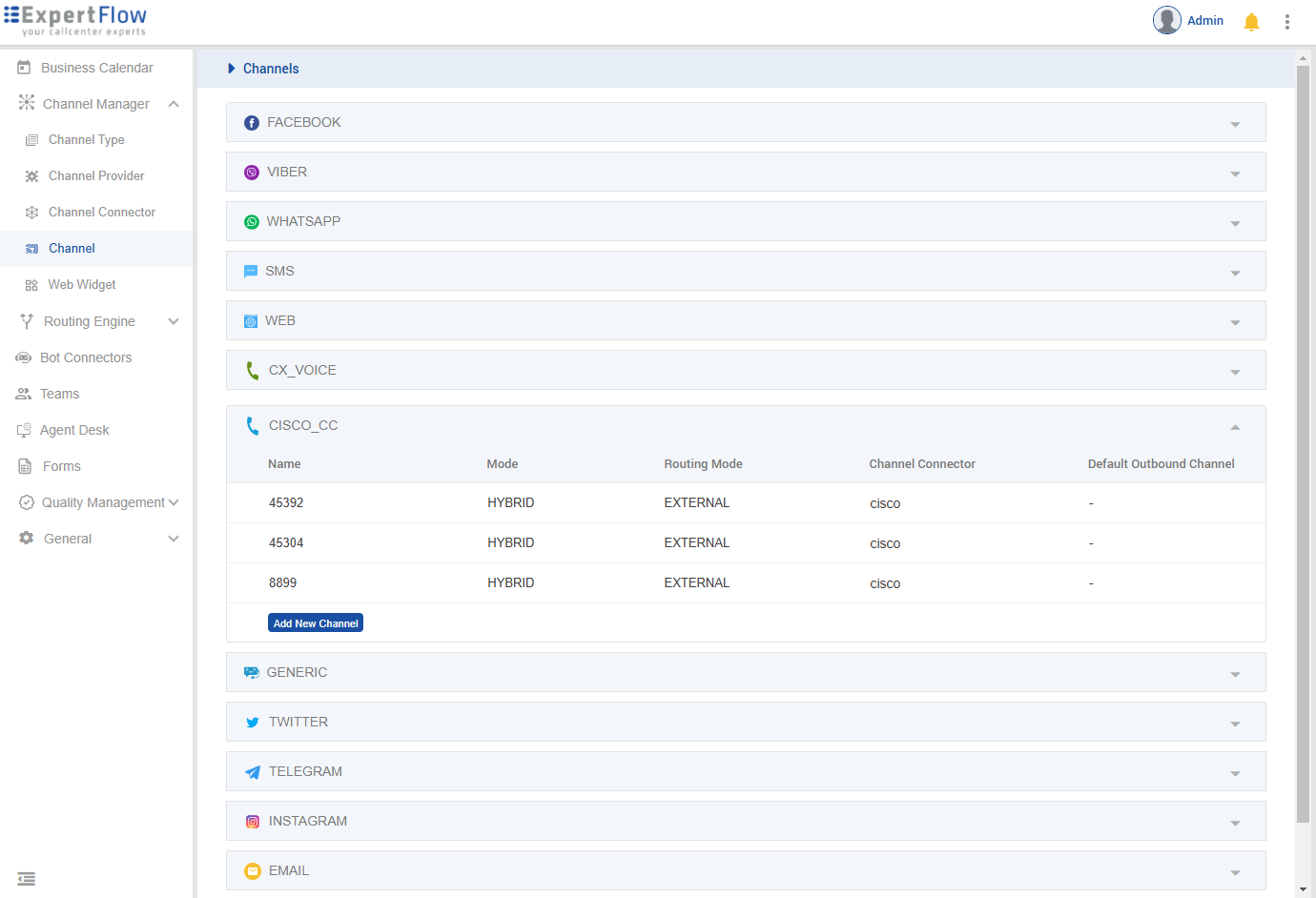

Create New Channels of CISCO_CC for both Inbound and Outbound, for outbound select a 4-5 Digit Number, and set it as UCCE_OB_SERVICE_IDENTIFIER in values.yaml

Set Routing Mode as External
Set the Channel Model as HYBRID

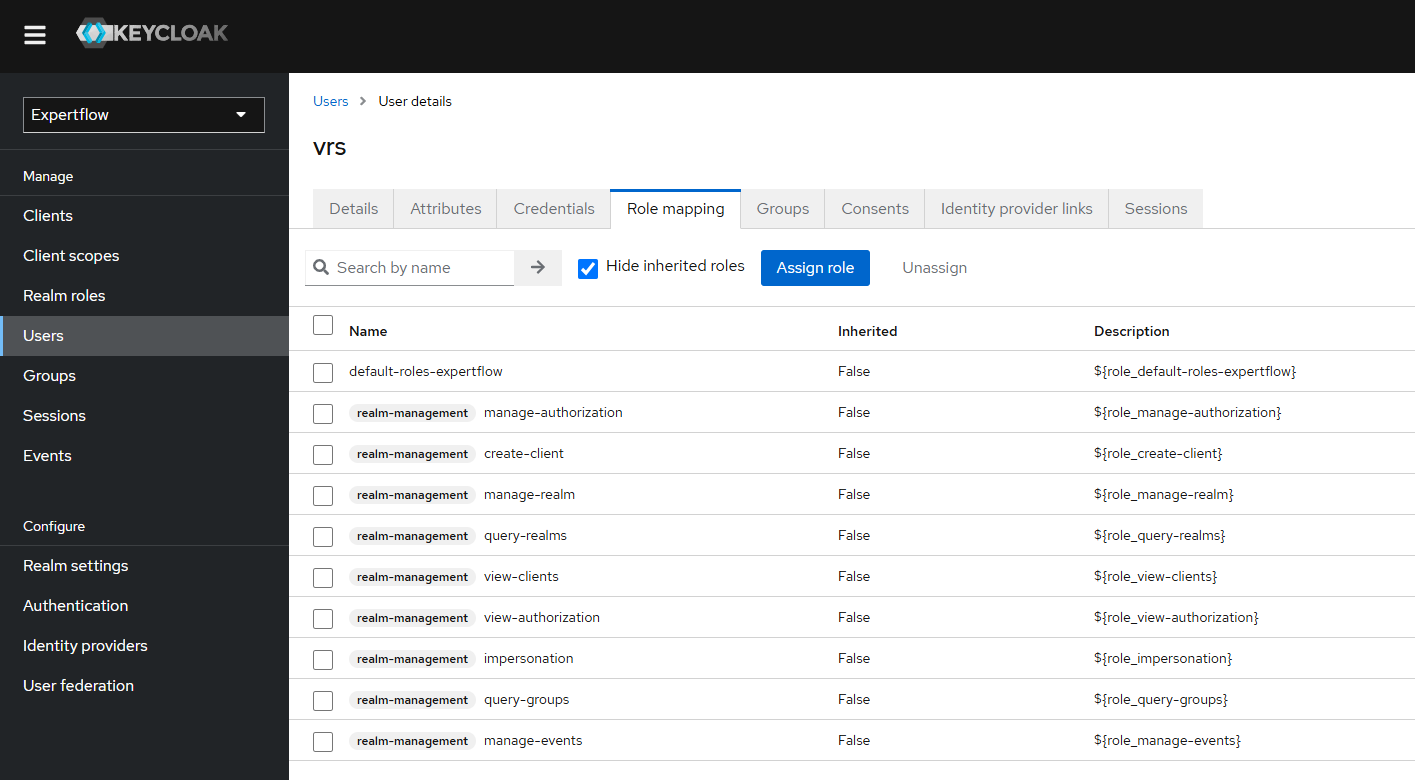

Create a new user in Realm, set its name & password as ‘vrs’, and assign all the ‘realm-management’ roles to that user. SetKEYCLOAK_USERNAME & KEYCLOAK_PASSWORD in values.yaml

Step 1: Clone the Repository

clone the repository using the following command.

CODE

git clone -b CX-4.7_f-CIM-27916 https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/cim/cim-solution.git

Change the directory.

CODE

cd cim-solution/kubernetes

Step 2: Update the Configurations

Open the helm/qm-connector/values.yaml file and update the ingressRouter

CODE

vi helm/qm-connector/values.yaml

Step 3: Update the env variables

Env var	Description	Example values
RECORDING_SERVER_FQDN	Recording Server IP	https://192.168.1.126
EFCX_FQDN	CX FQDN	https://efcx-qm.expertflow.com/
CALL_BACK_URL	Webhook for conversation creation	http://webhook.site/8d7dc0b5-b886-40ee-9203-150699e4f9ce
UCCE_ENGINE	UCCE DB Engine	sqlserver
UCCE_IP	UCCE IP	192.168.1.72
UCCE_PORT	UCCE DB port	1433
UCCE_DATABASE	UCCE `awdb` database name	uc126_awdb
UCCE_USERNAME	UCCE `awdb` database user’s username	sa
UCCE_PASSWORD	UCCE `awdb` database user’s password	Expertfllow464
UCCE_OB_SERVICE_IDENTIFIER	Service Identifier for outbound calls	8899
KEYCLOAK_REALM_NAME	Realm name from EFCX keycloak	expertflow
KEYCLOAK_CLIENT_ID	KeyCloak client ID from EFCX keycloak	cim
KEYCLOAK_CLIENT_SECRET	Add the client secret from the EFCX keycloak	ef61df80-061c-4c29-b9ac-387e6bf67052
KEYCLOAK_USERNAME	Keycloak User with all the realm-management Roles	vrs
KEYCLOAK_PASSWORD	The password of the keycloak User with all the realm-management Roles	vrs
KEYCLOAK_AGENT_ROLE_NAME	The role that needs to be assigned to the new Agent created with QM-connector	agent
KEYCLOAK_AGENT_ROLE_ID	Role-Id that needs to be assigned to new Agent created with QM-connector	1903735d-5bcc-4253-a05e-ea1487195c9c
DB_NAME	Name of the VRS database	vrs
DB_USER	Username for VRS database	sa
DB_PASSWORD	Password for the VRS database	Expertflow123
DB_ENGINE	The engine on which VRS database is running i.e MySQL	sqlserver
DB_HOST	Name or IP of the host on which the VRS database is active	192.168.1.126
DB_PORT	Port of the VRS Database	1433
DB_DRIVER	Driver on which VRS database is running i.e mysql drive	com.microsoft.sqlserver.jdbc.SQLServerDriver

Step 4: Deploy the QM-Connector Helm Chart

Deploy the helm chart using the following command

CODE

helm upgrade --install --namespace expertflow  --set global.efCxReleaseName="ef-cx"  qm-connector --debug --values helm/qm-connector/values.yaml helm/qm-connector/

Check the pods by running the following command

CODE

kubectl get pods -n expertflow | grep qm-connector
