Deployment Guide

Installation Steps

1. Install Docker and Docker Compose on the host operating system.

2. Download the deployment script deployment.sh and place it in the user home or any desired directory. This script will:

3. 1. delete the pcs-deployment directory if it exists.

4. To execute the script, give it the execute permissions and execute it.

   Bash

   $ chmod 755 pcs-deployment.sh
   $ ./pcs-deployment.sh





5. pcs-deployment directory has all the files required deployment

6. Create a database in MSSQL Server for PCS application.

7. Update following environment variables  in environment_variables.env file inside pcs-deployment folder.

8.


   Name	Description
   DB_URL	PCS database connection url, (jdbc:jtds:sqlserver://192.168.1.92:1433/pcs_linux)
   DB_USER	PCS database user , sa
   DB_PASSWORD	PCS database password, Expertflow464
   DB_DRIVER	JDBC driver (net.sourceforge.jtds.jdbcx.JtdsDataSource)
   DB_DIALECT	org.hibernate.dialect.SQLServer2008Dialect
   UCCE_DB_URL	UCCE AWDB database connection URL. jdbc:jtds:sqlserver://192.168.1.87:1433/ucce_awdb
   UCCE_DB_USER	sa
   UCCE_DB_PASSWORD	Expertflow464
   IS_DB_ON_SAME_SERVER	Indicates if SQLServer is on Windows machine or not. If SQL Server is installed on Windows then set it to "no". If it is set to "yes" then SHARED_PATH variable should be set to have common shared folder that is used by Node server and SQLServer for report export. Check second last section for Node server
   SHARED_PATH	Shared path for reports, SQL Server will write exported reports to this folder and application will download from the same folder. It is only effective if SAME_SERVER set to "no" \\\\192.168.1.79\\xyz\\
   Following variables are used if Cisco contact center type is UCCX
   UCCX_SERVER_BASE_URL	http://192.168.1.100/adminapi
   UCCX_USERNAME	administrator
   UCCX_PASSWORD	Expertflow464
   Following variables are used for LDAP authentication
   LDAP_SERVER	ldap://192.168.1.132:389/
   LDAP_SEARCH_USER	cn=administrator,cn=users,dc=eflab,dc=com
   LDAP_SEARCH_PASSWORD	Expertflow@12345
   LDAP_SEARCH_BASE	cn=users,dc=eflab,dc=com
   LDAP_ALLOW_EMPTY_PASSWORD	false
   LDAP_USER_ATTRIBUTE	sAMAccountName
   TZ	Asia/Karachi
   EMAIL_USERNAME	Mail account username (example@ ef.com )
   EMAIL_PASSWORD	Mail account password
   EMAIL_HOST	Mail server host/IP
   EMAIL_PORT	Mail Server SMTP port
   EMAIL_SOCKER_CLASS	javax.net.ssl.SSLSocketFactory, do not change it.
   EMAIL_AUTH	set it to "true", do not change it.
   TZ	Timezone (Asia/Karachi

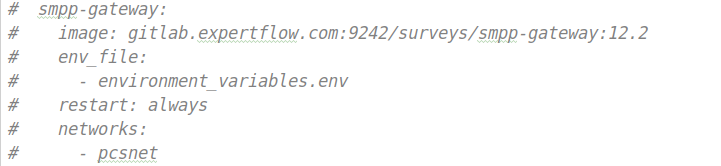

9. If there are SMS surveys as well, uncomment the following block in docker-compose

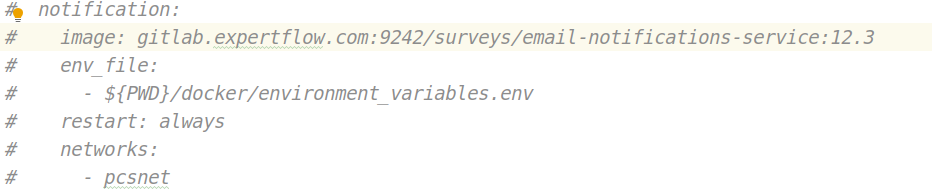

10. For email notifications, uncomment following block in docker-compose and update email environment variables in environment_variables file.

11. Execute following commands to allow specific ports exposed in docker-compose.

    $ firewall-cmd --zone=public --permanent --add-port=8443/tcp

     $ firewall-cmd --reload

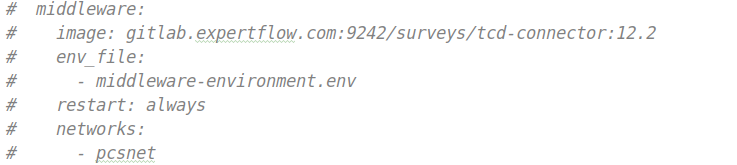

12. For callback surveys, uncomment following block in docker-compose file and update environment variables in middleware-environment.env file inside pcs-deployment/docker folder. Create a database in sql server for this service or user PCS application database and execute sql scripts inside pcs-deployment/proxyDbScripts folder to create necessary tables for this service.



    Name	Description
    server.port	8383, do not change it
    http.port	7272, do not change it
    database.sql.driver	com.microsoft.sqlserver.jdbc.SQLServerDriver, do not change it
    database.sql.tcd.url	UCCE awdb url, jdbc: sqlserver://192.168.1.87:1433;databaseName=ucce_awdb
    database.sql.tcd.username	UCCE awdb username
    database.sql.tcd.password	UCCE awdb password
    database.sql.proxy.url	this service database url, jdbc:sqlserver://192.168.1.87:1433;databaseName=proxy_db
    database.sql.proxy.username	proxy database username
    database.sql.proxy.password	proxy database password
    pcs.getSurveyDetails	/getSurveyDetails, do not change it.
    pcs.getActiveSurveys	/getActiveSurveys, do not change it.
    pcs.serverUrl	PCS application URL https://machine-ip:8443/PCS/survey
    pcs.username	A PCS user's username
    pcs.password	PCS user password
    ecm.serverUrl	ECM URL, http://machine-ip:7676/ecm
    ecm.campaign.caller	/callback/insertCallback, do not change it.
    ecm.campaign.uploadBulkCaller	/callback/uploadBulkCaller, do not change it.
    ecm.campaign.callback	1, ECM campaign Id supposed to be used for callback surveys
    ecm.campaign.sms	2, ECM campaign Id supposed to be used for sms surveys
    MY_IP	local machine IP
    IS_HA	true or false, decides if HA is supported or not for this service
    TCD.startFetchingTime	2019-11-12 10:11:52, initial date time from where to start fetching inbound calls and check for callback surveys.
    ecm.campaign.sms.phone.prefixes	Prefixes of numbers to identify mobile numbes, e.g 77,83,92
    time.zone	+5, timzone GMT offset




13. Default self signed SSL certificates are provided with build. If it needs to be changed with domain signed certificate then replace server.crt(SSL certificate) and server.key (SSL key) in pcs-deployment/docker/ssl folder.

14. If UCCX APIs are required to be accessed via https (UCCX_SERVER_BASE_URL) then we will need to provide UCCX SSL certificate to application. Replace file ccx.crt inside pcs-deployment/docker/ssl folder with UCCX SSL certificate file.

15. Having environment configurations done,  navigate to to the pcs-deployment directory and execute following commands:

    Bash

    $  chmod 755 install.sh
    $ ./install.sh

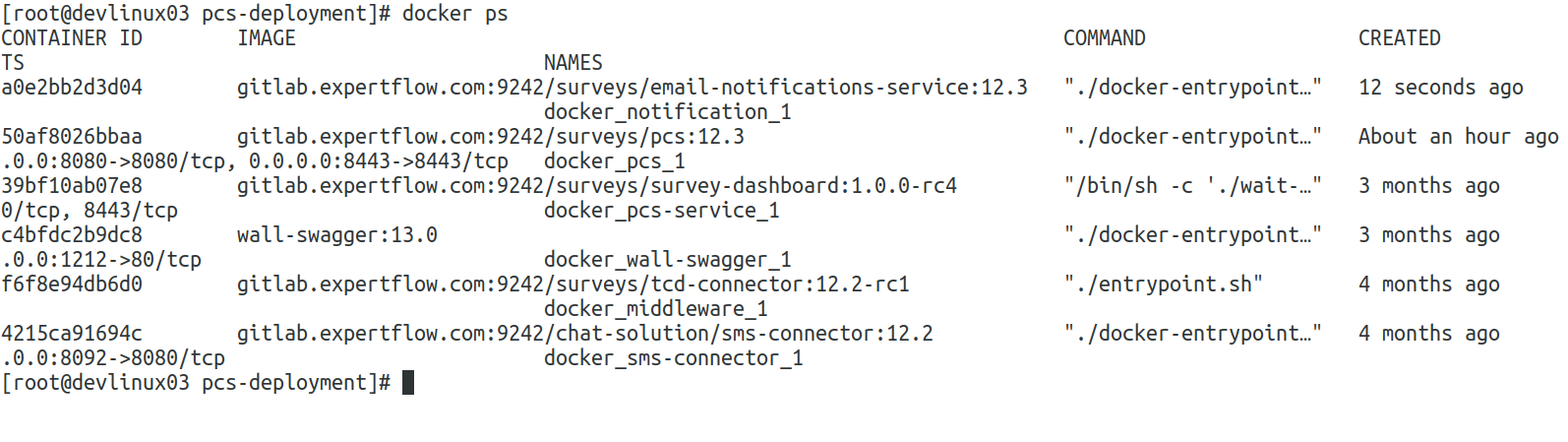

16. Run the following command to ensure that all the components are up and running:

    Bash

    $ docker ps -a




17. The translation files are placed in pcs-deployment/docker/translations. Four languages are supported , English (message.properties), French (message_fr.properties), German (message_de.properties) and Italian (messages_it.properties. Any changes to properties in these files will reflect in respective language UI.




HA Configurations

1. Change to HA folder inside pcs-deployment and edit the keep.env file to configure the HA attributes. The details are as follows:

   KEEPALIVED_UNICAST_PEERS	IP of the other machine in the cluster (cluster means an HA cluster of 2 machines where supervisor tools are being deployed). It shouldn't be the IP of the machine on which you currently are. Example:  192.168.1.233
   KEEPALIVED_VIRTUAL_IPS	Virtual IP (should be provided by the customer) to be used to access the application. This should be available in the same subnet as the HA machines. Example: 192.168.1.245
   KEEPALIVED_PRIORITY	Priority of the node from 0-255. A lower number represents a higher priority. The node with higher priority will be master and the other one will be the slave by default. Example: 100
   KEEPALIVED_INTERFACE	The network interface of the machine on which LAN is connected. On Linux, you can get this by executing $ ip addr sh  On a typical SuSE installation, it would generally be: eth0
   CLEARANCE_TIMEOUT	PCS startup time in seconds. On a 2 core machine, PCS takes around 1 minute or 60 seconds to boot up. Example:  60
   KEEPALIVED_ROUTER_ID	Router ID of the cluster. This should be the same on both the machines in the cluster. Example: 51
   SCRIPT_VAR	This is the health check script. It should remain as is unless you change the umm port in the compose file. Update PCS port instead of 8080 if you’re using some other port. Example:  pidof dockerd && wget -O config http://localhost:8080/PCS/configurationSetting/list




2. Start the HA cluster on all the machines with the following command:

    chmod +x keep-command.sh && ./keep-command.sh





If everything goes well, you should be able to access the application on https://machine-IP:8443/PCS after the application boot time (takes around 3 minutes on a 2 core machine).

If deployment for UCCX  access link https://machine-IP:8443/PCS/configurationSetting/list

and select  Cisco Deployment Type =UCCX

Once PCS application is up and running, open SQL scripts (provided with build) in text editor and change variable name “db_name” (search by @dbName) in detail_report_export_web, audit_survey_report_export,  summary_report_export and details_report_export to PCS database name. Create stored procedures by running all SQL scripts in SQL Server.

Once PCS application is started, got to Stored Procedures folder inside pcs-deployment folder and run all the scripts there in PCS MSSQLServer database to create required stored procedures for PCS reports.

Configuration for report export

1. Run below script in PCS database on SQL Server

   EXEC sp_configure 'show advanced options', 1
   GO
   -- To update the currently configured value for advanced options.
   RECONFIGURE
   GO
   -- To enable the feature.
   EXEC sp_configure 'xp_cmdshell', 1
   GO
   -- To update the currently configured value for this feature.
   RECONFIGURE
   GO





2. Install nodejs with default settings on SQL Server Machine, setup can be found here.

3. After the installation is complete place ef_files_download  folder in C: drive of server (note: it must be placed in C drive root folder)

4. Now open Command Prompt and type cd C:/ef_files_download

5. Type command node script.js  and press enter

6. It will start the express server at some port like 3003

7. 1. If SQL server and application server are on two different machines

   • Share this folder “ef_files_download” with Everyone(Password protection should be OFF for this folder, both PCS and SQL Server machines should be on same domain)

   • Open PCS application

   • Go to PCS http://machine_ip:tomcat_port/PCS/ConfigurationSetting/

   • Edit settings

   • Enter Exported Report Path = machine_IP:listening_port/pcs

   • Click update

Troubleshooting

Logs for each container are available in files as well as within docker daemon. To see the logs for any container, execute docker ps and get the id of the container. Use that id to see the logs using docker logs <container_id>

1. PCS is not able to fetch prompts from CVP shared folder

   • Solution: add extra_hosts in the docker-compose file in pcs-deployment/docker folder with CVP IP address and Host name like below                         extra_host:
                      - "host-name: ip"

Survey Dashboard Deployment Guide:

These are the series of Steps that are need to be executed to deploy the survey dashboard:

1 Add the Survey Dashboard Docker image in your docker-compose.yml file. Following example explains the step:

pcs-service:
  image: gitlab.expertflow.com:9242/surveys/survey-dashboard:1.1.0
  env_file:
  - ./environment-variables/survey-variables.env
  restart: always

2 Update the survey-variables.env file with following Environment variables:

3 Login to Docker account: login to Docker with your credentials.

docker login gitlab.expertflow.com:9242 --username deployment --password xWb8WafM8ZvdwBHNxLm3

4 Up the Docker Compose file with following command:

docker-compose -f docker/docker-compose.yml up -d

A fix in Email Notification:

1. Change the email-notification-service image tag to 12.3.1

2. Add an extra variable to environment variables with name TLS_ENABLED=true

3. Run ./install.sh in pcs-deployment directly.
