High Availability (HA) / Duplex Deployment

In Duplex mode, there are two types of supported configurations.

Active-Passive (Primary / Secondary) Setup

A primary/secondary configuration setup where one Connector works as a primary server while the other (secondary) is available as a standby server (from a Disaster Recovery site)

Figure 1.1

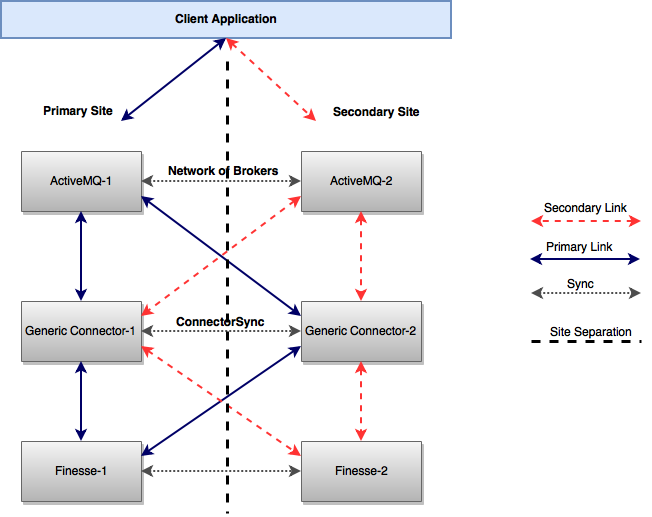

Active-Active Setup

In this mode, both Connector instances are active and serving clients and one instance serves as the backup / secondary for the other.

Figure 1.2
