KONG & KONGA Deployment

Introduction

This document illustrates the procedure and steps to deploy Kong & Konga on any Kubernetes distribution (K3s or RKE2). Kong API, also known as Kong API Gateway, is an open-source API gateway and microservices management platform. It acts as a centralized point of control for managing and securing APIs, allowing organizations to efficiently expose, manage, and secure their APIs.

Kubernetes must be running on the system with Helm

Deployment:

Start with cloning the repository from gitlab.

CODE

git clone -b HC4.1-kong  https://gitlab.expertflow.com/cim/cim-solution.git

Create the namespace using command

CODE

kubectl create namespace kong

change to the directory

CODE

cd cim-solution/kubernetes/

Edit Helm File

You will need to update the helm file for kong before proceeding with the install

CODE

vi external/kong/values.yaml

The following changes need to be made to the hostname on the proxy ingress on the kong's value file

CODE

proxy:
  # Enable creating a Kubernetes service for the proxy
  enabled: true
  type: LoadBalancer
  loadBalancerClass:
  # Override proxy Service name
  nameOverride: ""
  # To specify annotations or labels for the proxy service, add them to the respective
  # "annotations" or "labels" dictionaries below.
  annotations: {}
....   ingress:
# Enable/disable exposure using ingress.
enabled: false
ingressClassName:
# Ingress hostname
# TLS secret name.
# tls: kong-proxy.example.com-tls
hostname: <FQDN>
# Map of ingress annotations.
annotations: {}
# Ingress path.
path: /
# Each path in an Ingress is required to have a corresponding path type. (ImplementationSpecific/Exact/Prefix)
pathType: ImplementationSpecific

# Optionally specify a static load balancer IP.
# loadBalancerIP:

Change the hostname's FQDN in proxy ingress section to your own.

Install Kong

CODE

helm upgrade --install=true --namespace=kong  kong external/kong/

Check the status of external components

CODE

kubectl get pods -n kong
NAME                              READY   STATUS      RESTARTS   AGE
kong-postgresql-0                 1/1     Running     0          3d
kong-kong-init-migrations-nmctf   0/1     Completed   0          3d
kong-kong-6df7d87d49-ts77g        2/2     Running     0          3d

change to the directory for the Ingresses

CODE

cd cim-solution/kubernetes/cim/Ingresses

Now change the FQDN to your own

CODE

sed -i 's/devops[0-9]*.ef.com/<FQDN>/g' kong/*

Applying Ingresses

CODE

kubectl apply -f kong/

Konga

An open source tool that enables you to manage your Kong API Gateway with ease.

CODE

cd cim-solution/kubernetes/

Deployment of Kong

CODE

helm upgrade --install=true --namespace=kong  konga external/konga/

Edit the service for it to exposed externally

CODE

kubectl patch svc konga -n kong  --type='json' -p '[{"op":"replace","path":"/spec/type","value":"NodePort"}]'

The external port will appear as following

CODE

kubectl get svc -n konga
NAME    TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
konga   NodePort   10.43.53.157   <none>        80:30344/TCP   59m

The dashboard can be accessed based on the port results above

To setup the dashboard access it using the following format http://<fqdn>:<nodeport>

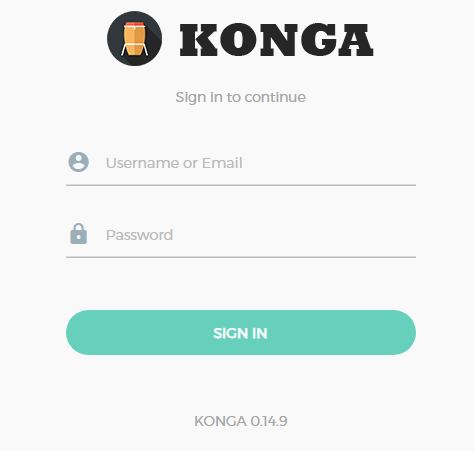

Konga Dashboard

Setup your credentials and login to Konga

Create a new connection to connect Konga to your Kong

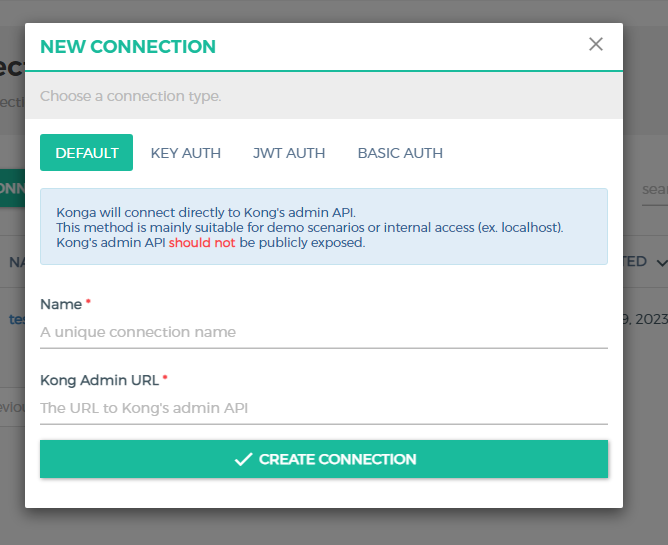

Connection Panel

For Kong admin URL enter your Kong admin cluster IP and Port and create connection
