Voice Connector deployment guide

Prerequisites

Software Requirements

Port Utilization Requirements

The following ports must be open on the server for the voice connector to function.

The ports can be opened as follows:

• SSH into the Debian server.

  • Use command ssh username@server-ip

  • Enter the ssh password and press Enter.

  • Use command su.

  • Enter the root user's password

• Run the following command and replace PORT with each of the required ports listed above:

  • sudo iptables -A INPUT -p tcp -m tcp --dport PORT-j ACCEPT

    • Example:  sudo iptables -A INPUT -p tcp -m tcp --dport 8021 -j ACCEPT

• Save this port configuration with command: sudo iptables-save.

Container Deployment

The voice connector is deployed as a docker image.

• Create a folder voice-connector with the command 'mkdir voice-connector'.

• Enter the folder with the command 'cd voice-connector'.

• Create a file docker-compose.yml.

  • vi docker-compose.yml

• Enter editing mode with the 'I' or 'Insert' keys.

• Copy the contents below and paste them into the file docker-compose.yml :

  docker-compose.yml

  JavaScript

  version: "3.8"
  services:
    voice-connector:
      image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:TAG
      container_name: unified-voice-connector
      ports:
        - 8115:8115
      env_file:
        - ./env.txt
      restart: always


  • Replace the 'TAG' keyword with the required image tag for CX 4.4 obtained from the releases page here.

• Save and exit by :

  • Press the 'Esc' key.

  • Enter the phrase ':wq' (without quotes) to save and exit.

• Create a file docker-variables.env

  • vi docker-variables.env

• Enter editing mode with the 'I' or 'Insert' keys.

• Copy the contents below and paste them into the file env.txt :

  env.txt

  JavaScript

  CCM_API= https://efcx4.expertflow.com/ccm/message/receive
  SPRING_PORT= 8115
  ESL_PORT= 8021
  ESL_PASSWORD= ClueCon
  DIALER_API= placeholder
  DB_CONN_TIMEOUT=3000
  DB_PASS=Password
  DB_URL=jdbc:postgresql://IP:5432/DB-NAME
  DB_USERNAME=efswitch
  DB_DIALECT=org.hibernate.dialect.PostgreSQLDialect
  DB_DRIVER=org.postgresql.Driver


  • CCM_API= The address of EF CX in format: https://FQDN/ccm/message/receive

  • SPRING_PORT= The internal port of the voice connector. Do not change from 8115.

  • ESL_PORT= The port of EFSwitch ESL (Default 8021, Same as in Efswitch settings here).

  • ESL_PASSWORD= EFSwitch ESL password (Default ClueCon, Same as in Efswitch settings here).

  • Note: The rest of values must not be changed from their default. Progressive outbound is not released before CX version 4.5.

• Within the folder run the command docker compose up -d.

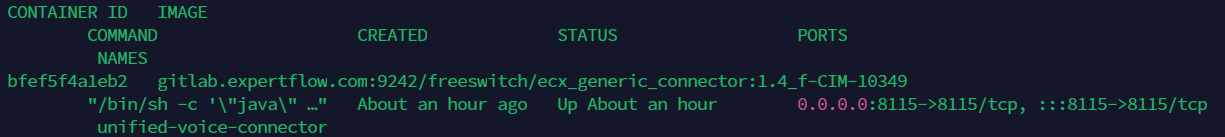

• Confirm that the docker container is running by using the command docker ps.

  •

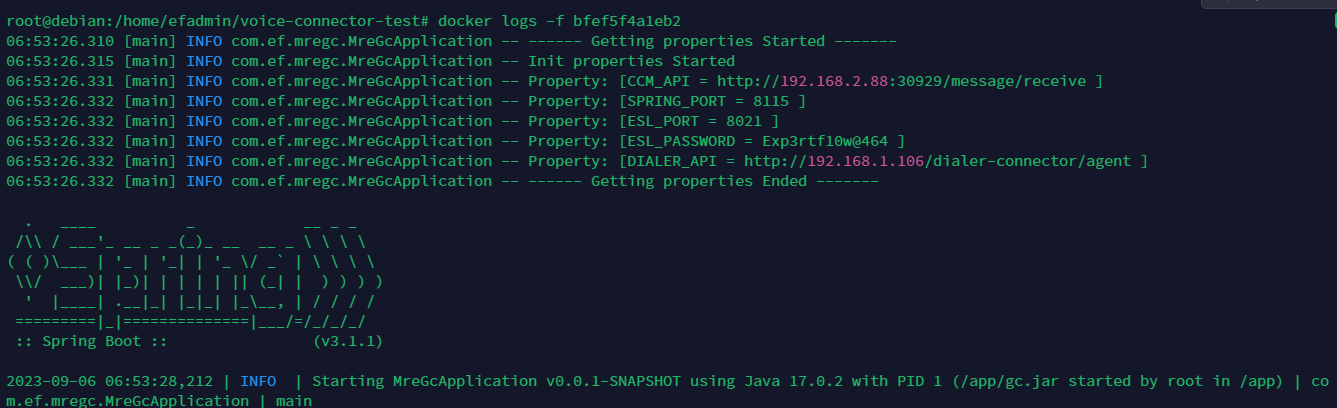

• Confirm that the container is running correctly by opening the logs with command docker logs -f containerID.


  •
