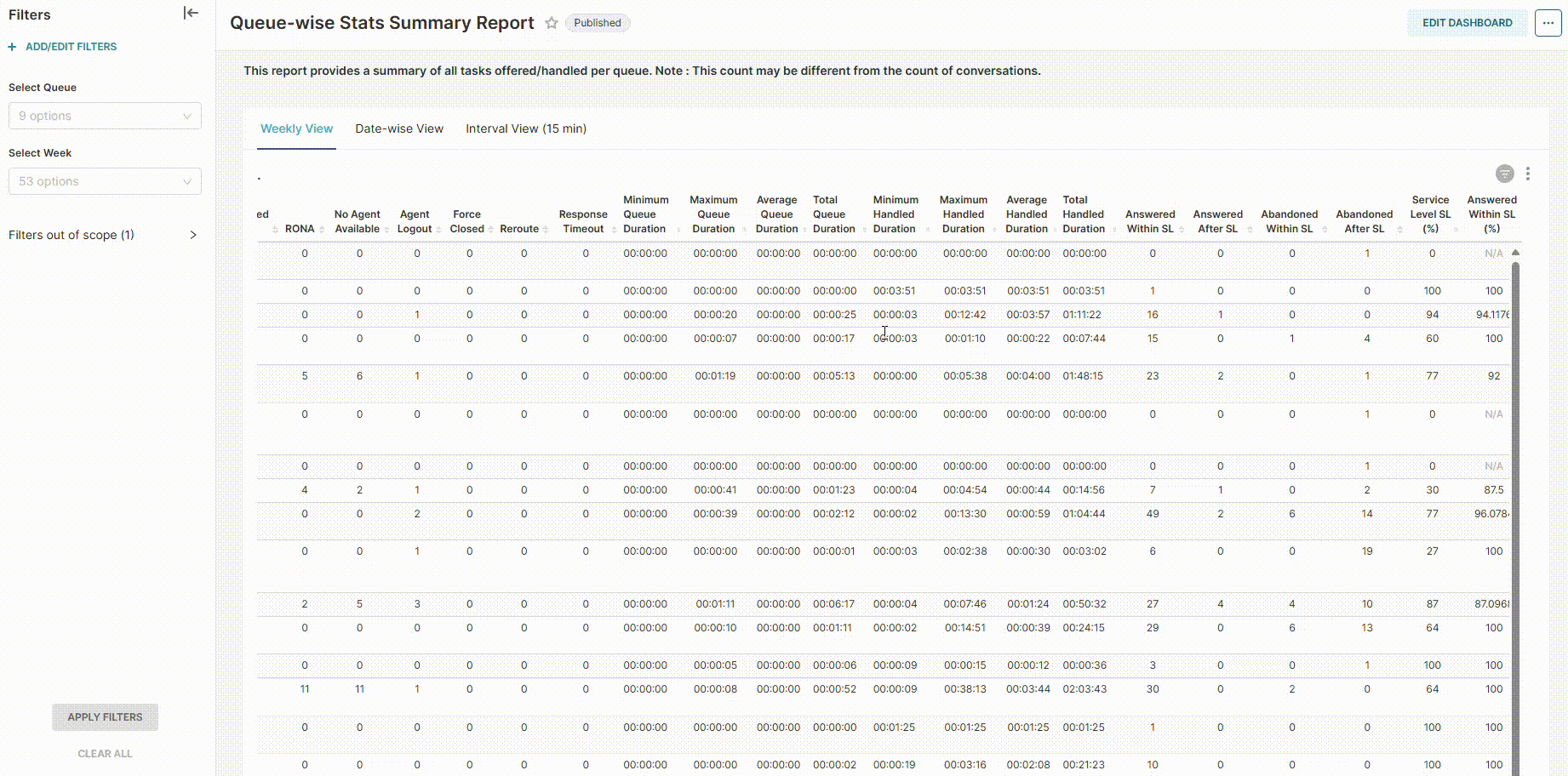

Queue-wise Stats Summary

Report SummaryProvides the count of requests received per queue such as the number of chats or calls in case of voice offered, DONE, cancelled, transferred etc. to view and analyze the performance of queues.

This count of requests may be different from the count of conversations.

The queue-based reports are developed based on agent tasks that are created each time a conversation is queued to a queue (and is not based upon conversations). This means multiple agent tasks can be created for a single conversation in case if the conversation is routed and rerouted to agents, one after the other.

See Reporting Database Schema -> agent_task to see details of agent tasks.

Report Columns

Following are the report columns:


Fields Description
Queue name

The name of the queue

Date

Shows week number and date in the following way as per the View of the report.

FieldsDescription
Week NumberShows week number in case of Weekly View
DateShows date in case of Date-wise View and Interval View
Weekly View

Shows the date of Week Start and the date of Week End in their respective columns

Interval ViewShows the time of Interval Start and the time of Interval End in their respective columns
Total Offered

The total number of offered tasks per queue.

This is calculated as:

offered + Transferred IN
DoneThe count of tasks that have the disposition DONE
CancelledShows the count of tasks that have  the disposition  CANCELLED (where the customer left in the queue or while ringing the chat/call on the agent)
Transferred outShows the count of tasks transferred out from this particular queue
RONAShows the count of tasks that are closed due to RONA disposition
No Agent AvailableShows the count of tasks that are closed due to No Agent Available disposition
Agent LogoutShows the count of tasks that are closed due to 'Agent Logged Out' disposition
Force ClosedShows the count of tasks that are closed due to FORCE_CLOSED disposition
RerouteShows the count of tasks that are closed due to "REROUTE" disposition
Response TimeoutShows the count of tasks that are closed due to "RESPONSE_TIMEOUT" disposition
Minimum Queue Duration

The minimum time a task remains in the queue. This is calculated as:

(task_reserved_time - task_queue_time)


Format hours:minutes:seconds (00:00:00)

Maximum Queue Duration

The maximum time a task remains in the queue. This is calculated as:

(task_reserved_time - task_queue_time)

Format hours:minutes:seconds (00:00:00)

Average Queue Duration

The average time a task remains in this queue while waiting to be routed to an agent

This is calculated as:

Total Queue Duration/Total Offered

Format hours:minutes:seconds (00:00:00)

Total Queue Duration

Total time tasks remains in this queue while waiting to be routed to an agent.

(task_reserved_time - task_queue_time)


Format hours:minutes:seconds (00:00:00)

Minimum Handled Duration

The minimum time it took to handle a task on this queue. This is the shortest of all tasks handling time. For a single task, it is calculated as:

min ( task_end_time -  task_answered_time)

Task answer time is when the agent answered it.
Task end time is when the task is closed.

Format hours:minutes:seconds (00:00:00)

Maximum Handled Duration

The maximum time it took to handle a task on this queue. This is the longest of all tasks handling time. For a single task, it is calculated as:

Max ( task_end_time -  task_answered_time)

Task answer time is when the agent answered it.
Task end time is when the task is closed.

Format hours:minutes:seconds (00:00:00)

Average Handled Duration

The average time any agent takes to handle a task in this queue.

Handled duration is equal to:

(task_end_time - task_answered_time) in Reporting Database Schema -> agent_task table

Format hours minutes seconds (00 00 00)

The average handled duration is calculated as:

Total Handled Duration / Total Handled Task
Total Handled Duration

Total time to handle all tasks on this queue.

sum ( task_end_time -  task_answered_time)

Task answer time is when the agent answered it.
Task end time is when the task is closed.

Format hours:minutes:seconds (00:00:00)

Answered Within SL

A count of all tasks that were answered within the  Service Level threshold

Answered After SL

A count of all tasks that were answered after the  Service Level threshold

Abandoned Within SL

A count of all tasks that were abandoned in queue within the  Service Level threshold

Abandoned After SL

A count of all tasks that were abandoned after the  Service Level threshold

Service Level%

Service Level % of the queue.

This is calculated as per the Service Level Type value set in the queue definition on the Unified Admin application. See Administrator Guide to learn more about Service Level configuration.

Based on one of the following values specified in the Service Level Type field, the Service Level is calculated as the following:

  • 1 - Ignore Abandoned Chats - If Service Level Type = 1 THEN (AnsweredWithinSL/(TotalOffered - AbandonedWithin SL)) * 100
  • 2- Abandoned Chats have Negative Impact -  If Service Level Type = 2 THEN

      (AnsweredWithin SL/TotalOffered) * 100

  • 3- Abandoned Chats have Positive Impact - If Service Level Type = 3 THEN ((AnsweredWithinSL + AbandWithinSL)/TotalOffered) * 100


For more details on SLA calculations, see Key Reporting Concepts and SLA Calculations

%Answered within Service Level

A percentage of all tasks that were answered within the  Service Level threshold

This is calculated as:

AnsweredWithinSL/Total Answered

%Abandoned within Service Level

A percentage of all tasks that were abandoned within the  Service Level threshold

AbandonedWithinSL/Total Abandoned

%Answered after Service Level

A percentage of all tasks that were answered after the  Service Level threshold

AnsweredAfterSL/Total Answered

%Abandoned after Service Level

A percentage of all tasks that were abandoned after the  Service Level threshold

AbandonedAfterSL/Total Abandoned

Minimum Abandoned Duration

The minimum time a task remains in this queue before abandoned.

Format hours:minutes:seconds (00:00:00)

Maximum Abandoned Duration

The maximum time a task remains in this queue before abandoned.

Format hours:minutes:seconds (00:00:00)

Average Abandoned Duration

The average time a task remains in this queue before abandoned.

This is calculated as:

Total abandoned Duration/Total abandoned

Format hours:minutes:seconds (00:00:00)

Total Abandoned Duration

Total time tasks remain in this queue before abandoned.

Format hours:minutes:seconds (00:00:00)

Report Views

  • Weekly view - shows week wise data in this view. You can select the week number from the filters to select the weeks which are required to be viewed in the reports
  • Date-wise view - date wise data. You can also select date ranges in the filter to show the data for the selected range
  • Interval view - Data of 15-minute interval. This interval is currently hardcoded in the report backend.

Report Filters

The following report filters are available for filtering the reporting data:

  • Queue - select the name of the queue(s) you want to see the data for. This filter is applicable to view all three tabs of the report; i.e. Weekly View, Day-wise View, Interval View.
  • Select Date - choose the date for which you want to filter out the data. You may also select date ranges to see the data falling under the said period. This filter is only applicable to the tabs, Date-wise view and Interval view. In case of Interval, it filters out the interval-based data of only the specified date or date range.
  • Week number - this filter allows to filter out the data for particular weeks of the current year. It is only applicable to the Weekly View tab of the report. When specified, the report populates the data of only the specified week numbers in the Weekly view.
