Cisco Teams Synchronizer

The purpose of this Sync Job is to sync all Cisco Teams to a given Keycloak Realm, each iteration of Sync Job will sync all new teams created on Cisco to Keycloak, and also update the already existing teams data on Keycloak if it is updated on Cisco. Each Cisco Team will be created on the Keycloak along with its Permissions/Policies.

Here are some important points regarding the Cisco Teams that are synced on Keycloak:

  • Job duration can be customized to any specific time duration.

  • Each Cisco Team will be created on Keycloak as a Group.

  • Each Keycloak Group created against Cisco Team contains an attribute named ciscoTeamId mapped against the actual Cisco Team ID to uniquely identify it from other Keycloak Groups/Teams.

  • If a Keycloak Group already exists against a Synced Cisco Team then the Cisco Team will override it, Keycloak agents/supervisors already assigned to the group will remain intact.

  • When the Cisco Team is synced in Keycloak, we will also create its Permissions/Policies in Keycloak. Also, a new resource named teams will be created on the first iteration of the job. It will contain all the scopes and Permissions related to Cisco Teams.

  • Supervisors and Agents won't be assigned to Cisco Team when syncing to Keycloak, they will be assigned to the team on their first login to finesse/agentdesk.

Note: You can not run Sync Job until the Keycloak instance and Realm is already setup. Also, make sure the Cisco Teams are synced before logging in to Cisco Agent/Supervisor on AgentDesk/Finesse.

If a Cisco team or user is deleted after sync to Keycloak, they may still persist in Keycloak as enabled entities. It is necessary to manually delete such teams or users from Keycloak.

The following environment variable should be provided before running the sync job to successfully configure it:

Once a job completes the initial Syncing Process of Cisco Teams, we can go to Keycloak Admin Console to Check the Synced Teams:

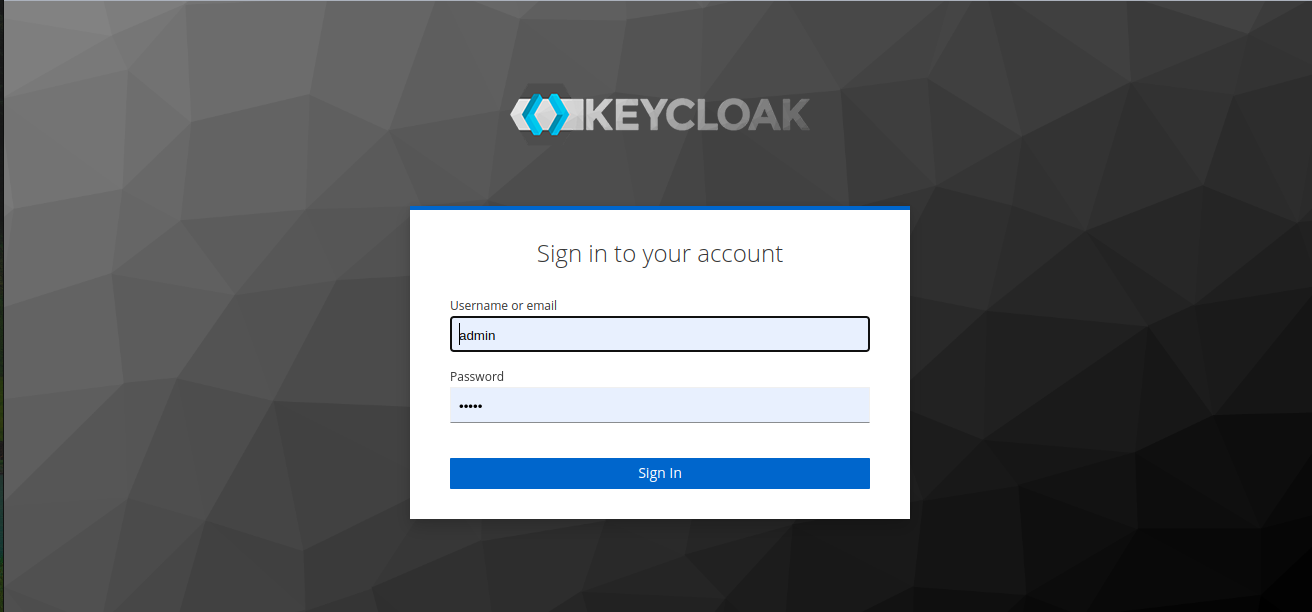

  1. Go to the Keycloak Admin Console of your targeted Keycloak instance (The one you ran Sync Job on):

    Screenshot from 2024-01-04 15-35-35.png

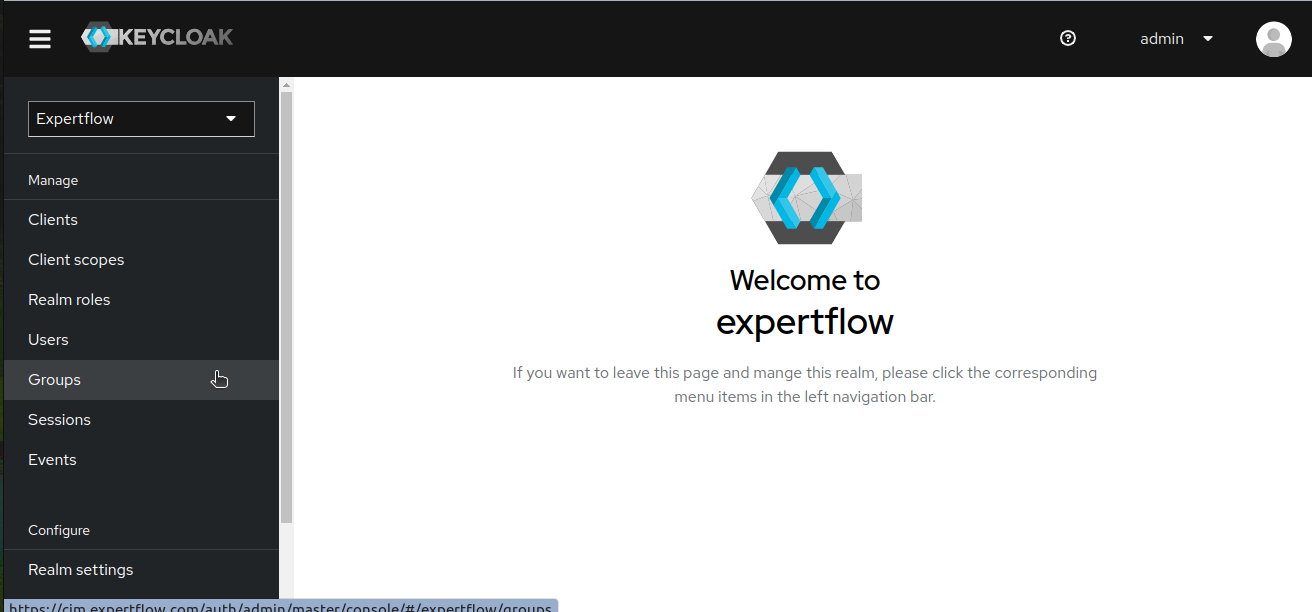

  2. Now go to the targeted Keycloak realm you mentioned in your Sync Job Config, in our case its expertflow. Once you are routed to the realm, click on the Groups tab:

    Screenshot from 2024-01-04 15-36-42.png

  3. You can see all the synced Cisco Teams as Keycloak Groups:

    Screenshot from 2024-01-04 15-37-13.png

  4. To see additional data of a specific Synced Team, click on 3 dots on the right of the Team name, then click on Edit, you will be taken to the Team Settings page:

    Screenshot from 2024-01-04 15-37-24.png

  5. Go to the Attributes tab. You can see ciscoTeamId and supervisor attributes. supervisor attribute map against all the supervisors of this Team. ciscoTeamId contains the id of Cisco Team as referred by its name:

    Note: Supervisor attribute will only appear once a supervisor is assigned to team through login on finesse.

    Screenshot from 2024-01-04 15-38-01.png

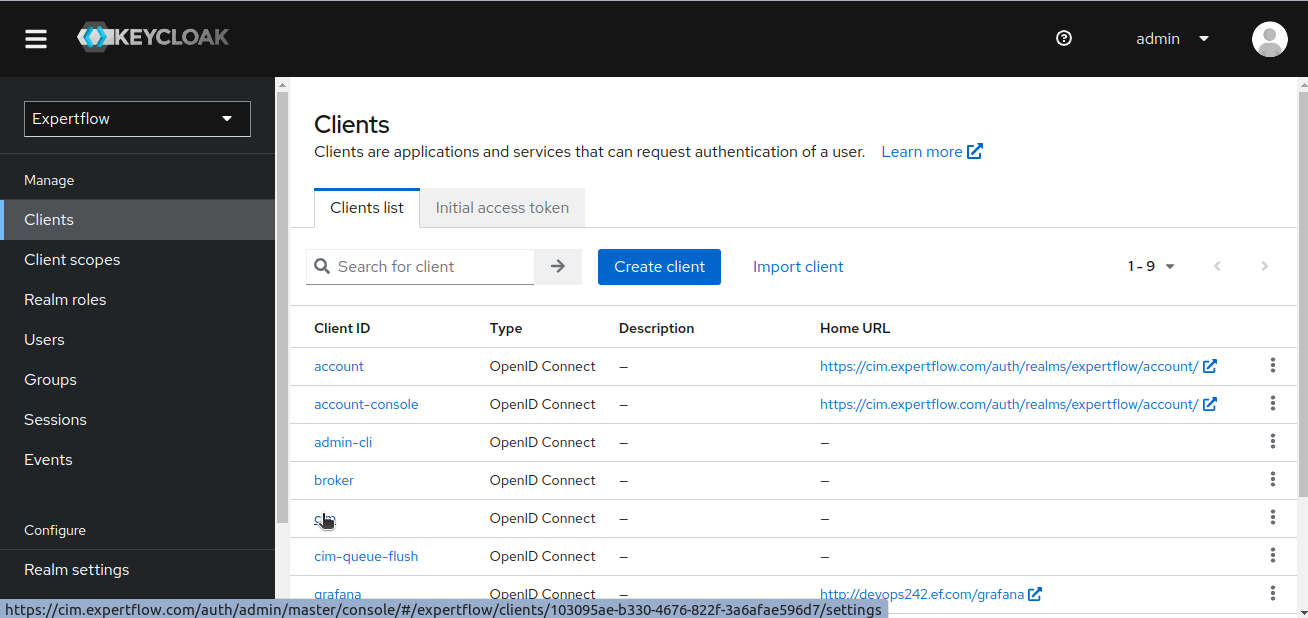

  6. Now, go to the clients tab and then click on your targeted client, in our case its cim.

    Screenshot from 2024-01-04 15-38-12.png

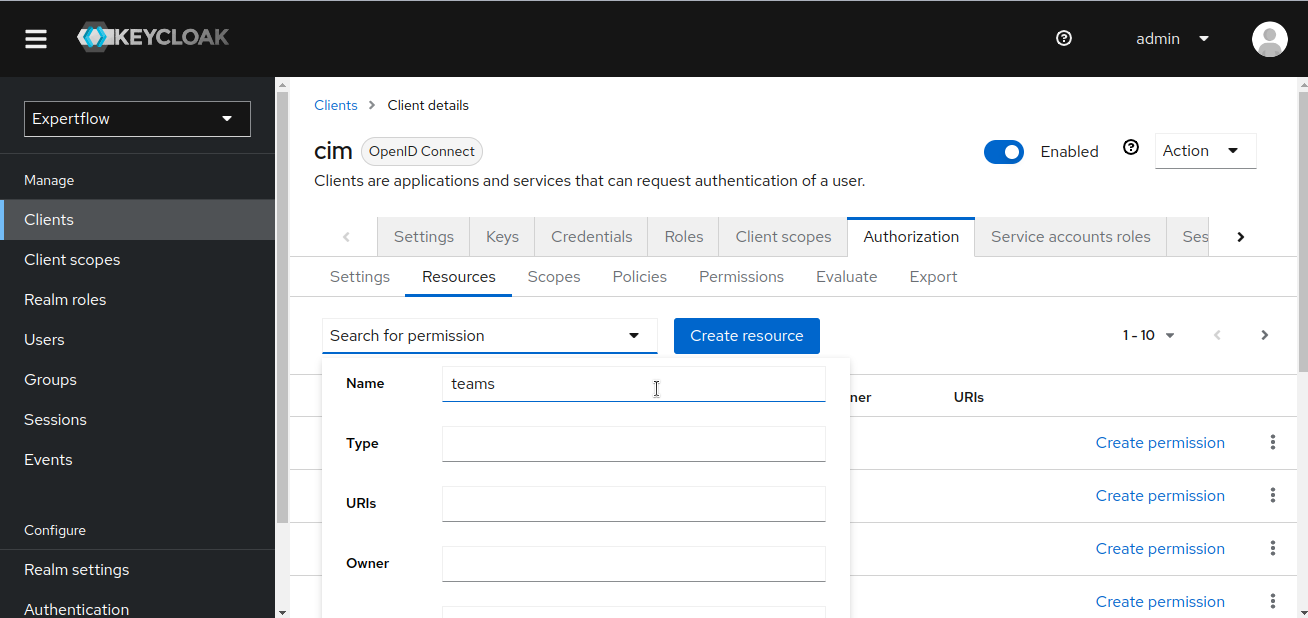

  7. Now, go to the Authorization tab and click on resource, then search for teams resource.

    Screenshot from 2024-01-04 15-38-43.png

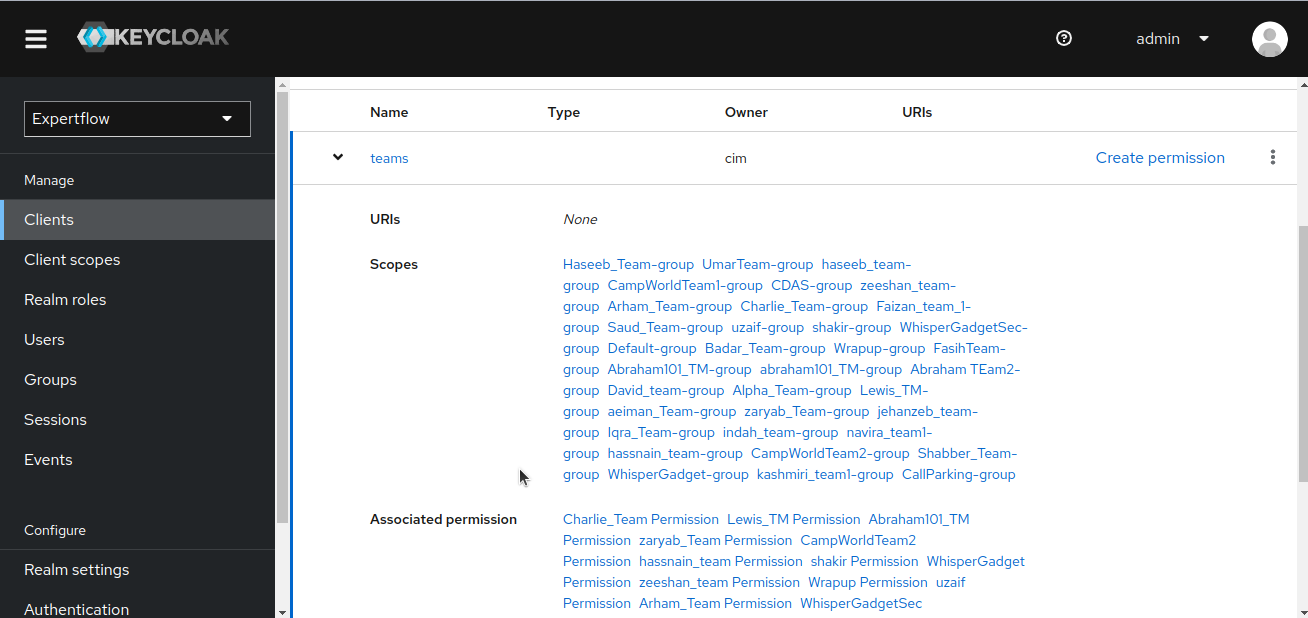

  8. Open the teams resource details, we can see all the Cisco Teams Permissions and Scopes linked to this resource, this can later be used to secure teams through Permissions/Policies. For now, we are just creating them and not using them.

    Screenshot from 2024-01-04 15-39-08.png

    Here is the link to Git Repo: Cisco Teams Synchronizer
