Send a Media message
A Channel Connector can send a file message to Hybrid Chat. There are two ways to upload a file:
- Specify the fileStream object to be uploaded
- Specify the fileURL

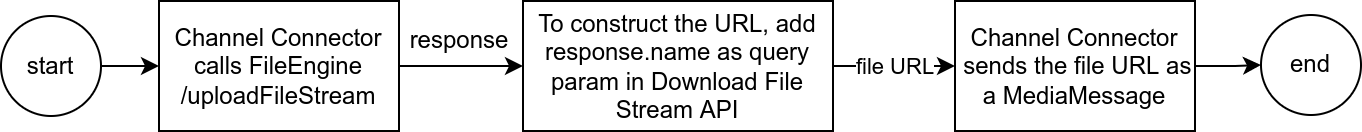

To send a file using filesStream Object
- Call Upload a file API with the fileStream object. Upon success you'll get the
filenamefrom the server. - Create a Download File Stream URL and specify the
filenamefrom step# 1 as a query param. - Create a Media message and specify
mediaUrlcontaining the URL created in step# 2.
Request Query Params
| Property | Type | Desc. |
|---|---|---|
conversationId REQUIRED | String | Unique id of the file. |
file REQUIRED | FileStream Object | The file stream object of the file that should be uploaded on Hybrid Chat. |
Response
| Status | Description | Response |
|---|---|---|
| Success | Code 200 for success loading of file on server. | Message - String - Required - "File uploaded successfully." etag - String - Required - HTTP response header is an identifier for a specific version of a resource and used for tracking purposes. name - String - Optional - this is the unique file name. type - String - Optional - type and extension of the file e.g. image/png size - Numeric - Required - size of the uploaded file. |
| Internal Server Error | Code 500 when a server error occurs. | Message: "An error occurred while uploading file." |
| Bad Request | Code 404 when there is a problem uploading file. | Message: "An error occurred while uploading file." |
To send a file using File URL
- Call Upload a file from URL API and specify
sourceUrl(the media URL to upload). - Create a Download File Stream URL and specify the
filenamefrom step# 1 as a query param. - Create a Media message and specify
mediaUrlcontaining the URL created in step# 2.
Request parameters
| Property | Desc. |
|---|---|
| conversationId - String - Optional | ID for tagging media. |
| sourceUrl - URL - Required | get file from the given URL |
| channel - String - Required | The channel where conversation is in progress. |
| fileName - String - Optional | to be specified by user. Appended with conversationId in response. If no name is specified, file name is extracted from the URL. |
| oauth - Object - Optional | When OAuth is required to download the file from the specified URL mentioned in sourceURL property. |
| APIKey360 - String - Required for 360 DialogFlow Connector | The connector API Key for authorization to 360 connector. Required only for 360Dialog connector for WhatsApp |
| mime_type - String - Optional | type and extension of the file e.g. image/png |
Response
| Status | Description | Response body |
|---|---|---|
| Success | Code 200 | Message - String - Required - "File uploaded successfully." etag - String - Required - HTTP response header is an identifier for a specific version of a resource and used for tracking purposes. name - String - Optional - name can be specified by the user. It is saved with conversation ID appended to it e.g. 11111_filename.ext type - String - Optional - type and extension of the file e.g. image/png size - Numeric - Required - size of the uploaded file. |
| Internal Server Error | Code 500 | Message: "An error occurred while uploading file." |
| Bad Request | Code 404 | Message: "An error occurred while uploading file." |
Assumptions and Constraints
- Maximum file size is 5Mb. The size is configurable and can be changed based on the business need.
- There is no restriction of file type/extension in HyrbidChat. It is also configurable based on the business requirements.
- Uploaded files can be stored indefinitely on server if required. Time limit for file storage on server is dependent upon the space requirements for the business deploying the HyrbidChat solution.
- For downloading media, only filename needs to be specified. Example is available on Expertflow Public Workspace.
