WebRTC Deployment Guide

Prerequisites

Follow the guides here to deploy the components for CX Voice.

Once CX Voice is deployed below are the following points to follow:

  • Cisco Jabber device (UCCX - SU3) is required to set-up WebRTC Secure link deployment.

  • A Cisco CUBE is needed for integration between Jabber extensions and EFSwitch.

Step 1: Clone the repository

YAML
git clone -b main https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/cti/securelinkgenreation_deployment.git
YAML
cd securelinkgenreation_deployment


Step 2: Update configMap

FQDN and Widgetidentifier must be the same as the EFCX WebRTC widget.

  1. Open securelinkgenreation_deployment/ConfigMaps/ef-securelinkgeneration-configmap.yaml file and add the following parameters

       SPRING_DATASOURCE_URL : jdbc:postgresql://ef-postgresql.ef-external.svc.cluster.local:5432/securelinkgeneration_db
   SPRING_DATASOURCE_USERNAME : "sa"
   SPRING_DATASOURCE_PASSWORD : "Expertflow123"
   ENCRYPTION_KEY: "1234567890123456"
   fqdn : https://cim.expertflow.com/customer-widget/#/widget
   source : "SLG"
   linktimeout : "30"
   widgetIdentifier : "webrtc-widget"


Step 3: Update FQDN

Expertflow CX should be accessible by a fully qualified domain name. Assign the FQDN that resolves to the control plane node or KubeVIP.

Replace <FQDN> with your FQDN for Expertflow CX and run this command.

YAML
sed -i 's/devops[0-9]*.ef.com/<FQDN>/g' ConfigMaps/* Ingresses/nginx/* Ingresses/traefik/*


Step 4: Update Deployment

YAML
kubectl apply -f ConfigMaps/ef-securelinkgeneration-configmap.yaml
kubectl apply -f Services/ef-securelinkgeneration-service.yaml
kubectl apply -f Deployments/ef-securelinkgeneration-deployment.yaml

#Apply Ingresses
#for RKE
kubectl apply -f Ingresses/nginx/ef-securelinkgeneration-ingress.yaml

#or
#for Traefik
kubectl apply -f Ingresses/traefik/ef-securelinkgeneration-ingress.yaml

Customer Widget Configuration

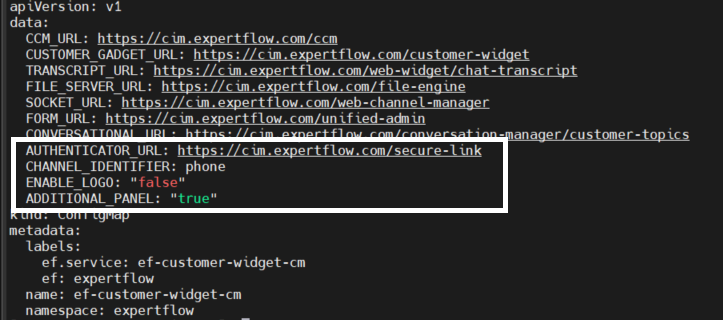

  1. Open cim-solution/kubernetes/cim/ConfigMaps/ef-customer-widget-configmap.yaml file and add the following parameter

    AUTHENTICATOR_URL : https://<FQDN>/secure-link

  1. Run the following commands to update the configMaps of the customer widget

kubectl delete -f ef-customer-widget-configmaps.yaml -n expertflow
kubectl apply -f ef-customer-widget-configmaps.yaml -n expertflow

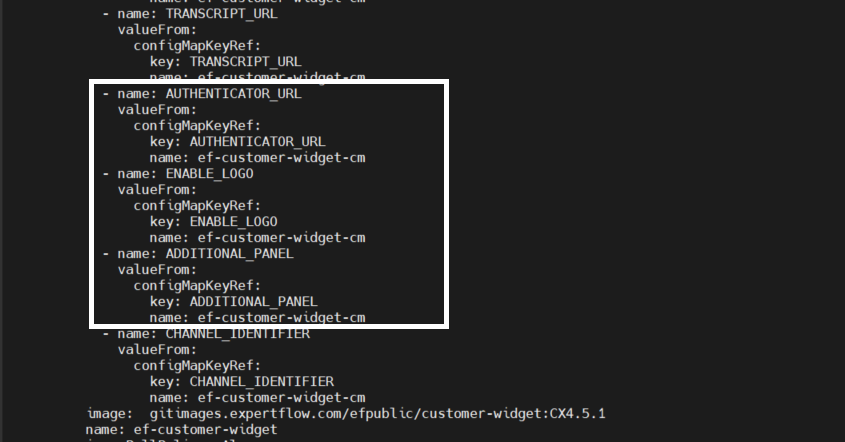

  1. Open cim-solution/kubernetes/cim/Deployments/ef-customer-widget-deployment.yaml file and add the following parameter

    - name: AUTHENTICATOR_URL
    valueFrom:
      configMapKeyRef:
        key: AUTHENTICATOR_URL
        name: ef-customer-widget-cm

  1. Run the following commands to update the Deployments of the customer widget

    kubectl delete -f ef-customer-widget-deployments.yaml -n expertflow
kubectl apply -f ef-customer-widget-deployments.yaml -n expertflow


Unified Agent Configuration

  1. Open cim-solution/kubernetes/cim/ConfigMaps/ef-unified-agent-configmap.yaml file and add the following parameter

    SECURE_LINK_URL : https://<FQDN>/secure-link
ENABLE_SECURE_LINK : "true"

  2. Run the following commands to update the configMaps of the customer widget

kubectl delete -f ef-unified-agent-configmaps.yaml -n expertflow
kubectl apply -f ef-unified-agent-configmaps.yaml -n expertflow

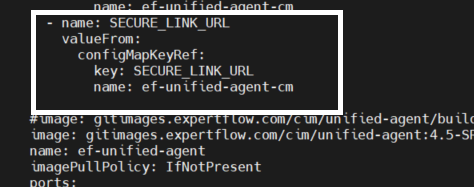

  1. Open cim-solution/kubernetes/cim/Deployments/ef-unified-agent-deployment.yaml file and add the following parameter

    - name: SECURE_LINK_URL
    valueFrom:
      configMapKeyRef:
        key: SECURE_LINK_URL
        name: ef-unified-agent-cm
- name: ENABLE_SECURE_LINK
    valueFrom:
      configMapKeyRef:
        key: ENABLE_SECURE_LINK
        name: ef-unified-agent-cm

EFSwitch Configurations

Configure SIP Trunk for outbound calls

  • Note: The SIP trunk in this case will be the Cisco CUBE gateway.

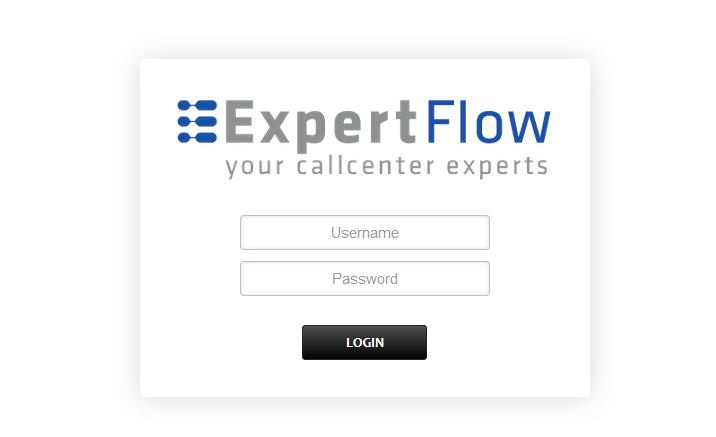

  • Open in browser: https://IP-addr, where IP-addr is the IP address of the server that EFSwitch is deployed on.

image2024-1-29_18-39-29.png?version=1&modificationDate=1706535572115&cacheVersion=1&api=v2&width=409&height=250

  • Add the username and password that was shown upon installation of EFSwitch and press LOGIN.

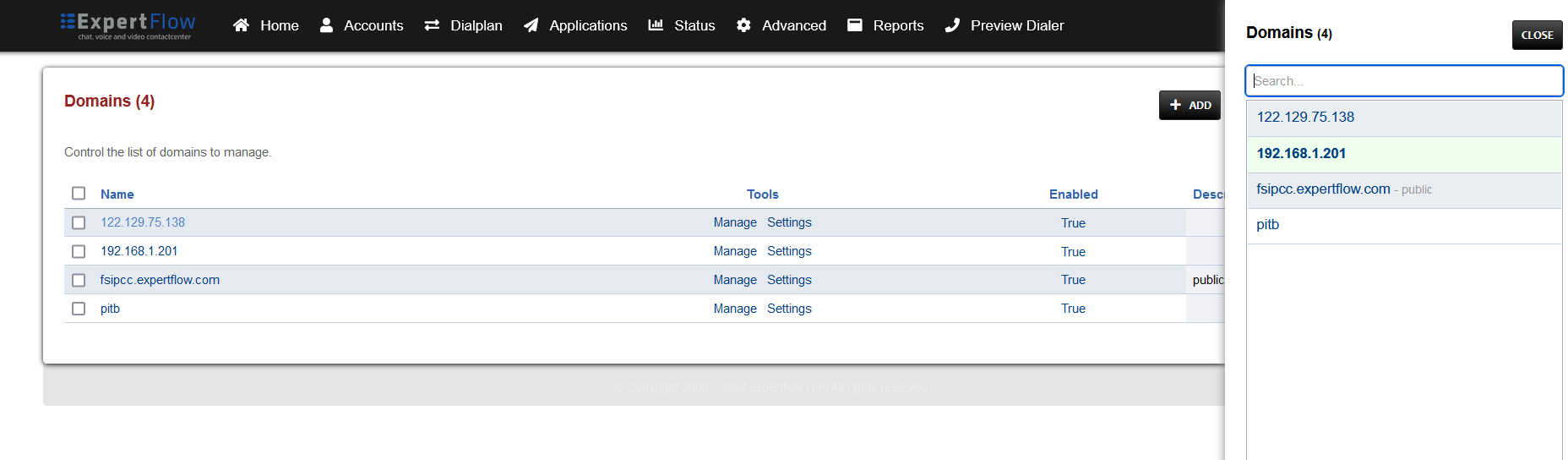

  • Press the IP address in the top right and select the Domain created in the Domain creation section of the EFSwitch configuration document.

  • image2024-1-29_18-42-34.png?version=1&modificationDate=1706535756908&cacheVersion=1&api=v2&width=853&height=250

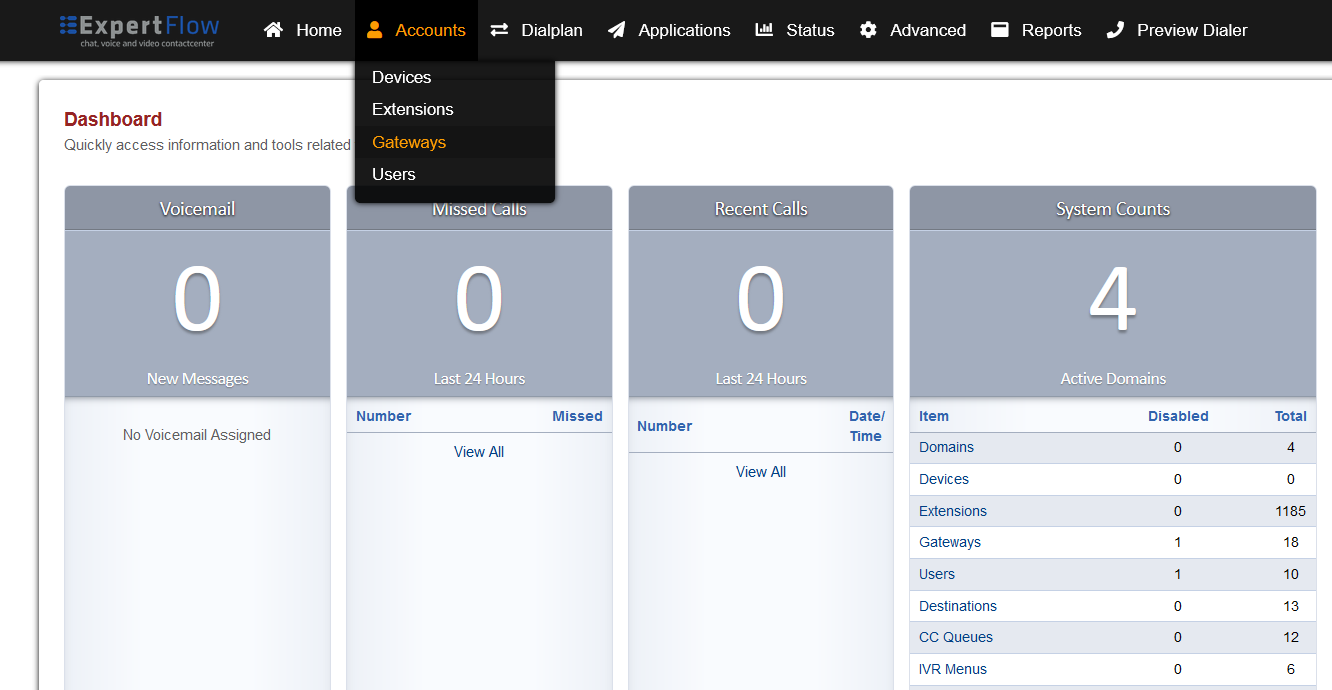

  • Open the Gateways section under the Accounts tab.

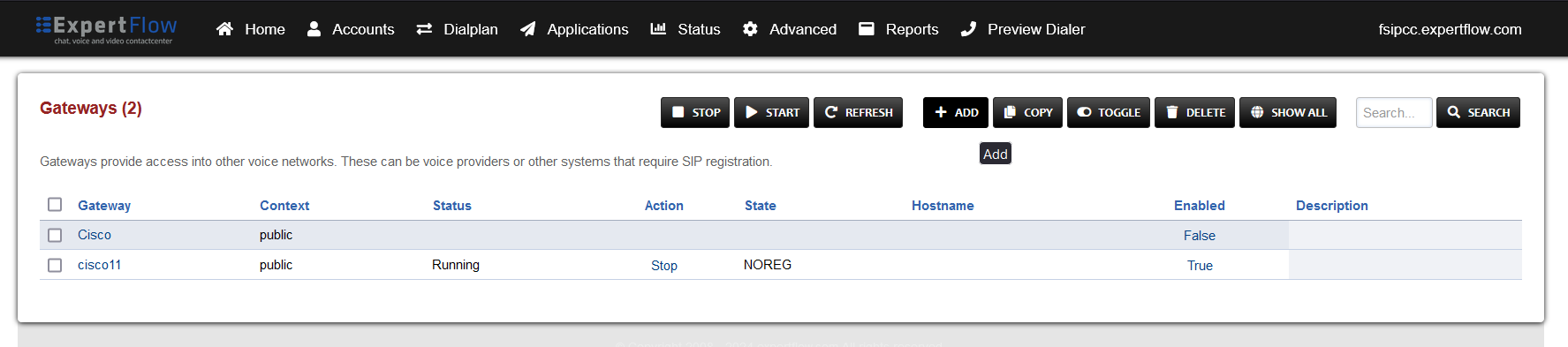

  • Press the ADD button in the top right.


  • Set the following fields:

    1. Gateway: A name of your choice e.g. MySipTrunk

    2. Username: The username of the SIP Trunk. Not needed for IP-based SIP trunks.

    3. Password: The password of the SIP Trunk. Not needed for IP-based SIP trunks.

    4. Proxy: The IP address and port of the SIP trunk e.g. 192.168.25.35:5060.

    5. Register: Set to True. Set to False for IP-based SIP trunks.

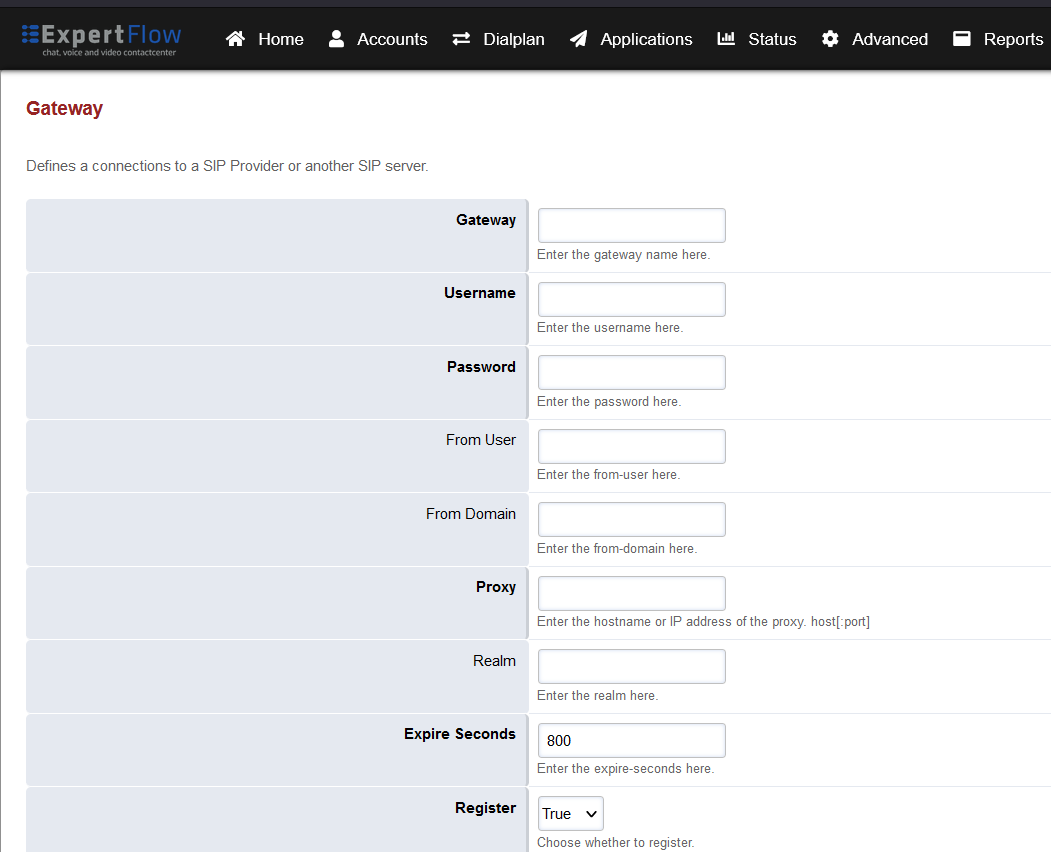

  • image-20240222-100014.png

  • Press the SAVE button on the top right.

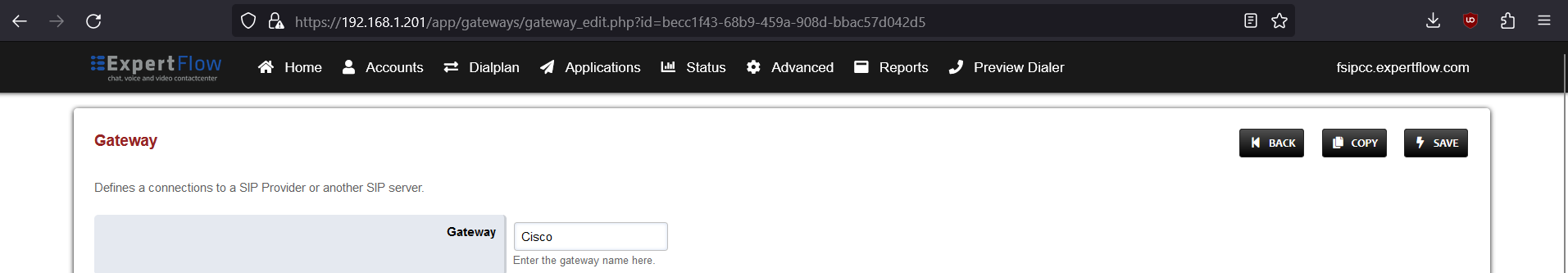

  • Open this newly created gateway and note the URL opened in the browser.


  • From this URL note the gateway ID , i.e. :

    • For the URL https://192.168.1.201/app/gateways/gateway_edit.php?id=becc1f43-68b9-459a-908d-bbac57d042d5

    • The gateway ID is becc1f43-68b9-459a-908d-bbac57d042d5 (everything after ?id=)

  • Add the IP address of the SIP trunk to the EFSwitch ACL:

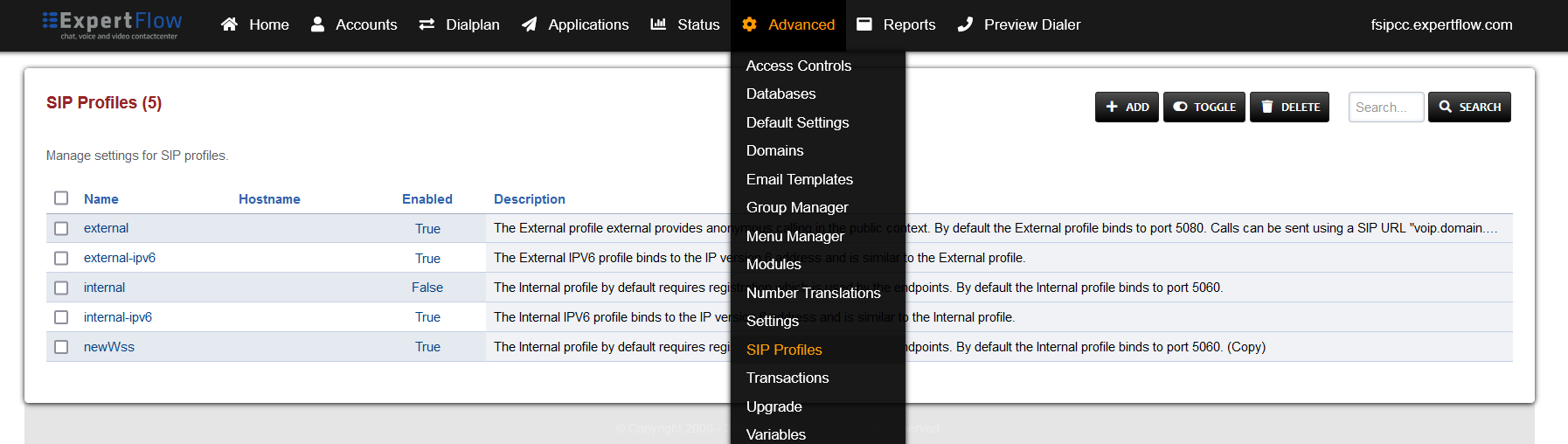

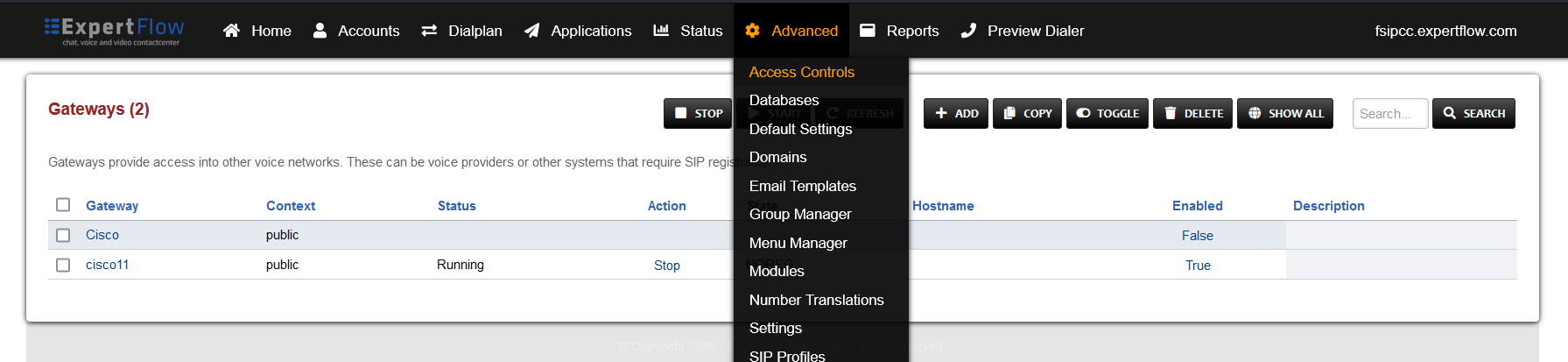

    • Open SIP Profiles under the Advanced tab.

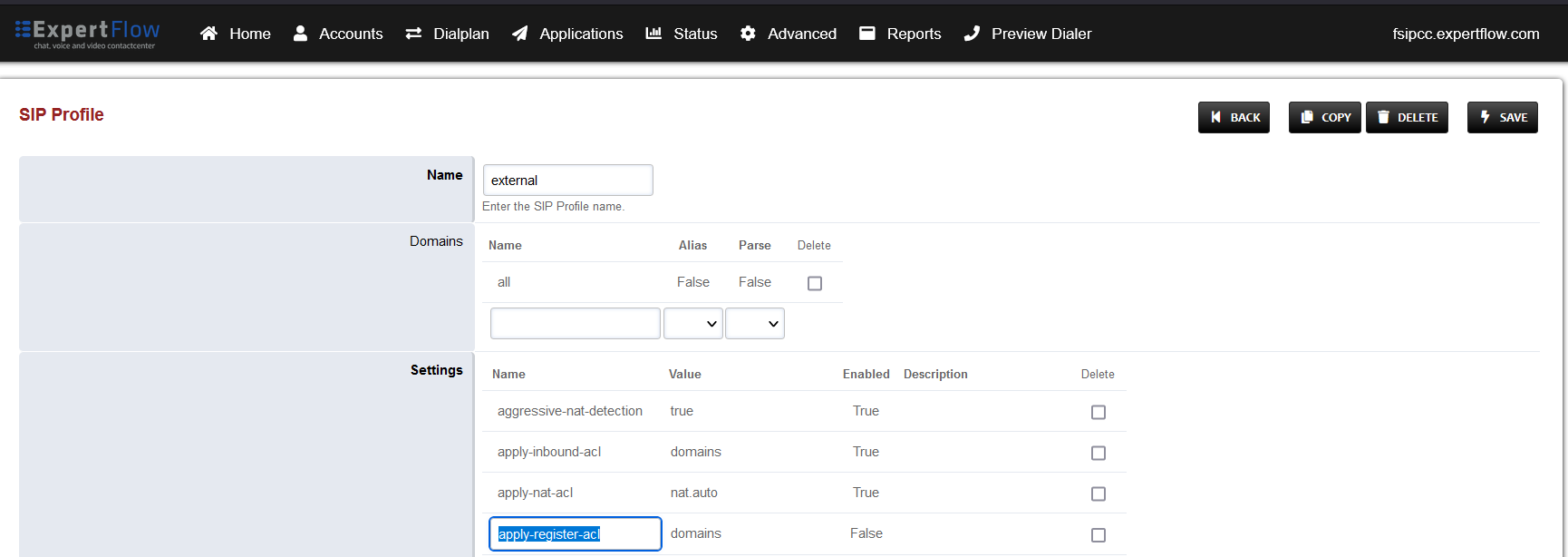

  • Open the external profile and note the value of the apply-register-acl field.

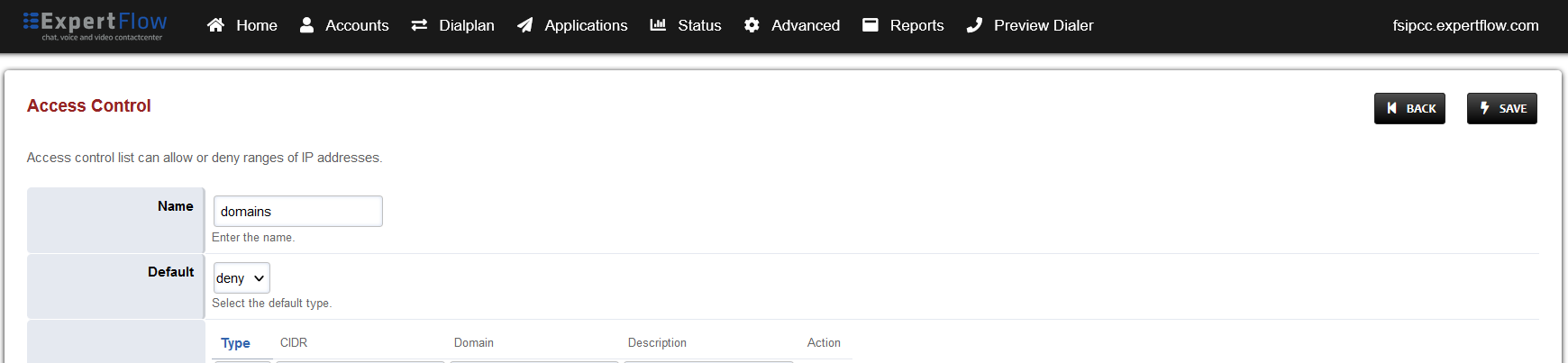

  • Open Access controls under the Advanced tab.


  • Open the entry that matches the aforementioned apply-register-acl field.


  •

  • At the bottom add an entry where the the Type is set to ‘allow’ and the CIDR field contains the address of the SIP Trunk.

  • Press the SAVE button on the top right.

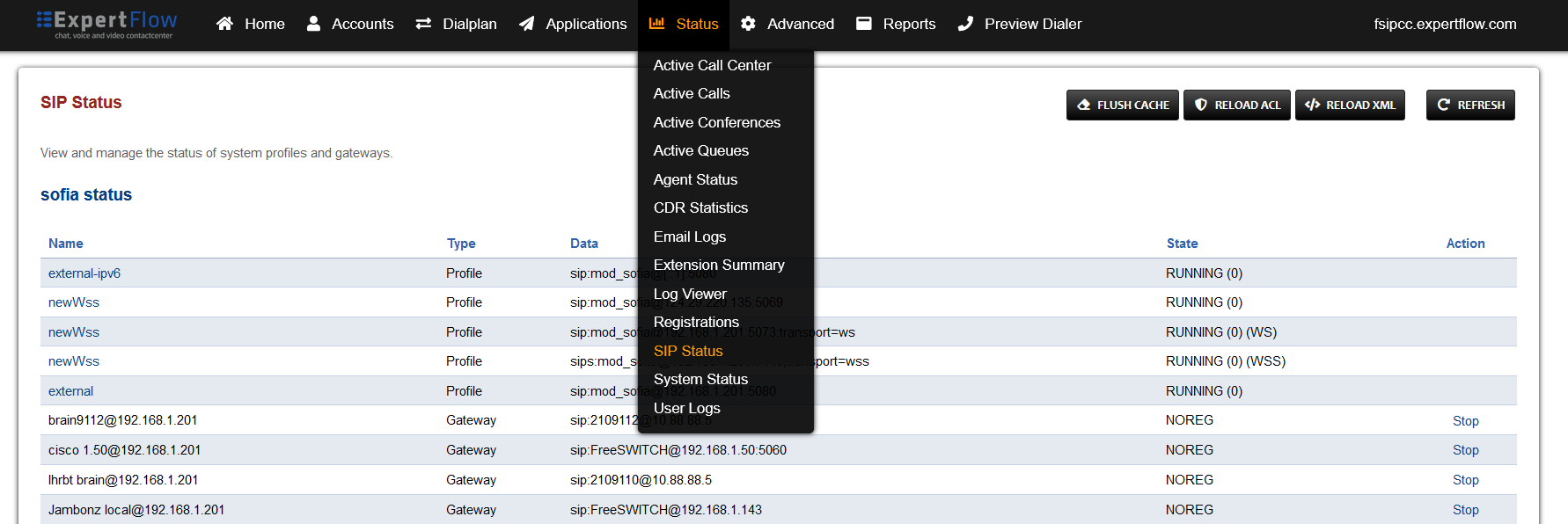

  • Open SIP Status under the Status tab.



    • Press the Reload ACL button at the top right.

  • Open SIP Profiles under the Advanced tab.

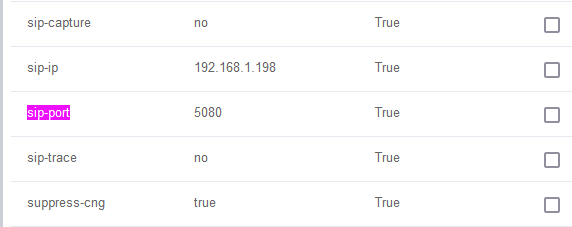

  • Open the external profile and note the value of the sip-port field.

    4edxejLLTs8BSroVy-I2z6eL8--Hfdz8v1gW1GdAMElNj-zSsmUdTG_UyhTvdnVKsHn33GJrkL4C8tQ8YImhJU4VW3j8krNbeImQIgG9kFSTPZqQc1awS-R27kB22tg7UUB5iZ0U8I9tlQf9SagoM1M

  • Back out via the BACK button on the top right.

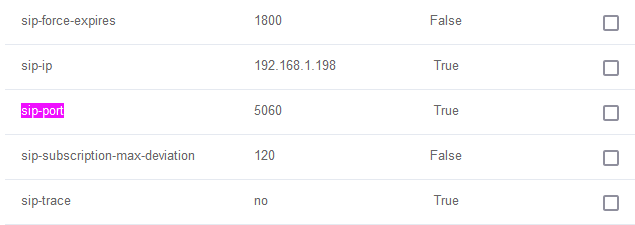

  • Open the internal profile and note the value of the sip-port field.

    Ut43rIqZ-gmOwcst_HOJmSqyMiUcQ0nLDrqFCzh6lR1ouKUqHwAgUuP5p2mp4xl8QMOG6p7opB74bm6_hcSD-WFw3OreKW2TjPmoJLob6NHFq3q21QBsBWQ4XIn0gq3lgamz9kM89UkzWZww3bhyY1A

  • Open a terminal and SSH into the EFSwitch machine via the command

  • ssh EFSwitch-Server-Username@EFSwitch-Server-IP-Address

  • Enter the EFSwitch server SSH password when prompted.

  • Enter and run the command

  • su

  • And enter the EFSwitch server root password.

  • Run the command

  • sudo iptables -A INPUT -p tcp -m tcp --dport PORT -j ACCEPT

    • Where PORT is the port noted down in the previous steps. Run the command once for each port.

  • Run the command

  • sudo iptables-save

  • Contact the SIP Trunk provider and have all traffic from the EFSwitch machine public IP address allowed.

Configuring Call Dialplan

  • Open Unified Admin via the link https://CX-FQDN/unified-admin

    • Where CX-FQDN is the fully qualified domain name of the EF CX.

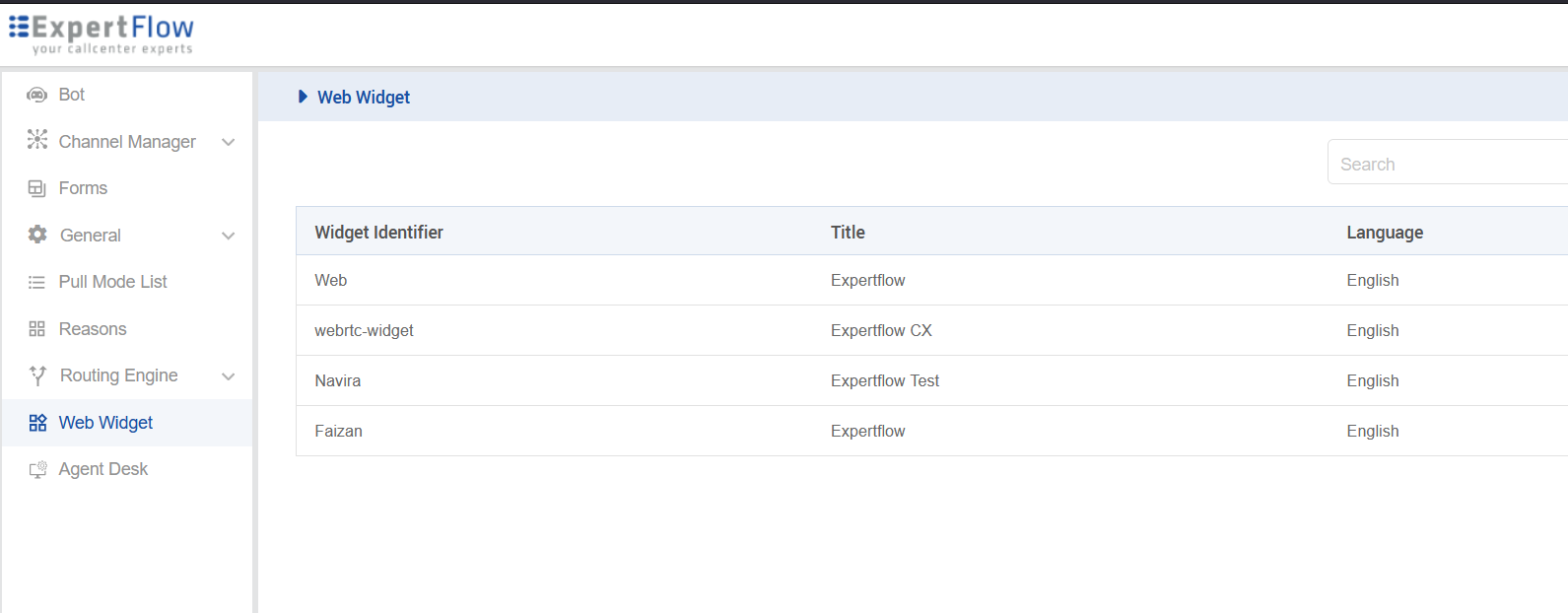

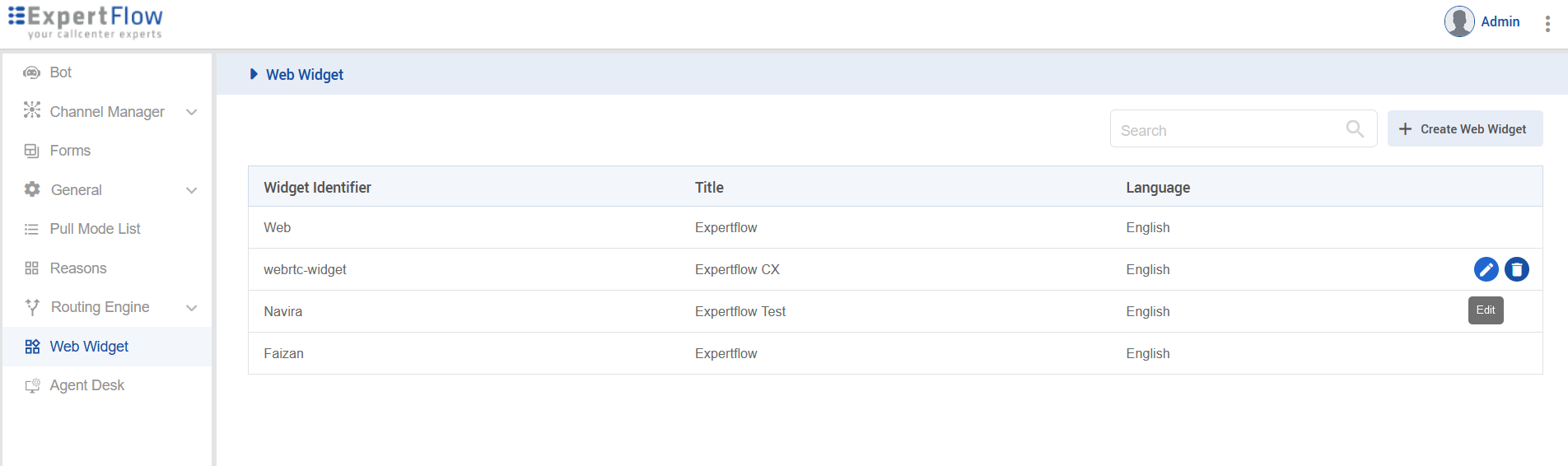

  • Open the Web Widget section.



  • Open the Widget created for video calling, via the Edit option.


  • Scroll down and note the value of the Dialing URI field.

  • Open in browser: https://IP-addr, where IP-addr is the IP address of the server that EFSwitch is deployed on.

image2024-1-29_18-39-29.png?version=1&modificationDate=1706535572115&cacheVersion=1&api=v2&width=409&height=250

  • Add the username and password that was shown upon installation of EFSwitch and press LOGIN.

  • Press the IP address in the top right and select the Domain created in the Domain creation section of the EFSwitch configuration document.

    image2024-1-29_18-42-34.png?version=1&modificationDate=1706535756908&cacheVersion=1&api=v2&width=853&height=250

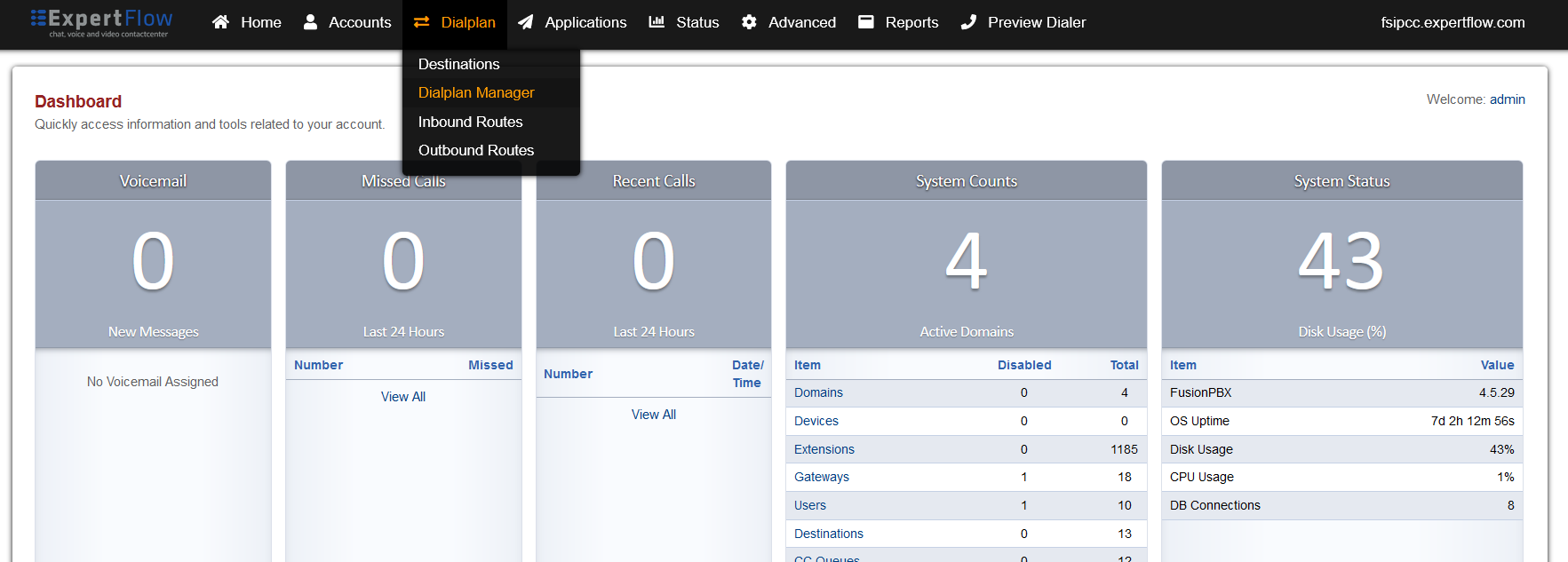

  • Open the Dialplan Manager section under the Dialplans tab.

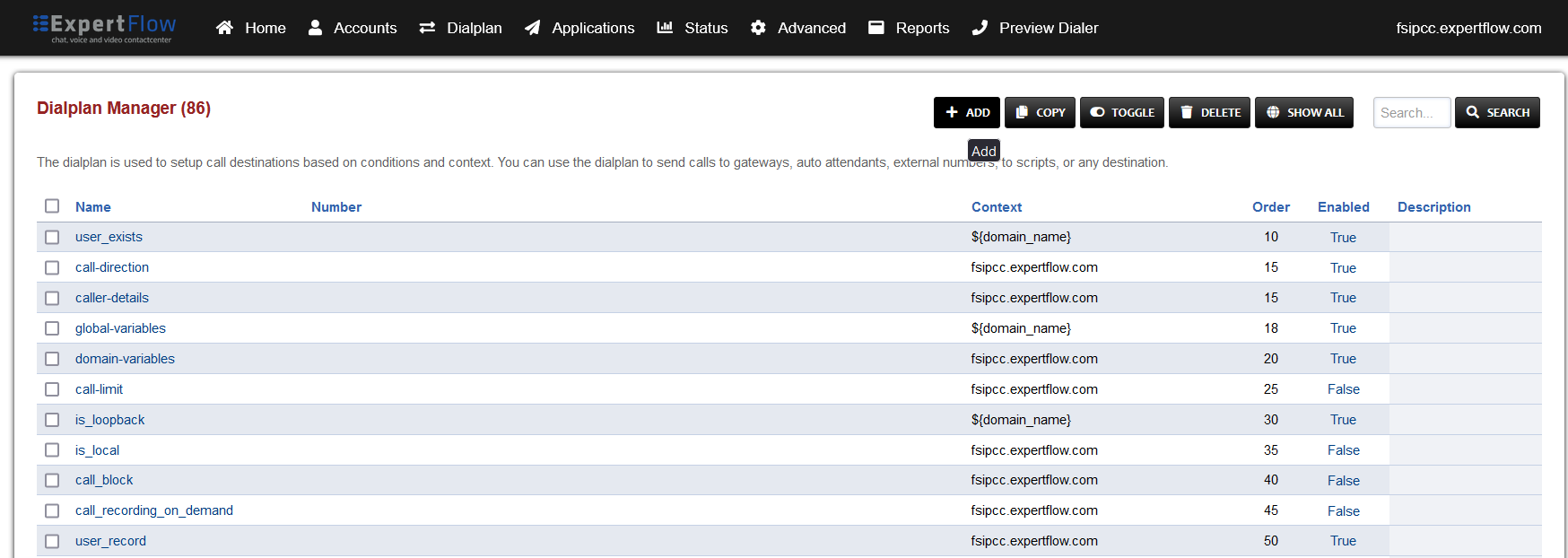

  • Press the ADD button in the top right.


  • Fill the form with following details :

    • Name = WebRTC Video Call

    • Condition 1 =  Select destination_number from list and set the value to the value of the Dialing URI noted in the previous steps.

    • Action 1  =  Select first item from the list

  • Press the SAVE button on top right Corner.

  • Re-open the WebRTC Video Call dialplan.

  • Set the Context field to the value of the Domain set in the Domain creation section of the EFSwitch configuration document.

  • Set the Domain field to the value of the Domain set in the Domain creation section of the EFSwitch configuration document.

  • Change the value of the Type column in the Action row to bridge and the Data field to sofia/gateway/GATEWAY-ID/55${sip_h_X-Agent-Extension}@DOMAIN

    • Where GATEWAY-ID is the SIP Trunk gateway ID noted in the previous section.

    • And DOMAIN is the value of the Proxy set in the Gateway creation section.

  • Press the SAVE button on top right Corner.
