Recording Component Deployment For Eleveo

The purpose of this document is to provide deployment steps for Eleveo recording components of Expertflow CX solution.

Run All Commands in cim-solution/Kubernetes Directory

Recording Backend Information

This deployment is meant for users who have Eleveo set up as a recording backend. If you wish to use EFSwitch as a recording backend, then consult the docker-based deployment guides of the recording middleware and recording link uploader.

Before you begin, verify

CX deployment on Kubernetes, see https://expertflow-docs.atlassian.net/l/cp/6ufqN94G

Update the FQDN

Decide the FQDN to be used in your solution and change the <FQDN> in the below-given command to your actual FQDN

BASH

sed -i 's/devops[0-9]*.ef.com/<FQDN>/g' cx-voice-recording/Ingresses/nginx/* cx-voice-recording/ConfigMaps/*

Set ConfigMap fields

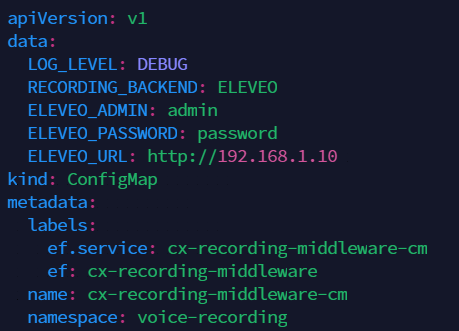

Open the Recording Middleware ConfigMap with

CODE

vi cx-voice-recording/ConfigMaps/ef-recording-middleware-cm.yaml

Change the values as follows:
1. RECORDING_BACKEND: The mechanism for recording files. Leave at default ELEVEO.
2. LOG_LEVEL: The amount of detail in the logs. Default is INFO, and for more detailed logs the value should be DEBUG.
3. ELEVEO_ADMIN: The administrator username for Eleveo.
4. ELEVEO_PASSWORD: The administrator password for Eleveo.
5. ELEVEO_URL: The IP address of the Eleveo deployment.

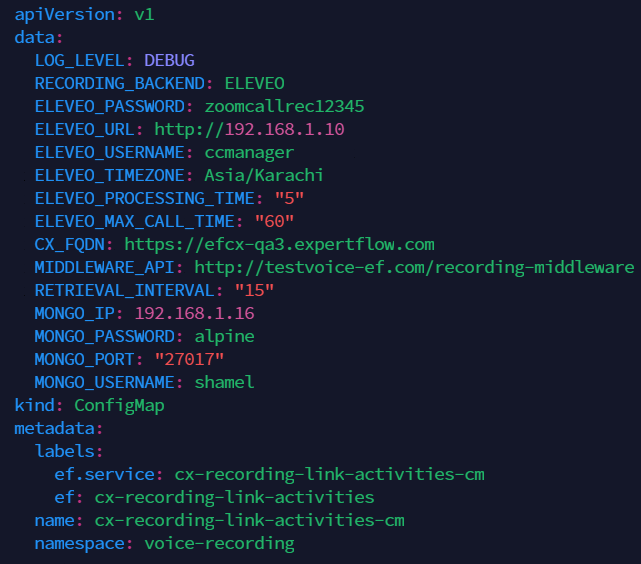

Open the Recording Link Uploader ConfigMap with

CODE

vi cx-voice-recording/ConfigMaps/ef-recording-link-activities-cm.yaml

Change the values as follows:
1. RECORDING_BACKEND: The mechanism for recording files. Leave at default ELEVEO.
2. LOG_LEVEL: The amount of detail in the logs. Default is INFO, and for more detailed logs the value should be DEBUG.
3. CX_FQDN: The address of EF CX. https://EFCX-FQDN. This is set by Step 3: Update the FQDN above, but can be changed manually if need e.g. if the protocol used is HTTP instead of HTTPS.
4. MIDDLEWARE_API: The API link of the recording middle-ware that will provide recording files. Format: http://EFCX-FQDN/recording-middleware. This is set by Step 3: Update the FQDN above.
5. RETRIEVAL_INTERVAL: The number of past days to push recording links for on startup.
6. ELEVEO_MAX_CALL_TIME: The maximum possible time in minutes a call is assumed to last.
7. ELEVEO_PASSWORD: The administrator password for Eleveo.
8. ELEVEO_PROCESSING_TIME: The time in minutes it takes for a call to appear in Eleveo after ending.
9. ELEVEO_TIMEZONE: The timezone of the Eleveo deployment e.g. Asia/Karachi
10. ELEVEO_URL: The IP address of the Eleveo deployment.
11. ELEVEO_USERNAME: The username of the Eleveo deployment.
Apply all configurations in the ConfigMaps folder using

CODE

kubectl apply -f cx-voice-recording/ConfigMaps/ef-recording-link-activities-cm.yaml
kubectl apply -f cx-voice-recording/ConfigMaps/ef-recording-middleware-cm.yaml

Start the Recording Middleware service

Create a service for the recording middleware.

CODE

kubectl apply -f cx-voice-recording/Services/ef-recording-middleware-service.yaml

Services must be created before Deployments

Create the Recording Middleware Deployment

Apply the Deployment manifest for the recording middleware.

CODE

kubectl apply -f cx-voice-recording/Deployments/ef-recording-middleware-deployment.yaml

Set the Recording Middleware Ingress

You need to apply the Ingress route for the recording middleware.

BASH

kubectl apply -f cx-voice-recording/Ingresses/nginx/ef-recording-middleware-Ingress.yaml

Start the recording link uploader cronjob

CODE

kubectl apply -f cx-voice-recording/cronjob/ef-recording-link-activities-cronjob.yaml
