Following are the business feature we support in our MS CRM CUCM Connector.
|
Register |
Check if the required SIP Phone is registered, then the user will successfully log in via JTAPI User |
|---|---|
|
Accept Call |
User Can accept the Incoming Call |
|
Dial Outbound Call |
Users can dial the Outbound Call via Dialpad |
|
Blind Transfer |
A user can blind transfer the call to the other agent's extension |
|
Conference Call |
A User can add another Agent/user to the Conference Room |
|
Transfer Consult Call |
|
|
Release Call |
A User can release the ongoing call. |
|
Screen Pop |
An automatic screen popup of the customer profile when the call lands on Extension |
|
Phone Call Activity |
An Automatic creation of phone call activity when the call ends |
|
Click to Dial |
Users can initiate the outbound call via click to dial |

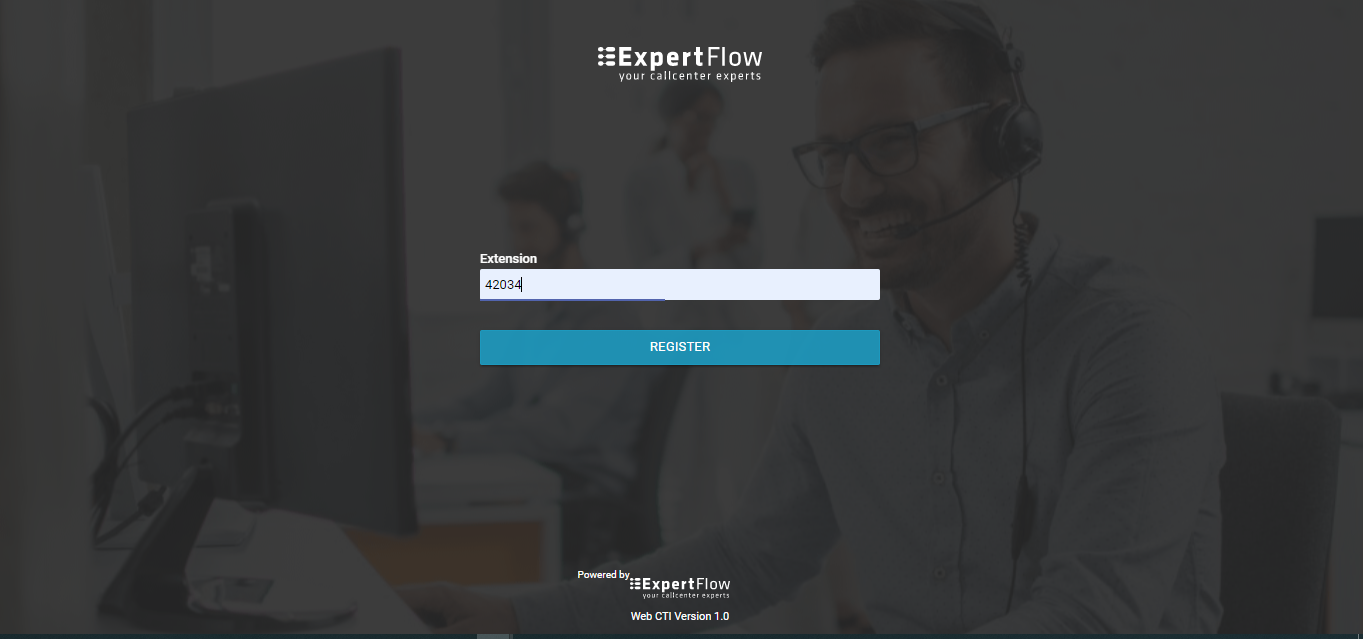

Register
-
User can provide the extension on which he/she wants to register. The extension should be up and running else he won't be able to register himSelf in this connector.
-

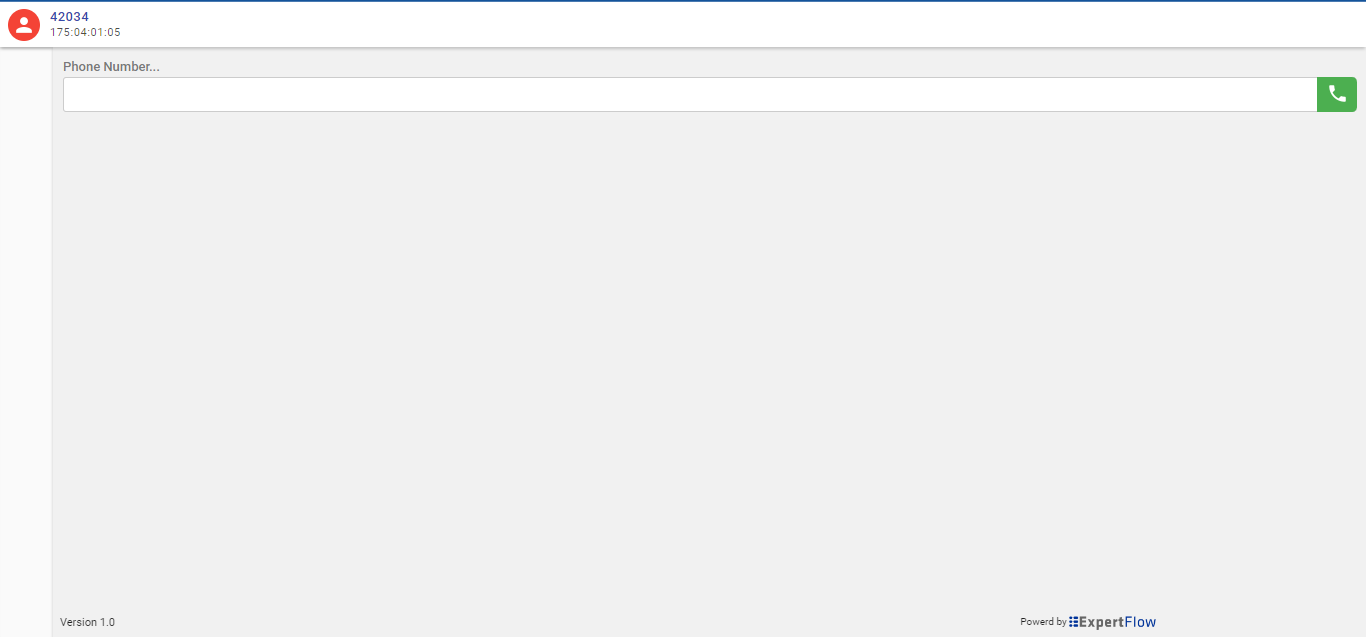

As soon as the user successfully registers inside the CUCM Connector, he will be able to see the following screen and he can perform all the call operations via this interface.

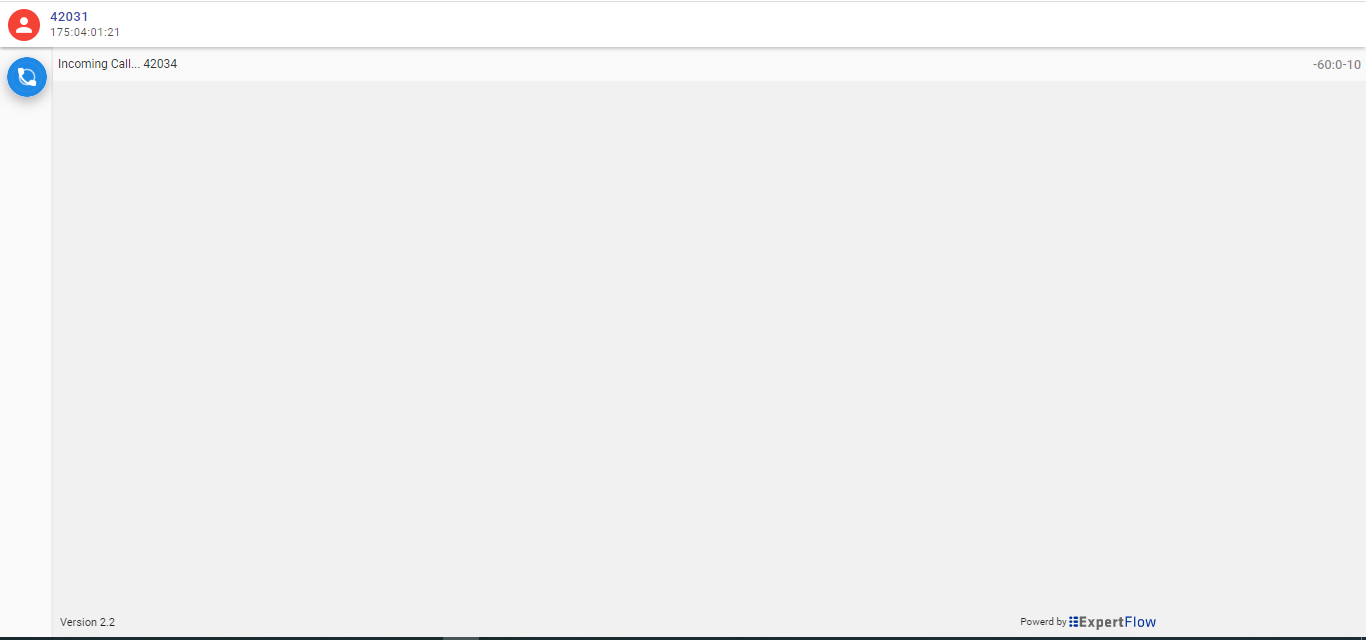

Accept Call
As soon as the call rings on the user extension, he can see the incoming call notification on the toolbar along with the calling number. Users can also see the accept call button to answer this call.

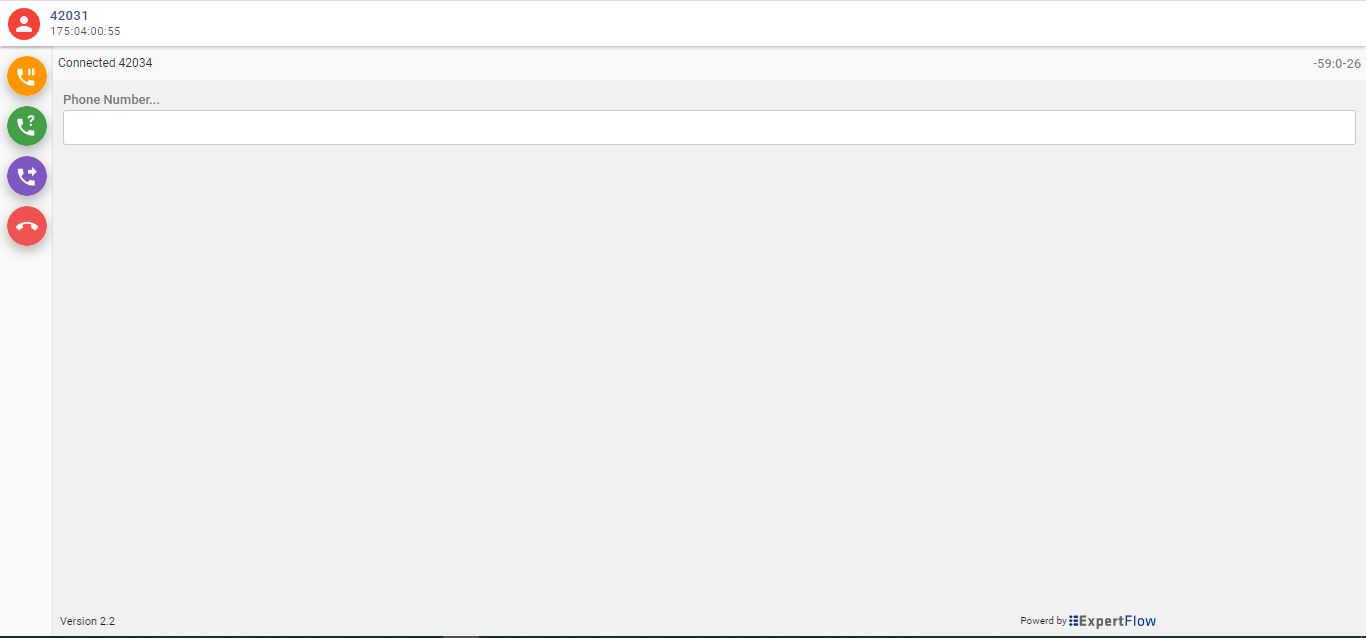

As soon as the call is answered, the buttons for call control will get active and the user can see the following screen.
-
Hold / Unhold call
-
Consult Call
-
Conference Call
-
Transfer Call
-
End Call
Hold / Resume Call
On the active call, the user can make the call hold/resume at any point in time by clicking on the hold/resume button

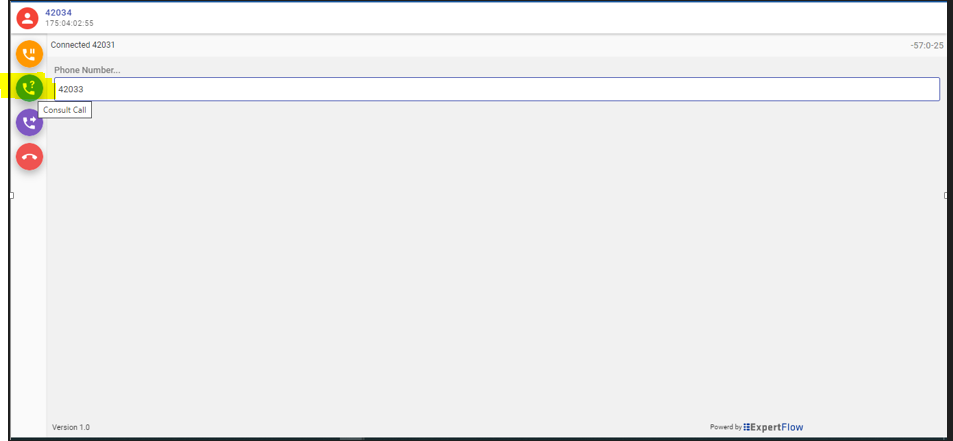

Consult Call
If the user is on an active call and wanted to consult with other agent extensions, he can simply do that by providing the extension and by clicking the consult button

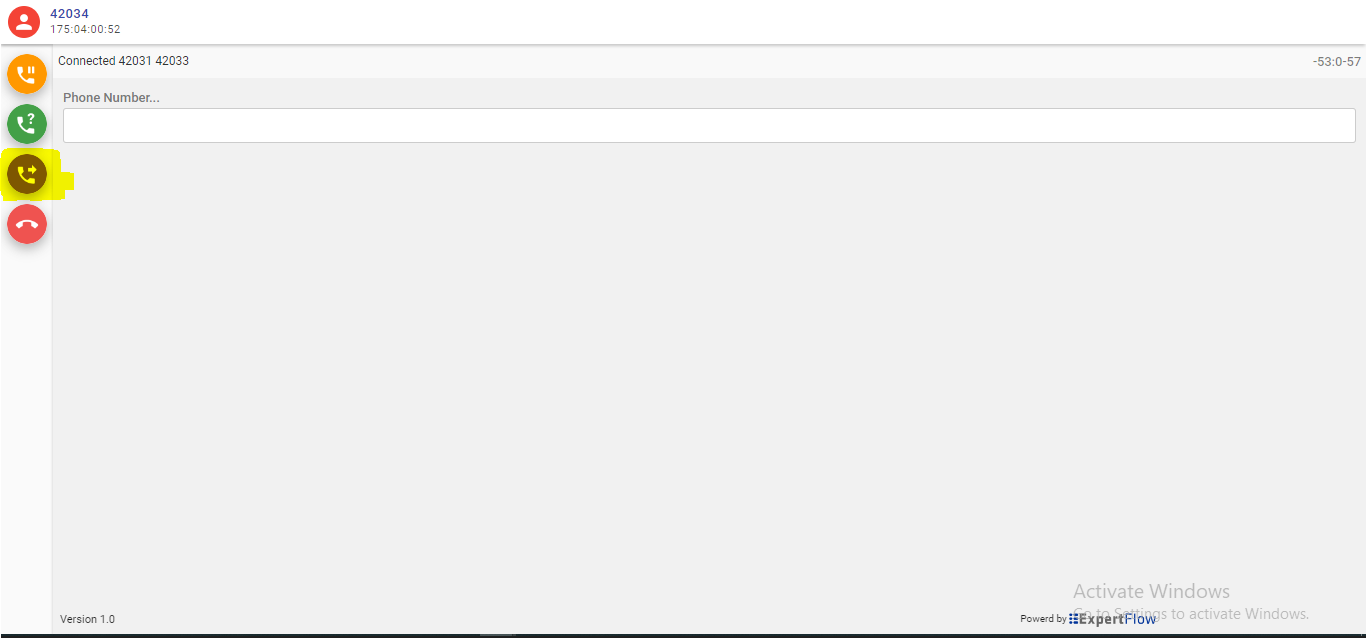

Conference Call
After the consult call, if the user wants to add the consulted participant to the customer, he can simply do that by clicking on the conference button

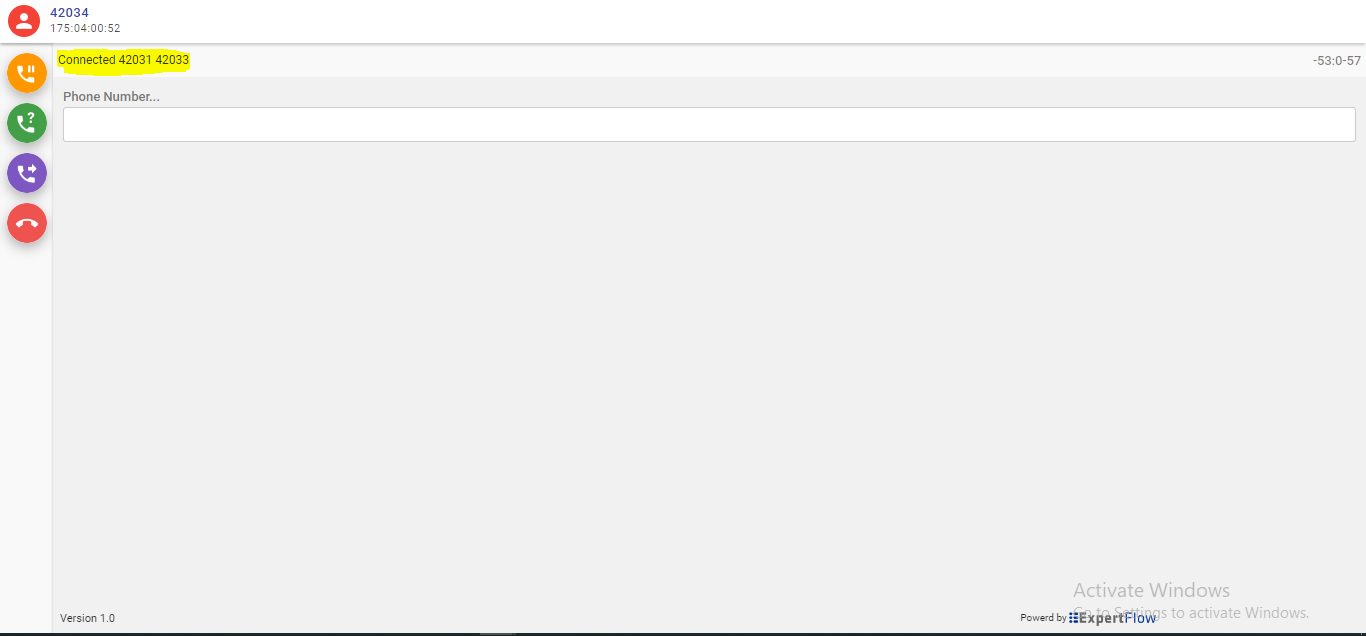

Once the call is conferenced the agent can see all the participants available in the active call.
Direct Transfer Call
The user can directly transfer the call to another extension by providing the extension and clicking on the Transfer button.

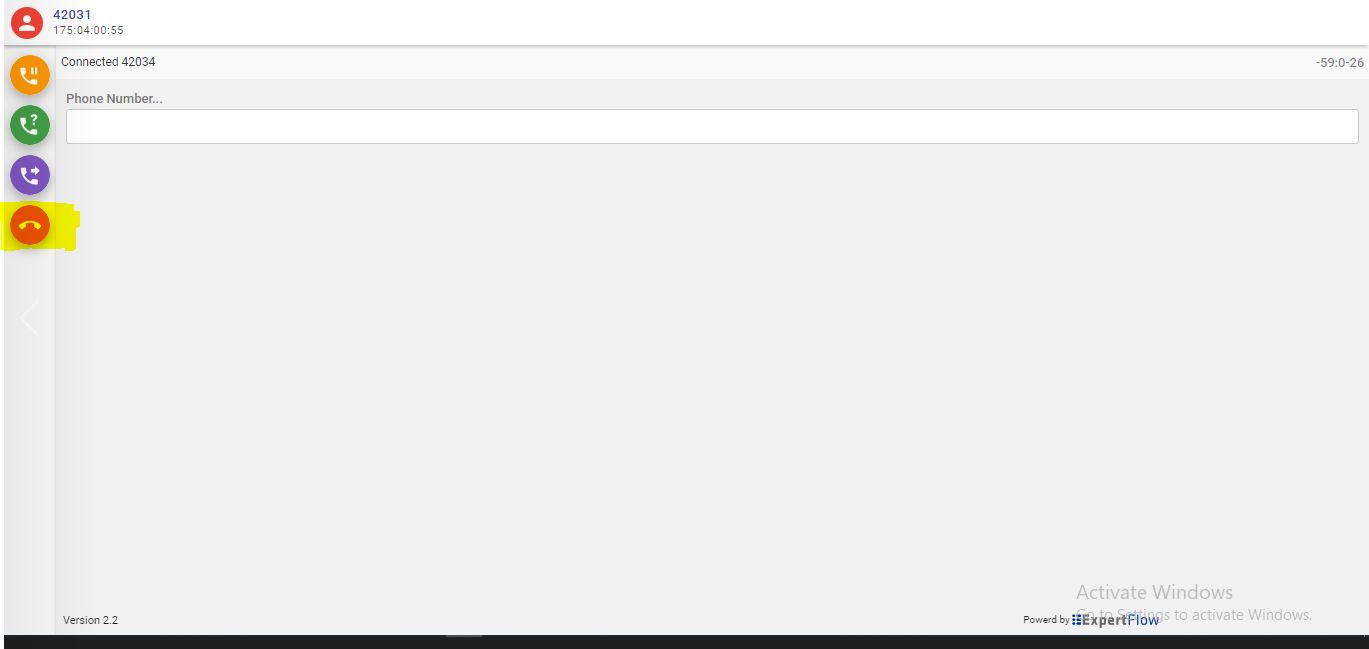

Call End
At any point of user can end the call by clicking the Call end button.
Outbound Call
Users can initiate the outbound by providing the caller number.

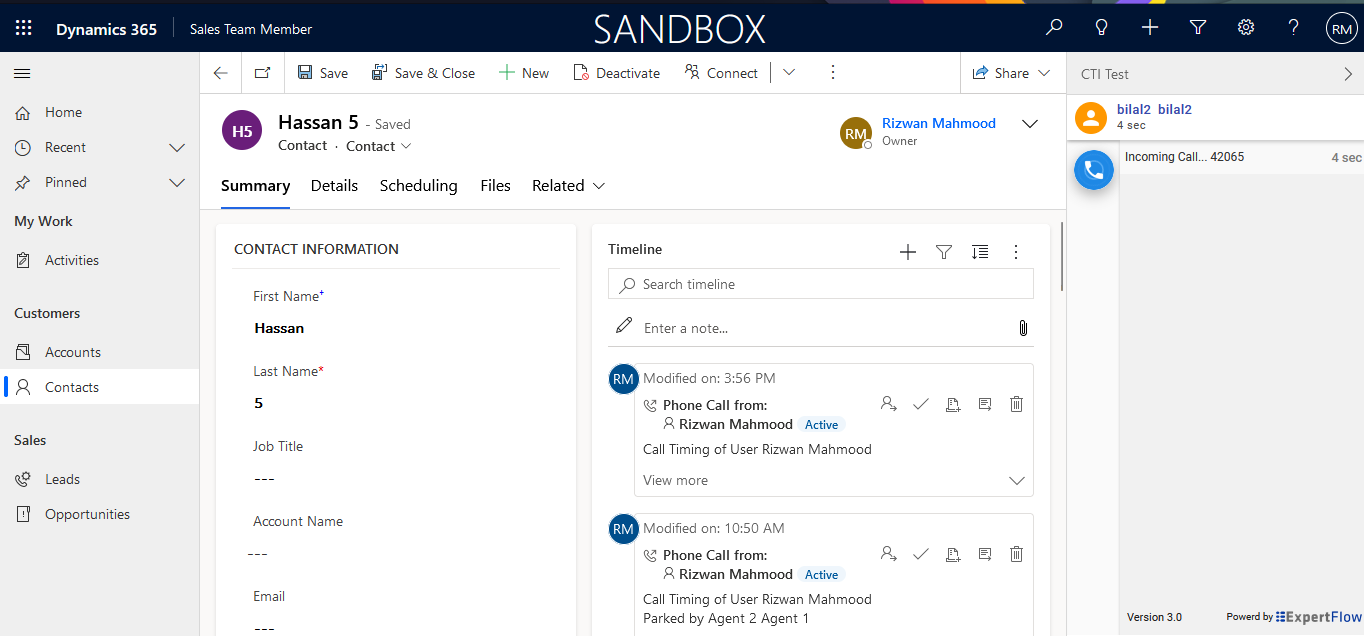

Caller Information Popup on Call Arrival (ScreenPop)
The caller information is displayed on the MS CRM Web Page as soon as the call arrives. If multiple contacts match the connector shows all those contacts for you to choose from.
For Online CRM, In the Contacts /Lead entity, we search for both the 'Phone' and 'Business Phone' fields, and in the Accounts entity, we search in the 'Phone' field. These fields are not configurable
Search by Multiple fields
The customer’s ANI is searched against multiple Phone fields which can be configured on the CRM side against the respective (Leads, Accounts, Contacts) entity.
Search in Leads, Accounts, and Contacts
An incoming call phone number is searched in Leads, Accounts, and contacts. First, second and third priorities can be set. For example, if the priority is Leads → Accounts → Contacts, It first searches into the ‘Leads’ entity and the resulting record is popped up. If the customer record does not match ‘Leads’ then it searches into the ‘Accounts’ entity and then finally into contacts, if no record is matched in the account.
No ANI Match
In the case, the customer record is not available in either of the leads, accounts, and contacts table, the "New Leads" page should be popped up in front of an agent (configurable). The phone call activity is not logged in this case.
Multiple matches
In the case of multiple matches, a list of all the matched records of the respective entity is shown in the drop-down list in alphabetical order. The first record in the list will automatically pop up, however, the agent can also manually select the customer record from the dropdown list and that customer profile will pop up.

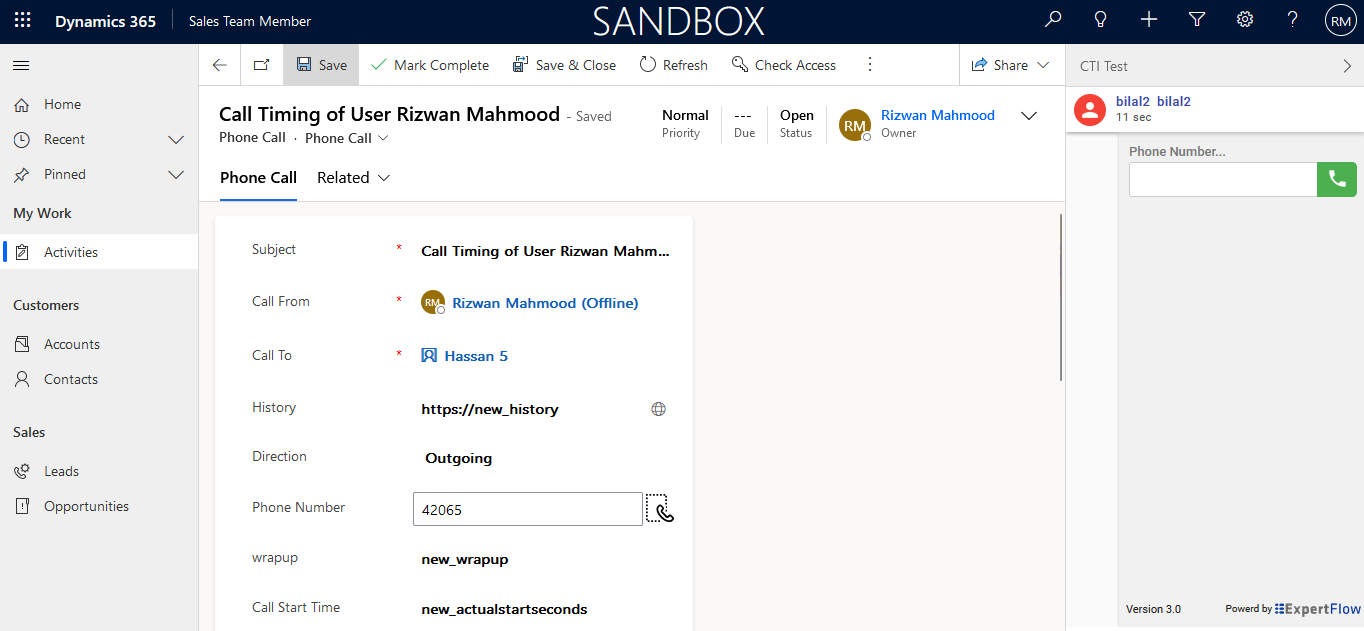

Phone Call Activity
A phone call activity is automatically created and linked to the matched caller account in Microsoft CRM. Any call notes that you write while handling the call are also saved along with the phone call activity.
Click to Call
Click to dial feature allows the user to select any number corresponding to a record (Account/Contact/Lead) and an outbound call will be initiated to that number.
The user can’t dial a call without the click-to-dial feature while clicking on any number from the MS CRM.
CUCM Cluster Support
Our JTAPI Connector does support the CUCM Cluster. We can connect with 3 nodes and if one node goes down we automatically connect with the other nodes and for the user, the system remains intact.
