Solution Prerequisites

Following are the solution setup prerequisites.

Software requirements

	Minimum requirement
OS	Red Hat 8,9, Centos 7, 8, Debian 9,10,11
MSSQLServer	2016,17
Docker CE	20+
Docker compose	2.15.1

Hardware requirements

	Minimum requirement
CPU	4 cores
RAM	4 GB
Disk	300 GB
NICs	1 NIC per VM

On this page

Installation Steps

Install Docker and Docker Compose on the host operating system.
Download the deployment script deployment.sh and place it in the user home or any desired directory. This script will:
1. delete the pcs-deployment directory if it exists.
To execute the script, give it the execute permissions and execute it.
Bash
```
$ chmod 755 pcs-deployment.sh
$ ./pcs-deployment.sh
```
Run this command
```
$ git checkout 13.1
```
pcs-deployment directory has all the files required deployment
Create a database in MSSQL Server for PCS application.
Update following environment variables in config.env file inside the pcs-deployment folder.

Name	Description
API_URL	Backend API URL, `https://PCS-FQDN/api`, Replace the PCS-FQDN with PCS machine FQDN
CISCO_TYPE	UCCE or UCCX
UCCX_FQDN	UCCX FQDN, only required for UCCX CCX IP or FQDN
UCCX_USER	CCX Admin username
UCCX_PASSWORD	CCX Admin user password

For SQL Server authentication to PCS database, use these variables

Name	Description
PCS_DB_AUTH_TYPE	SQL
DB_URL	PCS database URL, `jdbc:sqlserver://192.168.1.200:1433;databaseName=PCS`
DB_USER	PCS database username
DB_PASSWORD	PCS database password
UCCE_DB_UR	UCCE database URL, only required for UCCE `jdbc:sqlserver://192.168.1.89:1433;databaseName=uc12_awdb`
UCCE_DB_USER	UCCE database user, only required for UCCE
UCCE_DB_PASSWORD	UCCE database password, only required for UCCE

For Windows authentication to SQL Server,
- Active Directory Domain: Running Windows Server with Active Directory Domain Services
- SQL Server: Configured to accept Windows authentication
- Network Access: Container must reach Domain Controllers on ports:
  - 88 (Kerberos)
  - 389 (LDAP)
  - 464 (Kerberos password change)
- Time Synchronization: Critical! All systems (container, AD, SQL Server) must be synchronized within 5 minutes

Once these are available, update following variables

PCS database username	PCS database username
PCS_DB_AUTH_TYPE	WINDOWS
PCS_DB_SERVER	SQL Server FQDN win19-std.ucce.ipcc
PCS_DB_PORT	1433
PCS_DB_NAME	PCS database name
KERBEROS_REALM	Kerberos realm (UCCE.IPCC)
KERBEROS_KDC	Kerberos KDC (DCUCCE.UCCE.IPCC)
KERBEROS_DOMAIN	Kerberos domain name (UCCE.IPCC)
PCS_KERBEROS_PRINCIPAL	The Kerberos principal that has access to PCS database (MSSQLSvc/win19-std.ucce.ipcc:1433@UCCE.IPCC)
PCS_KERBEROS_KEYTAB	Path to Keytab file, this should be the internal container path. The keytab file should be mounted to container via docker-compose (/keytab/mssql.keytab)
KERBEROS_DEBUG	false, set it to true to enable Kerberos logging
UCCE_DB_AUTH_TYPE	WINDOWS (Set this to SQL is UCCE is going to be accessed via SQL Authentication In the case of Windows Authentication, the same Keytab file and kerberos principal will be used as for PCS database, same principal should have access to both databases.
UCCE_DB_SERVER	UCCE database FQDN
UCCE_DB_PORT	UCCE database port
UCCE_DB_NAME	UCCE awdb name,

Execute following commands to allow specific ports exposed in docker-compose.

$ firewall-cmd --zone=public --permanent --add-port=443/tcp

 $ firewall-cmd --reload

Default self signed SSL certificates are provided with build. If it needs to be changed with domain signed certificate then replace server.crt(SSL certificate) and server.key (SSL key) in /root/pcs-deployment/docker/certificates folder.
Having environment configurations done, navigate to to the pcs-deployment directory and execute following commands:
Bash
```
$  chmod 755 install.sh
$ ./install.sh
```
Configure keycloak
Update the following variables in pcs-deployment/docker/config.env

Name	Description
KEYCLOAK_REALM_NAME	Keyclaok realm created in step 10
KEYCLOAK_CLIENT_ID	Keyclaok client id created in step 10
KEYCLOAK_CLIENT_SECRET	Keyclaok client secret created in step 10
KEY_CLOAK_ADMIN	Keycloak admin user’s username
KEY_CLOAK_ADMIN_PASSWORD	Keycloak admin user’s password

Run ./install.sh again,
Run the following command to ensure that all the components are up and running:
```
docker ps
```

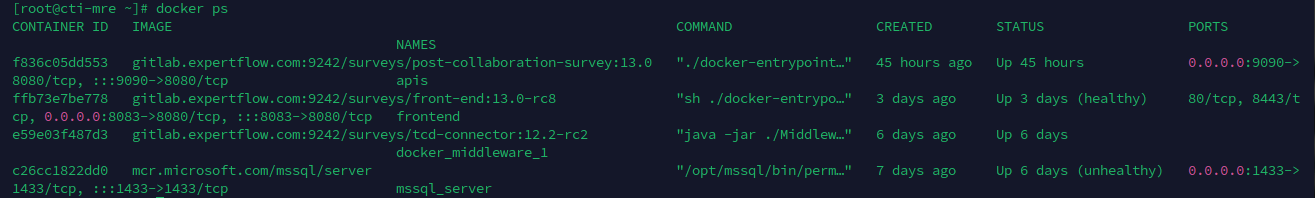

Here is the docker pc output
If everything goes well, you should be able to access the application on https://FQDN
If deployment for UCCX access link https://FQDN/#/configuration-setting and select Cisco Survey Type = UCCX
Once the application is up and running, configure the PCS CUIC Reports.

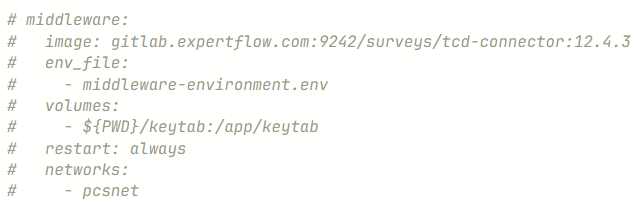

For callback surveys, uncomment following block in docker-compose file. Create a database in sql server for this server.
Update environment variables in middleware-environment.env file inside pcs-deployment/docker folder.

Name	Description
server.port	8383, do not change it
http.port	7272, do not change it
pcs.getSurveyDetails	/getSurveyDetails, do not change it.
pcs.getActiveSurveys	/getActiveSurveys, do not change it.
pcs.serverUrl	PCS application URL https://machine-ip:8443/PCS/survey
pcs.username	A PCS user's username
pcs.password	PCS user password
ecm.serverUrl	ECM URL, http://machine-ip:7676/ecm
ecm.campaign.caller	/callback/insertCallback, do not change it.
ecm.campaign.uploadBulkCaller	/callback/uploadBulkCaller, do not change it.
ecm.campaign.callback	1, ECM campaign Id supposed to be used for callback surveys
ecm.campaign.sms	2, ECM campaign Id supposed to be used for sms surveys
MY_IP	local machine IP
IS_HA	true or false, decides if HA is supported or not for this service
TCD.startFetchingTime	2019-11-12 10:11:52, initial date time from where to start fetching inbound calls and check for callback surveys.
ecm.campaign.sms.phone.prefixes	Prefixes of numbers to identify mobile numbes, e.g 77,83,92
time.zone	+5, timzone GMT offset
TCD.PARAM	Variable3, TCD query parameter
pcs.query.limit	2000, Maximum number of records to fetch per batch
pcs.query.table	survey_feedback, Table name for survey feedback
pcs.query.columns	id,agent_name,agent_id,ani,service_dn,service_id,session_id Columns to select from the pcs survey table(comma-separated)
pcs.query.where.condition	(agent_id='NULL' OR agent_id IS NULL) AND session_id IS NOT NULL , WHERE conditions
pcs.query.order.by	feedback_time DESC , ORDER BY clause (can be 'feedback_time DESC' for newest first or 'id ASC' for sequential processing)
progressive.processing.enabled	true or false When true: System starts from oldest unsynced records and processes chronologically When false: System starts in monitoring mode for latest records only

For SQL Server authentication or Windows based authenticaion to PCS, Proxy and TCD database used in the callback surveys, use these variables:

Name	Description
PCS_DB_AUTH_TYPE	SQL or WINDOWS
PCS_DB_SERVER	PCS SQL Server FQDN win19-std.ucce.ipcc
PCS_DB_PORT=1433	PCS Database Port
PCS_DB_NAME	PCS database name
PCS_DB_USER	PCS database username (only required for sql server authentication skip if using window based auth)
PCS_DB_PASSWORD	PCS database password (only required for sql server authentication skip if using window based auth)
PCS_DB_ADDITIONAL_PARAMS	PCS database connection url additional params (only required for sql server authentication skip if using window based auth) `encrypt=true;trustServerCertificate=true;`
PCS_KERBEROS_PRINCIPAL	The Kerberos principal that has access to PCS database (MSSQLSvc/win19-std.ucce.ipcc:1433@UCCE.IPCC)
PCS_KERBEROS_KEYTAB	Path to Keytab file, this should be the internal container path. The keytab file should be mounted to container via docker-compose (/keytab/mssql.keytab)
PROXY_DB_SERVER	PROXY SQL Server FQDN win19-std.ucce.ipcc
PROXY_DB_PORT=1433	PROXY Database Port
PROXY_DB_NAME	PROXY database name
PROXY_DB_USER	PROXY database username (only required for sql server authentication skip if using window based auth)
PROXY_DB_PASSWORD	PROXY database password (only required for sql server authentication skip if using window based auth)
PROXY_DB_ADDITIONAL_PARAMS	PROXY database connection url additional params (only required for sql server authentication skip if using window based auth) `encrypt=true;trustServerCertificate=true;`
PROXY_KERBEROS_PRINCIPAL	The Kerberos principal that has access to PROXY database (MSSQLSvc/win19-std.ucce.ipcc:1433@UCCE.IPCC)
PROXY_KERBEROS_KEYTAB	Path to Keytab file, this should be the internal container path. The keytab file should be mounted to container via docker-compose (/keytab/mssql.keytab)
TCD_DB_AUTH_TYPE	SQL or WINDOWS
TCD_DB_SERVER	TCD SQL Server FQDN win19-std.ucce.ipcc
TCD _DB_PORT=1433	TCD Database Port
TCD _DB_NAME	TCD database name
TCD _DB_USER	TCD database username (only required for sql server authentication skip if using window based auth)
TCD _DB_PASSWORD	TCD database password (only required for sql server authentication skip if using window based auth)
TCD _DB_ADDITIONAL_PARAMS	TCD database connection url additional params (only required for sql server authentication skip if using window based auth) `encrypt=true;trustServerCertificate=true;`
TCD _KERBEROS_PRINCIPAL	The Kerberos principal that has access to TCD database (MSSQLSvc/win19-std.ucce.ipcc:1433@UCCE.IPCC)
TCD _KERBEROS_KEYTAB	Path to Keytab file, this should be the internal container path. The keytab file should be mounted to container via docker-compose (/keytab/mssql.keytab)
KERBEROS_REALM	Kerberos realm (UCCE.IPCC)
KERBEROS_KDC	Kerberos KDC (DCUCCE.UCCE.IPCC)
KERBEROS_DOMAIN	Kerberos domain name (UCCE.IPCC)
KERBEROS_DEBUG	false, set it to true to enable Kerberos logging

If upgrading an existing deployment make sure to run the following database scripts to update the Proxy table fields to accomodate new data:
1. AddSessionIdToStandardSurvey.sql
2. AddSkillGroupToStandardSurvey.sql

TroubleShooting

Logs for each container are available in files as well as within docker daemon. To see the logs for any container, execute docker ps and get the id of the container. Use that id to see the logs using docker logs <container_id>
