Communication Server Configurations
Following is the procedure to configure Communication Server:
- Stop
EF_CommunicationServerservice in Windows Services pane - Navigate to
<installation-dir>\hybrid-chat\core\communication_server\ - Open
comm_server.jarwith WinRar

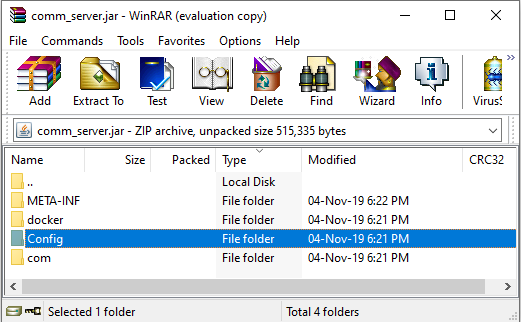

- Navigate to
Configdirectory incomm_server.jar

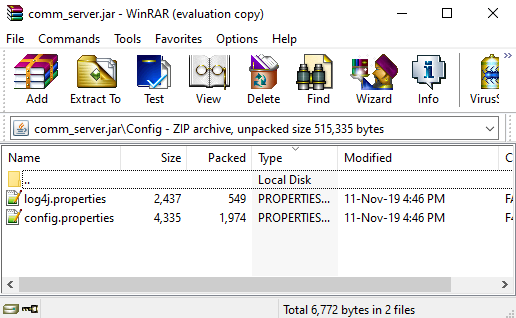

- Open

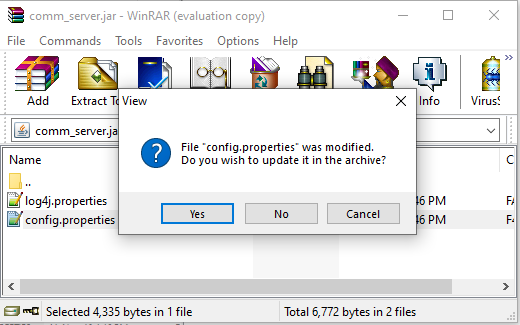

config.propertiesfile with text editor - Save file and update in
comm_server.jar
- Start
EF_CommunicationServerservice in Windows Services pane - Communication Server logs are generated at
/EFLogs/chat-solution/communication-server
Configuration
Following is sample of config.properties file
# properties file containing properties used by the server daemon
#-----------Licencing-----------#
#Number of concurrent agents, DO NOT TOUCH
NUMBER_OF_LICENSES=100
#Customer Name, DO NOT TOUCH
CUSTOMER_NAME=Customer
#LICENSE_KEY, DO NOT TOUCH
KEY=E7409F0AB1B822FDC9788646C199E722
#-----------Finesse-----------#
#Finesse main URL, needs restart after change
FINESSE_1=https://192.168.1.100:8445/finesse/api/
#Finesse secondary URL, needs restart after change
FINESSE_2=https://192.168.1.100:8445/finesse/api/
#Finesse request timeout (in milli-seconds)
FINESSE_REQUEST_TIMEOUT=3000
#Delay in ping to finesse servers (seconds)
FINESSE_HEARTBEAT_SLEEP=5
#Bypass SSL Certificate, in case of false, Import SSL certificate to JVM if needed
BYPASS_SSL=true
#Bypass TSL Certificate for XMPP, false by default
BYPASS_TLS=true
#Turn Media Blending on or off
MEDIA_BLENDING=2
#-----------BotFramework-----------#
BOT_URL=http://<fqdn>/
#Delay in ping to bot framework (in milli-seconds)
BOT_HEARTBEAT_SLEEP=3000
#-----------ActiveMQ-----------#
#Active MQ Primary URL
ACTIVEMQ1=localhost:61616
#Active MQ Secondary URL
ACTIVEMQ2=localhost:61616
#Active MQ Timeout
ACTIVEMQ_TIMEOUT=30000
#Connector1 Queue consumer priority (Used for primary, secondary deployment of GC)(0-127)
AMQ_CONSUMER_PRIORITY=100
#To connect with its primary GC
PRIORITY_BACKUP=true
#for failover url
RANDOMIZE=false
#Prefect Size of the messages
PREFETCH_SIZE=20000
#-----------Generic Connector Sync-----------#
#Time after which, states of all agents would be published on topic (In Milliseconds)
AGENT_STATES_PUBLISHER_DURATION=5000
# GC heartbeat timeout
GC_HEARTBEAT_TIMEOUT=10000
# Agent inactivity time in seconds
AGENT_INACTIVITY_DURATION=30
#gc heartbeat thread sleep time
GC_HEARTBEAT_SLEEP=10000
#-----------General Configurations-----------#
# Agent inactivity switch
AGENT_INACTIVITY_TIME_SWITCH=false
#default reason code for not ready
DEFAULT_NOT_READY_REASON=1
#Agent XMPP Subscription Time
AGENT_XMPP_SUBS_TIME=10000
#default reason code for logout. Logout on Inactivity timeout will use this code.
DEFAULT_LOGOUT_REASON=
#Use encrypted password
USE_ENCRYPTED_PASSWORDS=false
#Automatically change the state when wrap-up occurs
CHANGE_STATE_ON_WRAPUP=true
#Message Format for communication. Expected formats DEFAULT, JSON, XML
MESSAGE_FORMAT=JSON
#Extension regex validator
EXTENSION_PATTERN=\\+?\\d+
#-----------AgentWise Logging & Communication Server general configurations-----------#
#AgentLogs Storage path
AGENT_LOGS_PATH=/EFLogs/chat-solution/communication-server/Agents/
#Agent Logs Level
AGENT_LOGS_LEVEL=TRACE
#Max No of Files per agent for logs
AGENT_LOGS_MAX_FILES=10
#Max file size for agent logs
AGENT_LOGS_FILE_SIZE=100MB
#Standalone Config
UMM_PATH=https://localhost:8443/umm
IS_STANDALONE=false
IS_UMM_CERT_SELF_SIGNED=true
#Chat MRE
MAX_TASKS=5
#NOT_READY reason code for Chat Arrived
NOT_READY_REASON=13
#true if Reporting CRD publishing via ActiveMQ reporting queue is enabled
ENABLE_REPORTING=true
#-----------Apache Kafka-----------#
# This section is not in use anymore
# For detailed information of used params, please visit https://kafka.apache.org/documentation.html#producerconfigs
KAFKA_ENABLED=false
# Apache Kafka server url
KAFKA_SERVER_URL=localhost:9092
# Topic name
KAFKA_TOPIC=database-connector
# Acknowledgements, DO NOT CHANGE unless kafka is deployed in a cluster and you need to change cluster configs
ACKS=all
# Number of retries to carry out for sending a message
RETRIES=10
# Batch Size, DO NOT CHANGE
BATCH_SIZE=16384
# Linger time, milliseconds, DO NOT CHANGE
LINGER_MS=1
# Buffer Memory, DO NOT CHANGE
BUFFER_MEMORY=33554432
#---------------- SSL Properties ----------------#
ENABLE_SSL=false
KEYSTORE_PATH=../certs/client.ks
TRUSTSTORE_PATH=../certs/client.ts
KEYSTORE_PWD=password
TRUSTSTORE_PWD=password
#---------------- Jetty Server Properties --------------------#
API_PORT=8082
API_PORT_HTTPS=8482
JKS_KEYSTORE_PATH=../certs/keystore.jks
JKS_KEY_STORE_PSWD=password
JKS_KEY_MANAGER_PSWD=password
#---------------- Database connector properties -------------#
DB_CONNECTOR_API_PATH=https://localhost:8450
#---------------- RONA properties -------------#
RONA_TIMEOUT=-1
REPORTING_RONA_REASON=RONA
#-------------- MRE Path -----------------#
MRE_API=http://localhost:8097
#-------------- Auto Answer Configuration --------------#
AUTO_ANSWER_ENABLED=false
Configuration variables are explained in following table
| Configuration Variable | Default Value | Expected Value | Limitations | Description | |
|---|---|---|---|---|---|
| 1 | NUMBER_OF_LICENSES | Not Supported anymore. Do not change. | |||
| 2 | CUSTOMER_NAME | Customer | String | Customer Name | |
| 3 | KEY | Not Supported anymore. Do not change. | |||
| 4 | FINESSE_1 | https://finesse10-5.ef.com/finesse/api/ | String | Finesse main URL/IP, needs restart after change. | |
| 5 | FINESSE_2 | https://finesse10-5.ef.com/finesse/api/ | String | Finesse secondary URL/IP, needs restart after change | |
| 6 | FINESSE_REQUEST_TIMEOUT | 3000 | Number | Finesse request timeout (in milli-seconds) | |
| 7 | FINESSE_HEARTBEAT_SLEEP | 5 | Number | Delay in ping to finesse servers (seconds) | |
| 8 | ByPass_SSL | true | Boolean true / false | Bypass SSL Certificate, in case of false, Import SSL certificate to JVM if needed | |
| 9 | ByPass_TLS | true | Boolean true / false | Bypass TSL Certificate for XMPP, false by default | |
| 10 | BOT_URL | Not Supported anymore. Do not change. | |||
| 11 | BOT_HEARTBEAT_SLEEP | Not Supported anymore. Do not change. | |||
| 12 | ACTIVEMQ1 | localhost:61616 | String | Active MQ Primary URL | |
| 13 | ACTIVEMQ2 | localhost:61616 | String | Active MQ Secondary URL | |
| 14 | ACTIVEMQ_TIMEOUT | 30000 | Number | Active MQ Timeout | |
| 15 | AMQ_CONSUMER_PRIORITY | 100 | Number | Connector1 Queue consumer priority (Used for primary, secondary deployment of GC)(0-127) | |
| 16 | PRIORITY_BACKUP | true | Boolean true / false | For ActiveMQ Failover transport. Do not change | |
| 17 | RANDOMIZE | false | Boolean true / false | For ActiveMQ Failover transport. Do not change | |
| 18 | PREFETCH_SIZE | 20000 | Number | Prefect Size of the messages | |
| 19 | AGENT_STATES_PUBLISHER_DURATION | Not Supported anymore. Do not change. | |||
| 20 | GC_HEARTBEAT_TIMEOUT | Not Supported anymore. Do not change. | |||
| 21 | AGENT_INACTIVITY_DURATION | Not Supported anymore. Do not change. | |||
| 22 | GC_HEARTBEAT_SLEEP | Not Supported anymore. Do not change. | |||
| 23 | AGENT_INACTIVITY_TIME_SWITCH | Not Supported anymore. Do not change. | |||
| 24 | DEFAULT_NOT_READY_REASON | 1 | Number | default reason code for not ready | |
| 25 | AGENT_XMPP_SUBS_TIME | 10000 | Number | Agent XMPP Subscription Time | |
| 26 | DEFAULT_LOGOUT_REASON | Number | default reason code for logout. Logout on Inactivity timeout will use this code. | ||
| 27 | USE_ENCRYPTED_PASSWORDS | Not Supported anymore. Do not change. | |||
| 28 | CHANGE_STATE_ON_WRAPUP | true | Boolean true / false | Automatically change the state when wrap-up occurs | |
| 29 | MESSAGE_FORMAT | JSON | String | Only JSON format is supported yet | Message Format for communication. Expected formats DEFAULT, JSON, XML |
| 30 | EXTENSION_PATTERN | \\+?\\d+ | Regex | Extension regex validator | |
| 31 | AGENT_LOGS_PATH | /EFLogs/chat-solution/communication-server/Agents/ | String | AgentLogs Storage path | |
| 32 | AGENT_LOGS_LEVEL | TRACE | String | Agent Logs Level | |
| 33 | AGENT_LOGS_MAX_FILES | 10 | Number | Max No of Files per agent for logs | |
| 34 | AGENT_LOGS_FILE_SIZE | 100MB | String | Max file size for agent logs | |
| 35 | UMM_PATH | https://localhost:8443/umm | Number | UMM is used when Comm Server works standalone | |
| 36 | IS_STANDALONE | false | Boolean true / false | Integrated with Finesse when false | |
| 37 | IS_UMM_CERT_SELF_SIGNED | true | Boolean true / false | Only applicable when IS_STANDLONE is true | |
| 38 | MAX_TASKS | 5 | Number | Max number of chats offered to an agent | |
| 39 | NOT_READY_REASON | 13 | Number | NOT_READY reason code for Chat Arrived | |
| 40 | ENABLE_REPORTING | true | Boolean true / false | true if Reporting CRD publishing via ActiveMQ reporting queue is enabled | |
| 41 | KAFKA_ENABLED | Not Supported anymore. Do not change. | |||
| 42 | KAFKA_SERVER_URL | Not Supported anymore. Do not change. | |||
| 43 | KAFKA_TOPIC | Not Supported anymore. Do not change. | |||
| 44 | ACKS | Not Supported anymore. Do not change. | |||
| 45 | RETRIES | Not Supported anymore. Do not change. | |||
| 46 | BATCH_SIZE | Not Supported anymore. Do not change. | |||
| 47 | LINGER_MS | Not Supported anymore. Do not change. | |||
| 48 | BUFFER_MEMORY | Not Supported anymore. Do not change. | |||
| 49 | ENABLE_SSL | true | Boolean true / false | Specifies to host API via HTTPS | |
| 50 | KEYSTORE_PATH | ../certs/client.ks | String | ActiveMQ keystore path | |
| 51 | TRUSTSTORE_PATH | ../certs/client.ts | String | ActiveMQ trust store path | |
| 52 | KEYSTORE_PWD | password | String | ActiveMQ keystore password | |
| 53 | TRUSTSTORE_PWD | password | String | ActiveMQ truststore passowrd | |
| 54 | API_PORT | 8082 | Number | HTTP API port | |
| 55 | API_PORT_HTTPS | 8482 | Number | HTTPS API port | |
| 56 | JKS_KEYSTORE_PATH | ../certs/keystore.jks | String | Applicable only when SSL is true | Certificate to host Communication Server over HTTPS |
| 57 | JKS_KEY_STORE_PSWD | password | String | Applicable only when SSL is true | Keystore password |
| 58 | JKS_KEY_MANAGER_PSWD | password | String | Applicable only when SSL is true | Key Store Manager password |
| 59 | DB_CONNECTOR_API_PATH | https://localhost:8450 | String | Database Connector API path | |
| 60 | RONA_TIMEOUT | 30000 | Number | RONA timeout in milliseconds. | |
| 61 | REPORTING_RONA_REASON | RONA | |||
| 62 | MRE_API | http://localhost:8097 | String | MRE API path | |
| 63 | AUTO_ANSWER_ENABLED | false | Boolean |
