Follow these steps for UMM configuration:

Navigate to <installation-dir>\hybrid-chat\core\tomcat\apache-tomcat-8.5.47\webapps\umm\WEB-INF\classes
Open application.groovy file with any text editor.
Update and save configurations, there is no need to restart any service in this case

Configuration

Umm configuration file contains a lot of code and configurations, only relevant configuration are relevant portion of configuration file is listed here. Please be careful when updating this file not to change any irrelevant thing in it:

Groovy

dataSource {
    pooled = true
    dbCreate = "update"
    url = System.getenv("UMM_DB_URL")?:"jdbc:jtds:sqlserver://192.168.1.45/ChatServerQA;instance=BNPTEST"
    driverClassName = System.getenv("UMM_DB_DRIVER")?:"net.sourceforge.jtds.jdbc.Driver"
    dialect = System.getenv("UMM_DB_DIALECT")?:"org.hibernate.dialect.SQLServer2008Dialect"
    username = System.getenv("UMM_DB_USER")?:"sa"
    password = System.getenv("UMM_DB_PASS")?:"Expertflow464"
    properties {
        jmxEnabled = true
        initialSize = 5
        maxActive = 50
        minIdle = 5
        maxIdle = 25
        maxWait = 10000
        maxAge = 10 * 60000
        timeBetweenEvictionRunsMillis = 5000
        minEvictableIdleTimeMillis = 60000
        validationQuery = "SELECT 1"
        validationQueryTimeout = 3
        validationInterval = 15000
        testOnBorrow = true
        testWhileIdle = true
        testOnReturn = false
        jdbcInterceptors = "ConnectionState;StatementCache(max=200)"
        defaultTransactionIsolation = java.sql.Connection.TRANSACTION_READ_COMMITTED
    }
}

Groovy

primaryFinesseIP=System.getenv("PRIM_FINESSE_IP")?:"https://finesse115.ucce.ipcc:8445"
secondaryFinesseIP=System.getenv("SEC_FINESSE_IP")?:"https://finesse115.ucce.ipcc:8445"
finesseUser=System.getenv("FINESSE_USER")?:"admin"
finessePass=System.getenv("FINESSE_PASS")?:"Expertflow464"
base_url=System.getenv("REDIRECT_BASE_URL")?:"http://localhost:8080"

The following table explains these parameters

	Configuration Variable	Line Number	Default Value	Expected Value	Limitations	Description
1	UMM_DB_URL	4	jdbc:jtds:sqlserver://192.168.1.45:1433/umm for default instance, Use following DB_URL value for named instance of MSSQL Server jdbc:jtds:sqlserver://serverurl;instance=INSTANCE_NAME;DatabaseName=umm	String	/umm at the end of string is the database name you created. Write host path in place of 192.168.1.45:1433 of default value
2	UMM_DB_USER	7	sa	String		MSSQL Server username
3	UMM_DB_PASS	8	Expertflow464	String		MSSQL Server password
4	PRIM_FINESSE_IP	105	https://finesse115.ucce.ipcc:8445	String		Primary Finesse IP
5	SEC_FINESSE_IP	106	https://finesse115.ucce.ipcc:8445	String		Secondary Finesse IP
6	FINESSE_USER	107	admin	String		Finesse cfadmin User Name
7	FINESSE_PASS	108	Expertflow464	String		Finesse cfadmin password
8	REDIRECT_BASE_URL	109	http://localhost:8080	String		This is FQDN of Hybrid Chat, UMM frontend uses this path to access UMM APIs

4. Navigate to <installation-dir>\hybrid-chat\core\tomcat\apache-tomcat-8.5.47\webapps\umm\base\assets

5. open config.json in text editor.

6. Update the following variable and save the the file. Then restart the tomcat service.

GAT_URL

https://localhost:8443

https://<fqdn-reverse-proxy>

String

This is URL of tomcat.
OR
Enter the URL of app-gateway

In the method of microservices go to the umm section line number 37, and 38 and make the following changes:

10	ipAddress	37	http://127.0.0.1	Number		this is the loopback ip of the host for umm
11	port: System.getenv("UMM_PORT")?	38	8081	Port		This is the http port of tomcat on which UMM is hosted

In the method of microservices go to the ecm section line number 56, and 57 and make the following changes:

12	ipAddress: primaryIP	56	http://127.0.0.1	Number		this is the loopback ip of the host
13	port: System.getenv("ECM_PORT")?:	57	8081	Port		This is the http port of tomcat

In the method of microservices go to the eabc section line number 66, and 67 and make the following changes:

14	ipAddress: primaryIP	66	http://127.0.0.1	Number		this is the loopback ip of the host
15	port: System.getenv("EABC_PORT")?:	67	8081	Port		This is the http port of tomcat

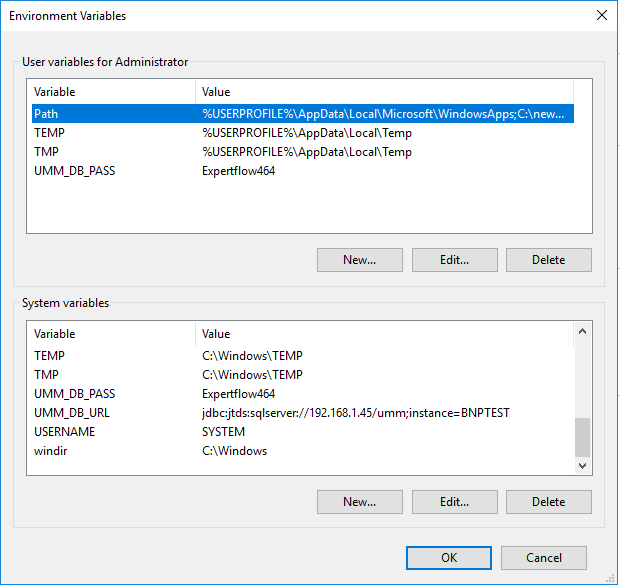

7. Add the following System environment variables.

UMM_DB_URL
UMM_DB_PASS
