360-Connector Configuration Guide
Register Webhook
360-connector expects an HTTP POST request to this endpoint {FQDN}/configs/webhook with the following query params
Query Param | Description |
|---|---|
url | This represents the URL of 360-connector, where notifications from 360Dialog will be received. |
hostUrl | The default base URL for the 360dialog WhatsApp API i-e https://waba.360dialog.io Use the following URL for the 360dialog sandbox https://waba-sandbox.360dialog.io |
apiKey | the key/token of the WhatsApp account. To get the key for the sandbox, add the 360dialog sandbox number in your WhatsApp contact and send a WhatsApp message from your phone to the phone number |
authorization | This is the WhatsApp number, which is used to authenticate the header whenever 360-connector receives a notification from 360Dialog. Its format should be the same as defined in serviceIdentifier in Channel Configuration in Unified-Admin. |
Get Webhook
If the webhook URL is already set, make a GET request to this endpoint {FQDN}/configs/webhook, to retrieve the existing resource.
Query Param | Description |
|---|---|
hostUrl | The default base URL for the 360dialog WhatsApp API i-e https://waba.360dialog.io Use the following URL for the 360dialog sandbox https://waba-sandbox.360dialog.io |
apiKey | the key/token of the WhatsApp number. |
Unified Admin Configurations
Channel Manager Configs

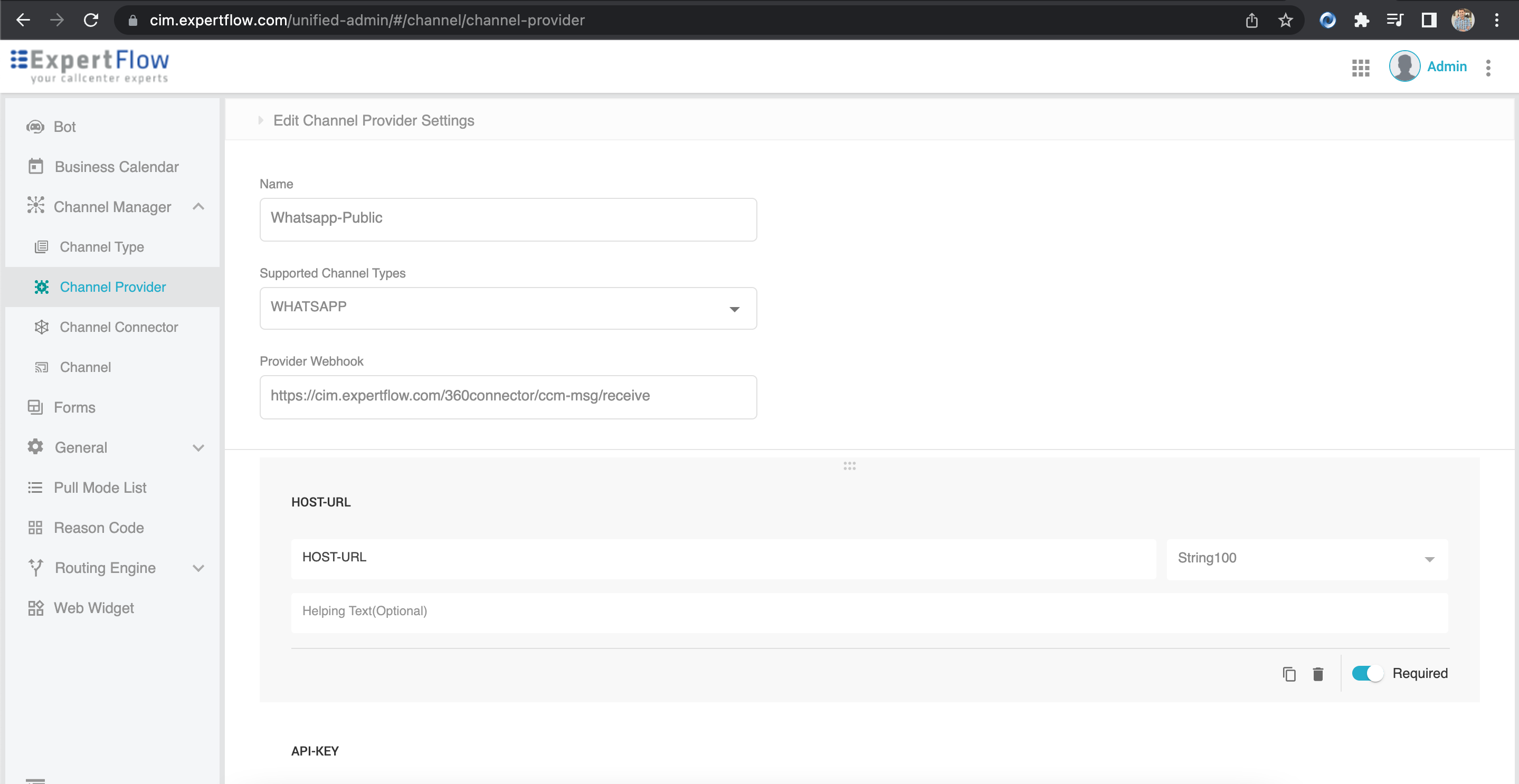

The following variables first need to be added as "customer-attributes" in "channel provider" on unified-admin.

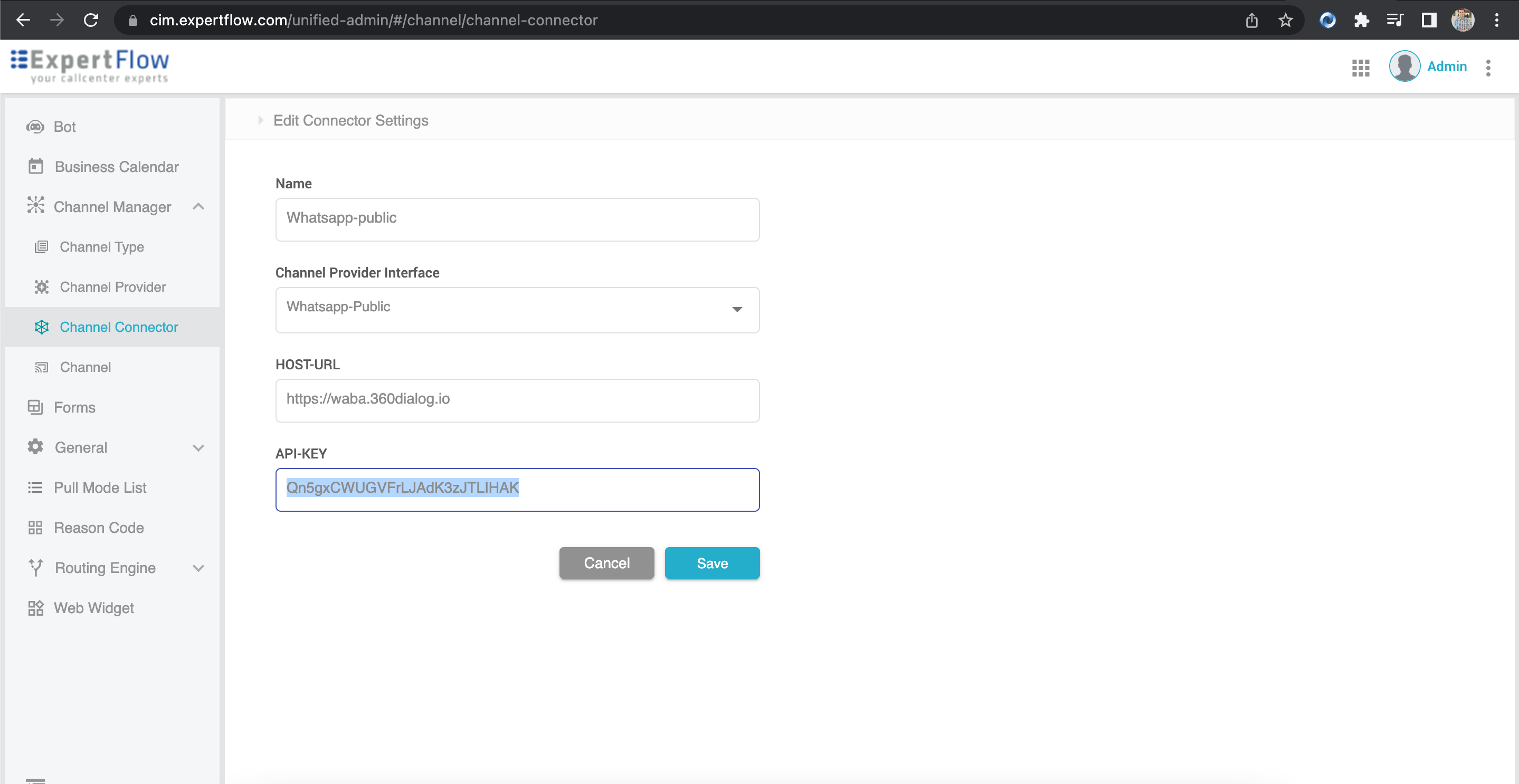

Then we need to set their values in "channel-connector" on unified-admin.
Variable Name | Description | Size | Required | Example |
|---|---|---|---|---|
HOST-URL | HOST-URL contains the URL of the Channel Provider such as 360Dialog. | String100 | YES | |
API-KEY | API-KEY contains the token/key for the Channel Provider. | String100 | YES | Q*****************HAK |
