Cisco Outbound Connector Deployment Guide

Prerequisites

Software Requirements

Item	Recommended	Installation guide
Operating System	Debian 12	-
Docker	v24 or higher	https://docs.docker.com/engine/install/debian/
EF CX	Latest version	https://expertflow-docs.atlassian.net/l/cp/hHy74HdV
Cisco UCCX/UCCE	Latest version	https://www.cisco.com/c/en/us/support/customer-collaboration/unified-contact-center-express/products-installation-guides-list.html

Port Utilization Requirements

The following ports must be open on the server for the cisco connector to function.

Type	Application	Description	Port
TCP	Cisco Connector	Access port	any/ (set in docker-compose.yml)

The ports can be opened as follows:

SSH into the Debian server.
- Use command
  ssh username@server-ip
- Enter the ssh password and press Enter.
- Use command
  su
- Enter the root user's password

Run the following command and replace PORT with each of the required ports listed above:

sudo iptables -A INPUT -p tcp -m tcp --dport PORT-j ACCEPT

Example:

sudo iptables -A INPUT -p tcp -m tcp --dport 8021 -j ACCEPT

Save this port configuration with command:
```
sudo iptables-save.
```

Container Deployment

The Cisco connector is deployed as a docker image.

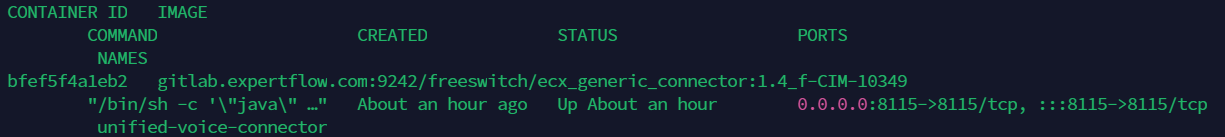

image2023-9-6_12-55-39.png?version=1&modificationDate=1693986938289&cacheVersion=1&api=v2&width=800&height=89

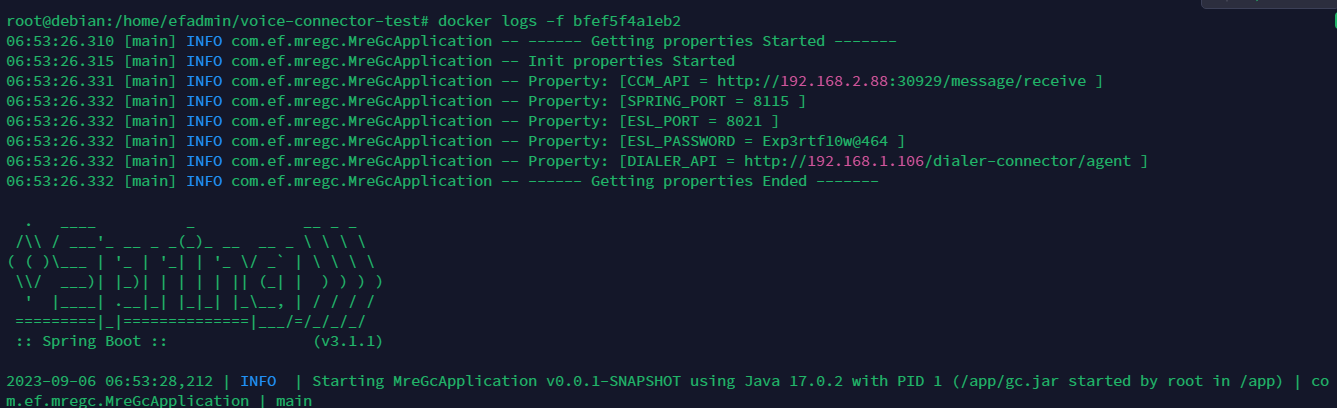

image2023-9-6_12-58-15.png?version=1&modificationDate=1693987093716&cacheVersion=1&api=v2&width=700&height=213

Create a folder cisco-connector with the command
```
mkdir cisco-connector
```
Enter the folder with the command
```
cd cisco-connector
```
Create a file docker-compose.yml.
- vi docker-compose.yml
Enter editing mode with the 'I' or 'Insert' keys.

Copy the contents below and paste them into the file docker-compose.yml :

version: "3"
services:
  cisco-connector:
    image: gitimages.expertflow.com/rtc/cisco-outbound-connector:TAG
    container_name: cisco-connector
    ports:
      - PORT:8080
    env_file:
      - docker-variables.env
    restart: always

Replace the 'TAG' keyword with the required image tag(Currently 1.0).
Replace ‘PORT’ with a port of your choice.

Save and exit by :
- Press the Esc key.
- Enter the phrase :wq to save and exit.
Create a file docker-variables.env
- vi docker-variables.env
Enter editing mode with the 'I' or 'Insert' keys.
Copy the contents below and paste them into the file env.txt :
```
TRUST_STORE_PATH=truststore.jks
TRUST_STORE_PASSWORD=alpine
CISCO_TYPE=CCX
CISCO_FQDN=https://uccx.com:8445
CISCO_USERNAME=administrator
CISCO_PASS=password
```
- The TRUST_STORE_PATH and TRUST_STORE_PASSWORD should not be changed.
- CISCO_TYPE= Set CCX or CCE depending on what type of Cisco UCC you are using.
- CISCO_FQDN= The address of the Cisco deployment.
- CISCO_USERNAME= The admin username of the Cisco deployment.
- CISCO_PASS= The admin password of the Cisco deployment.
Within the folder run the command
```
docker compose up -d
```

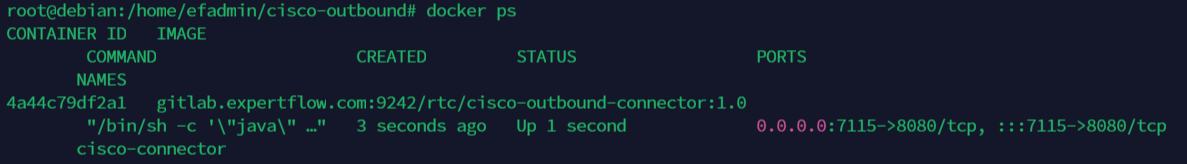

Confirm that the docker container is running by using the command
```
docker ps
```

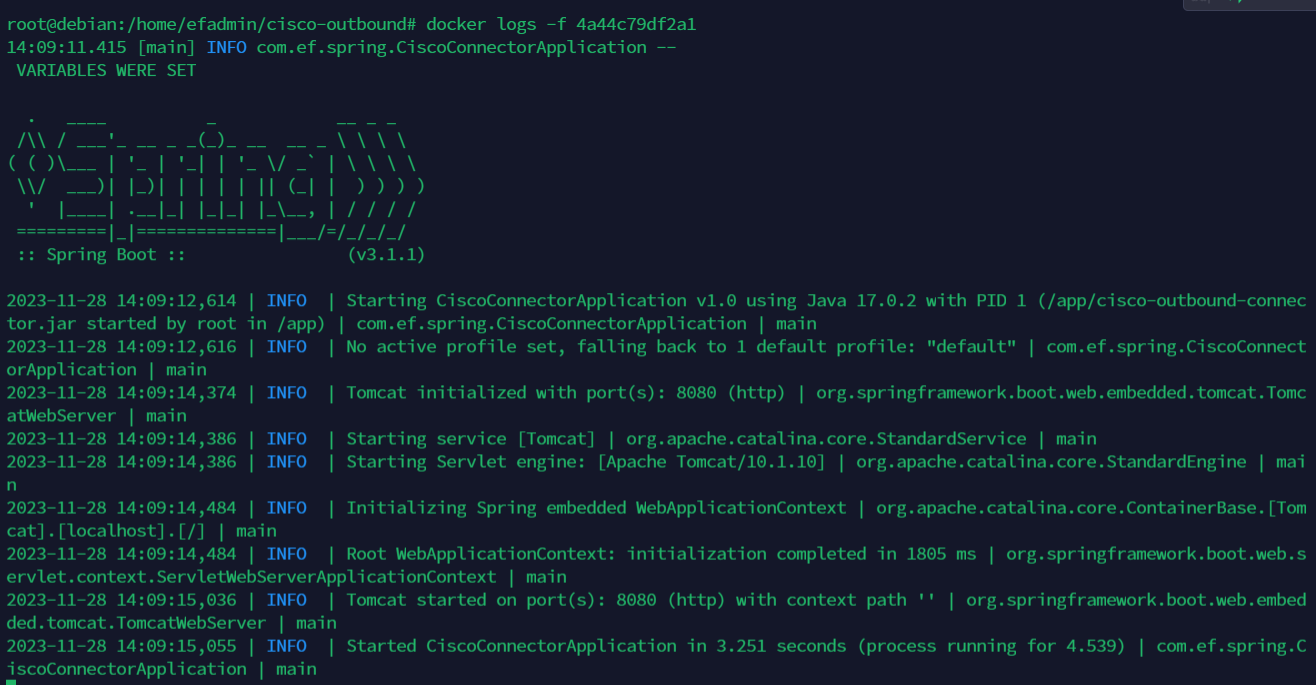

Confirm that the container is running correctly by opening the logs with command
```
docker logs -f containerID
```
