CX Voice Upgrade Guide CX5.1.0 to CX5.2.0

Upgrade of Media Scripts

Clone the Media Server scripts repository:

git clone -b 5.2.0 https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/rtc/freeswitch-scripts.git

Navigate to the cloned repository to access the files:

cd freeswitch-scripts

Move the files ending in .lua to the Media Server scripts folder:
```
mv *.lua /usr/share/freeswitch/scripts
```

Update fsIp in vcApi.lua

vi /usr/share/freeswitch/scripts/vcApi.lua
--Search for fsIp and Replace fsIp = '192.168.1.161' with your actual Media Server Public IP
fsIp = '192.168.1.161'

Save and exit the file by pressing the Esc key, entering:wq and pressing ENTER.

Upgrade of Voice Connector

Voice Connector

SSH into the Debian server.
- Use the command:
  - ssh username@server-ip
- Enter the SSH password and press Enter.
- Use the command:
  - su
- Enter the root user's password

Container deployment

The voice connector is deployed as a Docker image.

Navigate to the existing Voice connector directory
```
cd voice-connector
```
Stop the previously running container
```
docker compose down
```
Open the file docker-compose.yml.
- vi docker-compose.yml

Enter editing mode with the 'I' or 'Insert' keys.

Replace the previous tag with the current release tag 5.2.0

version: "3.8"
services:
  voice-connector:
    image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:5.2.0
    deploy:

    ...
    ...

Save the file and exit by :
- Press the Esc key.
- Enter the phrase:wq to save and exit.
Run the command:
- docker login gitimages.expertflow.com
- Enter your username and password as prompted (make sure that you were granted access to the repository).
Within the folder, run the command:
- docker compose up -d

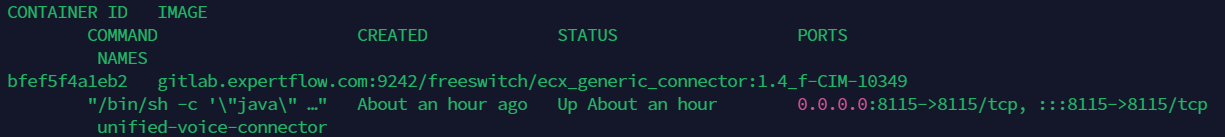

Confirm that the new Docker container is running by using the command:
- docker ps

image2023-9-6_12-55-39.png?version=1&modificationDate=1693986938289&cacheVersion=1&api=v2&width=800

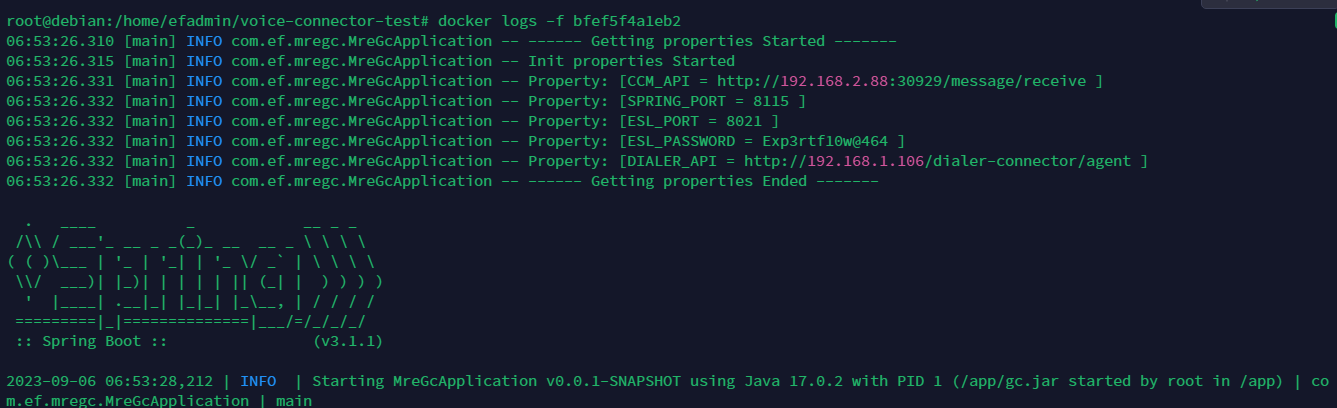

Confirm that the container is running correctly by opening the logs with the command:
- docker logs -f containerID

image2023-9-6_12-58-15.png?version=1&modificationDate=1693987093716&cacheVersion=1&api=v2&width=700

If there are multiple Voice Connectors running, update all of them if needed.

Upgrade of OB Dialer

OB Dialer

SSH into the Debian server.
- Use the command:
  - ssh username@server-ip
- Enter the SSH password and press Enter.
- Use the command:
  - su
- Enter the root user's password

Container deployment

The OB Dialer is deployed as a Docker image.

Navigate to the existing outbound dialer directory
```
cd outbound-dialer
```
Stop the previously running container
```
docker compose down
```
Open the file docker-compose.yml.
- vi docker-compose.yml

Enter editing mode with the 'I' or 'Insert' keys.

Replace the previous tag with the current release tag 5.2.0

version: "3.8"
services:
  outbound-dialer:
    image: gitimages.expertflow.com/rtc/outbound-dialer:5.2.0
    deploy:

    ...
    ...

Save the file and exit by :
- Press the Esc key.
- Enter the phrase:wq to save and exit.
Run the command:
- docker login gitimages.expertflow.com
- Enter your username and password as prompted (make sure that you were granted access to the repository).
Within the folder, run the command:
- docker compose up -d
Confirm that the new Docker container is running by using the command:
- docker ps

Upgrade of Link Uploader

Link Uploader

SSH into the Debian server.
- Use the command:
  - ssh username@server-ip
- Enter the SSH password and press Enter.
- Use the command:
  - su
- Enter the root user's password

Container deployment

The Link Uploader is deployed as a Docker image.

Navigate to the existing Link Uploader directory
```
cd recording-link-uploader
```
Stop the previously running container
```
docker compose down
```
Open the file docker-compose.yml.
- vi docker-compose.yml

Enter editing mode with the 'I' or 'Insert' keys.

Replace the previous tag with the current release tag 5.2.0

version: "3.8"
services:
  recording-link-uploader:
    image: gitimages.expertflow.com/voice-recording-solution/recording-link-activities:5.2.0
    deploy:
      resources:
        limits:
          memory: 1024m
        reservations:
          memory: 256m
    container_name: recording-link-uploader
    env_file:
      - ./env.txt
    volumes:
      - /var/lib/freeswitch/recordings/:/var/lib/freeswitch/recordings/
    command: ["java", "-Xms256m", "-Xmx1024m", "-XX:+UseG1GC", "-XX:MinHeapFreeRatio=10", "-XX:MaxHeapFreeRatio=30", "-jar", "/app/recording-link-activities.jar"]
    restart: no

Save the file and exit by :
- Press the Esc key.
- Enter the phrase:wq to save and exit.
Run the command:
- docker login gitimages.expertflow.com
- Enter your username and password as prompted (make sure that you were granted access to the repository).
Within the folder, run the command:
- docker compose up -d
Confirm that the new Docker container is running by using the command:
- docker ps

VRS Upgrade Guide (14.7 → 14.7.1)

VRS

1. EFCX Configuration Update

Modify the Docker Compose file to update the vrs apis image to version 14.7.1.

File Path: /root/recording-solution/docker/docker-compose-efcx.yml
Command: vi /root/recording-solution/docker/docker-compose-efcx.yml

services:
  backend:
    container_name: backend
    image: gitlab.expertflow.com:9242/voice-recording-solution/apis:14.7.1

2. Cisco Environment Update

Apply the same image tag to the Cisco-specific Docker file.

Target Image: gitlab.expertflow.com:9242/voice-recording-solution/apis:14.7.1
