CX Voice Upgrade Guide CX5.3.1 to CX5.4.0

• SSH into the Debian server.

  • Use the command:

    • ssh username@server-ip


  • Enter the SSH password and press Enter.

  • Use the command:

    • su


  • Enter the root user's password

Container deployment

The voice connector is deployed as a Docker image.

• Navigate to the existing Voice connector directory

• cd voice-connector


• Stop the previously running container

• docker compose down


• Open the file docker-compose.yml.

  • vi docker-compose.yml


• Enter editing mode with the 'I' or 'Insert' keys.

  • Replace the previous tag with the current release tag 5.2.0

    version: "3.8"
    services:
      voice-connector:
        image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:5.4.0
        deploy:

        ...
        ...


• Save the file and exit by :

  • Press the Esc key.

  • Enter the phrase:wq to save and exit.

• Run the command:

  • docker login gitimages.expertflow.com


  • Enter your username and password as prompted (make sure that you were granted access to the repository).

• Within the folder, run the command:

  • docker compose up -d

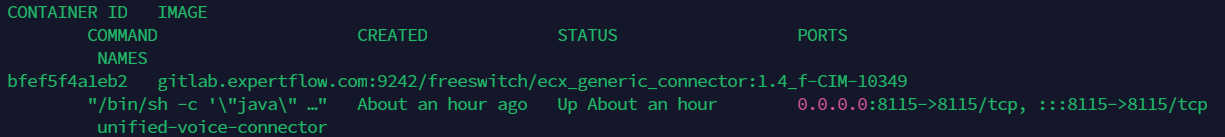

• Confirm that the new Docker container is running by using the command:

  • docker ps

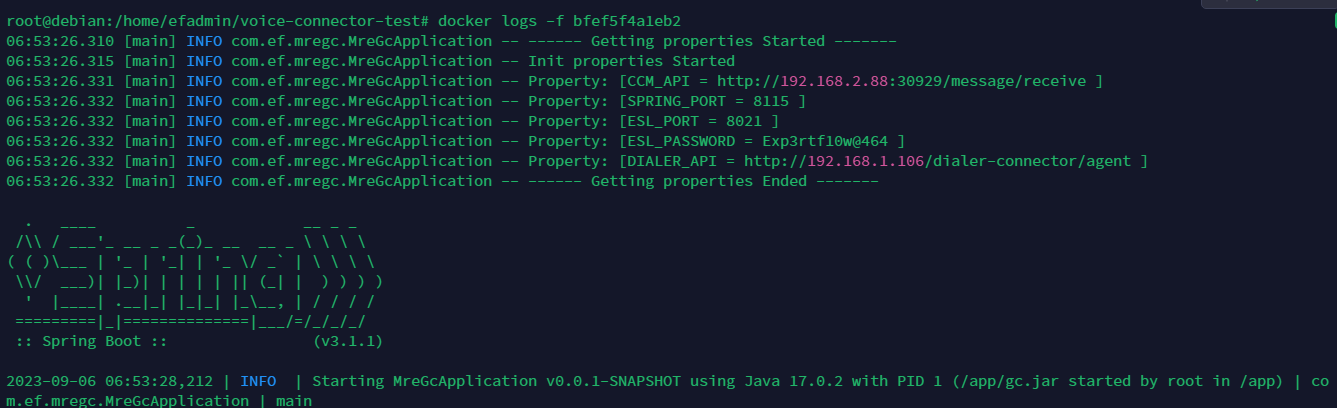

• Confirm that the container is running correctly by opening the logs with the command:

  • docker logs -f containerID


• If there are multiple Voice Connectors running, update all of them if needed.
