Creating extensions on Media Server

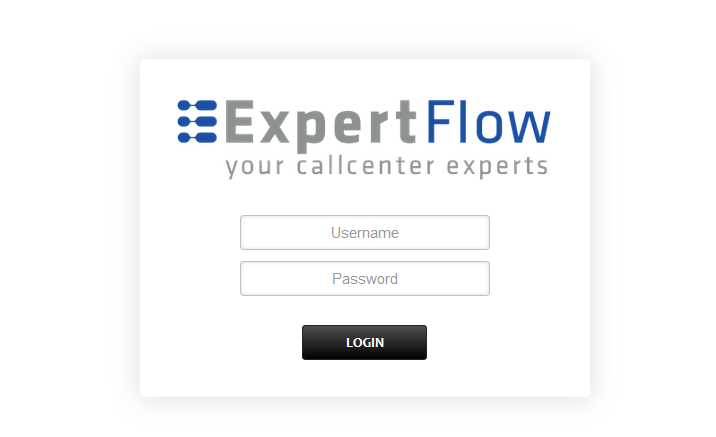

  • Login to Media Server web interface.

    • Open in browser: https://IP-addr, where IP-addr is the IP address of the server that Media Server is deployed on.

  • Add the username and password that was shown upon installation of Media Server and press LOGIN.

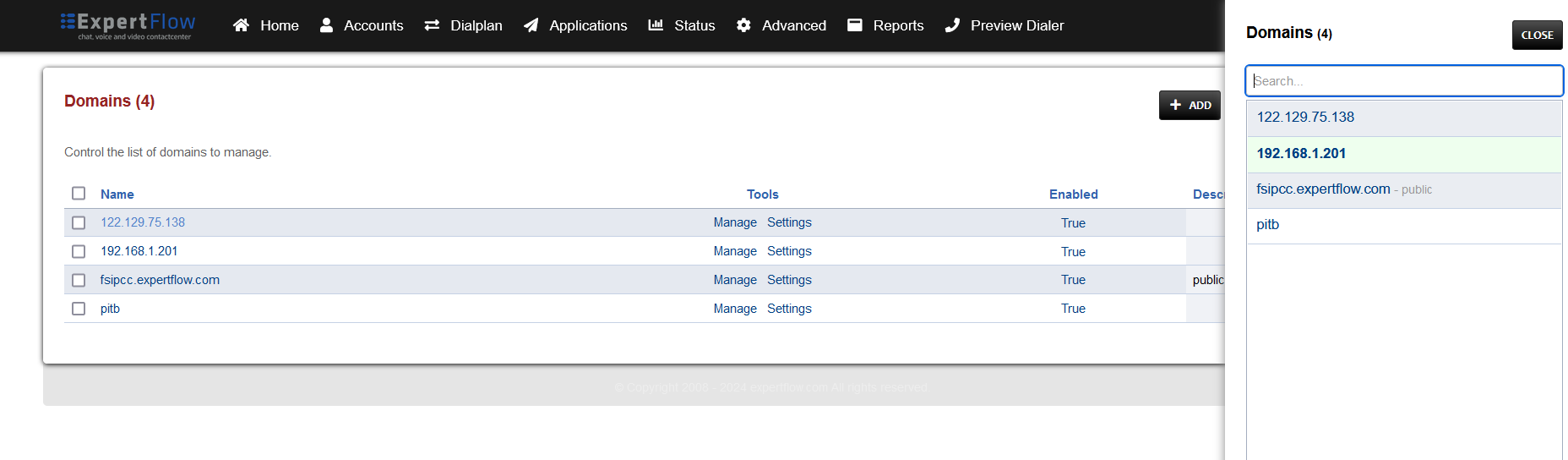

  • Press the IP address in the top right and select the Domain created in the configuration document:

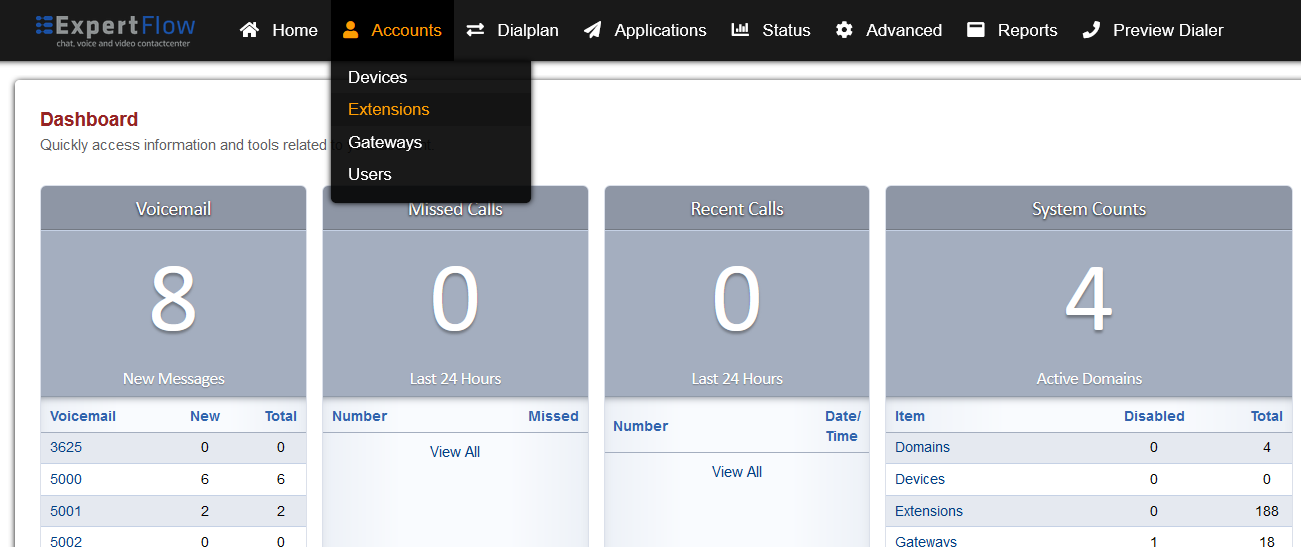

  • Open the Extensions section under the Accounts tab.

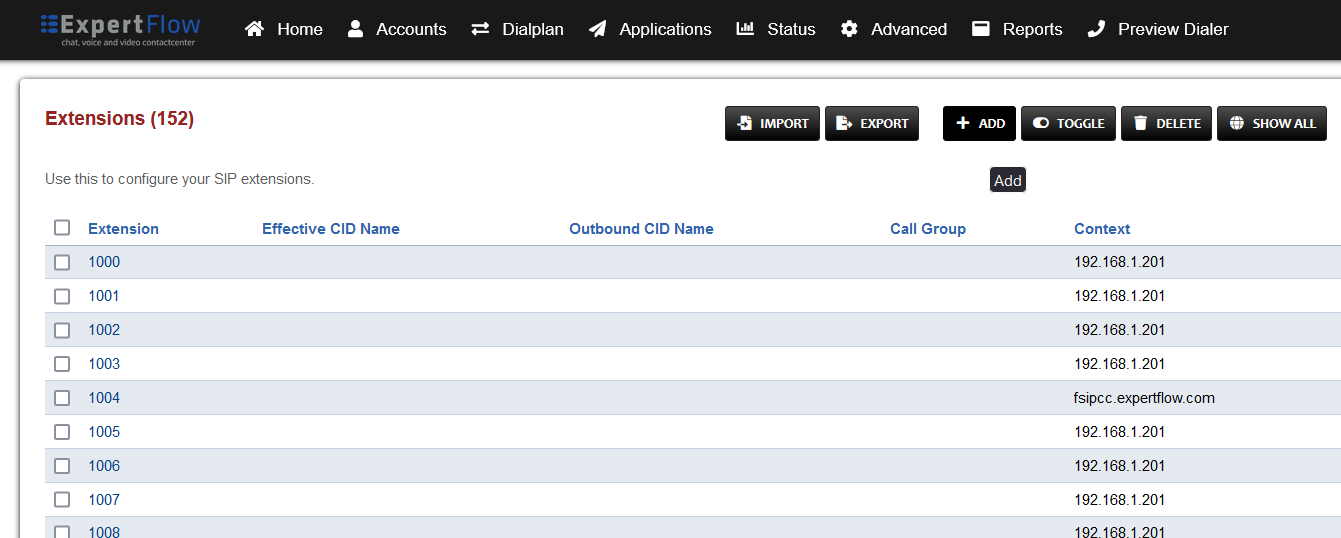

  • Press the ADD button.

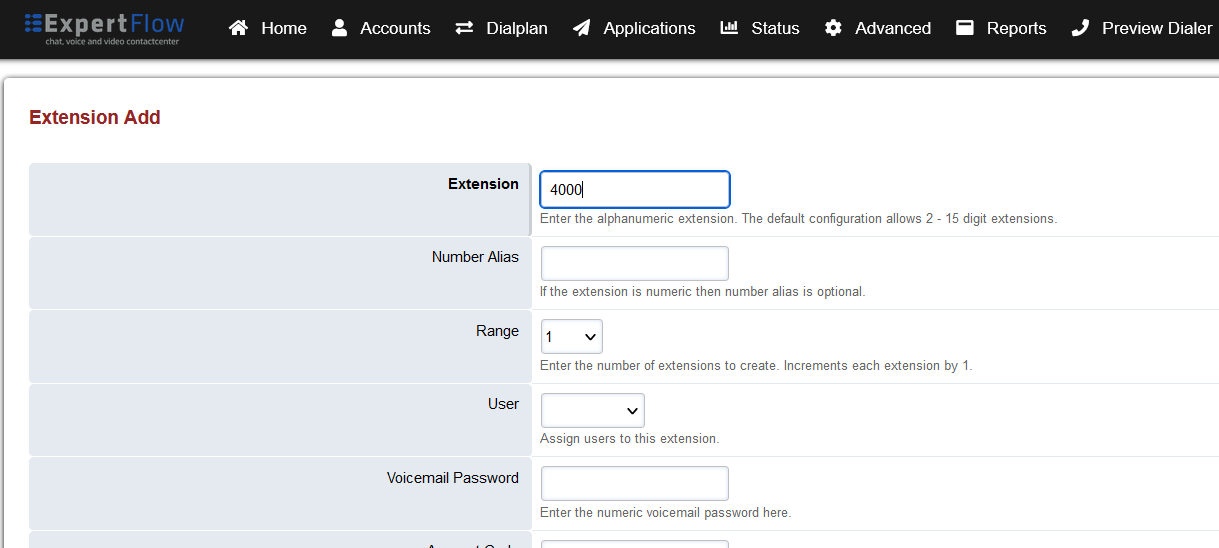

  • Add a number in the Extension field e.g. 4000.

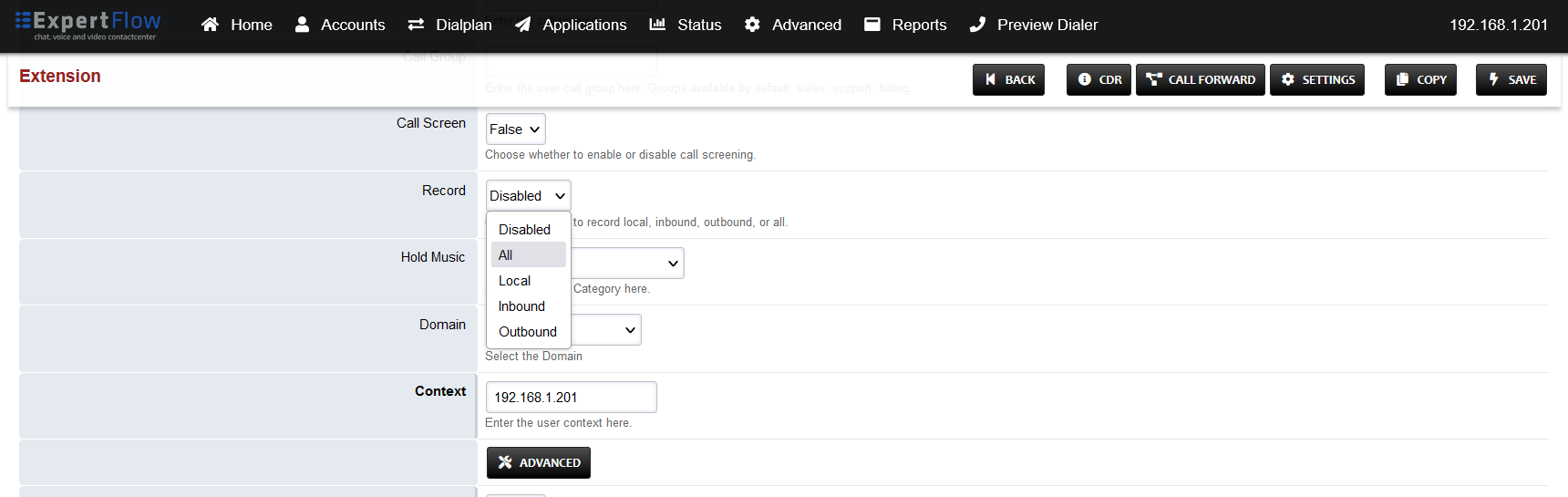

  • Scroll down to the Record option, select the All option and press the SAVE button in the top right.

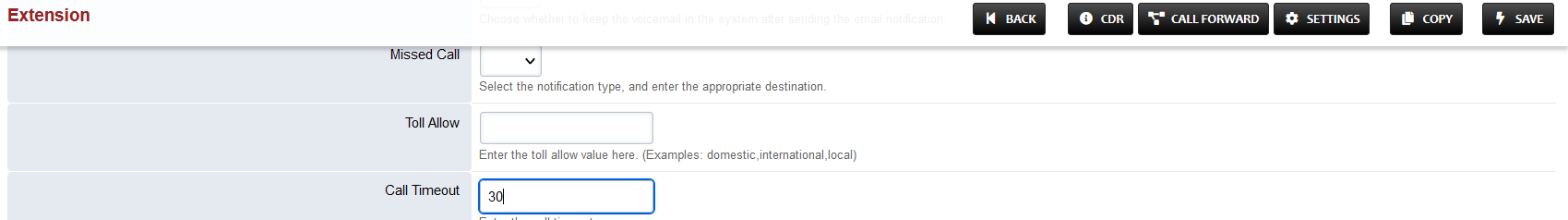

  • Also note the Call Timeout field, which is used to set how long calls will ring on this extension before timing out. Changing this affects the RONA (Re-route on no anwer) timer when using the extension with EF CX Voice agents.

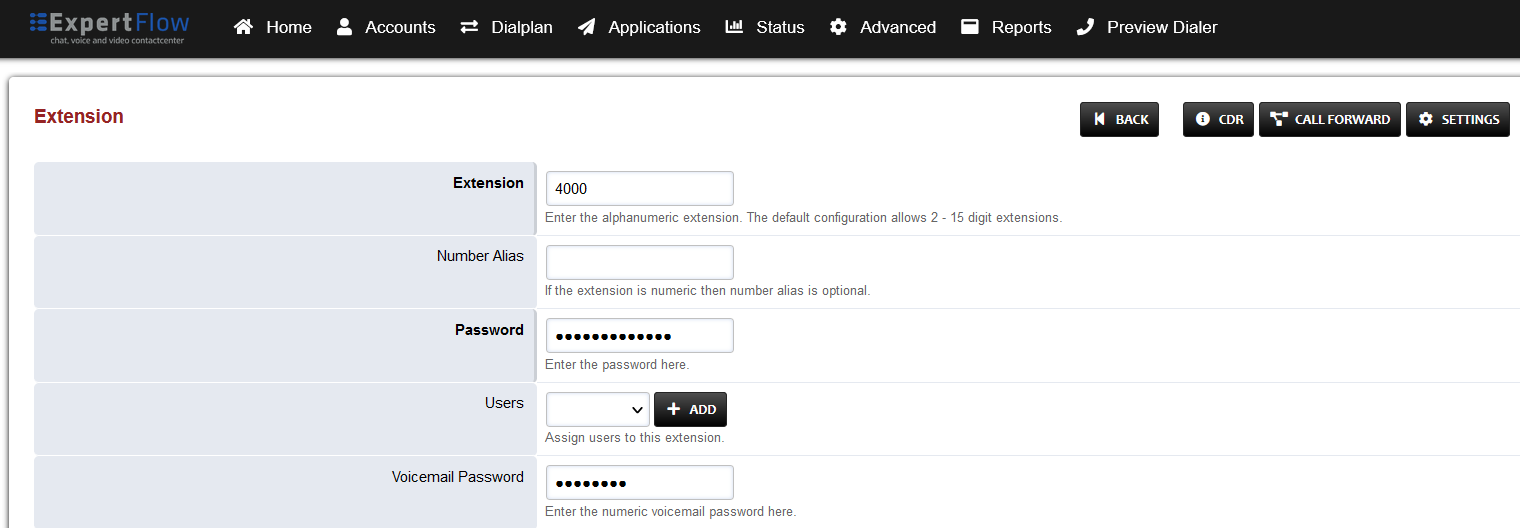

  • Re-open that Extension created e.g. 4000, change the Password field value to a password of your choice and press the SAVE button in the top right.
