Voice Connector Deployment Guide

Prerequisites

Software Requirements

Item	Recommended	Installation guide
Operating System	Debian 12	-
Docker	v24 or higher	https://docs.docker.com/engine/install/debian/
Media Server	Latest version	Installation Configuration
EF CX	Latest version	Deployment
Dialer and database(For outbound only)	4.5	Deployment

Port Utilization Requirements

The following ports must be open on the server for the voice connector to function.

Type	Application	Description	Port
TCP	Media Server	ESL port	8021
TCP	Media Server	Websocket port	7443
TCP	Voice Connector	Access port	any/ (set in docker-compose.yml)
TCP	Postgres	Database access port	5432
TCP	Dialer	Access port	any/ (configured in dialer)

The ports can be opened as follows:

SSH into the Debian server.
- Use command:
  - CODE
```
ssh username@server-ip
```
- Enter the ssh password and press Enter.
- Use command:
  - CODE
```
su
```
- Enter the root user's password

Run the following command and replace PORT with each of the required ports listed above:

CODE

sudo iptables -A INPUT -p tcp -m tcp --dport PORT-j ACCEPT

Example:

CODE

sudo iptables -A INPUT -p tcp -m tcp --dport 8021 -j ACCEPT

Save this port configuration with command:
- CODE
```
sudo iptables-save
```

Container Deployment

The voice connector is deployed as a docker image.

Create a folder voice-connector with the command:
- CODE
```
mkdir voice-connector
```
Enter the folder with the command:
- CODE
```
cd voice-connector
```
Create a file docker-compose.yml.
- CODE
```
vi docker-compose.yml
```
Enter editing mode with the 'I' or 'Insert' keys.

Copy the contents below and paste them into the file docker-compose.yml :

CODE

version: "3.8"
services:
  voice-connector:
    image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:TAG
    container_name: unified-voice-connector
    ports:
      - 8115:8080
    env_file:
      - ./env.txt
    restart: always

Replace the 'TAG' keyword with the required image tag obtained from the releases page here.

Save and exit by :
- Press the Esc key.
- Enter the phrase :wq to save and exit.
Create a file env.txt
- CODE
```
vi env.txt
```
Enter editing mode with the 'I' or 'Insert' keys.
Copy the contents below and paste them into the file env.txt :
CODE
```
CX_FQDN=https://cim.expertflow.com
ESL_PORT=8021
ESL_PASSWORD=ClueCon
DIALER_API=http://192.168.1.10:6666
LOG_LEVEL=INFO
```
- CX_FQDN: The address of EF CX. https://FQDN
- ESL_PORT: The port of Media Server ESL (Default 8021, Same as in Media Server settings here)
- ESL_PASSWORD: Media Server ESL password (Default ClueCon, Same as in Media Server settings here)
- DIALER_API: API link of the dialer in format: http://IP:PORT (Fill in IP and PORT of dialer)
  - Where IP is the IP address of the current server.
  - And PORT is the external port of the dialer container.
  - Leave at default value if not using the progressive outbound feature.
- LOG_LEVEL: The amount of detail in the logs. Default is INFO, and for more detailed logs the value should be DEBUG.
Run the command:
- CODE
```
docker login gitimages.expertflow.com
```
- Enter your username and password as prompted (make sure that you were granted access to the repository).
Within the folder run the command:
- CODE
```
docker compose up -d
```

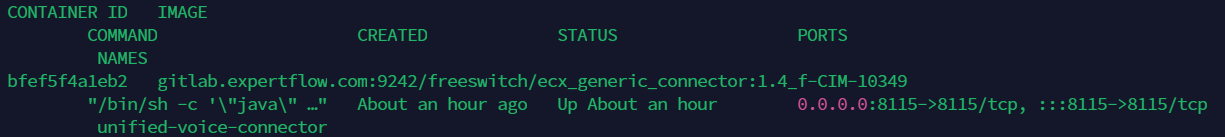

Confirm that the docker container is running by using the command:
- CODE
```
docker ps
```

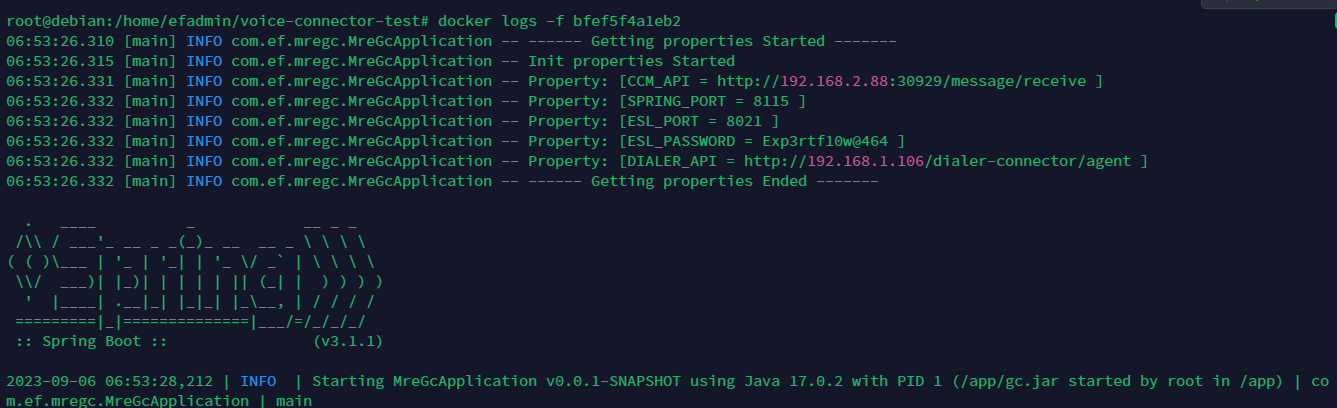

Confirm that the container is running correctly by opening the logs with command:
- CODE
```
docker logs -f containerID
```
