GC Load Test Utility Deployment Guide

Software Requirement

The following are the prerequisites for setting up a Generic Connector load test utility.

Software Requirements

Certificates for HTTPS

  • Certificates from a valid signing authority or Domain signed certificate are required for HTTPS protocol support

System Access Requirements

  • Administrative privileges (root) on the host machine are required to proceed with the installation.

Deployment Steps

  1. Download the GC_Utility_Load_Test.rar from Google-Drive

  2. Download the required deployment folder

  3. Create a folder on a Linux machine in any path of your inside root.

  4. Place the downloaded files inside the created folder as follows:

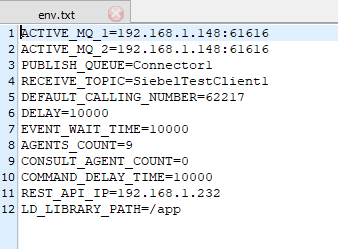

  5. Open env.txt file with a text editor

  6. Make the desired changes and update the file

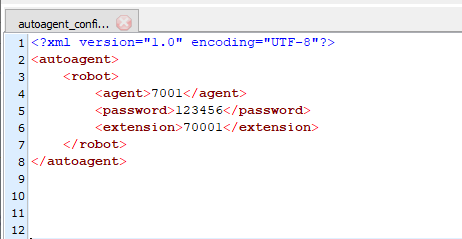

  7. Open autoagent_config.xml file with a text editor

  8. Make the desired changes and update the file

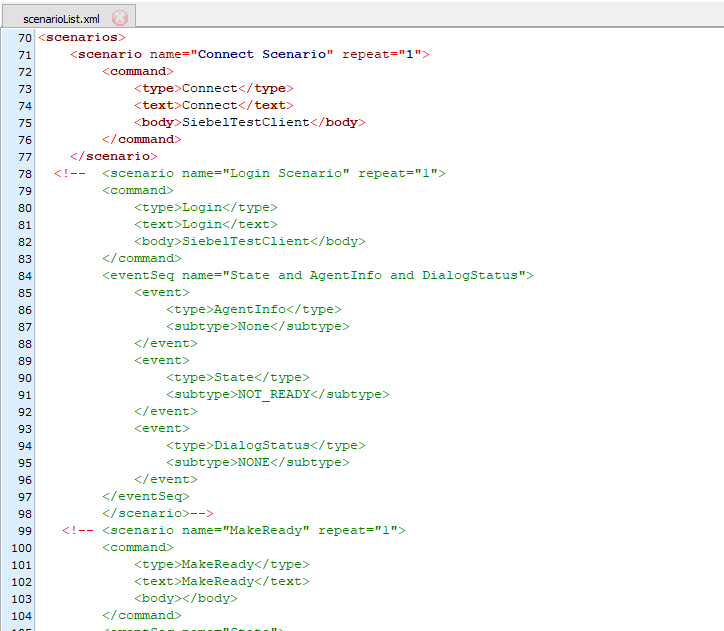

  9. Open scenarioList.xml file with a text editor

  10. Make the desired changes and update the file

  11. run the command chmod 755 ./deploy.sh

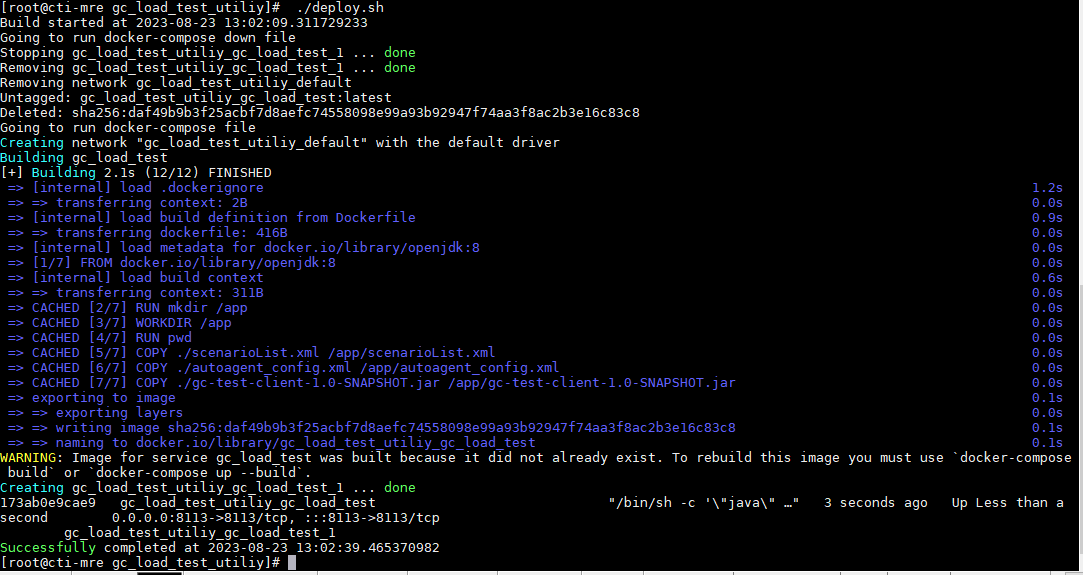

  12. now run the ./deploy.sh file and you can see after completion your docker image is running

Configuration Parameters (Environment Variables)

Parameter

Default Value

ACTIVE_MQ_1

192.168.1.148:61616

ACTIVE_MQ_2

192.168.1.148:61616

PUBLISH_QUEUE

Connector1

RECEIVE_TOPIC

SiebelTestClient1

DEFAULT_CALLING_NUMBER

62217

DELAY

10000

EVENT_WAIT_TIME

10000

AGENTS_COUNT

5

CONSULT_AGENT_COUNT

5

COMMAND_DELAY_TIME

1000

REST_API_IP

192.168.1.232

LD_LIBRARY_PATH

/app
