Deployment of Postgres as a Streaming Standby with an External Repo
Introduction
PGO, the Postgres Operator from Crunchy Data, gives you a declarative Postgres solution that manages your PostgreSQL clusters. This document illustrates the procedure and steps to deploy Postgres as a streaming standby with an external repo. When deploying PostgreSQL as a streaming standby with an external repository, you set up a high-availability configuration where changes made on a primary PostgreSQL server are continuously streamed to a standby server. The standby server acts as a backup and can take over as the primary server in case of a failure. By utilizing an external repository, you can store the Write-Ahead Logs (WAL) required for replication in a separate location, ensuring data durability and resilience.
This configuration offers several benefits, including improved fault tolerance, failover, and the ability to offload read operations to the standby server, reducing the load on the primary server. It is commonly used in production environments to achieve high availability and data redundancy.
To implement this setup, you'll need to configure the primary and standby PostgreSQL servers, establish replication between them, and configure an external repository to store the WAL files. By following the steps outlined in the deployment process, you can achieve a reliable and resilient PostgreSQL streaming standby configuration.

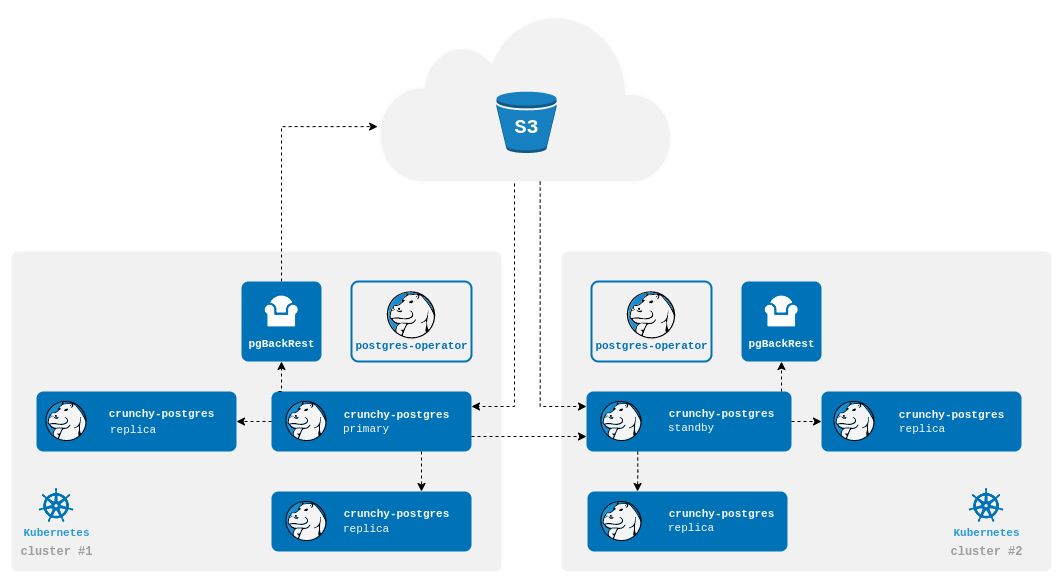

you can take a look at the Architecture Diagram
![](../../__attachments/154993311/streaming-standby-external-repo%20(1).png?inst-v=56d73ba8-2e11-4dce-af58-c39ec88a3b24)
Pre-requisites
1) metalLB or Traefik for load balancer service provider.
Installation Steps
Step 1: Clone the Crunchy Data Repository
1. Start with cloning the repository from GitLab.
git clone https://gitlab.expertflow.com/general/crunchydata.git
2. Change to the directory.
cd crunchydata/postgres-operator/pgo-primary
Step 2: Create Namespace
1. Create the namespace using the command.
kubectl create namespace postgres-operator
Step 3: Deployment for Primary Node
1. Use the Helm command to deploy the Postgres operator on the primary node.
s3:
bucket: "<bucket-name>"
endpoint: "https://<minio-vm-ip>:<minio-port>"
region: "<bucket-regoin>"
Access the minio frontend create minio key
key: "<minio-key>"
keySecret: "<minio-secret-key>"
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator ef-pgo ./install/
2. Use the Helm command to deploy the Postgres on the primary node.
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator hippo ./postgres/
Deployment of Standby Node
Step 1: Clone the Crunchy Data Repository
1. Start with cloning the repository from GitLab on the standby node.
git clone https://gitlab.expertflow.com/general/crunchydata.git
Step 2: Create Namespace
1. Create the namespace using the command on the standby node.
kubectl create namespace postgres-operator
2. Change to the directory.
cd crunchydata/postgres-operator/pgo-standby
Step 3: Deployment for Standby Node
1. Use the Helm command to deploy the Postgres operator on the standby node.
standby:
enabled: true
repoName: repo1
host: "10.192.168.155" <load-balancer-IP>
port: 5432 <load-balancer-Service-Port>
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator ef-pgo ./install/
2. Use the Helm command to deploy the Postgres on the standby node.
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator hippo ./postgres/
Failover Scenarios
Step 1 :
make adjustments to the values file, and shut down the primary node.
shutdown: true
Use the Helm command to apply the above changes.
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator hippo ./postgres/
Step 2 :
make changes to the values file and make the standby node as primary.
standby:
enabled: false
Use the Helm command to apply the above changes.
helm upgrade --install=true --wait=true --timeout=10m0s --debug --namespace=postgres-operator hippo ./postgres/
