CPA on Freeswitch

Requirement

Call Progress Analysis is required for outbound campaign calls to determine whether the answering party is:

• Human

• Voicemail

• Answering machine

• Other machine-based responses

This helps the dialer decide whether to connect the call to an agent, drop it, retry later, or route it to voicemail automation.

Prerequisites

3. Implementation & Installation Workflow

Step 1: Clone the AMD Module

Clone the mod_amd source repository:

git clone https://github.com/seanbright/mod_amd

Step 2: Move Source Code to Build Directory

Move the cloned module into the FreeSWITCH source location:

mv mod_amd /usr/src/

Step 3: Set Build Environment

Export the pkg-config path before compilation:

export PKG_CONFIG_PATH=/usr/lib/pkgconfig/

Step 4: Update Makefile

Open the module Makefile:

vi /usr/src/mod_amd/Makefile

Locate the following line:

MODCFLAGS = -Wall -Werror

Comment it out:

# MODCFLAGS = -Wall -Werror

This prevents compilation failure caused by warning-level issues.

Step 5: Build the Module

Navigate to the module directory and compile:

cd /usr/src/mod_amd
make

Step 6: Deploy the Compiled Module

Move the generated shared object file to the FreeSWITCH modules directory:

mv mod_amd.so /usr/lib/freeswitch/mod/

4. AMD Configuration

Create the AMD configuration file:

vi /etc/freeswitch/autoload_configs/amd.conf.xml

Add the following configuration:

<configuration name="amd.conf" description="mod_amd Configuration">
  <settings>
    <param name="silence_threshold" value="256"/>
    <param name="maximum_word_length" value="5000"/>
    <param name="maximum_number_of_words" value="3"/>
    <param name="between_words_silence" value="50"/>
    <param name="min_word_length" value="100"/>
    <param name="total_analysis_time" value="5000"/>
    <param name="after_greeting_silence" value="800"/>
    <param name="greeting" value="1500"/>
    <param name="initial_silence" value="2500"/>
  </settings>
</configuration>

5. Parameter Tuning Recommendations

The AMD parameters should be tuned based on the expected answering behavior in your telephony environment.

Common tuning areas

• Initial silence → Time to wait before speech starts

• Greeting length → Helps detect long voicemail greetings

• Maximum words → Useful for distinguishing human “hello” vs voicemail prompt

• Post-greeting silence → Helps confirm voicemail beep or pause

It is recommended to validate these values against:

• Local telecom carriers

• PSTN routing behavior

• Regional voicemail systems

• Customer answering patterns

6. Load the Module in FreeSWITCH

Open the FreeSWITCH CLI:

fs_cli

Load the AMD module:

load mod_amd

To verify successful loading:

show modules

7. Dialplan Integration

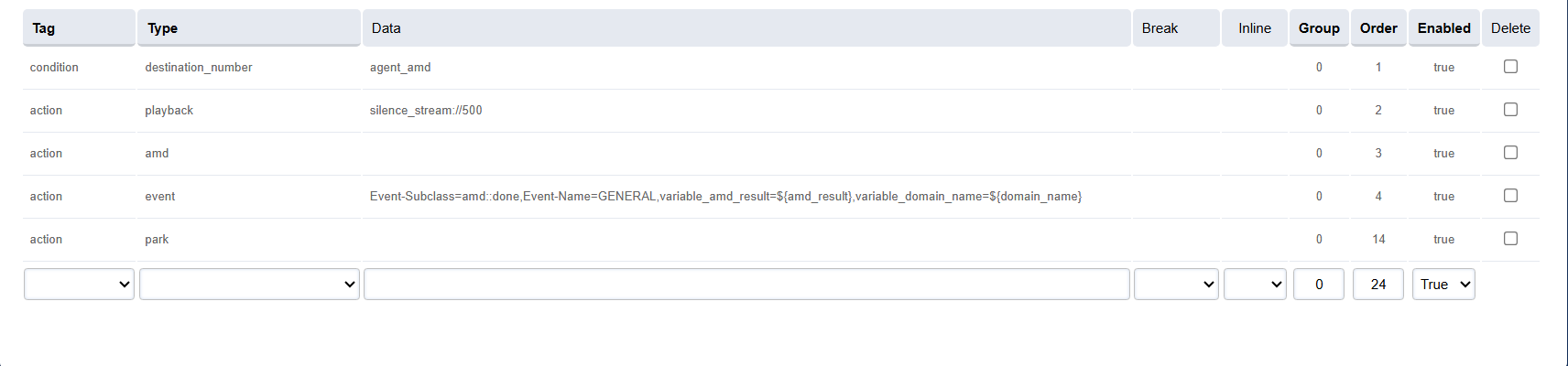

Run the AMD application during outbound calls by adding it into the dialplan of the respective domain.

8. Enable Automatic Module Loading on Restart

To ensure the AMD module loads automatically whenever:

• FreeSWITCH service restarts

• The VM/server reboots

• The service recovers after downtime

• Systemd restarts FreeSWITCH after failure

the module must be added to the FreeSWITCH module load configuration.

Step 1: Edit modules.conf.xml

Open the module configuration file:

vi /etc/freeswitch/autoload_configs/modules.conf.xml

Add the following line inside the <modules> section:

<load module="mod_amd"/>

Example:

<configuration name="modules.conf" description="Modules">
  <modules>
    <load module="mod_commands"/>
    <load module="mod_sofia"/>
    <load module="mod_amd"/>
  </modules>
</configuration>

Step 2: Reload Module Configuration

Apply the configuration without restarting the server:

fs_cli -x "reloadxml"

Step 3: Validate Auto-Load

Restart FreeSWITCH:

systemctl restart freeswitch

Then verify:

fs_cli -x "show modules" | grep mod_amd

Expected output:

mod_amd

This confirms the module is now part of the automatic startup sequence.
