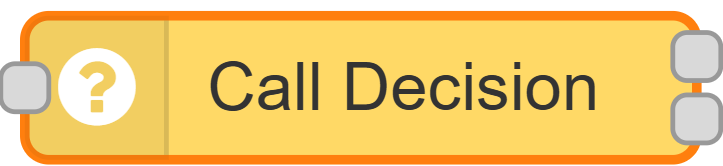

Call Decision

Node	Call Decision
Description	This node checks the event type on an incoming live call event against a value you choose (Human or Answering Machine), and routes the message to one of two outputs depending on whether it matches.

Overview

A simple yes/no gate for live call events — typically used right after a Dial node's Live Call Event output to branch on whether a human or an answering machine picked up.
You choose which outcome you're checking for; anything that matches goes out the "true" output, everything else goes out "false."

Category	Inputs	Outputs	Default Label
Flow Control	1	2	Node name, or "Call Decision" if left blank

Configuration Options

Setting	Default	What it does
Name	(blank)	Optional label for the node.
Decision Type	HUMAN	Which outcome to check for: HUMAN or ANSWERING_MACHINE.

Outputs

Output	Label	Sent when
1	true	The incoming event's type matches your selected Decision Type.
2	false	The incoming event's type is anything else.

What Happens When This Node Runs

Looks at the incoming message's event type.
If it matches your selected Decision Type, the message goes out the "true" output.
If it doesn't match — including any other kind of event, not just the other listed option — the message goes out the "false" output.
If the message has no event type at all, neither output fires; a warning is logged and the status dot turns red.

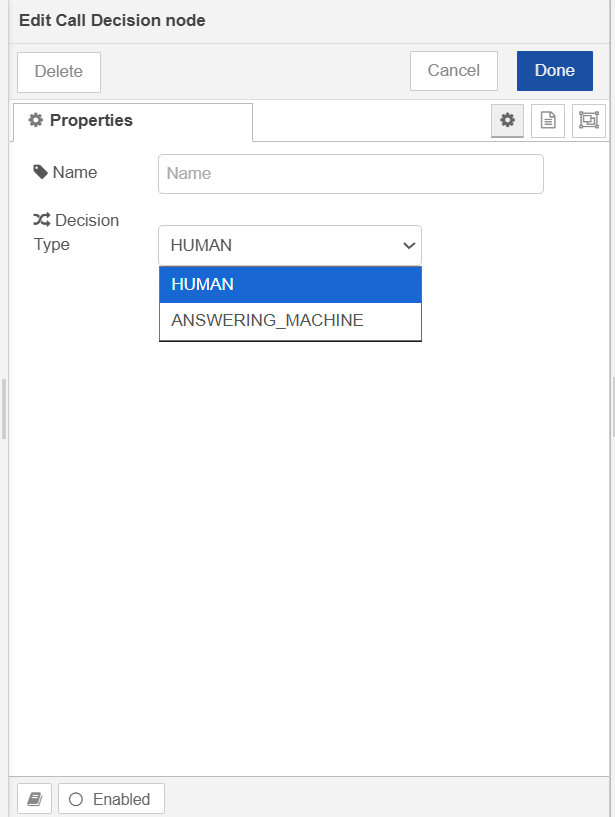

call dec config.png
