Agent Guide

Getting Started

Login

There are two options for agents to get logged in to Agent Desk;

• One with Cisco Finesse while the application is running as a Finesse gadget
• The other, with a local Keycloak user account, especially in case when the application is running in a standalone mode (as a WWW-based contact center)

Expertflow CX uses the third-party IAM solution, named, Keycloak for managing agent privileges. Agent profiles and their role mappings (agents and supervisors) for Agent Desk are defined and managed within Keycloak.

Browser and Sound Notifications

Agents will receive browser notifications along with a beep on receiving a new conversations and whenever a new message is received from the customer in an existing conversation. Make sure that your browser settings are enabled to receive these notifications.

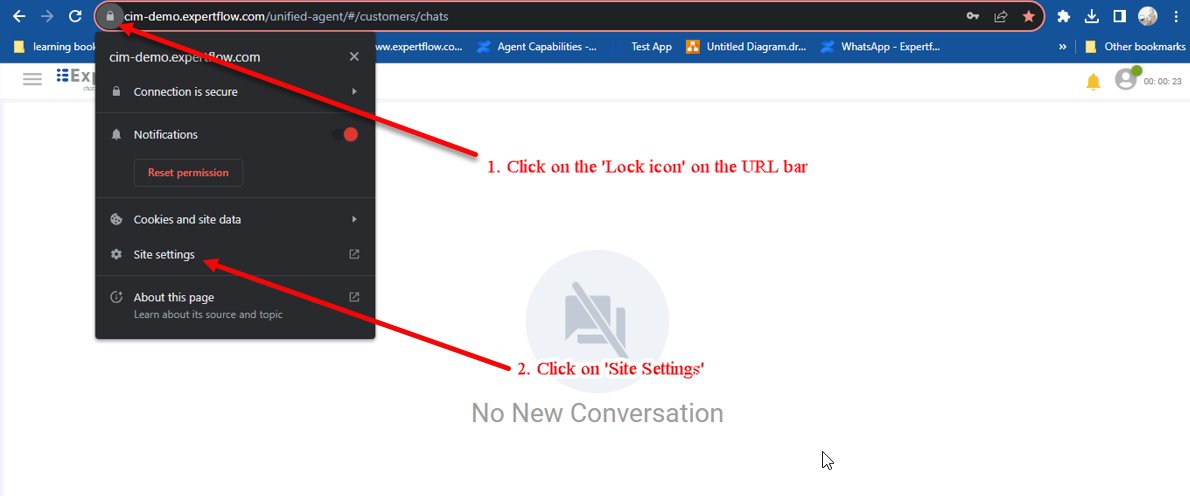

To enable browser notifications on the AgentDesk, click on the lock button in the URL of the Agent desk browser

Accept a Conversation

Agents receive new customer requests either from queues (based on the routing logic) or from Lists if they are subscribed to the List (from Subscribed Lists). The former is called Push Routing or Precision Routing where new requests are pushed or assigned to agents, while the latter is called Pull mode where agents can pull a request from the List and join whenever they are convenient. In this section, we'll see how agents can join a Push-based request.

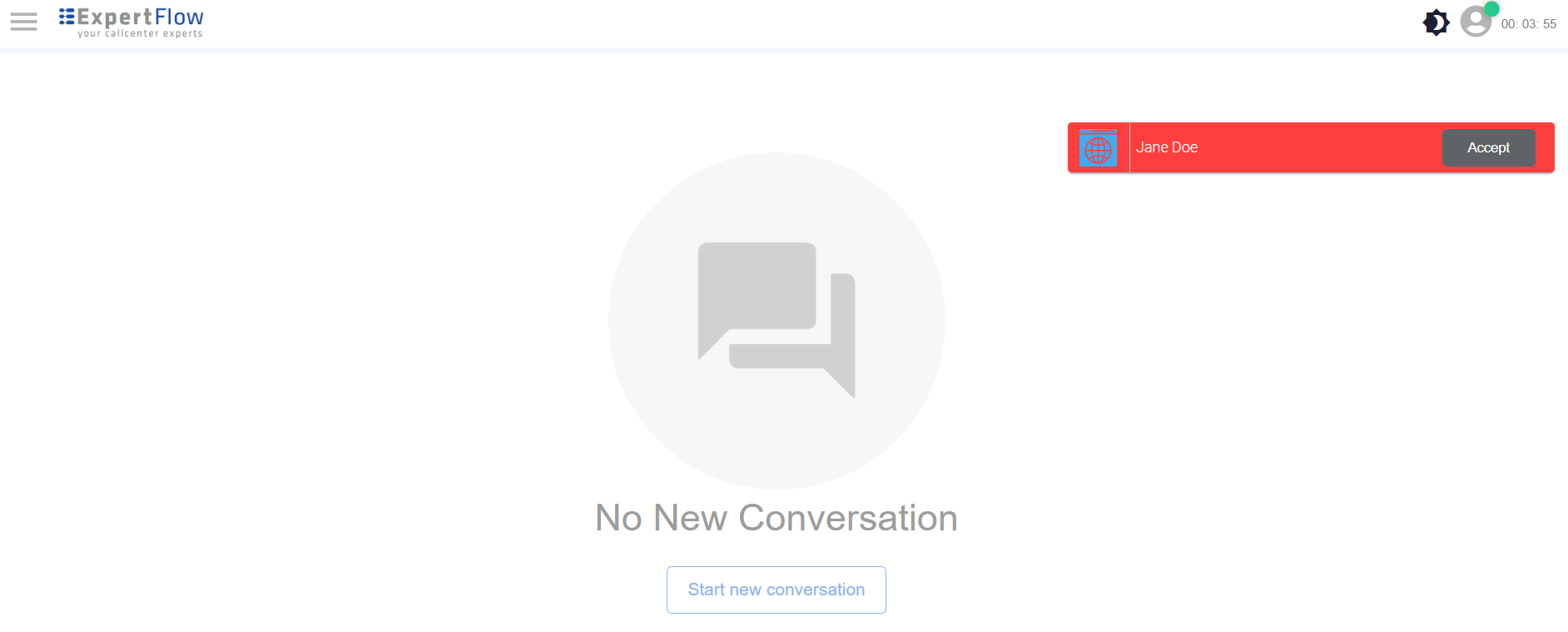

Once a new request is assigned to an agent and the agent is reserved, an incoming chat notification appears on the Agent Desk, with a button to Accept the request.

The notification contains the name of the customer (if identified), or "Jane Doe" (if an exact match was not found), with a channel type icon to determine the channel through which the request was received (such as Web, WhatsApp channel icons).

In case of anonymous customer (or Jane Doe), the incoming notification's background color is set to RED while in case of identified customer, the background color of the notification changes to GREEN.

Accept a conversation

Upon accepting the requests, agents see the Customer Profile data and Media Channel details of the customer on the right under the relevant panes.

The central Conversation history view shows all activities exchanged with the underlined customer including voice calls, chats, wrap-up/ notes given on a conversation.  The Channel Session data for the active channel is also available under the Active Channels pane.

See below mentioned details about each of these panes.

Customer Lookup

Upon the arrival of a new customer request, the application shows the best-matched customer profile in the Customer Profile pane, based on the channel identity of the customer (such as WhatsApp number, Facebook name, Twitter name, Email id).  During customer lookup, the following scenarios may appear:

See more details on linking a conversation with a different profile, in the following section.

View Customer Profile

Expand the arrow on the Conversation view to see the Customer Profile pane on the right hand side.

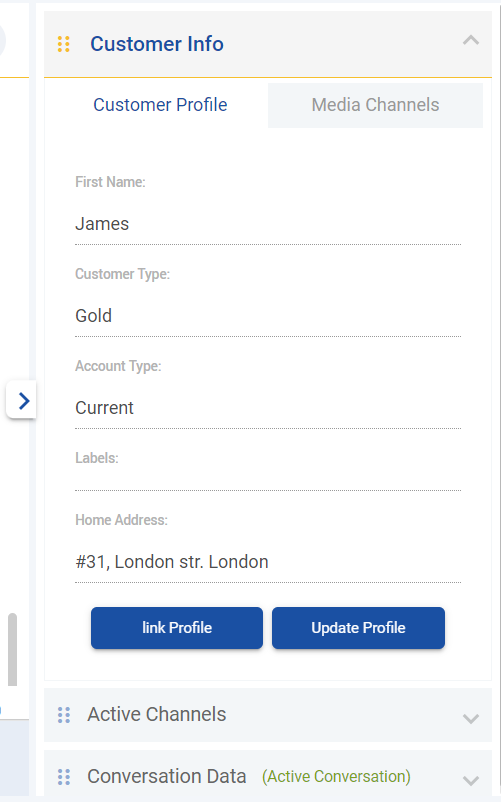

Customer Profile

In this view, the customer profile data is segregated and divided into two tabs:

Customer Profile

All customer data stored in Expertflow CX except the media channel identities (phone number, WhatsApp number,etc.). Note that if no data is available in any of the customer fields, those fields will not appear under this tab by default.

Media Channel Identities

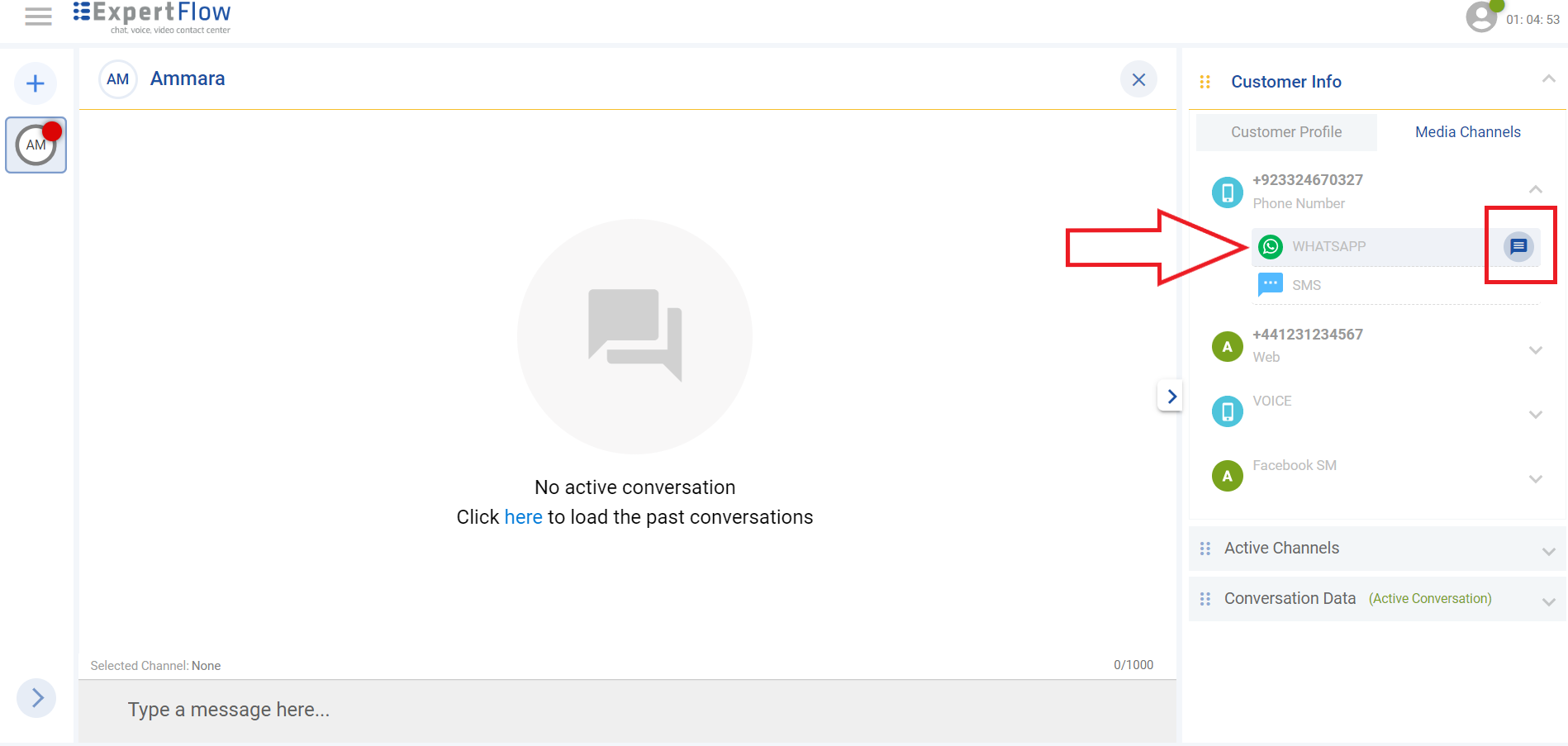

This lists down all of the media channel identities of the customer on a unified space, giving agents the flexibility to choose one channel identity to initiate a conversation with the customer.

See Initiate a conversation section below for more details.

This, in future, will helps agents in also viewing the presence status (online, offline) of customers on each channel (depending upon the channel which supports presence).

Manage Customer Profile

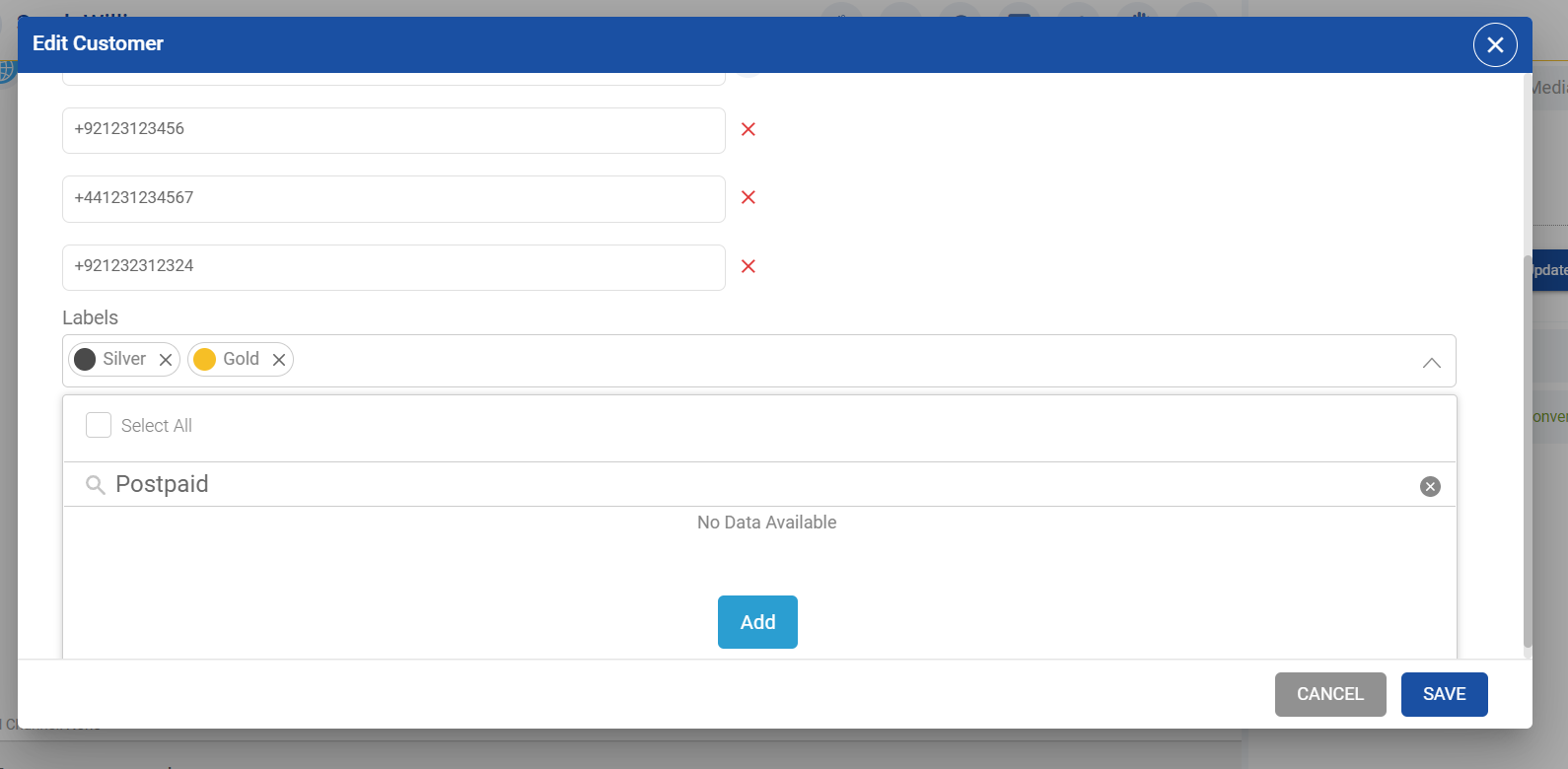

Click the Update Profile button to update the customer information. Click the Link Profile button to link this conversation with a different customer profile.

Link Profile

The auto-matched customer profile is linked automatically with the conversation as soon as the conversation starts. When it comes to manual linking, there are multiple scenarios which are detailed below:

• When a customer is not identified but it actually exists

• When multiple matches are found

• When the actual customer is different than the identified

When a customer is not identified but it actually exists

This is the case where a customer is supposed to contact the contact center with an identity which is not stored under the customer profile. In this case, the system creates an anonymous profile and returns anonymous customer to the agent to do the essential updates. The agent can decide if a new profile needs to be created or link the active conversation with an existing customer profile (based upon its conversation with the customer).

If the agent comes to the know that the profile already exists, it can click the Link Profile button under the Customer Profile pane on the right and click the "Link" icon against a desired customer record on the Customer List view. See screenshot below.

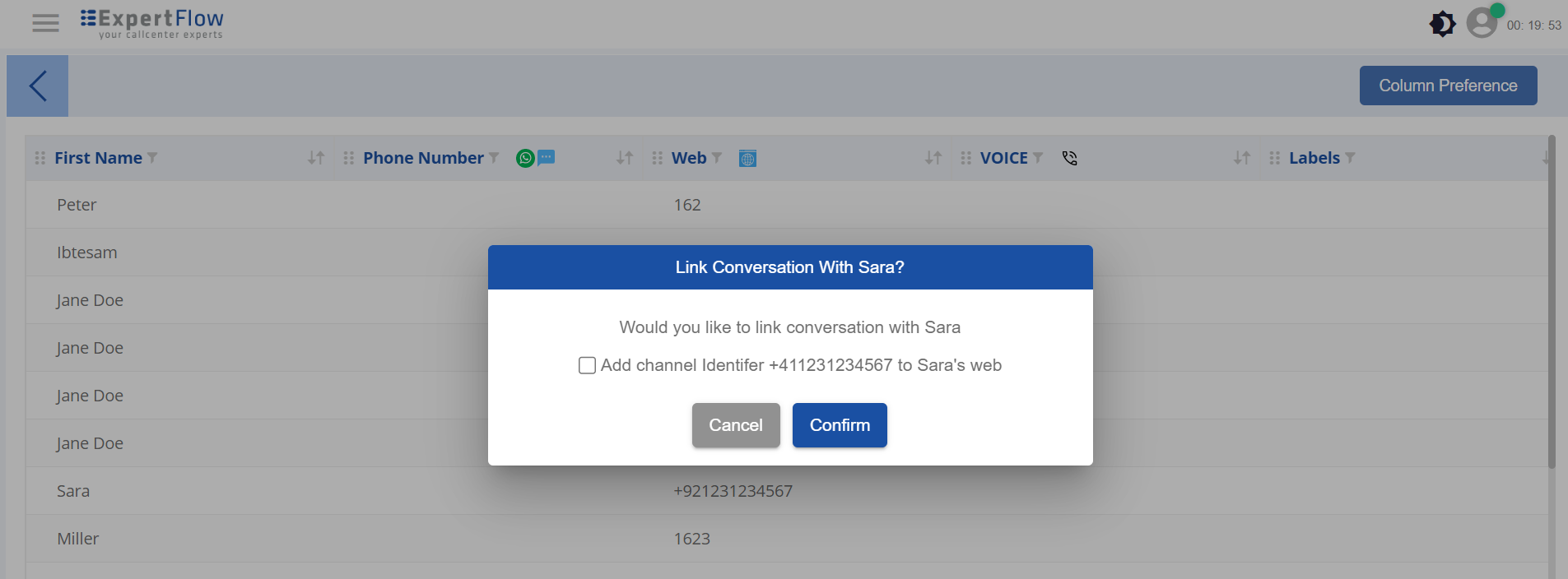

Upon clicking the Link option, the agent is asked to confirm if it also wants to update the channel identity of the customer in the linked profile. Upon confirmation (check the checkbox in the confirmation dialogue), the channel identity is added to the linked profile so that the next time when the customer reaches with the same channel identity, the system will return this customer profile as an identified customer (if no other profile exists with the same identity).

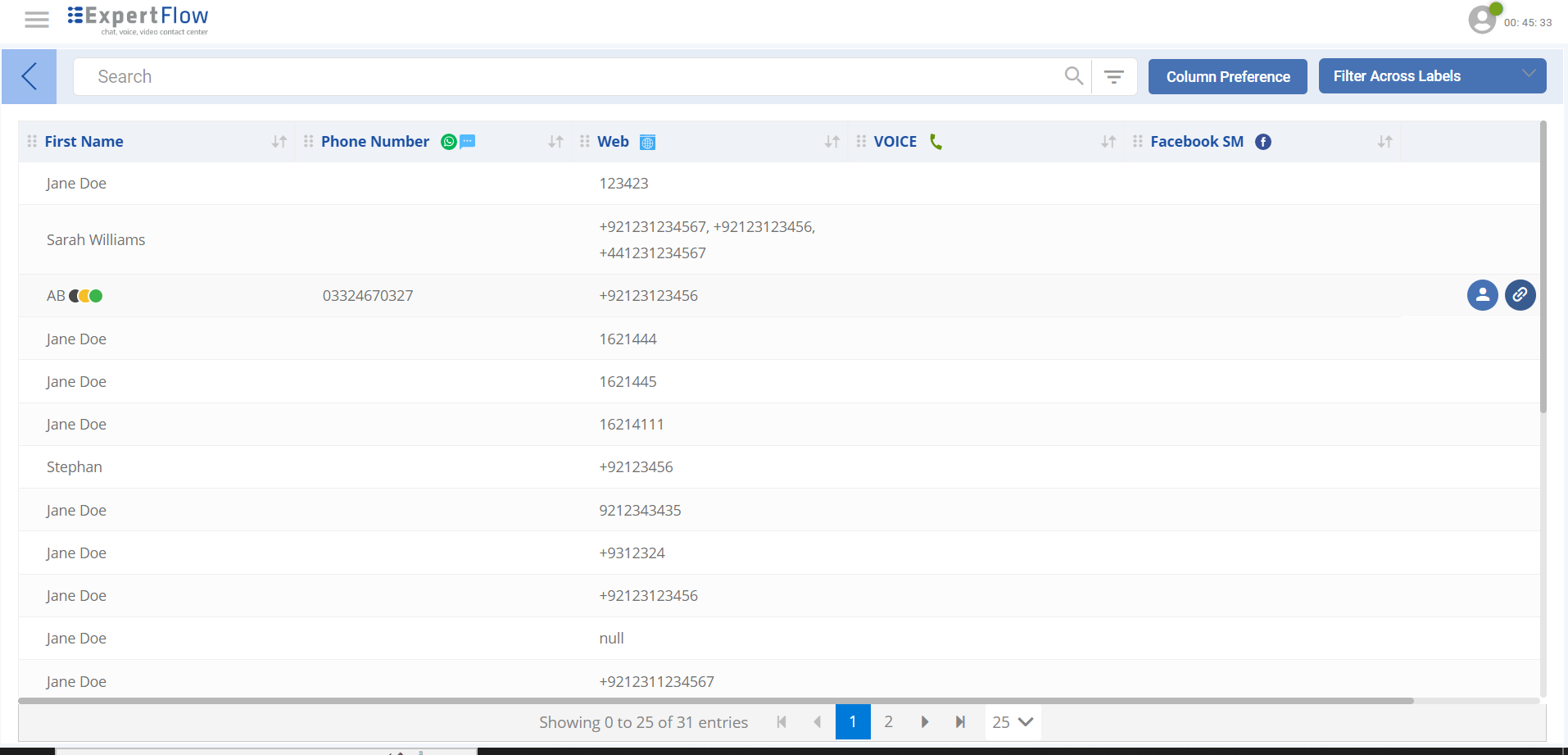

Linking a conversation to an existing customer

In case if the customer says that the channel identity does not belong to his/her profile or the agent decides not to add the identity to the linked customer profile, the conversation still gets linked with the profile so that it can be tracked under the linked customer's conversation history.

When multiple matches are found

This is the case when multiple matches were found against the customer's channel identity. This happens when the same channel identity exists in multiple customer profiles. In this case, the system creates an anonymous profile and returns all matched customers as suggestions to the agent. The agent will see all matches under another pane, Link Profile pane. The agent can select the right customer from the pane and choose the Link option against the desired customer.

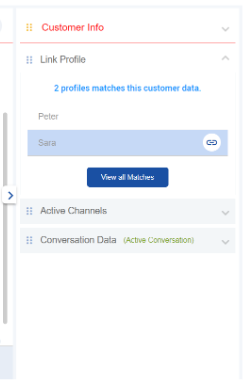

Multiple matches case

To see more details of those matched profiles, click the View all matches button to go to the Customer List. Looking at the other attributes from the Customer List, make sure that you click the "Link" icon against the right customer record on the Customer List.

When the actual customer is different than the identified

This happens when a customer has called from an identity which is actually linked with a different customer profile. For instance, a customer John calls from another customer David's cell number while the number is owned by David.

In this case, the agent may decide if it wants to link the active conversation with the different customer (in this example, John) instead of the identified customer (i.e. David). Also, the agent can decide if it needs to update the channel identity to the linked profile (based upon its conversation with the customer).

View Conversations History

The Conversation History lists all conversations exchanged with the active customer. Each conversation carries activities exchanged over the conversation. These activities include, voice calls received/ initiated to the customer, ii) chat messages sent over the conversation (customer/ whisper messages), iii) conversation notifications logged under all conversations with this customer, iv) wrap-up and note activities.

So when a request is routed to an agent, the agent can only see the current conversation and the activities/messages exchanged for the active conversation before it was routed to the agent.

By default, the past conversations are hidden behind a Load More button. If you have permissions to load the history, click this button to load the past conversations of the customer.

Conversation history along with the active conversation

To go to the bottom of the conversation, click Jump to bottom.

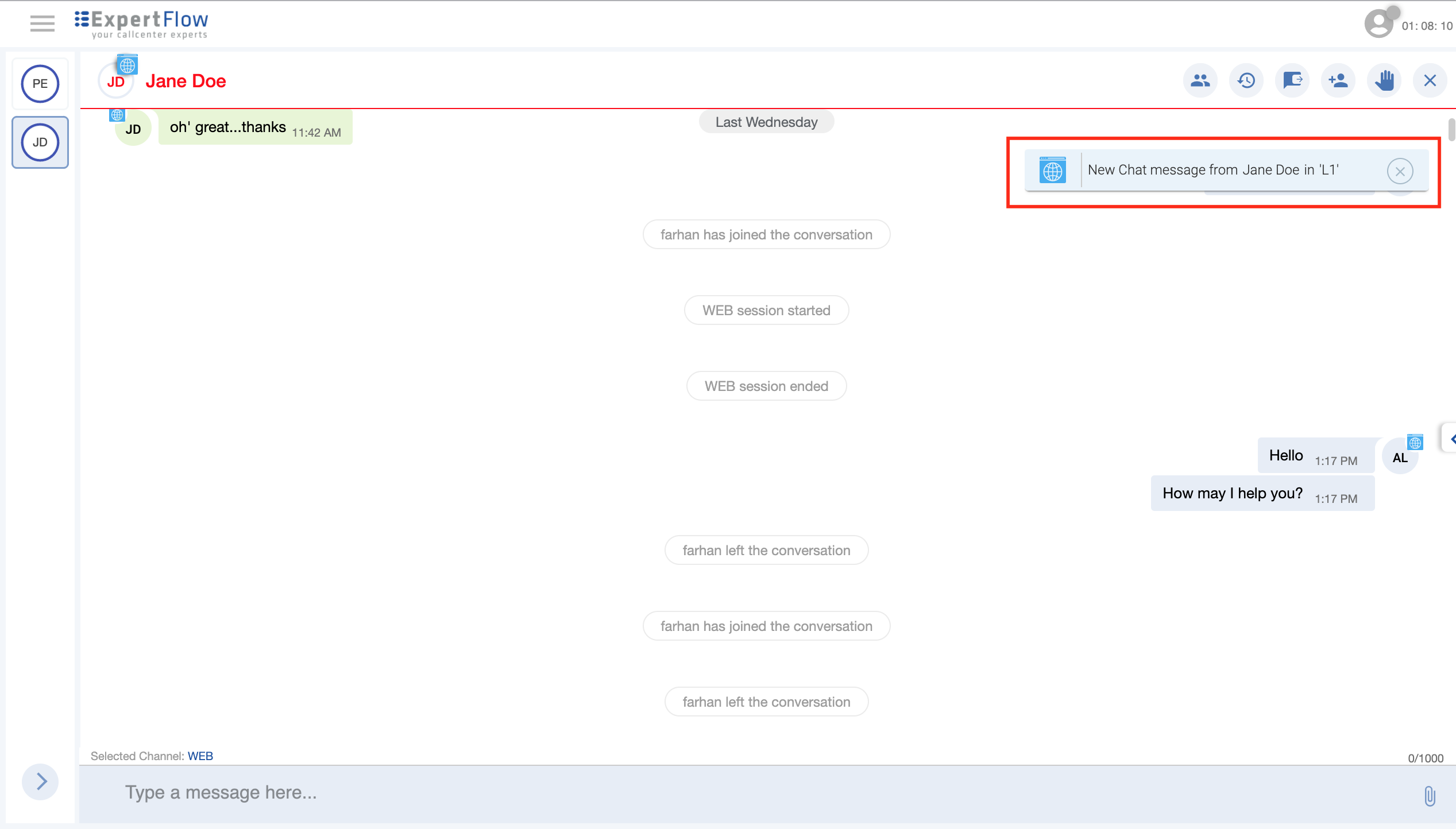

If you receive a new message while reading the previous history on the top, you'll see New message button being popped up. Click on that to read the newly-received message.

Reading new messages

View Active Channels

This is where all of the active channel sessions of the customer are listed. These are the channels on which the customer is currently active on the system. Since a customer can open multiple channel sessions in a conversation, all those channel sessions are listed here with or without the channel session data (this is the data that is passed by the channel connector to the channel).

In the case of web channel, the channel session data carries:

• Customer's browser info - device type (mobile, desktop), browser type, time zone, language

• Customer Identifier

• Service Identifier

• Form data as filled in by the customer while initiating the web chat

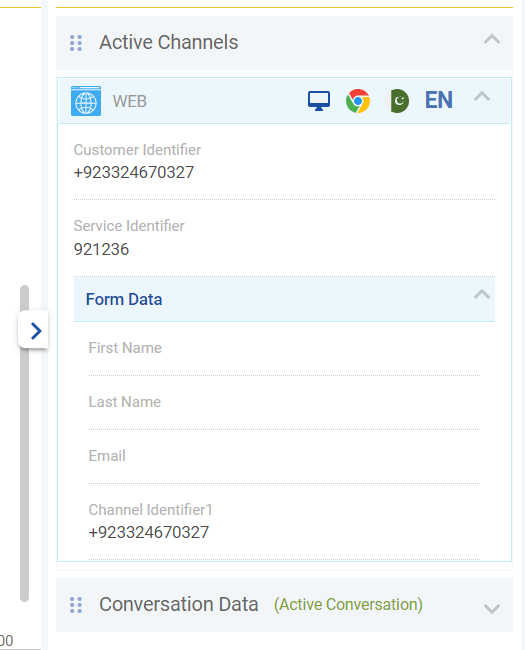

View Active Channel Sessions

In the case of WhatsApp channel, the channel session data carries:

• Service Identifier

• Customer Channel Identifier

View Conversation Data

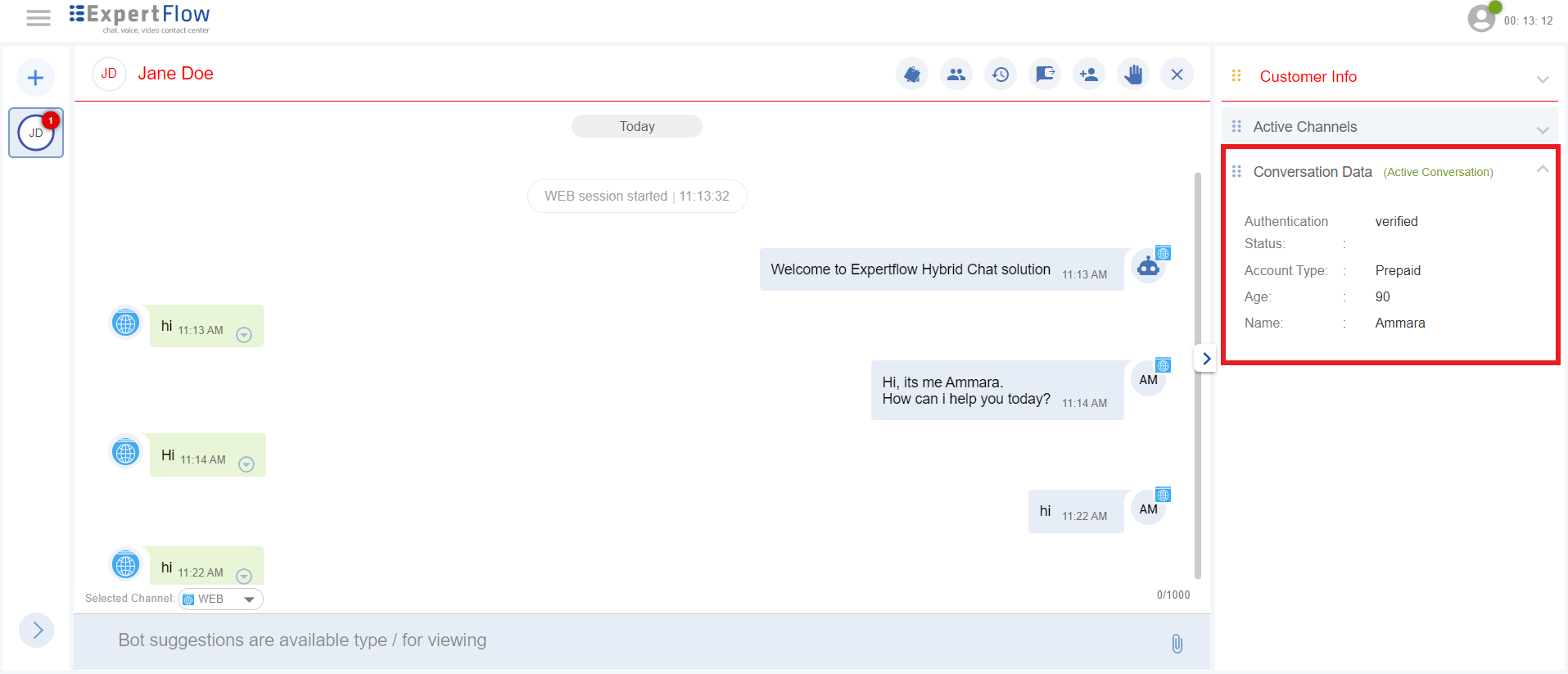

To see the conversation data of an active conversation, see the Conversation Data pane on the right side. The data is available in the form of key value pairs. If any changes are made to this data, they'll be updated here on run time, without requiring a manual refresh.

Active Conversation's Data

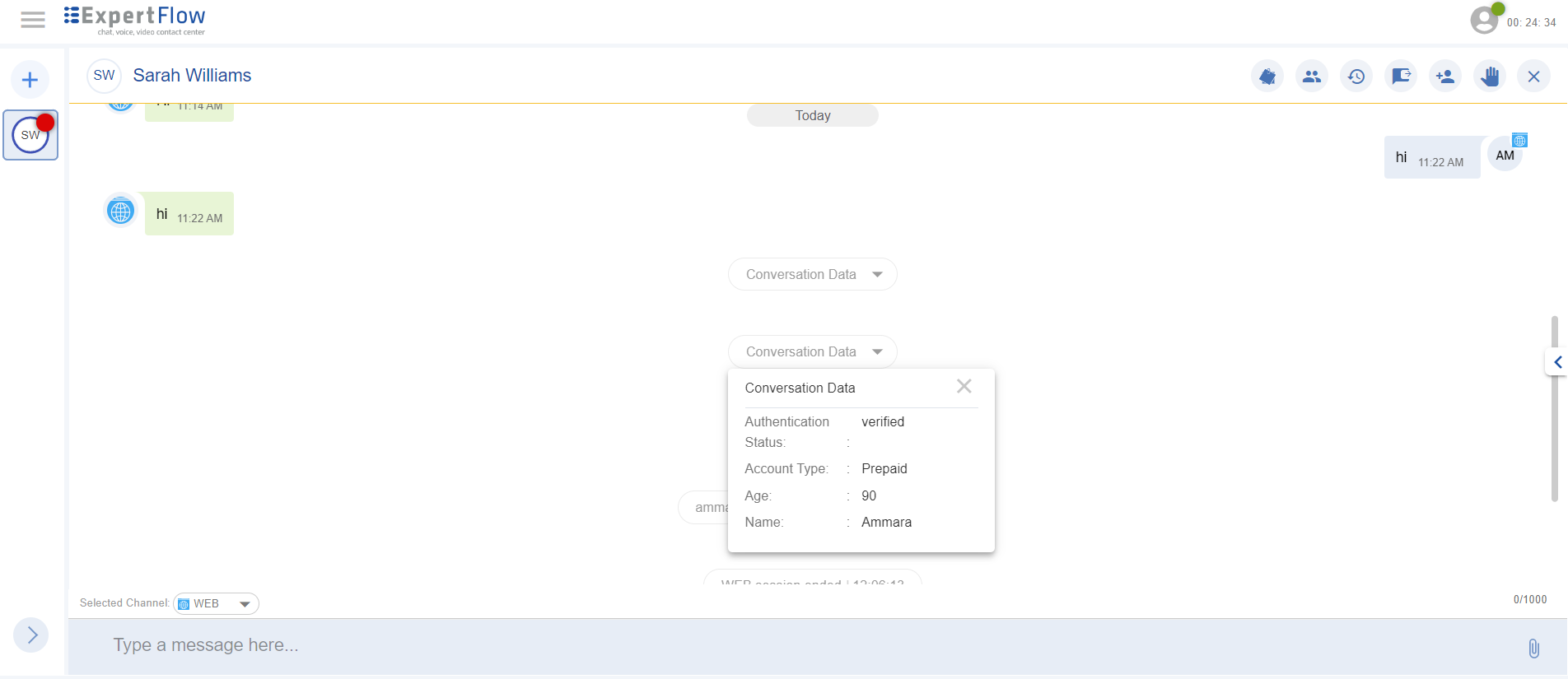

To see the conversation data of the past conversations, see the data in the conversation history by clicking on the Conversation Data chip shown alongside each conversation.

Past Conversation Data

For now, each update done to the Conversation Data is logged in the conversation history. In future updates, the past conversations will only carry one Conversation Data per conversation, with the latest modified key-value pairs.

View Messages on Right-to-left and Left-to-Right

Based on the browser language settings of the agent, the agent can see the message alignment and the message composer text of all messages started from the right and proceed to the left, or started from the left and proceed to the right  If it is an RTL (Right to left) language such as Arabic, Hebrew, Sorani, Azeri, Aramaic, Persian, Urdu, Kashmiri, Pashto, Sindhi, Punjabi the message composer and alignment will be Right-to-Left as shown in the screenshot below,

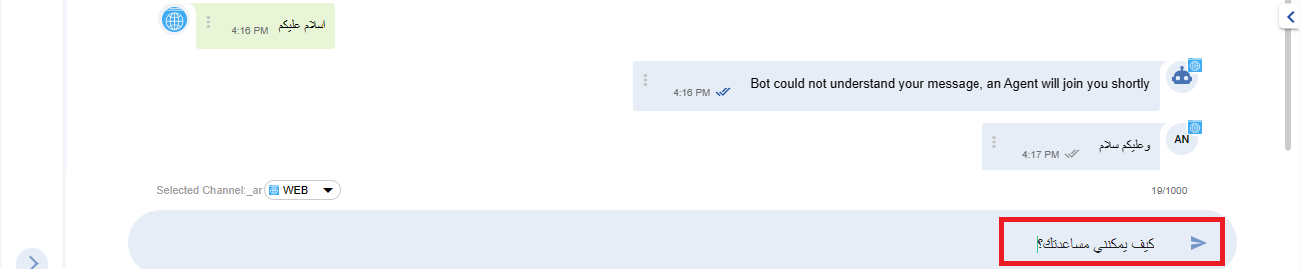

Support RTL language

In case of LTR (Left to right) language English for example, the message composer and alignment will be Left-to-Right.

Change Agent Desk Language

The agent can change his language preferences on the Agent Desk that enables him to switch the UI language to the specific preferred language.

To choose the preferred language of the agent desk application, the agent can see a list of languages in the Language dropdown as defined by the Administrator in the Unified Admin under Locale -> Supported Languages,

transl tates all the static elements of UI on the Agent Desk Application.

Send  a Message

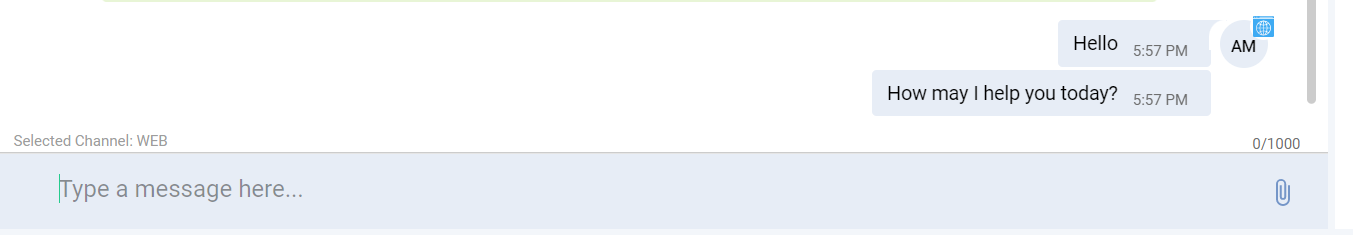

At the extreme bottom of the Customer Conversation View, the Message Composer bar is shown. Type a message in the composer to send it over to the customer. On the top of the message composer, there's a dropdown showing the list of active channels of the customer in the conversation. By default, each message from the agent is sent to the customer on the channel from where the last message of the customer was received.

Message Composer

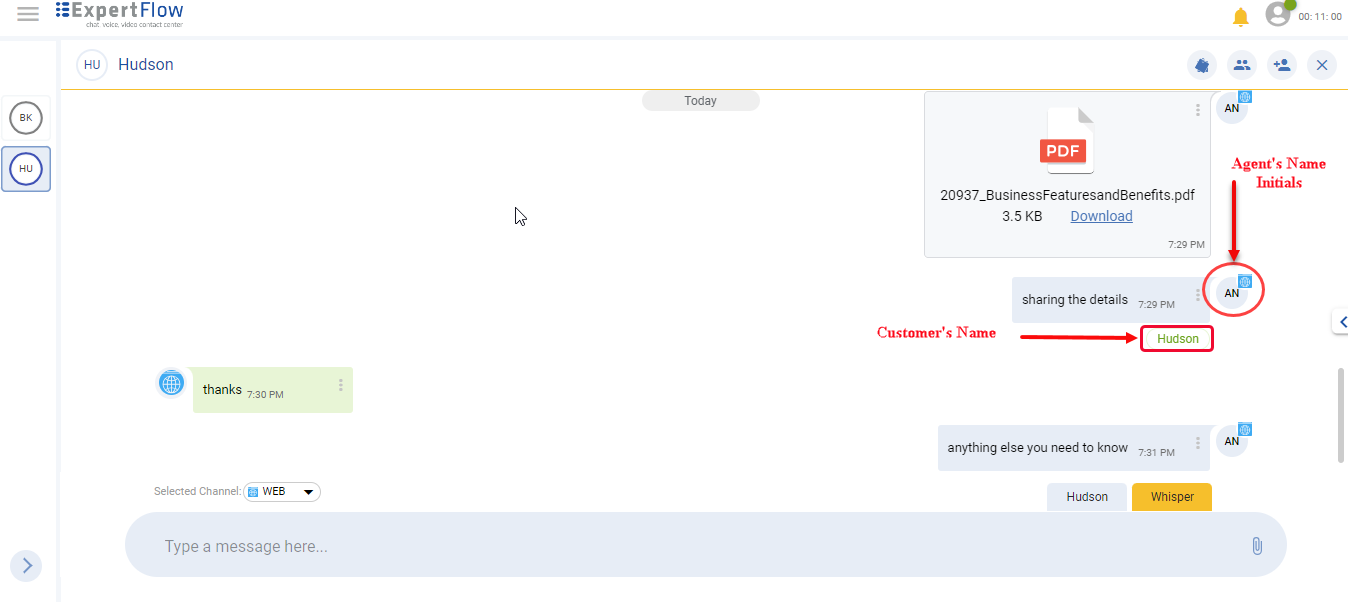

Delivery Notifications

The agent receives the Delivery Notification in the form of the customer's name display right under the message.  The message will not consider to be delivered/read if there is no customer's name under the agent's message.

In case, the agent's message is not delivered due to any reason, instability of internet or power outage for example, the message will be blurred. This shows that message is not delivered.

Typing Indicator

Typing indicator is an indication for  the agent to show that someone is still alive in the conversation. When the customer will respond and type a message, the typing bubbles will pop up. This allows the agent to stop and is more likely to wait for typing bubbles to stop and then can respond.

In the same way, if the agent will start typing, the typing bubbles will pop up with the customer. The customer will wait for typing bubbles to stop and then can respond.

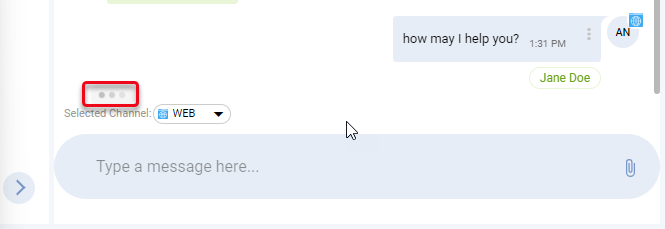

Typing Indicator

Switch to a different Channel

During the conversation with the customer, you may choose to switch to a different channel to send your message.

After typing your message in the Message Composer, choose the desired channel from the dropdown to send your message.

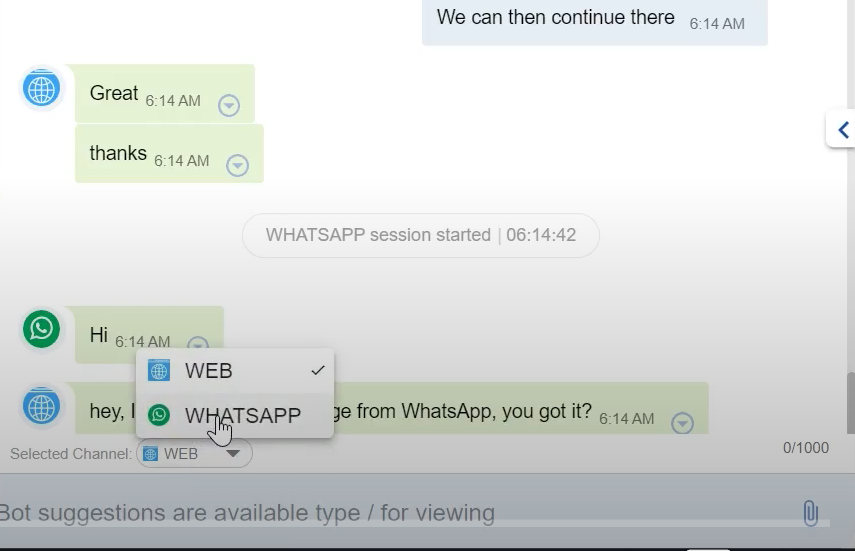

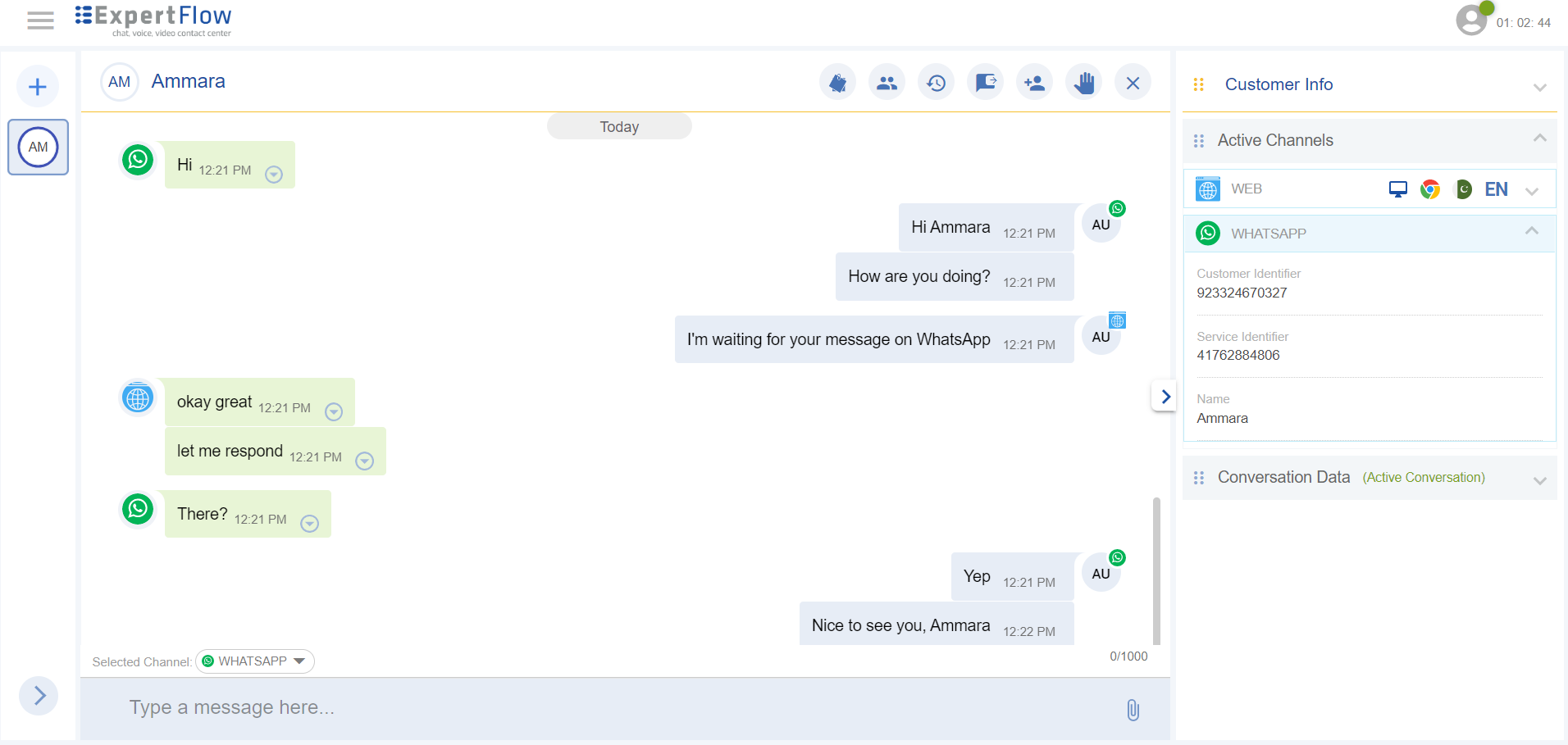

Channel Switching

Send a Bot Suggestion

By default, the bot generates suggestions based on the latest messages sent by the customer. When there are some suggestions, you will see the text, Bot Suggestions are available type '/' to view in the composer.

Typing / will open up the Bot Suggestions panel. You can choose a suggestion from the panel and either, edit and send, or directly send it to the customer.

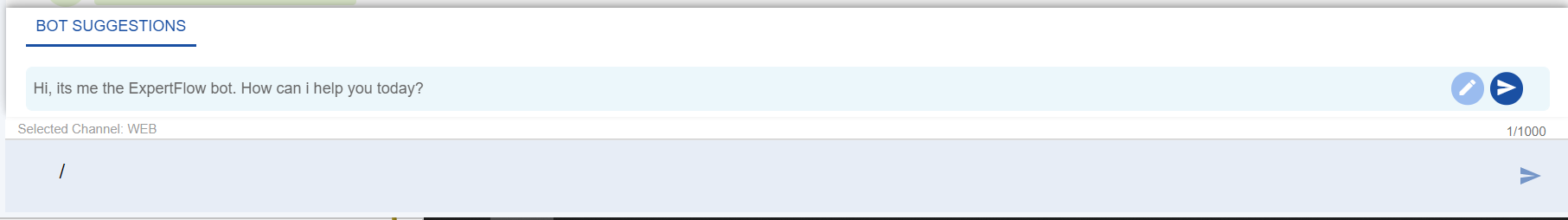

Sending a bot suggestion

Please note that, bot suggestions are only available when a customer message is received. The option to choose a bot suggestion disappears as soon as the agent responds to the customer.

Send Attachments

Agents can send file attachments by using the attachment icon inside the Message composer, both images and docs. The following types of files are supported:

• .txt,

• .png

• .jpg

• .pdf

• .ppt

• .xlsx

• .xls

• .doc

• .docx

Send Formatted Text

An agent can send a formatted text message in bold, italic, strikethrough, highlight a text, and hyperlinks.

• To bold text, add asterisks * before and after the text you want bolded.

• To italicize text, add underscores _ before and after the text, you want to italicize'

• To strike through text, add tildes ~ before and after the text you want to strike through.

• To highlight a text, add an exclamation mark! before and after the text you want to highlight.

• Hyperlinks are automatically detected by the message composer

• Use single quotes ( ` ) to quote a single line text message (not valid for multiline texts)
• Use multi quotes ( ``` ) to send texts with spaces before and after the text message you want to quote

View Structured Messages

Agents can receive the following types of structured messages, exchanged between the customer and the bot via WhatsApp channel:

• Buttons and replies to a button message - (also supported for web channel)

• Contact messages

• Location messages

• URL messages

• Images

• Video messages

• Audio messages

Send A Quoted Reply

You can also send a reply to a specific message on the conversation. You can reply to a message sent either by the customer, by yourself, or by another agent added to the conversation.

To do this,

1. Choose the message you want to reply,
2. Click on the three dots button on the right side of the message. A pop-up of 'reply' will appear.
3. By clicking on the Reply button, you will see the message as a quoted message in the composer.
4. This is how you can reply to the specific message.

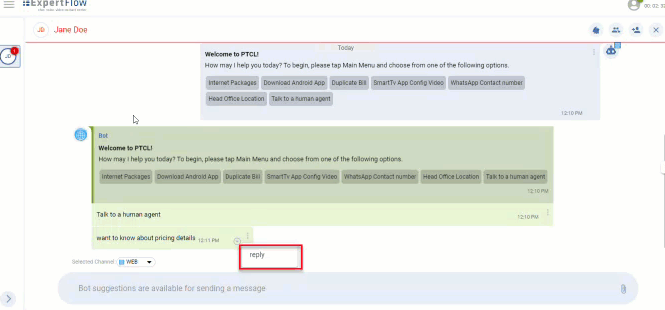

Send Reply to a Specific Message

Quoted replies can be seen in the conversation view with a special indication that it was a quoted reply. For visibility, agent names in the 'Quoted Reply' are visible in blue color and the customer's name is seen in grey color.

Switch between Active Conversations

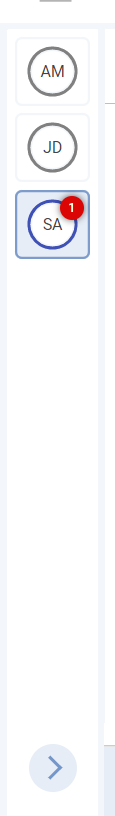

A list of active conversations are displayed on the left-hand side of the pane. You can switch to any chat you want to respond to.

On each active conversation, you will also see the count of new or unread messages. The counter disappears once you switch to the conversation and click in the Message Composer area.

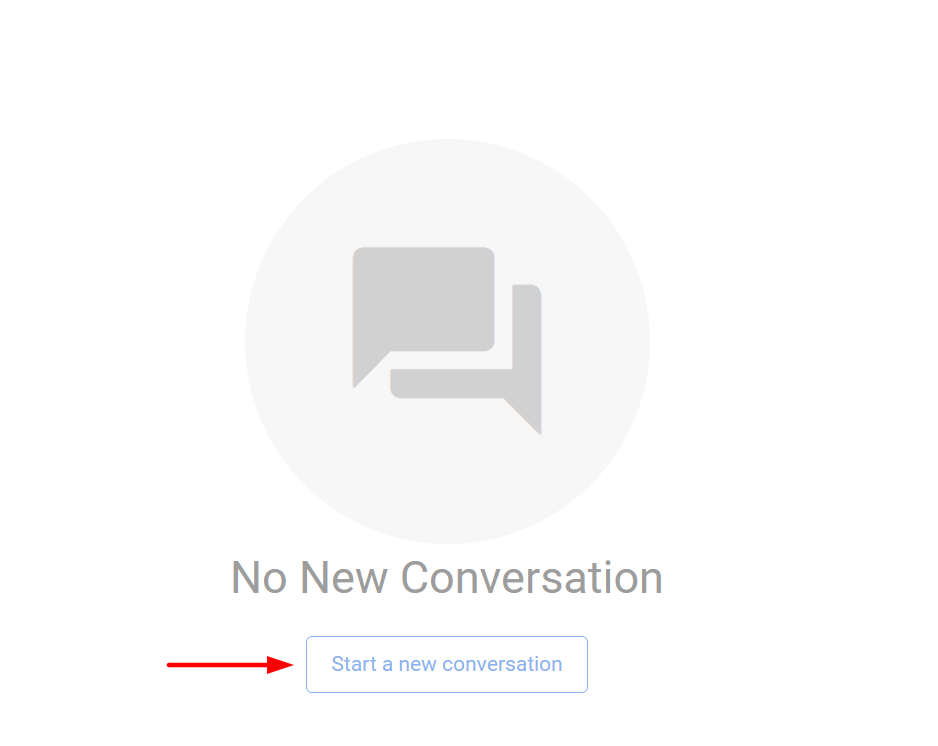

There's also a + button displayed on the top on the left side bar. This is for agents to start a new conversation with a customer on their own.

Switch between conversations

Conversation Controls

At the top most of the Conversation View, there is a control bar displaying actions including leave conversation, wrap-up, Transfer, Conference controls. See details below.

Add Wrap-up/Notes

Wrap-up is a concluding note added to the conversation which helps the business to know what the conversation was about. See more on Agent Capabilities

Add wrap-ups to a conversation by clicking the notes icon

on the control toolbar, a Wrap-up dialogue will appear.

You can see Wrap-up categories and reasons as defined by the system administrator. Choose a category and a reason that best matches to the conversation you are having or had with the customer.

You can add a maximum of five wrap-ups in a single Wrap-up activity. However, more wrap-ups can also be added with additional wrap-up activities.

After applying wrap-ups, you can also add notes to summarise what the conversation was all about. The wrap-up and notes pushed in the conversation are available as independent activities in the Conversation view.

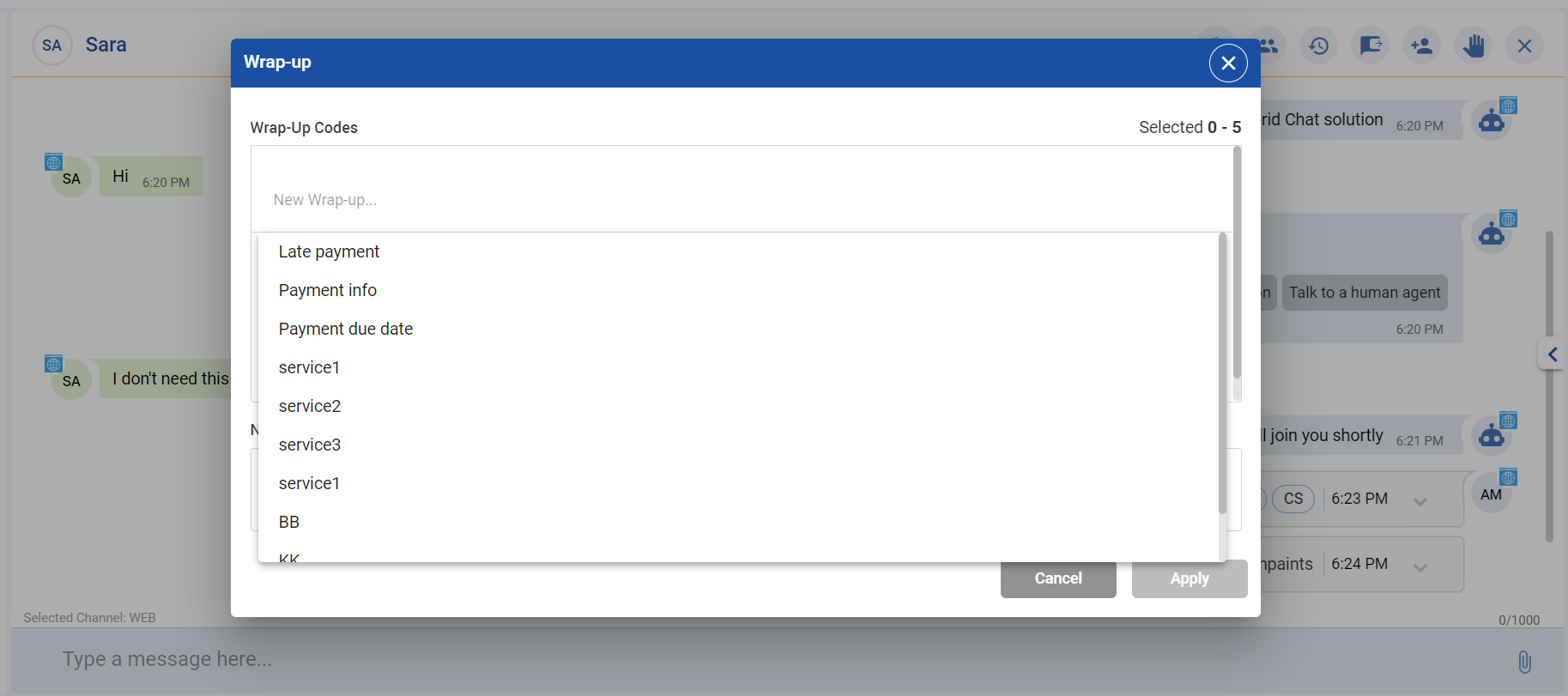

Add Wrap-up

Notes can also independently be added at any time.

Leave Conversation

Click the x icon to leave the conversation. Upon clicking this icon, the Bot either closes the conversation (e.g. if the customer has already left) or, continues with the customer if the customer is still there and wants to know more.

Transfer a Conversation

You can transfer an active conversation to another agent if you think that the other agent will better answer the customer's query.

A conversation can be transferred in two ways:

• Queue Transfer
• Direct Transfer (Agent-to-Agent transfer)

For now, you can transfer a conversation to another queue from where, the Routing Engine looks for a suitable agent to join the conversation. Direct or agent-to-agent transfer feature will be available with future releases.

Transfer conversation workflow

1. Click



   button on the control toolbar. You will see a dropdown containing the list of all queues with the following information:
   1. Queue Name (department name or any queue name)

   2. Number of agents available (ready + active) in the queue. This helps in deciding whether you should transfer this conversation to the selected queue or not (based on the available agents count).

2. Choose a queue from the list and select the Transfer option.
3. In the Message box in the Transfer to Queue dialog box, you can optionally type a message for the receiving agent. This message is then received by the other agent who is going to join the conversation. Click the Transfer button to transfer the conversation.
4. You will see a notification that, "Conversation is closed due to CHAT TRANSFERRED" and another toaster notification "Transfer request placed successfully"

5. The chat will be parked in the transferred queue on priority. The system will look for an available agent from the queue to route the conversation to an agent.

6. The customer sees a notification, "your request is being transferred to <queue-name>, please wait!", followed by another notification that, "Agent1 has left".

7. If the other agent does not accept the request, the Routing Engine keeps on looking for another agent for sometime
8. If no agent is found,
   1. The request is timed out.
   2. The customer will see a notification, "No agents were available".

When you receive a transferred request from another agent,

1. You'll receive a transferred request notification with the following information:
   1. Channel icon via which the request is placed (Whatsapp, Web, Facebook, etc.)
   2. A button to Accept the request
   3. Name of the customer if identified
   4. The optional notes entered by the agent while transferring the conversation. See point #3 above..
2. Click the Accept button to accept the conversation
3. The customer will also be notified that you have joined the conversation.

Transfer A Conversation To A Queue

Add Agents to Conference

This feature allows you to add one or more agents into the conference with the customer.

When an agent is added into the conference, the conversation becomes a conferenced-conversation. All newly-added agents in the conference have the same level of rights and permissions as of the first primary agent in the conversation.

This also implies that if the first agent leaves the conversation, the conference will still continue with the agents in the conversation.

To add agents into conference

1. Click



   button on the control toolbar. You will see a dropdown with a list of all available queues with:
   1. Queue Name

   2. Number of agents available (ready + active) in the queue

2. Choose a queue name from the list and hit the Queue Conference button.
3. In the Message box in the Conference dialog box, you can optionally type a message for the receiving agent. This message is then received by the other agent who is going to join the conversation.
4. Then, click the Add to Conference button to make it a Conference Conversation
5. The system looks for an available agent to be added as a Primary Participant to the conversation  The system will route the conversation to Agent2
6. The first agent can see a toaster notification that a conference request has been placed successfully

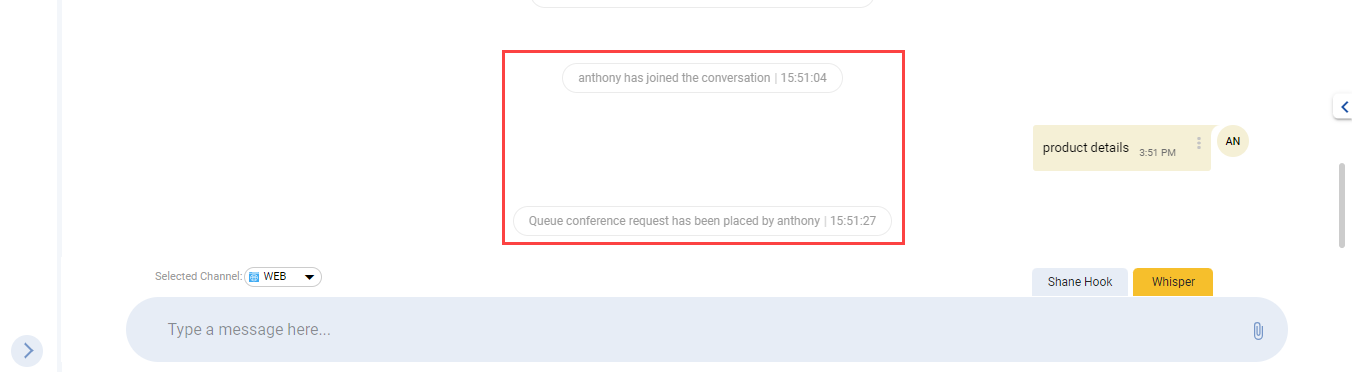

7. You will  see a notification in the Activity Timeline that the "Conference request has been successfully placed" and on the other hand
8. Agent2 (receiving agent) receives an incoming conference request notification with the following information:
   1. Special indication that this is a Conference Chat request from Agent1
   2. Name of the identified / linked customer (if done by Agent)
   3. Note entered by Agent1 (if available) before placing the Conference request
   4. A button to Accept the request
9. By clicking the Accept button, Agent2  joins the conversation as the Primary Participant.
   1. Agent1 sees the notification that A2 has joined
   2. The Customer sees the same notifications in the Conversation history on Customer side

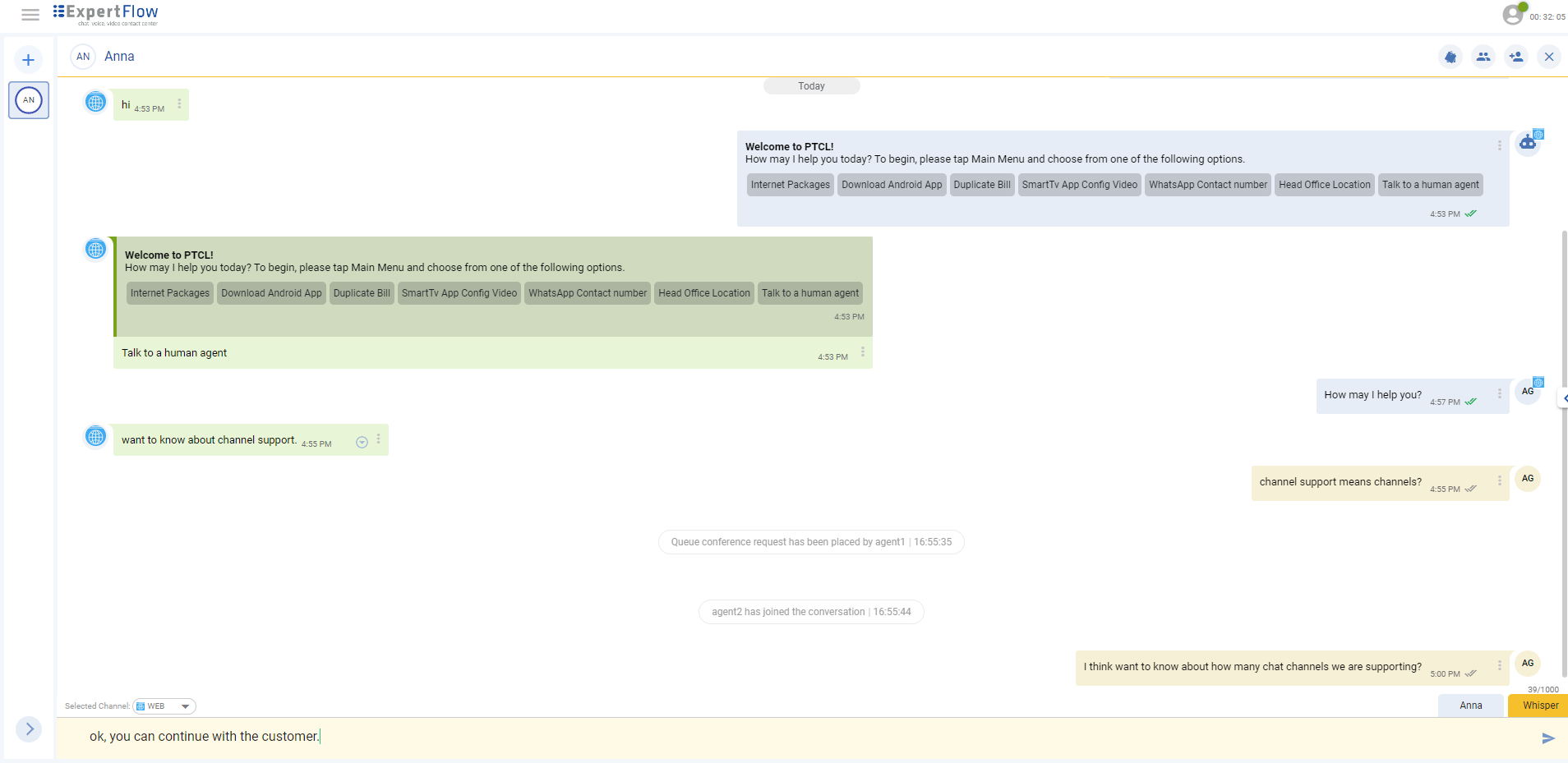

   3. Agent2 can send/receive Whisper messages with Agent1.
   4. Agent2 can also see all the message exchange in the current conversation.
   5. Agent2 will see the Customer Profile and all the Media Channels, Active Sessions of the customer (based on the permissions) along with the Conversation Data and the past conversation history
   6. Agent2 can perform other operations based on the Primary Participant permissions.
10. Agent 2 can leave the chat

1. 1. 1.  All other conversation participants will see a notification, "<agent-names> left the conversation"
2. Agent2 does not accept the request.
   1. 1. System keeps on looking for another available agent from the selected queue until it finds one
3. No agents available
   1. The request will be canceled.
   2. Agent1 sees a notification in the Activity Timeline such as, "No agents were available to join the conference conversation"

Adding One or More Agents to Conference

Send a Whisper Message

When there are more than one agents in the conversation, they can exchange whisper messages with each other.

Whisper messaging allows agents to chat internally with another agent or supervisor, during a customer conversation, without letting the customer know.

All agents who are a part of the conversation can view all whisper messaging exchanged. However, customers cannot see the whispered communication.

To send a whisper message,

•  Click the Whisper tab in the Message Composer
• Type your message

You'll notice that the Message Composer will be turned yellow as soon as you click the Whisper tab. This is to give agents the visual aid so that they can clearly distinguish between the normal, customer messaging and whisper messaging.

All whisper messages are stored as part of the conversation and they are clearly visible in the conversation history in yellow color.

Send Whisper Message

Initiate a conversation

With 4.0 version, you can also initiate new conversations with a customer for WhatsApp channel. To do so, click the + icon on the left sidebar if you already have some active conversations, or, click the Start New Conversation button on the Conversation View in case of no conversations.

Start a conversation

On the Customer List that opens up, look for the desired customer record and click the contact icon against the record. This will open up the customer profile on the Conversation View with Message composer disabled. This is because no conversation is currently active with this customer. Also, by default, the customer history is hidden. You'll be able to load the history of the customer by clicking the link if you have the permissions to do so.

Expand the right side and click the Media Channels pane. Choose the channel identity (for now, only the phone number) for WhatsApp channel, click the dropdown and click the chat icon against the WhatsApp channel.

Choose the channel and channel identity to initiate

Clicking the chat icon will initiate a new conversation with the selected customer on WhatsApp.

View Conversation Notifications

On the active conversation, you'll receive notifications in real time whenever a new channel session is started and ended; i.e. the time when the customer initiated the conversation.

Also, in cases of a conferenced/ pull-based chat, the agent can view the notifications whenever a new conversation participant  joins/leaves the conversation.

Conversation Notifications

Customer Inactivity Timeout

This is the time the system waits for a reply from the customer once a message is sent to the customer (from the agent or the bot). This timeout threshold is defined by the system administrator using Unified Admin application.

When this happens,

• Agents won't be able to exchange messages with the customer

• Agents will see a notification that the channel session has ended

• The Message Composer will be greyed out on the Agent Desk

• The conversation still stays on the agent screen unless the agent clears and closes itself.

• No wrap-ups can be pushed on the conversation

Subscribed Lists

All pull-based requests are parked to a List defined by the system administrator. If you want to receive notifications for new incoming pull-based requests, make sure that you are subscribed to the desired Pull-based Lists.

To subscribe to a List, open the burger menu and click on the Subscribed Lists option.

Click on the Manage Subscriptions button and choose the lists to subscribe to from the dialogue box. The lists that you subscribe to will start appearing on the list view.

To unsubscribe, choose the lists to unsubscribe from the same Manage Subscriptions dialogue and uncheck the Lists.

Join Pull-based Request

When a customer's request is received from the List that you have subscribed to, the new request notification will appear as an alert with a cross icon to dismiss the notification.

Receiving Pull-based Requests

In the notification, the identified customer name (or Jane Doe if anonymous) will be shown along with the name of the List on which the request was received. Click the cross icon to dismiss the notification. It won't disappear automatically unless you close it.

To join the conversation, go to the Subscribed Lists and open the List mentioned in the notification. On the Inbox view, hover the mouse over the request that needs to be joined. Click on Join.

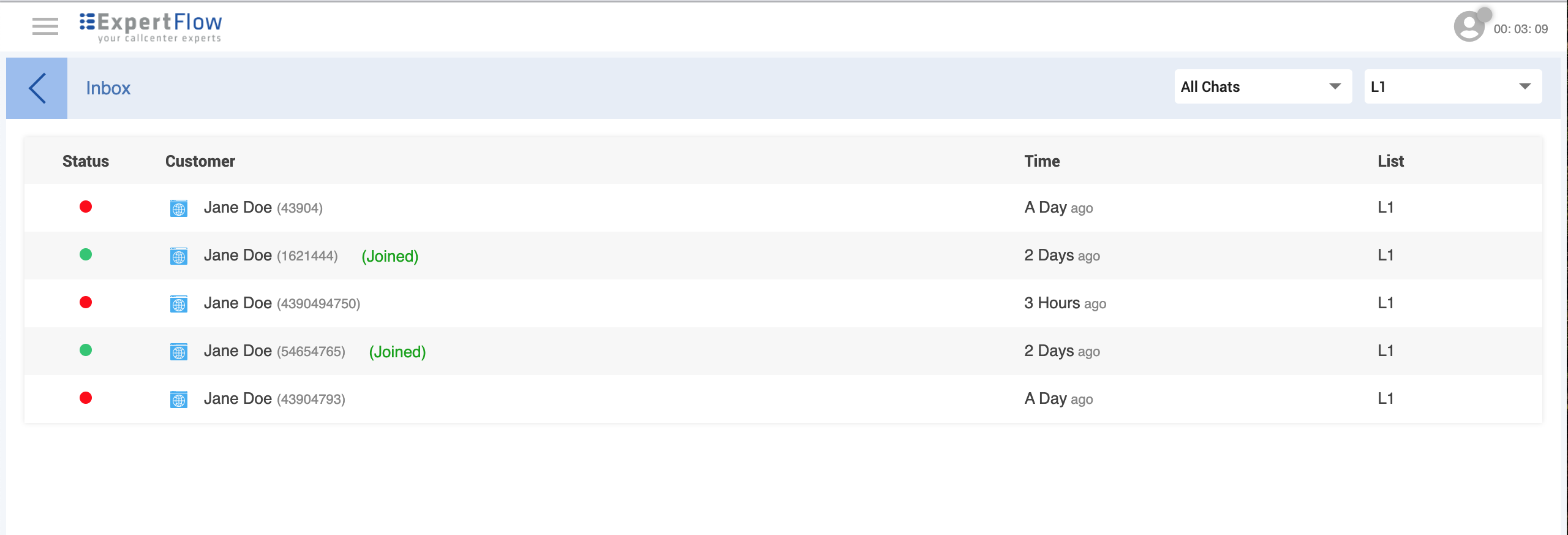

Inbox View

Inbox View

See the following table to understand the different columns on the Inbox view.

On the Inbox, the latest chat will appear at the bottom of the list by default.

Customer List

The Customer List displays all customer profiles stored within the system.

To go to the Customer List, click on the Customer List View option from the main menu.

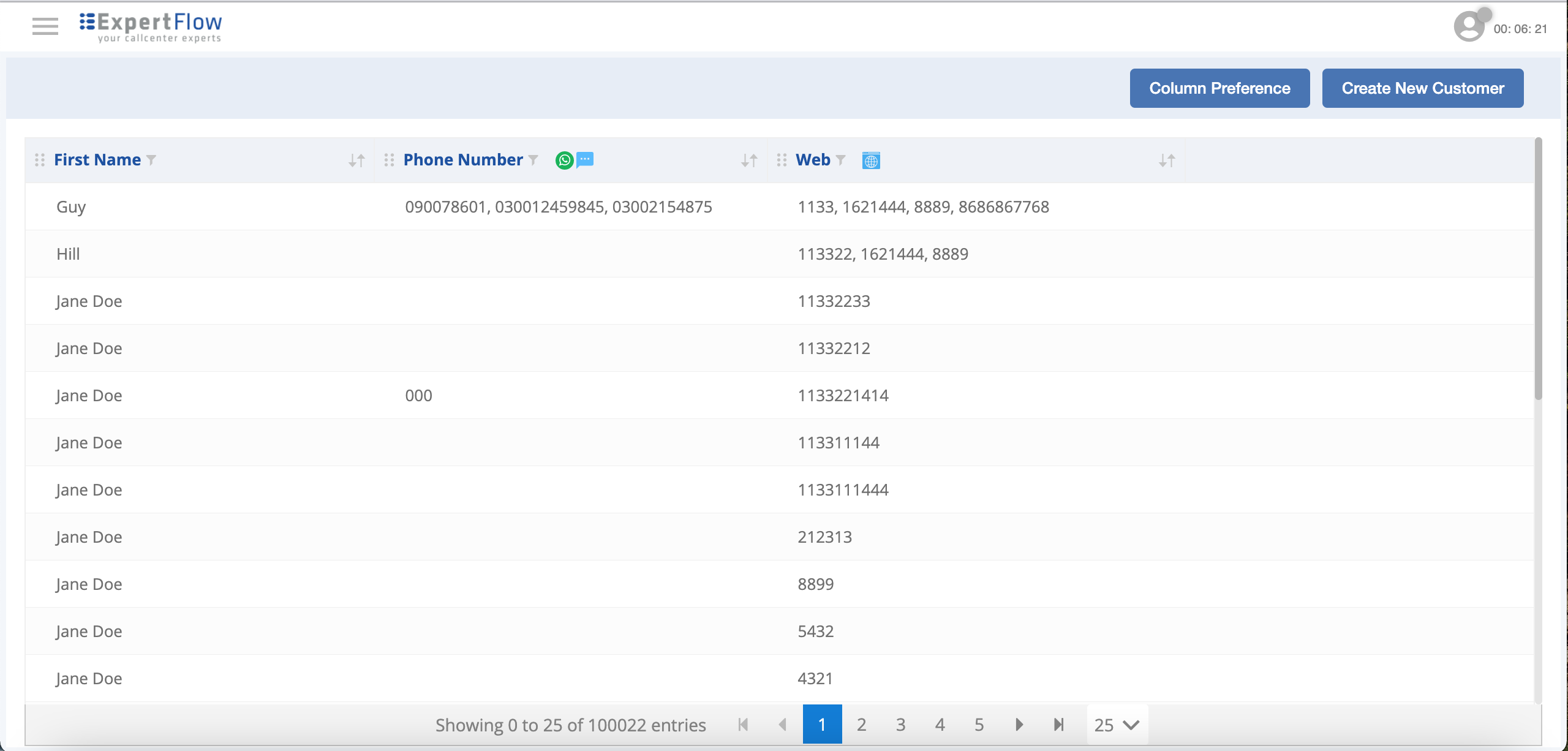

Customer List

You can adjust which columns you want to see in the Customer List by clicking the Column Preference button at the top of the Customer List.

Create Customer

In the Customer List View, click the Create New Customer button to create the new customer. Fill in the fields in Create Customer dialogue to provide the customer details and click Save. Note that for the fields which are marked as Channel Identifiers, you can add multiple values for a channel identifier attribute. Click the + icon to add more values against one channel identifier attribute.

Update Customer

To edit the customer's profile, in the Customer List View,  hover the mouse over the customer which you want to edit. Click on the pencil icon to edit a customer profile.

• Edit whatever you want to edit

Assign Labels to Customers

To assign a label to a customer, click the Update Profile button under the Customer Profile pane on the Conversation View or click Edit Customer on the Customer List.

Assign Labels to Customers

In the Labels dropdown, type the name of the label that you are looking for or choose the ones from the list. If the label that you are looking for does not exist, click the Add button in the result set to add a new label with the specified string with a default label color (that is, grey).

Add a new label dynamically

Understanding List View

• All customer fields correspond to the columns here

• Channel Identifier fields are differentiated with channel icons

• Drag and move columns to adjust the columns position

• A filter icon in each column is given to filter the data column-wise

• Upward and downward arrows in each column are there to sort the data in ascending or descending order

Column Preference

It allows you to set the preferences of your own choice. To set preferences, follow these steps:

• From the menu bar, click the tab of Column Preference

• The detail view will show the column titles. From here, choose which column want to select.

• Select the desired column by checking the box.

• Selected columns will be shown on the right-hand side.

• Uncheck the boxes which don't want.

 The search bar is given at the top under the column heading. From here, you can search whichever column you want to search.

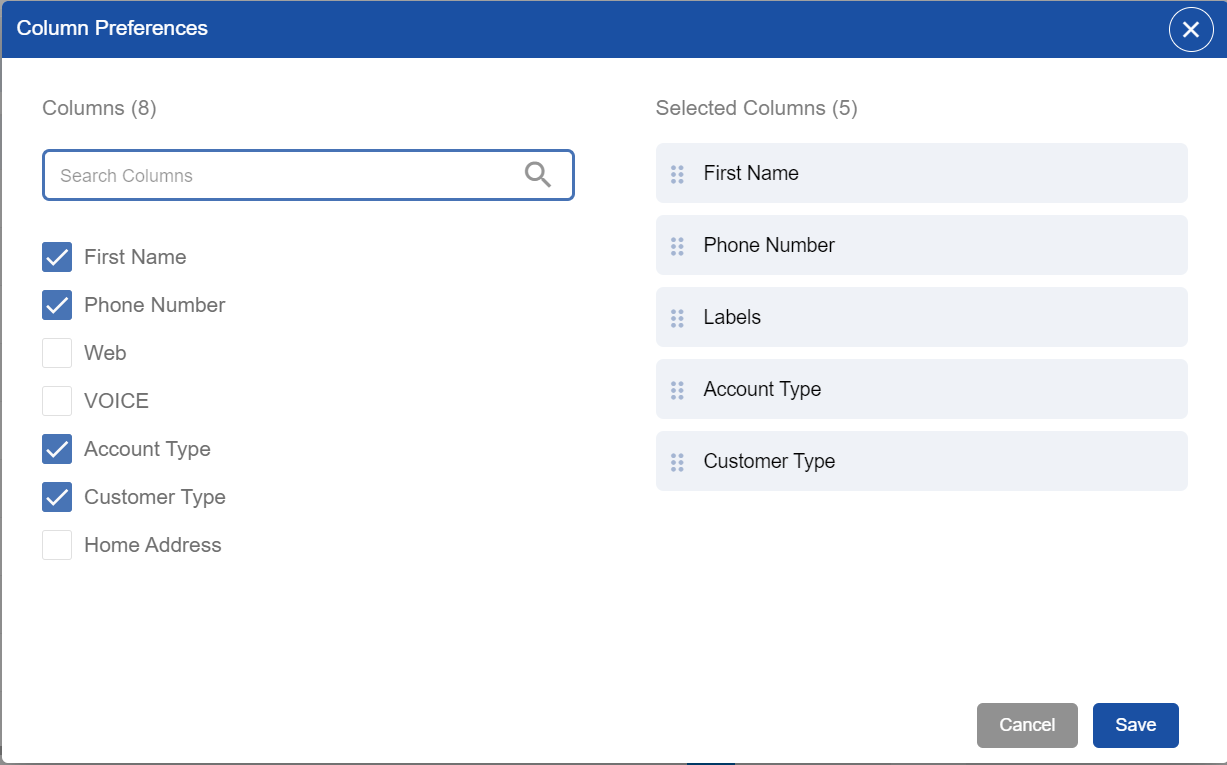

Select columns to show in Customer List

Logout

To log out, click the profile menu at the top right on agent desk and click the Logout button. Select one reason while getting logged out. Note that these reasons are defined by the system administrator and selecting a logout reason is optional.
