Send a Media message


A Channel Connector can send a file message to Hybrid Chat.  There are two ways to upload a file:

  1. Specify the fileStream object to be uploaded

  2. Specify the fileURL

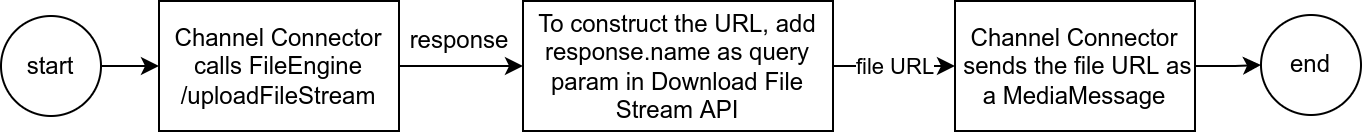

To send a file using filesStream Object

  1. Call

    Upload a file

    API with the fileStream object. Upon success you'll get the filename from the server.

  2. Create a Download File Stream URL and specify the filename from step# 1 as a query param.

  3. Create a Media message and specify mediaUrl containing the URL created in step# 2.

Untitled Diagram.png


Request Query Params

Property

Type

Desc.

conversationId REQUIRED

String

Unique id of the file.

file required

FileStream Object

The file stream object of the file that should be uploaded on Hybrid Chat.

Response

Status

Description

Response

Success

Code 200 for success loading of file on server.

Message - String - Required - "File uploaded successfully."

etag - String - Required  - HTTP response header is an identifier for a specific version of a resource and used for tracking purposes.

name - String - Optional  - this is the unique file name.

type - String - Optional - type and extension of the file e.g. image/png

size - Numeric - Required - size of the uploaded file.

Internal Server Error

Code 500 when a server error occurs.

Message: "An error occurred while uploading file."

Bad Request

Code 404 when there is a problem uploading file.

Message: "An error occurred while uploading file."


To send a file using File URL

  1. Call

    Upload a file from URL

    API and specify sourceUrl (the media URL to upload).

  2. Create a Download File Stream URL and specify the filename from step# 1 as a query param.

  3. Create a Media message and specify mediaUrl containing the URL created in step# 2.


Request parameters

Property

Desc.

conversationId - String - Optional

ID for tagging media.

sourceUrl - URL - Required

get file from the given URL

channel - String - Required

The channel where conversation is in progress.

fileName - String - Optional

to be specified by user. Appended with conversationId in response. If no name is specified, file name is extracted from the URL.

oauth - Object - Optional

When OAuth is required to download the file from the specified URL mentioned in sourceURL property.

APIKey360 - String - Required for 360 DialogFlow Connector

The connector API Key for authorization to 360 connector.

Required only for 360Dialog connector for WhatsApp

mime_type - String - Optional

type and extension of the file e.g. image/png


Response

Status

Description

Response body

Success

Code 200

Message - String - Required - "File uploaded successfully."

etag - String - Required  - HTTP response header is an identifier for a specific version of a resource and used for tracking purposes.

name - String - Optional  - name can be specified by the user. It is saved with conversation ID appended to it e.g. 11111_filename.ext

type - String - Optional - type and extension of the file e.g. image/png

size - Numeric - Required - size of the uploaded file.

Internal Server Error

Code 500

Message: "An error occurred while uploading file."

Bad Request

Code 404

Message: "An error occurred while uploading file."


  • Maximum file size is 5Mb. The size is configurable and can be changed based on the business need.

  • There is no restriction of file type/extension in HyrbidChat. It is also configurable based on the business requirements.

  • Uploaded files can be stored indefinitely on server if required. Time limit for file storage on server is dependent upon the space requirements for the business deploying the HyrbidChat solution.

  • For downloading media, only filename needs to be specified. Example is available on Expertflow Public Workspace.
