CX Voice Upgrade to 4.7 for PTCL

SSH onto the Debian server on which the Voice connector is installed.

1. Use command

   ssh <username>@<server-ip>


2. Enter user password and press ENTER.

3. Use command

   su


4. Enter root password and press ENTER.

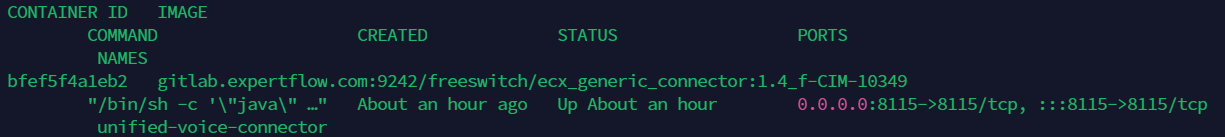

Run the command to see the list of running containers

docker ps

Note the container ID of the current deployed 4.6 Voice connector.

Note the port of that container i.e. for 0.0.0.0:8116->8080/tcp, :::8116->8080/tcp, the port of the container is 8116.

Run the command to stop the container

docker stop <container-ID>

Run the command to remove the container

docker rm <container-ID>

Navigate to the folder where the docker-compose.yml and env.txt files are located for the voice connector.

Open the docker-compose.yml file and replace the text inside with text below:

version: "3.8"
services:
  voice-connector:
    image: gitimages.expertflow.com/freeswitch/ecx_generic_connector:4.7
    deploy:
      resources:
        limits:
          memory: 1024m
        reservations:
          memory: 256m
    container_name: unified-voice-connector
    ports:
      - PORT:8080
    env_file:
      - ./env.txt
    command: ["java", "-Xms256m", "-Xmx1024m", "-XX:+UseG1GC", "-XX:MinHeapFreeRatio=10", "-XX:MaxHeapFreeRatio=30", "-jar", "/app/ecx_generic_connector.jar"]
    restart: always

Replace the PORT keyword with the port noted above in step 4.

Run the command

docker compose up -d

Confirm that the docker container is running by using the command

docker ps

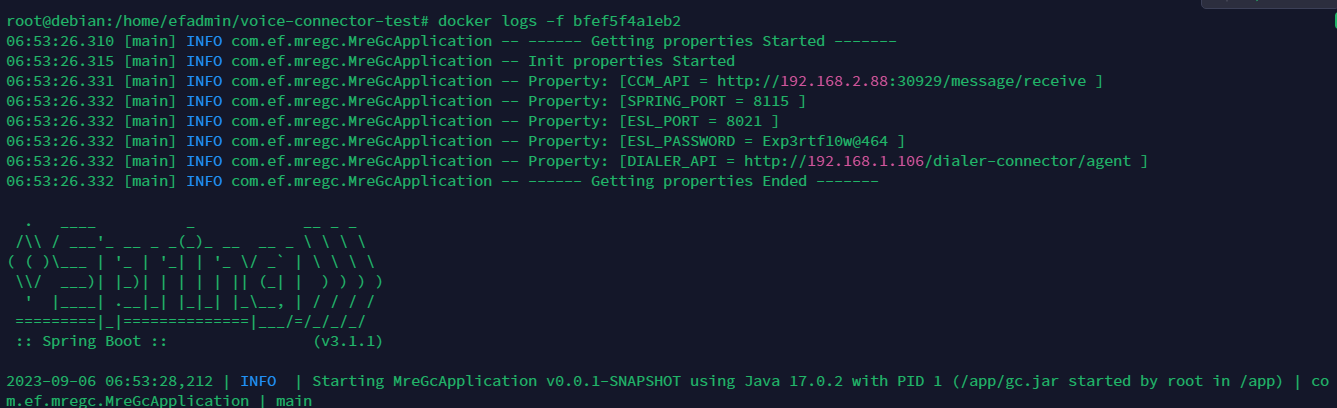

Confirm that the container is running correctly by opening the logs with command

docker logs -f containerID

SSH onto the Debian server on which the Voice connector is installed.

1. Use command

   ssh <username>@<server-ip>


2. Enter user password and press ENTER.

3. Use command

   su


4. Enter root password and press ENTER.

Confirm git is installed, and install it if is not.

Clone the Media Server scripts repository:

git clone -b 4.7-ptcl https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/rtc/freeswitch-scripts.git

Navigate to the cloned repository to access the files:

cd freeswitch-scripts

Move set_recording_name.lua, cx_hangup.lua and vcApi.lua to the Media Server scripts folder:

mv *.lua /usr/share/freeswitch/scripts/
chmod -R 777 /usr/share/freeswitch/scripts/
