Unified Admin Configurations
Channel Manager Configs
Channel Type
-
SMPP channel type must be already created as part of bootstrapping of the Channels Connector.

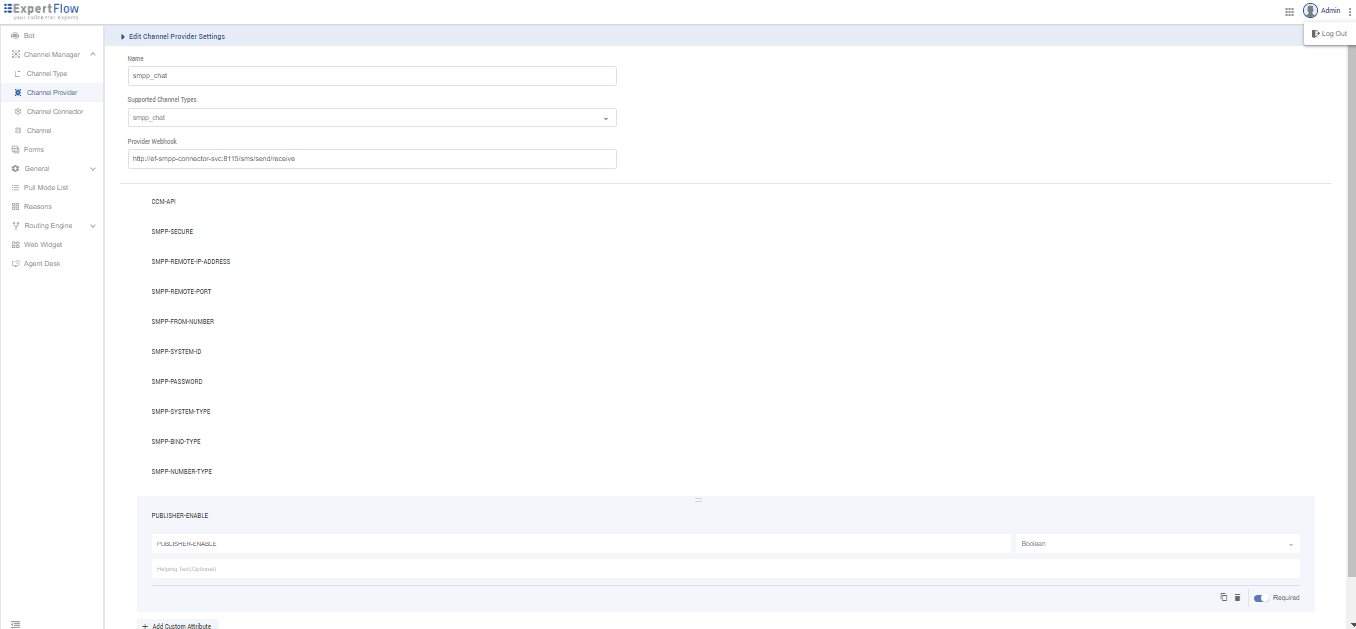

Channel Provider
-
The name can be any. E.g. SMPP Provider.
-
Supported Channel Types will be selected as "SMS" (If you want to setup any one only, then select any one).
-
Provider Webhook will be FQDN/smppconnector. Eg: https://cim-dev.expertflow.com/smppconnector
Channel Connector
-
The name can be any. E.g: SMPP Connector
-
Channel Provider Interface must be the same as created in the previous step.
-

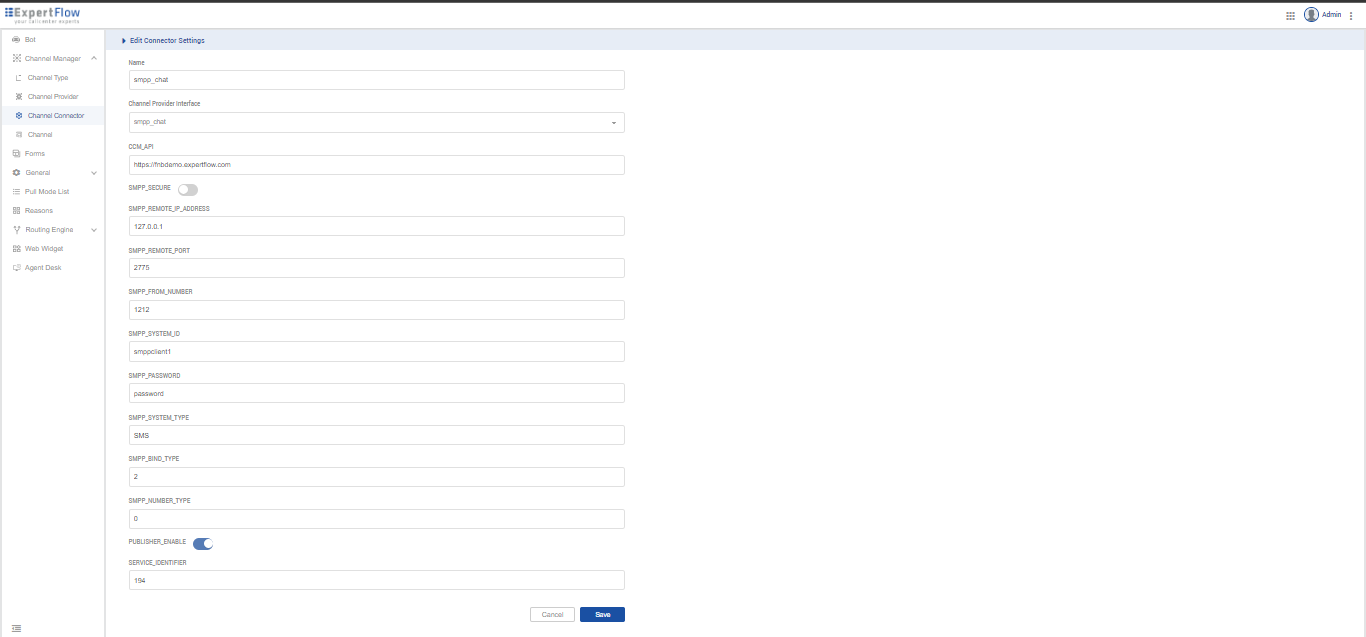

Provide the values
Channel
-
Here we will be creating channels. If we want to set up SMS, we will create a channel under the "SMS" channel type.
-
The name of the channel can be any. E.g: SMPP SMS Channel
-
Service identifier:
-
For SMS: it will be the active phone number we have bind for cim.
-
-

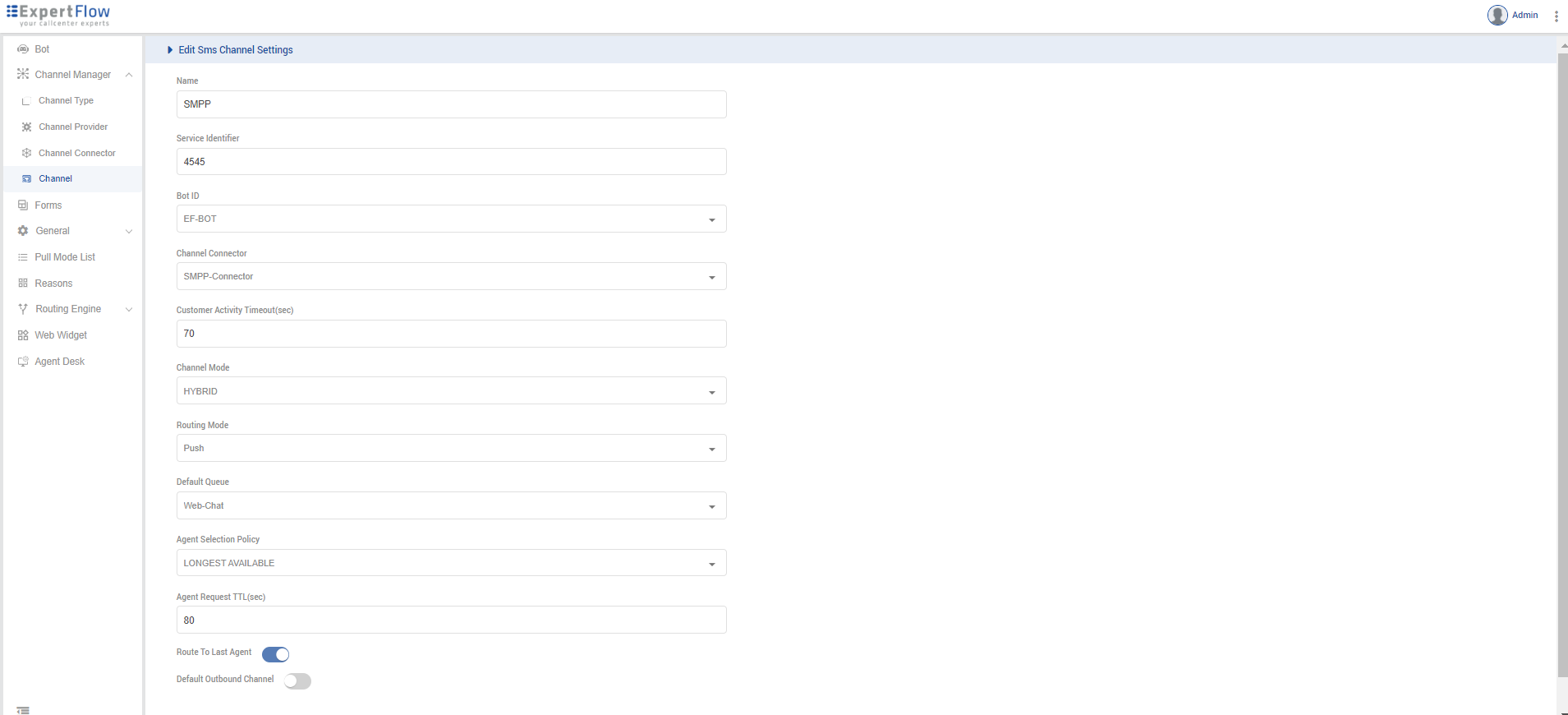

The rest of the fields are the same as all other connectors. The sample is shown in the image below.
Service Identifier
You need to add a service identifier in the configMap also because on the first call of the API to get Unified Admin configuration we need to add API to get configs
Configuration Variables
|
Variable Name |
Description |
Value |
Type |
|---|---|---|---|
|
CCM-API |
FQDN of the machine where Customer-Channel-Manager is deployed. |
https://cimdemo.expertflow.com |
String100 |
|
SMPP-SECURE |
Is Smpp secured |
false |
Boolean |
|
SMPP-REMOTE-IP-ADDRESS |
Smpp remote IP address |
127.0.0.1 |
String100 |
|
SMPP-REMOTE-PORT |
Smpp remote port |
2775 |
PositiveNumber |
|
SMPP-FROM-NUMBER |
DN we will use |
1218 |
String100 |
|
SMPP-SYSTEM-ID |
Smpp System Id |
smppclient1 |
String100 |
|
SMPP-PASSWORD |
Smpp password |
password |
String100 |
|
SMPP-SYSTEM-TYPE |
The SMPP system administrator will provide this value, which when required, is usually a short text string. |
SMS |
String100 |
|
SMPP-BIND-TYPE |
For Transmitter bind (TX) set 0, for Receiver bind (RX) set 1, and for Transceiver bind (TRX) set 2 |
2 |
String100 |
|
SMPP-NUMBER-TYPE |
For numeric format set 0, for alphanumeric format set 1 |
0 |
String100 |
|
PUBLISHER-ENABLE |
If you want to publish delivery sms |
true/false |
Boolean |
