2FA Configuration Guide - Email

This guide explains what prerequisites for enabling 2FA are and what configurations are required to be set up.

Pre-Reqs for enabling 2FA via email

Visit this guide to set up the email connector – IMAP-SMTP based Email Configuration Guide | Pre Requisites

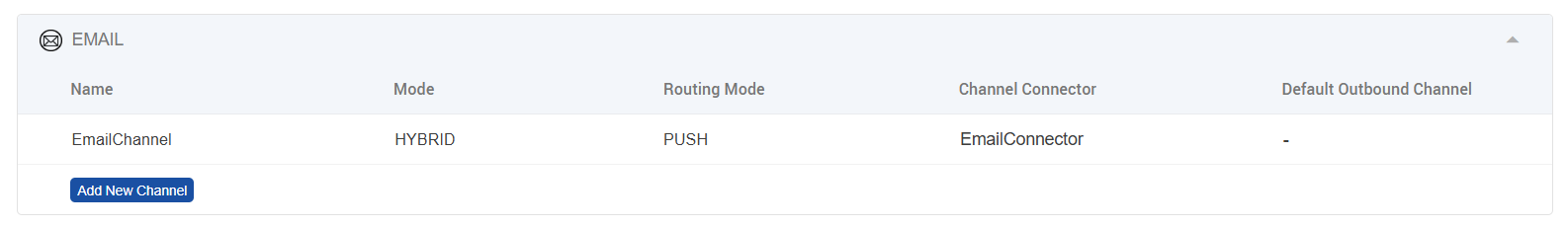

There must be at least one email channel configured that will be used for sending the OTP.

FollowingtwoFAConfigsmust be part of the tenantSettings object - add these either at the time of tenant creation or add these later using update tenant API:

"Otp_Manager_Url": "http://ef-cx-otp-manager-svc:3000/", // must be inside keyCloak object in tenant and required if is2FAEnabled is true

"twoFAConfigs": {              // must be inside tenantSettings object
  "is2FAEnabled": true,        // true | false
  "channelType": "EMAIL",      // channel type configured for OTP for the tenant - 'EMAIL' | 'SMS'
  "channelServiceIdentifier": "nasirkhan36616@gmail.com",    // identifier set while configuring the channel
  "otpExpiry": 60,             // OTP Expiry time in seconds
  "otpMaxAttempts": 5         // maximum attempts to validate OTP

}

example payload for update request:

{
    "tenantSettings": {
        "keyCloak": {
            "Otp_Manager_Url": "http://ef-cx-otp-manager-svc:3000/"
        },
        "twoFAConfigs": {
            "is2FAEnabled": true,
            "channelType": "EMAIL",
            "channelServiceIdentifier": "nasirkhan36616@gmail.com",
            "otpExpiry": 60,
            "otpMaxAttempts": 3
        }
    }
}

example payload for creating a new tenant with 2FA enabled:

{
    "tenantName": "expertflow",
    "tenantId": "expertflow",
    "tenantCode": "13135",
    "tenantSettings": {
        "keyCloak": {
            "credentials": {
                "secret": "ef61df80-061c-4c29-b9ac-387e6bf67052"
            },
            "realm": "expertflow",
            "auth-server-url": "http://keycloak.ef-external.svc/auth/",
            "ef-server-url": "http://ef-cx-unified-admin-svc:3000/",
            "Otp_Manager_Url": "http://ef-cx-otp-manager-svc:3000/",
            "ssl-required": "external",
            "resource": "cim",
            "verify-token-audience": false,
            "use-resource-role-mappings": true,
            "confidential-port": 0,
            "CLIENT_ID": "cim",
            "CLIENT_DB_ID": "ef61df80-061c-4c29-b9ac-387e6bf67052",
            "GRANT_TYPE": "password",
            "GRANT_TYPE_PAT": "client_credentials",
            "USERNAME_ADMIN": "admin",
            "PASSWORD_ADMIN": "admin",
            "SCOPE_NAME": "Any default scope",
            "bearer-only": true,
            "FINESSE_URL": "",
            "TWILIO_SID": "AC99cffb57f6d7e3c3da5f0f149ddc2b47",
            "TWILIO_VERIFY_SID": "VA73622e86ae131799532a804ec9e230e3",
            "TWILIO_AUTH_TOKEN": "31bea9d152d6c1dd053cd4a8481fc234",
            "RSA_Server_URL": "",
            "RSA_Client_Key": "",
            "RSA_Client_ID": "",
            "MASTER_USERNAME": "admin",
            "MASTER_PASSWORD": "admin",
            "policy-enforcer": {}
        },
        "redis": {
            "userName": "expertflow",
            "password": "Expertflow123"
        },
        "mongo": {
            "userName": "expertflow",
            "password": "Expertflow123"
        },
        "fqdn": "efcx-dev2.expertflow.com",
        "campaigns": {
            "url": "http://cx-campaigns-campaign-studio-svc:1880",
            "username": "admin",
            "password": "admin"
        },
        "surveys": {
            "url": "http://cx-surveys-survey-studio-svc:1880",
            "username": "admin",
            "password": "admin"
        },
        "finesse": {
            "url": "https://finesseurl",
            "adminUser": "user",
            "adminPass": "pass"
        },
        "dialer": {
            "serviceIdentifier": "8224",
            "maxConcurrentCalls": "5",
            "maxCallTime": "60",
            "callsPerSecond": "15"
        },
        "secureLink": {
            "linkExpiryTime": 30
        },
        "mediaServer": {
            "wssUrl": "wss://192.168.2.24:7443",
            "domainManagerUrl": "http://192.168.2.24:8000/add-domain/"
        },
        "twoFAConfigs": {
            "is2FAEnabled": true,
            "channelType": "EMAIL",
            "channelServiceIdentifier": "nasirkhan36616@gmail.com",
            "otpExpiry": 60,
            "otpMaxAttempts": 3
        }
    },
    "status": "inActive",
    "createdBy": "admin",
    "updatedBy": "admin"
}
