CX Voice Upgrade to 4.10

CX Voice Recording Components

Follow the guide here to deploy the recording link uploader and middleware components.

Voice Connector

SSH onto the Debian server on which the Voice connector is installed.
1. Use command
  CODE
```
ssh <username>@<server-ip>
```
2. Enter user password and press ENTER.
3. Use command
  CODE
```
su
```
4. Enter root password and press ENTER.
Navigate to the folder where the docker-compose.yml and env.txt files are located for the voice connector.
Open the docker-compose.yml file and replace the image tag with 4.10.
Save and close the file.
Run the command
CODE
```
docker compose up -d
```
Confirm that the docker container is running by using the command
CODE
```
docker ps
```
Confirm that the container is running correctly by opening the logs with command
CODE
```
docker logs -f containerID
```

Media Server configuration

Scripts

SSH onto the Debian server on which the Voice connector is installed.
1. Use command
  CODE
```
ssh <username>@<server-ip>
```
2. Enter user password and press ENTER.
3. Use command
  CODE
```
su
```
4. Enter root password and press ENTER.
Confirm git is installed, and install it if is not.

Clone the Media Server scripts repository:

CODE

git clone -b 4.10 https://efcx:RecRpsuH34yqp56YRFUb@gitlab.expertflow.com/rtc/freeswitch-scripts.git

Navigate to the cloned repository to access the files:
CODE
```
cd freeswitch-scripts
```

Move the updated scripts and prompts to their respective folders:

CODE

mv consult_conf.lua barge.lua channel_* cx_hangup.lua /usr/share/freeswitch/scripts/
chmod -R 777 /usr/share/freeswitch/scripts/

Changes in Call Recording Dialplan

Login to Media Server web interface.
- Open in browser: https://IP-addr, where IP-addr is the IP address of the Media Server.

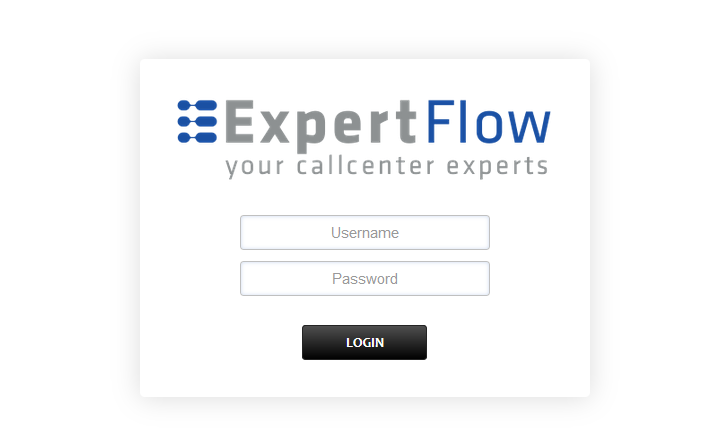

Add the username and password that was shown upon installation of Media Server and press LOGIN.

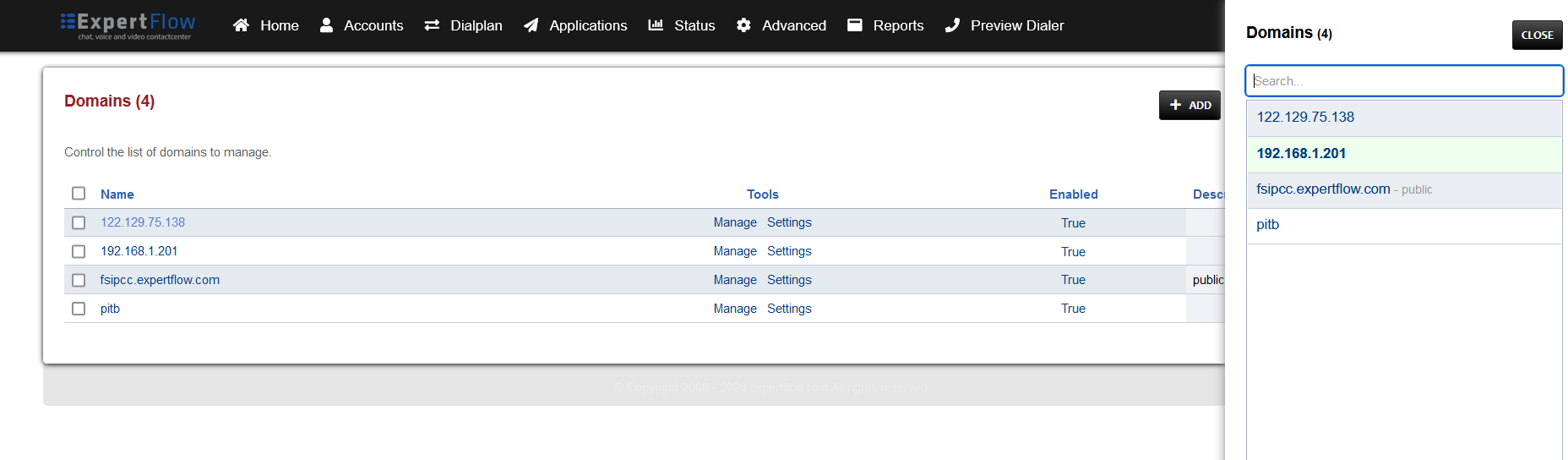

Press the IP address in the top right and select the Domain created in the Domain creation section above:

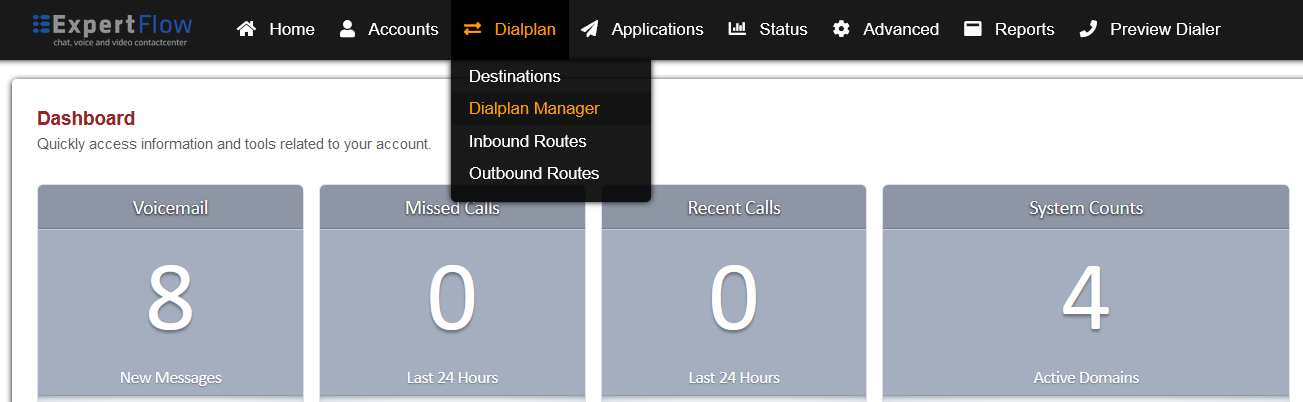

Open the Dialplan Manager section under the Dialplan tab.

Find and open the user_record dialplan.
Make sure to delete the lines present previously in Group 9 apart from the first one, and NOT in the table and image below.

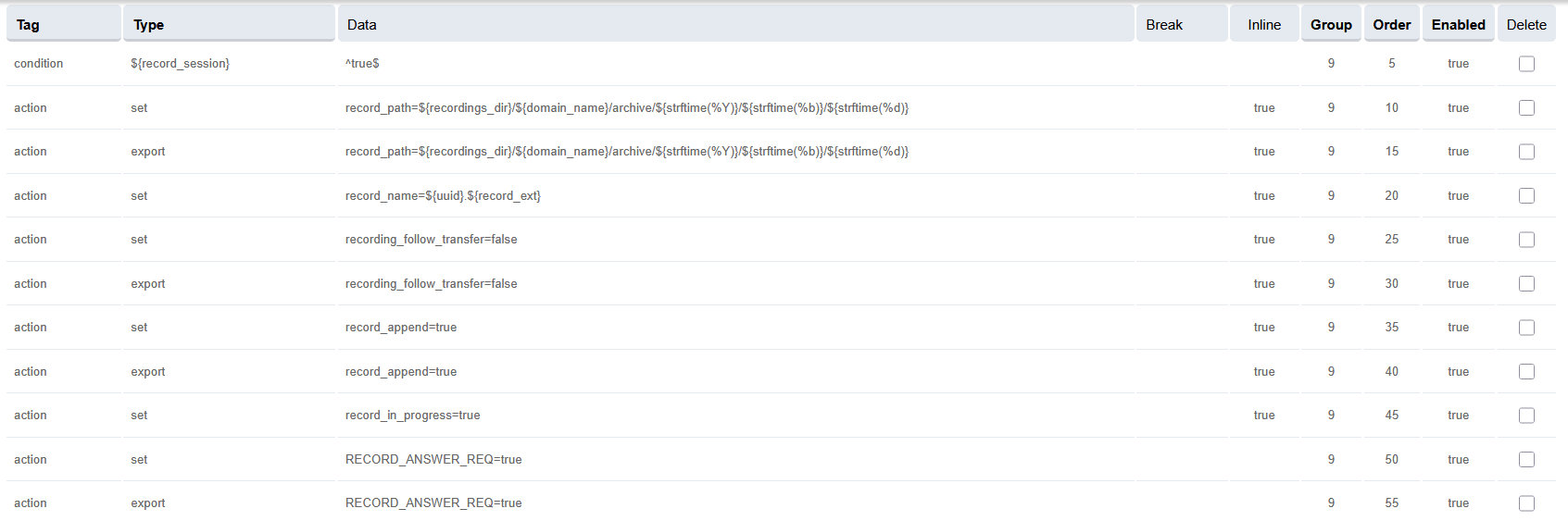

Add the following data to the table, such that the final version of Group 9 looks like the image below:

Tag	Type	Data	Inline	Group	Order	Enabled
condition	${record_session}	^true$		9	5	true
action	set	record_path=${recordings_dir}/${domain_name}/archive/${strftime(%Y)}/${strftime(%b)}/${strftime(%d)}	true	9	10	true
action	export	record_path=${recordings_dir}/${domain_name}/archive/${strftime(%Y)}/${strftime(%b)}/${strftime(%d)}	true	9	15	true
action	set	record_name=${uuid}.${record_ext}	true	9	20	true
action	set	recording_follow_transfer=false	true	9	25	true
action	export	recording_follow_transfer=false	true	9	30	true
action	set	record_append=true	true	9	35	true
action	export	record_append=true	true	9	40	true
action	set	record_in_progress=true	true	9	45	true
action	set	RECORD_ANSWER_REQ=true	-	9	50	true
action	export	RECORD_ANSWER_REQ=true	-	9	55	true

Save the changes by pressing SAVE button in top right corner.

Add recording event hooks

SSH into the Media Server.
- Use command
  CODE
```
ssh username@server-ip
```
- Enter user password and press ENTER.
- Use command
  CODE
```
su
```
- Enter root password and press ENTER.
Open /etc/freeswitch/autoload_configs/lua.conf.xml
Find the line near the end containing

Insert the following under it:

CODE

<hook event="CHANNEL_BRIDGE" subclass="" script="channel_bridge.lua"/>
<hook event="CHANNEL_UNBRIDGE" subclass="" script="channel_unbridge.lua"/>
<hook event="CHANNEL_CALLSTATE" subclass="" script="channel_state.lua"/>

Save the file.
Run the command:

CODE

systemctl restart freeswitch
