Cisco Outbound Connector Deployment Guide

Prerequisites

Software Requirements

Item

Recommended

Installation guide

Operating System

Debian 12

                                                           -

Docker

v24 or higher

https://docs.docker.com/engine/install/debian/

EF CX

Latest version

https://expertflow-docs.atlassian.net/l/cp/hHy74HdV

Cisco UCCX/UCCE

Latest version

https://www.cisco.com/c/en/us/support/customer-collaboration/unified-contact-center-express/products-installation-guides-list.html

Port Utilization Requirements

The following ports must be open on the server for the cisco connector to function.

Type

Application

Description

Port

TCP

Cisco Connector

Access port

any/ (set in docker-compose.yml)

The ports can be opened as follows:

  • SSH into the Debian server.

    • Use command ssh username@server-ip

    • Enter the ssh password and press Enter.

    • Use command su.

    • Enter the root user's password

  • Run the following command and replace PORT with each of the required ports listed above:

    • sudo iptables -A INPUT -p tcp -m tcp --dport PORT-j ACCEPT

      • Example:  sudo iptables -A INPUT -p tcp -m tcp --dport 8021 -j ACCEPT

  • Save this port configuration with command: sudo iptables-save.

Container Deployment

The Cisco connector is deployed as a docker image.

  • Create a folder cisco-connector with the command 'mkdir cisco-connector'.

  • Enter the folder with the command 'cd cisco-connector'.

  • Create a file docker-compose.yml.

    • vi docker-compose.yml

  • Enter editing mode with the 'I' or 'Insert' keys.

  • Copy the contents below and paste them into the file docker-compose.yml

    CODE
    version: "3"
    services:
      cisco-connector:
        image: gitimages.expertflow.com/rtc/cisco-outbound-connector:TAG
        container_name: cisco-connector
        ports:
          - PORT:8080
        env_file:
          - docker-variables.env
        restart: always
    • Replace the 'TAG' keyword with the required image tag(Currently 1.0).

    • Replace ‘PORT’ with a port of your choice.

  • Save and exit by :

    • Press the 'Esc' key.

    • Enter the phrase ':wq' to save and exit.

  • Create a file docker-variables.env

    • vi docker-variables.env

  • Enter editing mode with the 'I' or 'Insert' keys.

  • Copy the contents below and paste them into the file env.txt

    CODE
    TRUST_STORE_PATH=truststore.jks
    TRUST_STORE_PASSWORD=alpine
    CISCO_TYPE=CCX
    CISCO_FQDN=https://uccx.com:8445
    CISCO_USERNAME=administrator
    CISCO_PASS=password
    • The TRUST_STORE_PATH and TRUST_STORE_PASSWORD should not be changed.

    • CISCO_TYPE= Set CCX or CCE depending on what type of Cisco UCC you are using.

    • CISCO_FQDN= The address of the Cisco deployment.

    • CISCO_USERNAME= The admin username of the Cisco deployment.

    • CISCO_PASS= The admin password of the Cisco deployment.

  • Within the folder run the command docker compose up -d.

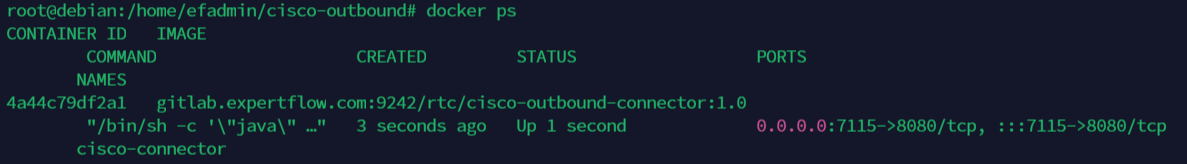

  • Confirm that the docker container is running by using the command docker ps.

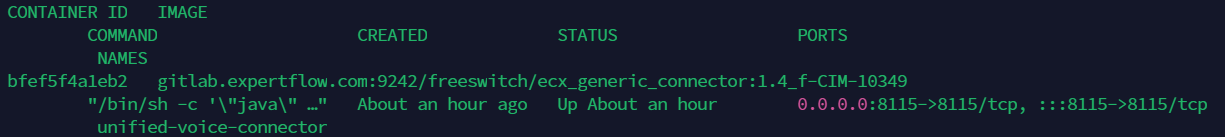

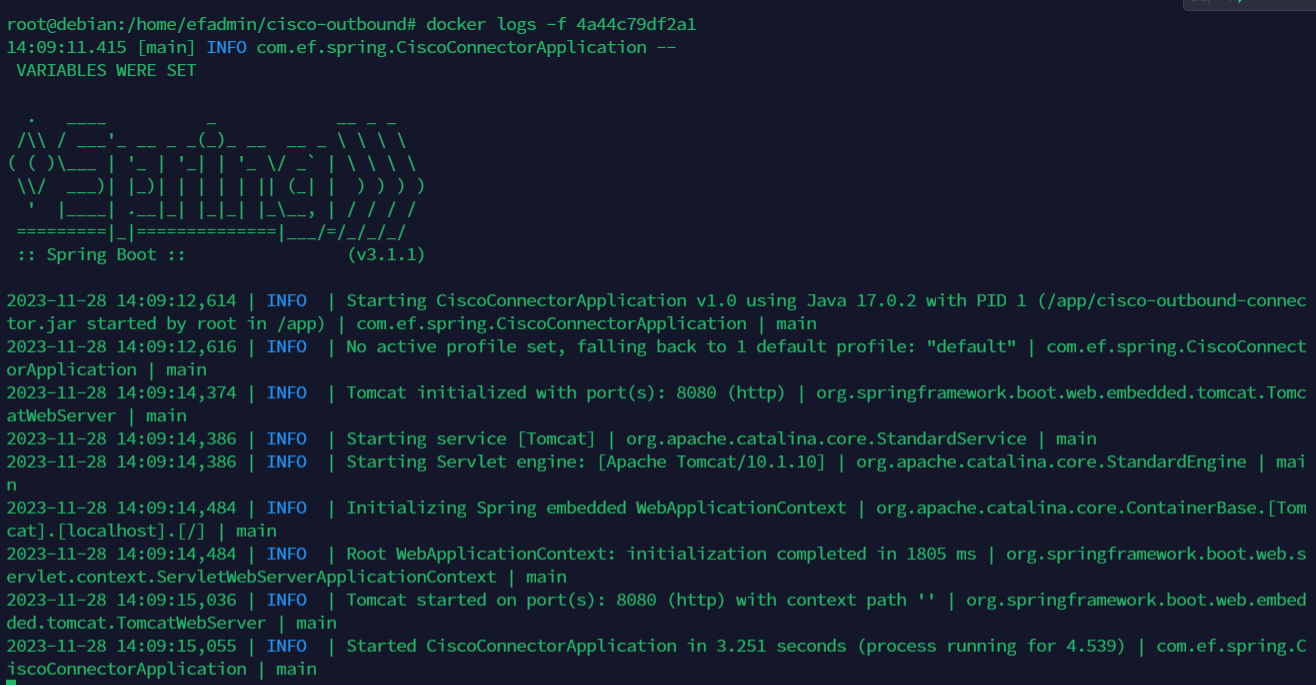

  • Confirm that the container is running correctly by opening the logs with command docker logs -f containerID.
