ENV Node

Node

ENV Node

Description

The ENV node is used to define environment-specific variables at the beginning of the IVR flow. It allows you to configure external or infrastructure-level values (e.g., API base URLs, domain names, configuration flags) that can be referenced throughout the flow using a single source of truth.

This enables seamless transitions between environments (e.g., staging and production) without modifying logic in multiple places.

Purpose

The ENV node is ideal for:

  • Defining environment-wide constants such as:

    • API base URLs

    • Authentication tokens

    • Feature toggles

    • Service FQDNs

    • Logging or debug flags

  • Avoiding hardcoded values across nodes

  • Enabling centralized control over environment settings

Configuration Options

Field

Description

Name

(Optional) A label for readability within the flow editor

ENV Variables

A list of key-value pairs where:

  • Key (string): The variable name (e.g., api_base_url)

  • Value: The corresponding value (e.g., https://api.example.com/v1)
    Can be one of the following types:

    • string, number, boolean,

      JSON (table in Lua), null (interpreted as nil in Lua)

Each key-value pair will be available as ENV.{key} to any other node in the flow.

Usage Constraints

  • Must be placed at the beginning of the IVR flow, ideally immediately after the Start node.

  • Should not be used mid-flow.

  • Must be connected to the Deploy node, to ensure the generated Lua includes all environment variables.

Example

You want to configure a base API path for your staging environment:

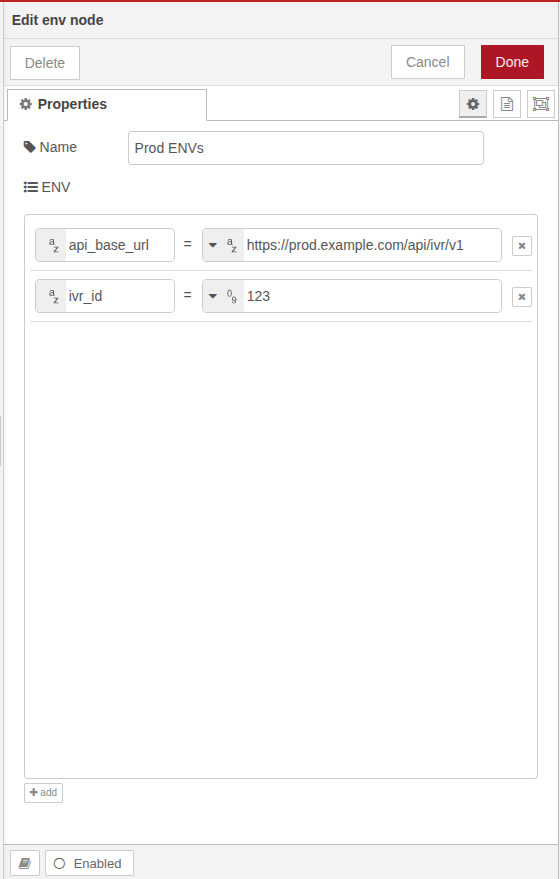

ENV Configuration:

  • api_base_url: https://prod.example.com/api/ivr/v1

  • ivr_id: 123

Then in any HTTP or other nodes later, you can reference:

ENV.api_base_url
ENV.ivr_id

Best Practices

  • Keep all static or environment-dependent values in this node.

  • Use clear and descriptive keys (e.g., crm_api_url, ivr_mode, default_lang)

  • Only one ENV node is allowed in a single IVR design.

  • It should be placed separately from the main flow and directly connected to the Start Node.
