HTTP Node

Node

HTTP Node

Description

The HTTP Node allows you to make RESTful API requests within the IVR flow. It can send data to or fetch data from external services, and automatically captures the response for use in later parts of the flow.

This node is essential for integrating dynamic content, performing lookups, validating user input, or executing business logic via APIs.

Purpose

To perform external API calls (e.g. customer lookup, ticket status, payment verification)
To store API responses into SDO variables for further decision-making
To allow real-time interaction with backend systems

Supported API Type

Currently supports only REST APIs

Configuration Options

Field	Description

Field	Description
Name	Label for the node (for readability)
Type	Currently fixed to `REST`
Method	HTTP method — `GET`, `POST`, `PUT`, or `DELETE`
URL	Full endpoint URL of the API
Body	Request body (JSON format) You can dynamically insert values from CDO, SDO, and ENV into JSON structures using placeholder syntax. For example: CODE `{ "language": "SDO.lang" }` During Lua generation, these placeholders will be resolved at runtime using their respective sources: `SDO.lang` will fetch the value from the Session Data Object `CDO.userId` will reference a variable from the Call Data Object `ENV.apiKey` will retrieve a value from the Environment Variables This allows you to build flexible, dynamic payloads for APIs and other nodes where values may change depending on the session context.
Headers	List of headers in `key-value` pairs. Supports multiple entries. Key must be a string Value can be from `CDO`, `SDO`, `ENV`, or direct string values
Response	Name of the SDO key where response will be stored

Response Storage Format

Upon successful API execution, the node stores the result in an SDO variable using the key provided in the Response field:

SDO Path	Description
`SDO.{key}.code`	HTTP status code (e.g., 200, 404)
`SDO.{key}.headers`	Response headers in Lua table format
`SDO.{key}.body`	Parsed response body (Lua table)

These response values can be used in any subsequent node — like in a Decision Node, Prompt, or Digit input logic.

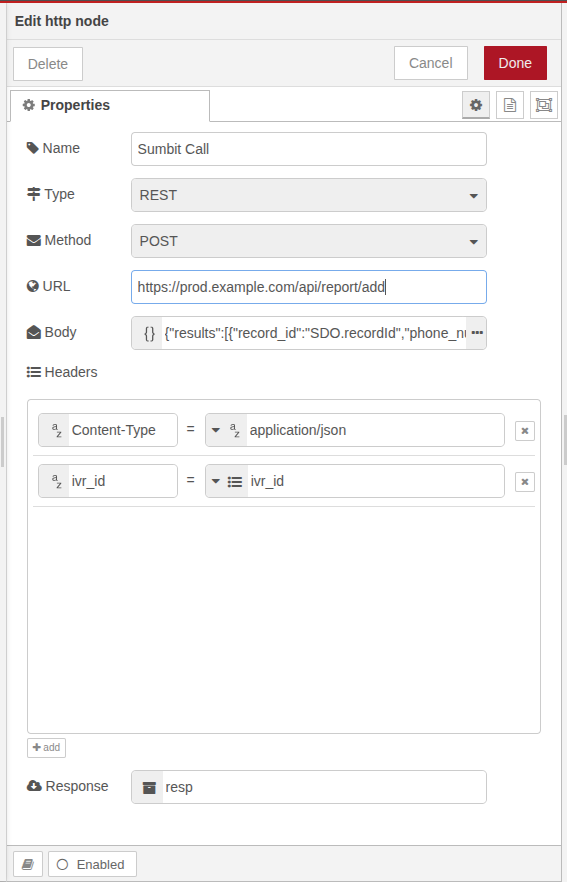

Example

On Hangup node you want to submit a call report based on user selections and inputs.

Best Practices

Validate responses using a Decision Node after API call
Use environment variables for dynamic headers like tokens or base URLs
Always define unique and descriptive SDO keys for response storage
Use error handling logic (like Exception Node) for failed API calls
