SDO Node (Session Data Object)

Node

Session Data Object (SDO)

Description

The SDO(Session Data Object) Node is used to create or modify session-scoped variables during the IVR call flow. These variables are not tied to the CDO (Call Data Object), but are maintained separately within the the duration of the call.

This node enables storing, modifying, and referencing dynamic data, making it extremely useful for managing user inputs, API responses, prompts, or any temporary values throughout the call journey.

You can use this node anywhere in the flow, and its values can be accessed later in other nodes using the SDO.{key} notation.

Use Cases

  • Saving menu selections or digit entries

  • Holding API response data or computed values

  • Storing flags or session-specific preferences

  • Passing dynamic content to prompt, HTTP, Queue, or Lua Code nodes etc

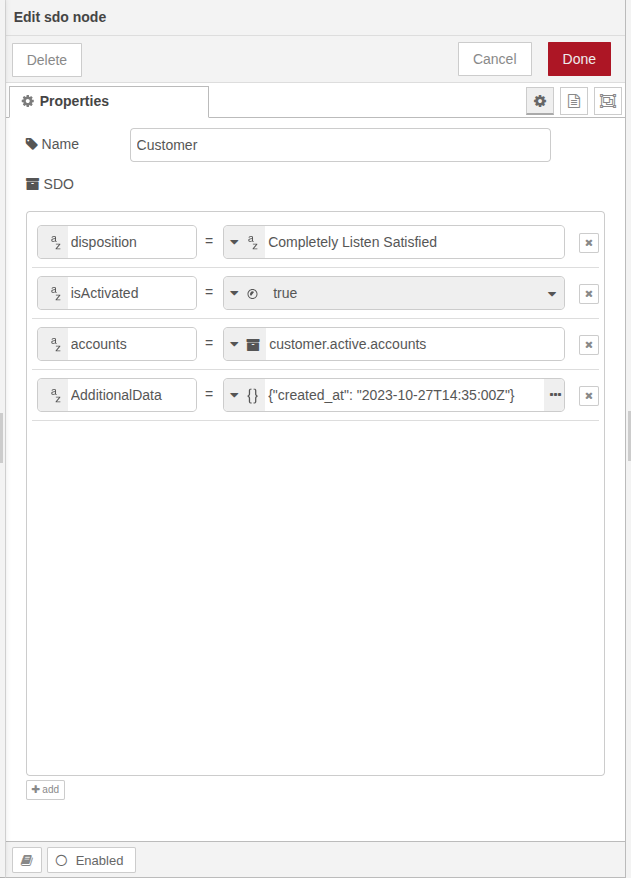

⚙️ Configuration

Field

Description

Example

Name

A user-friendly label for this node in the designer.

Set Caller Info

SDO

One or more key-value pairs to be stored. Keys must be strings. Values can be of multiple types, described below.

See examples below

🔡 Supported Value Types for SDO

Type

Description

Example

String

Simple text or string literals

"customer"

Number

Integer or floating-point numbers

100 or 45.6

Boolean

Logical values

true or false

JSON

Structured JSON objects for complex values

{"plan": "premium", "active": true}

Null

Special value that translates to nil in Lua

null


🧠 Behavior

  • Once set, these SDO values can be reused in HTTP, Menu, Digit, Lua Code, or any other nodes supporting dynamic values.

  • For example:

    • To set SDO.lang = "en" early in the flow

    • And then use it later in HTTP header: Accept-Language: SDO.lang

📌 Comparison with CDO Node



SDO Node

CDO Node

Contains

Call Data Information like caller_id, ani

Custom session data maintained by IVR designer

Purpose

Get the call information

Maintain the custom data to manage the IVR flow

Best Practices

  • Use clear & consistent key names (e.g. userLang, retryCount)

  • Set important SDOs early in the flow

  • Store API responses or user inputs for reuse

  • Use null only if you handle it properly, in Lua (nil)

  • Inject SDOs into API headers/body or dynamic prompts

  • Prefer JSON type for structured data

  • Don't duplicate data already in CDO
